| Westerschelde 23 September 2012 |
 |
| Westerschelde 23/09/12 |
|
Name |

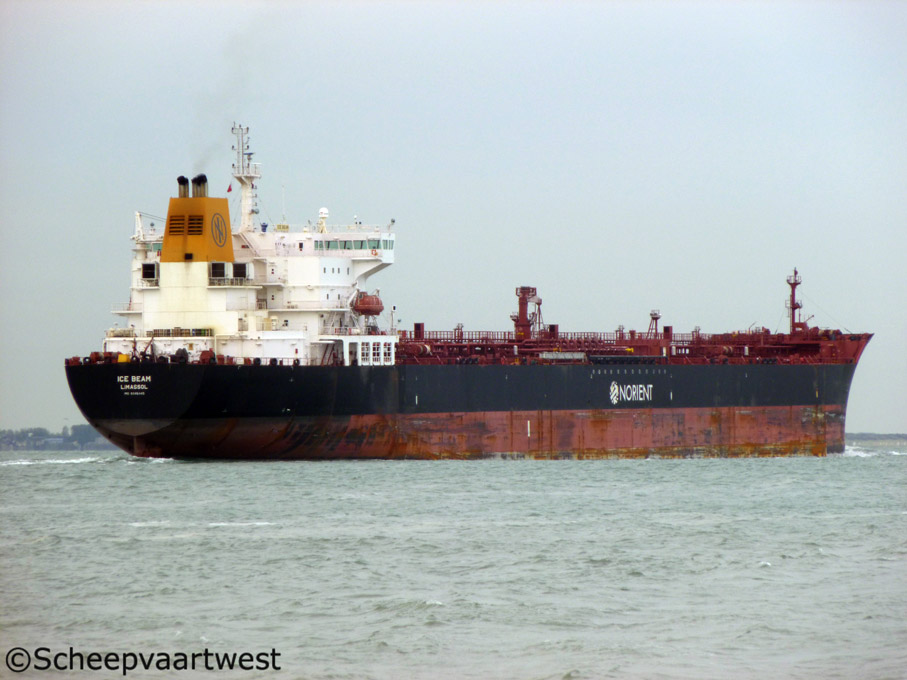

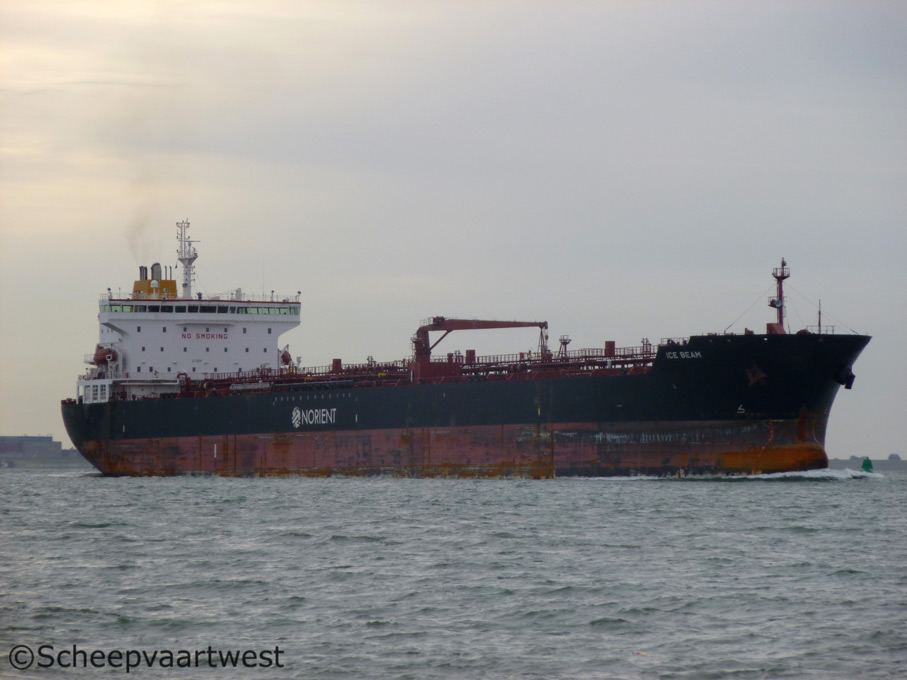

ICE BEAM |
|
Type |
Tanker for oil |
|
IMO-number |
9346445 |
|
Call sign |
5BCD2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
38.899 t Suez: 40.028,61 t |
|
DWT |
Summer: 63.495,08 t |
|
NT |
16.978 t Suez: 35.129,35 t Panama: 32.168 t |
|
Length |
228,01 m overall 219,00 m between perpendiculars |
|
Breadth |
32,22 m extreme |
|
Draught |
12,50 m |
|
Keel to masthead |
48,52 m |
|
Air draft |
Lightship: 43,94 m Normal ballast: 39,98 m At loaded summer deadweight: 36,00 m |
|
Freeboard |
Summer: 6.615 mm |
|
Depth |
19,13 m |
|
Speed |
15,4 knots |
|
Built |
2008 |
|
Keel laid |
05/02/2008 |
|
Launch date |
10/04/2008 |
|
Date of completion |
28/05/2008 |
|
Builder |
STX Shipbuilding Co., Ltd. 100, Wonpo-Dong, Jinhae-gu 645-703 Changwon Republic of Korea |
|
Yard number |
1228 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S60MC-C - 2 stroke 6 cylinder 600 c x 2.400 mm combustion engine 13.560 kW / 18.436 hp at 105,0 rpm |
|
Propellers |
1x Controllable pitch propeller Builder: MAN B&W Alpha, Denmark |
|
Boilers |
1x Auxiliary boiler, vertical shell type (Oil Fired) - Mission OL 1x Auxiliary boiler, exhaust gas water tube (Exhaust) - Mission XW Builder: Aalborg Industries AS |
|
Generators |
3x STX/MAN-B&W 6L23/30H main diesel generatorsets |
|
Emergency generator |
1x Cummins 6CTA8.3-DCM diesel generatorset |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
71.370,4 m³ excl. slop Seg#1: 10.113,2 m³ (P & S) Seg#2: 12.520,0 m³ (P & S) Seg#3: 12.548,1 m³ (P & S) Seg#4: 12.556,0 m³ (P & S) Seg#5: 12.536,9 m³ (P & S) Seg#6: 11.240,8 m³ (P & S) Seg#7: 1.691,7 m³ (Slop Tanks P & S) |
|
Slop tank capacity 98% |
1.726,6 m³ |
|
Pumps |
12x Centrifugal cargo pumps each 750 m³/h 2x Centrifugal cargo pumps each 300 m³/h 2x Centrifugal cargo ballast pumps each 1.000 m³/h |
|
Manifolds |
Bow to centre manifold: 115,45 m Stern to centre manifold: 112,56 m Distance bridge front to centre of manifold: 77,16 m Distance between cargo manifold centres: 2.500 mm Distance ships rail to manifold: 4.400 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 750 mm Distance main deck to centre of manifold: 2.100 mm |
|
Tank capacities |
Ballast: 31.902,5 m³ |
|
Anchor equipment |
Length: 600 m Diameter: 78 mm |
|
Lifting equipment |
1x Cranes - SWL 15,0 t Maximum outreach: 5,00 m |
|
Manager |
Interorient Marine Services Ltd. 142 Franklin Roosvelt CY-3011 Limassol Cyprus |
|
Operator |
Norient Product Pool ApS 52, Strandvejen DK-2900 Hellerup Denmark |
|
Registered owner |
Ice Beam Shipping Company Limited 3 Thaleias Str, P.C. 3011 Limassol Cyprus |
|
|
2013 Aurora N Republic of Panama; Panama City - Call sign: 3FST9 Owner: Aphrodite Shipping Corp. - Greece Manager: Navios Tankers Management Inc., Piraeus - Greece |
|
Latest data adjustment |
20 February 2023 |
