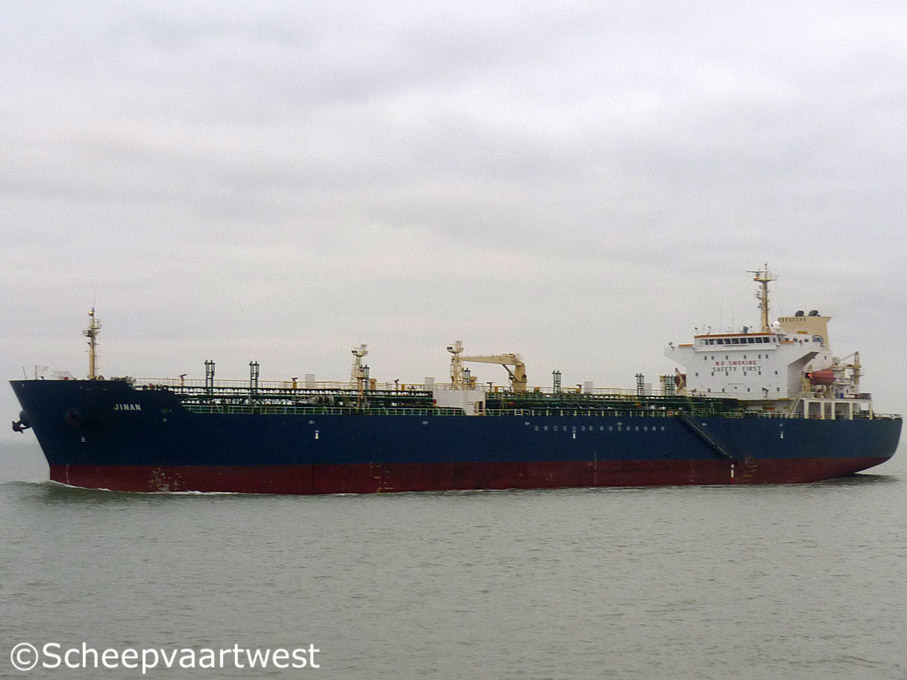

| Westerschelde 27 December 2011 |
|
Name |
JINAN |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9239654 |
|
Call sign |
A7LZ |
|
Flag |
State of Qatar |
|
Port of registry |
Doha |
|
GT |
25.408 t registered Suez: 26.777 t |
|
DWT |
Summer: 37.284,5 t |
|
NT |
8.908 t registered Suez: 22.682 t Panama: 21.138 t |
|
Length |
175,90 m overall 168,00 m between perpendiculars |
|
Breadth |
31,00 m |
|
Draught |
9,60 m |
|
Freeboard |
6.714 mm |
|
Depth |
17,20 m moulded |
|
Speed |
14,5 knots |
|
Built |
2003 |
|
Keel laid |
24.10.2002 |
|
Launch date |
16.01.2003 |
|
Date of completion |
02.04.2003 |
|
Builder |
Shinasb Yard Co., Ltd. - SLS heavy industries |
|
Yard number |
SAS 415 |
|
Hull material |
High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 6 Oil tight: 9 |
|
Main engine |
1x HSD-MAN B&W 6S50MC,MK6- 6 cylinder 500 x 1.910 mm diesel engine - 8.680 kW at 127,0 rpm Manufacturer: HSD Engine Co., Ltd. |
|
Propeller |
1 Manufacturer: SIL LA METAL CO., Ltd. |
|
Generators |
3x Main diesel generatorsets Taiyo FE 553A-10 each 810 kW Manufacturer: Taiyo Electric Co., Ltd. |
|
Number cargo tanks |
15 |
|
Cargo oil capacity 100 % |
45.638,63 m³ / 44.725,85 t |
|
Number of tanks |
Water ballast: 14 Fuel oil: 7 Lubricating oil: 7 Fresh water: 4 Diesel oil: 4 Waste water: 2 Chain: 2 Sludge: 2 Hydraulic oil: 1 |
|
Tank capacities |
Diesel oil: 245,10 m³ / 208,88 t Fresh water: 268,03 m³ Fuel oil: 1.509,74 m³ / 1479,01 t Hydraulic oil: 19,96 m³ / 18,96 t Lube oil: 90,20 m³ / 81,18 t Tank ballast: 21.159,28 m³ / 21.688,26 t |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t Manufacture: Dong Nam Enterprise Co.,Ltd. 2x Provision jib crane - SWL 3,0 t each Manufacture: Dong Nam Enterprise Co.,Ltd. |
|
Manager |
Qatar Shipping Company S.P.C. |
|
Operator |
Qatar Shipping Company S.P.C |
|
Registered owner |
Qatar Shipping Company Q.S.C. |
