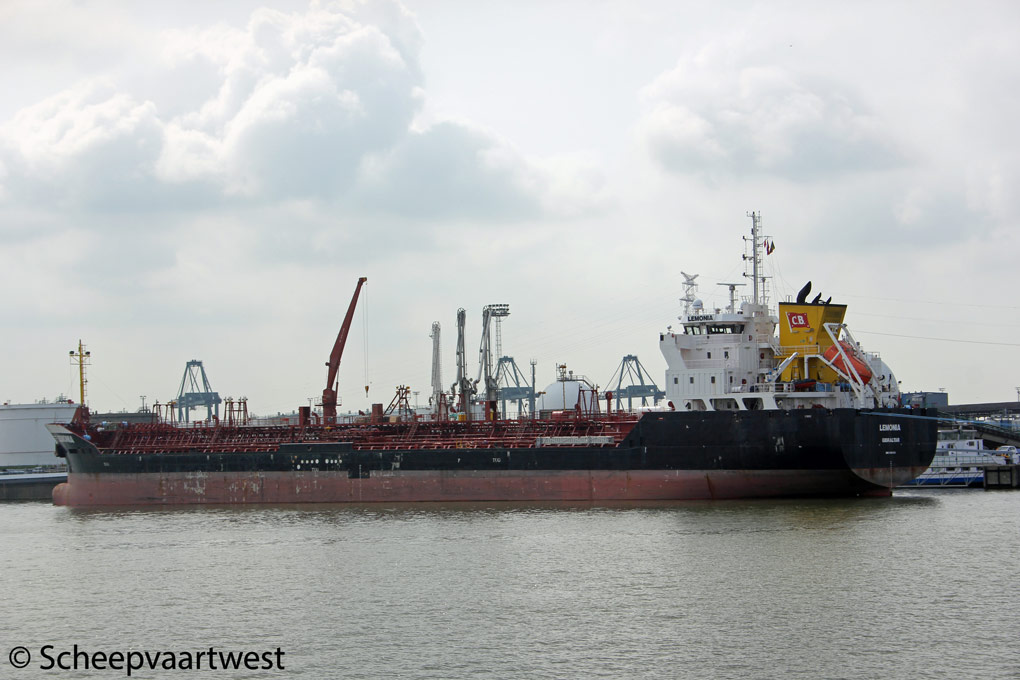

Antwerpen 24 October 2014 |
 |
 |
 |
 |
 |
 |
|||||

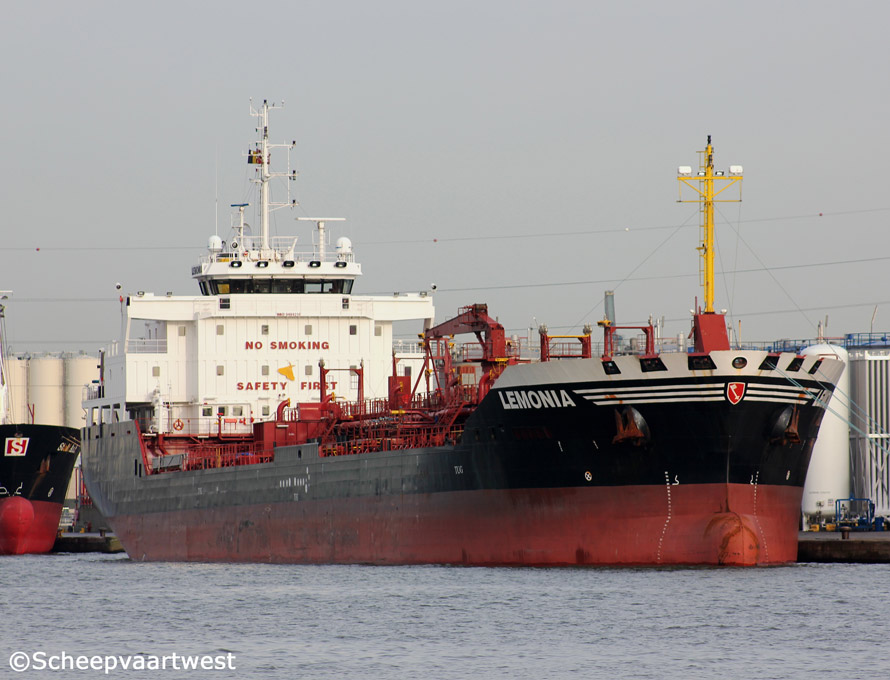

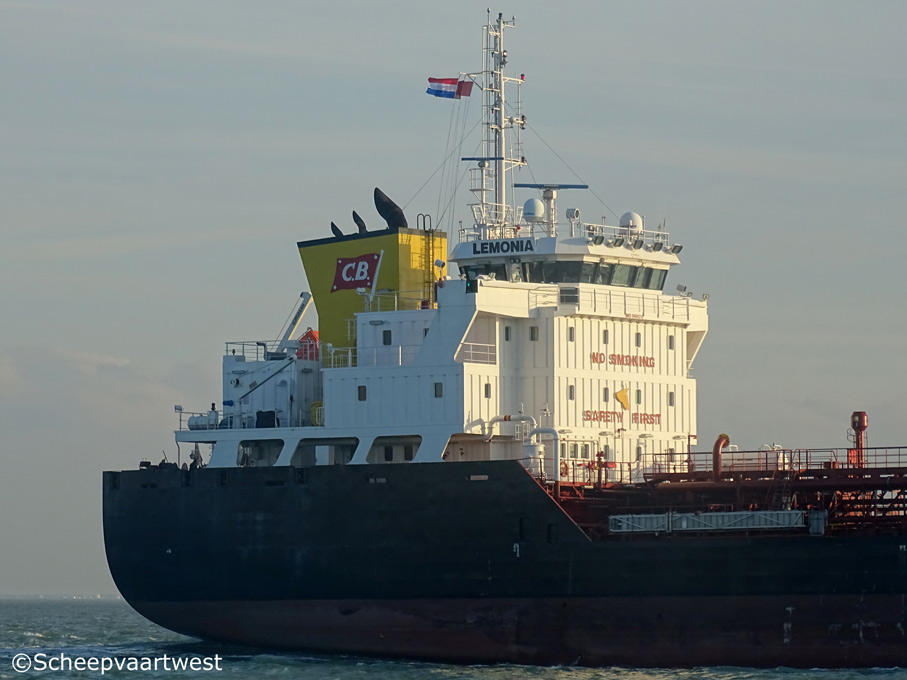

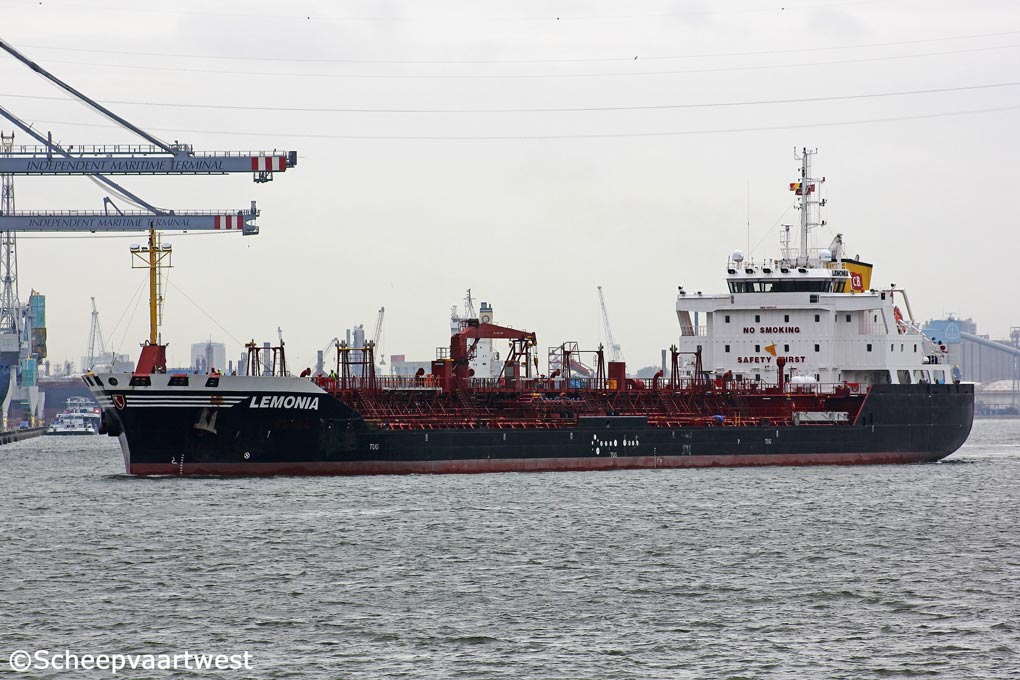

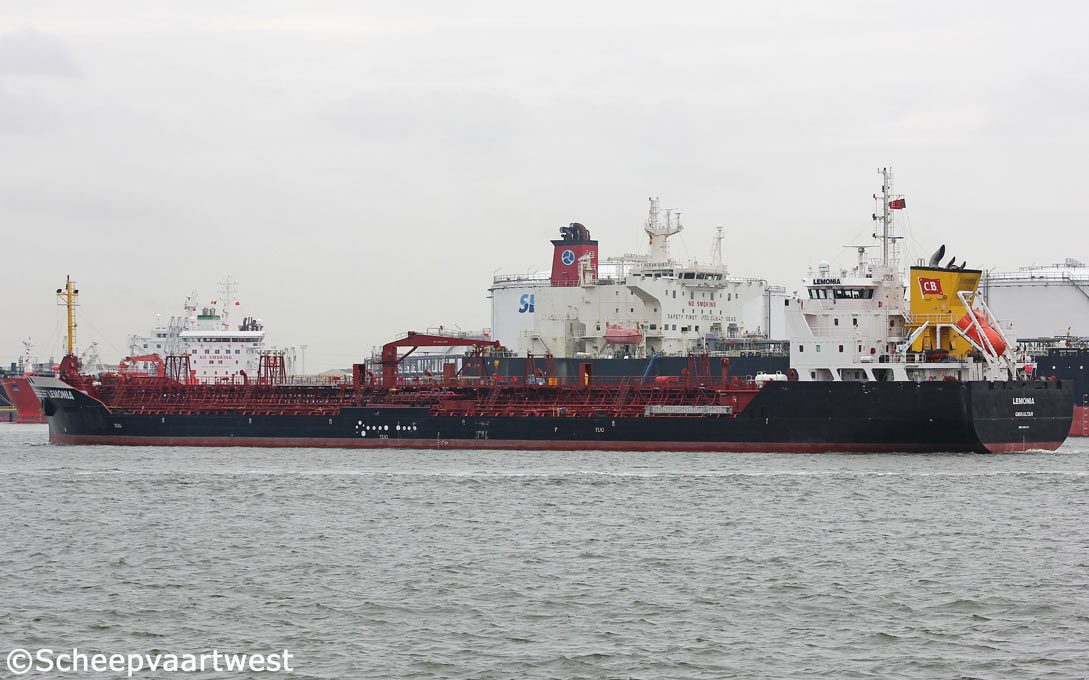

| Westerschelde 12/11/15 | Antwerpen 09/12/14 | Westerschelde 22/10/11 | Westerschelde 12/10/11 | Antwerpen 05/07/13 | Antwerpen 24/10/14 | |||||
 |
 |
 |
 |
|||||||

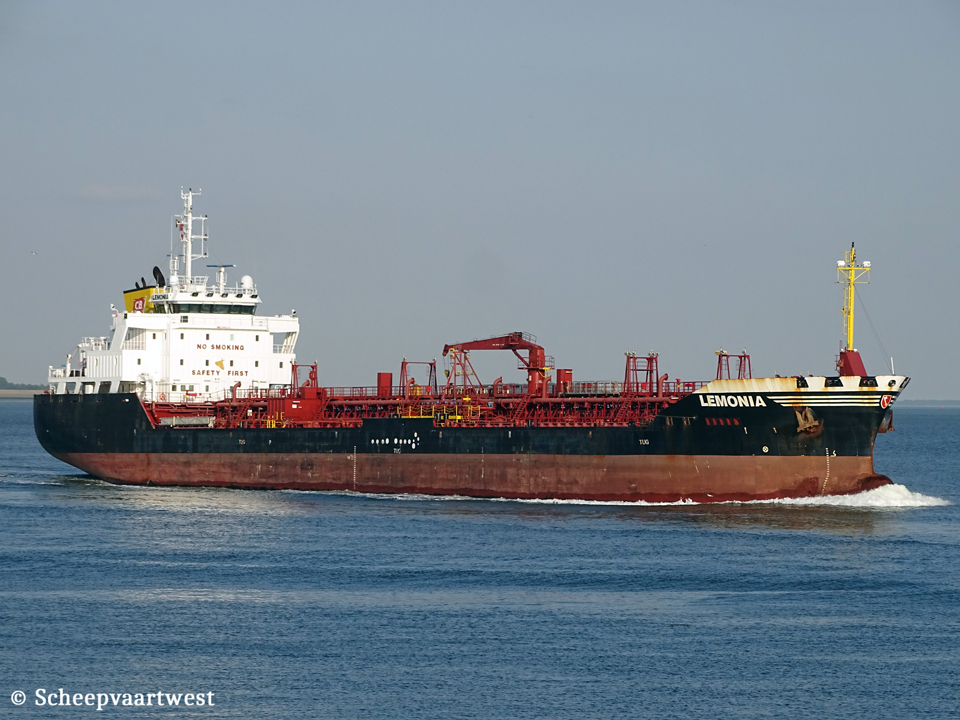

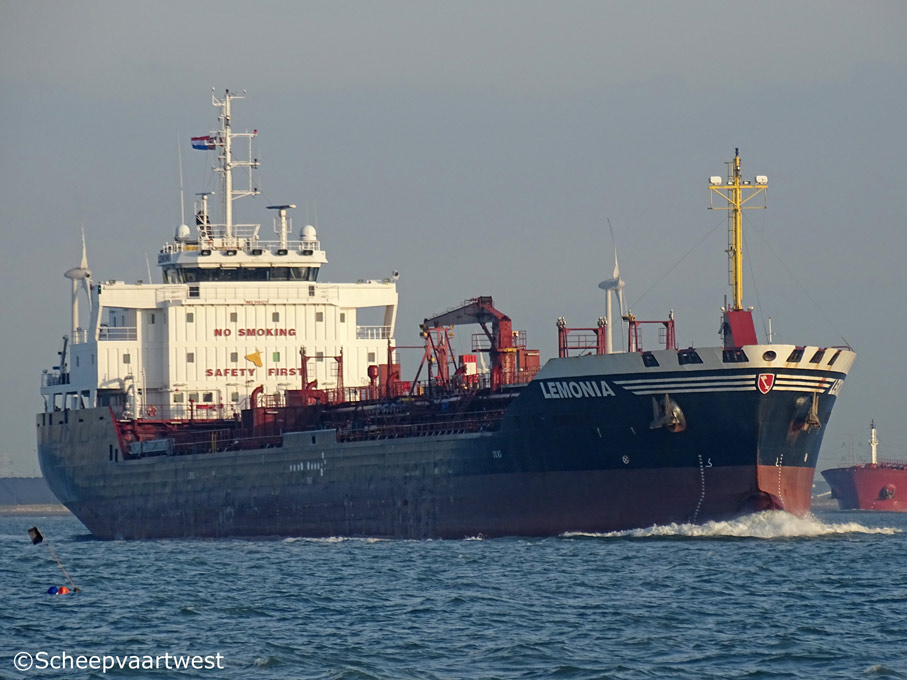

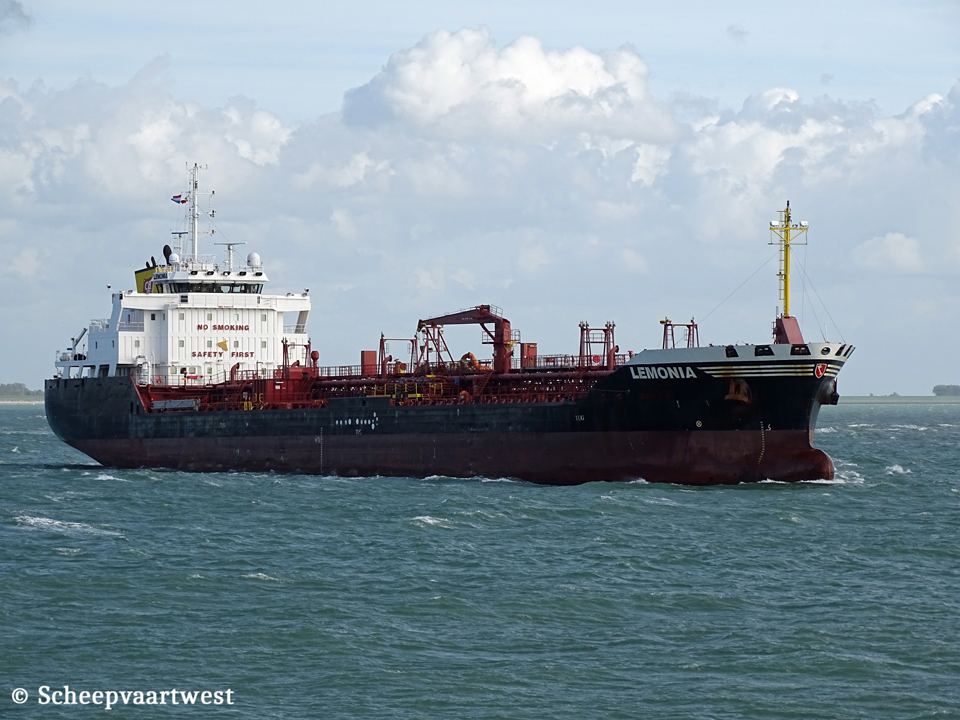

| Westerschelde 12/11/15 | Westerschelde 10/10/19 | Westerschelde 29/07/19 | Westerschelde 29/07/19 | |||||||
|
Name |
LEMONIA |
|
Type |
Chemical tanker - Oil tanker |
|
IMO-number |
9494216 |
|
Call sign |
ZDJJ3 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
8.652 t |
|
DWT |
15.160,54 t |
|
NT |
4.670 t |
|
Length |
139,95 m over all 134,75 m registered |
|
Breadth |
21,00 m extreme |
|
Draught |
8,10 m |
|
Keel to mast end |
35,40 m |
|
Depth |
10,60 m moulded |
|
Speed |
14,0 knots |
|
Built |
2009 |
|
Keel laid |
10/06/2008 |
|
Launch date |
01/01/2008 |
|
Date of completion |
10/08/2009 |
|
Builder |
Kocaeli Serbest Bölgesi Pars. 24-3 Arpali Mevkii Yeniköy 41275 Kocaeli Turkey |
|
Yard number |
06 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar MaK 6M43 C - 4 Stroke 6 cylinder 430 x 610 mm combustion engine 5.400 kW at 500 rpm Year of manufacture: 2009 Manufacturer: Caterpillar Motoren Rostock GmbH Werftallee 13 18119 Rostock Federal Republic of Germany |
|
Propeller |
1x Controllable pitch ZF Marine KH1070 propeller at 158 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated type AHE 075 V 40 - 10,0 bar Heating surface: 135 m² 2x Thermal oil heater, oil fired type HE 13 V 50 - 10,0 bar Heating surface: 53,2 m² Year of manufacture: 2008 Manufacturer: HTI - GESAB Hoch-Temperatur Industrieanlagen GmbH Sauerbruchstr. 11 25479 Ellerau Federal Republic of Germany |
|
Electric installations |
3x Plant 450 V - 937,5 kVA 1x Plant 450 V - 1.750 kVA 1x Plantx450 V - 187 kVA |
|
Shaft generator |
1.750 kVA / 1.400 kW at 1.800 rpm |
|
Generators |
3x Yanmar 6N21AL-UV main diesel generatorsets each 750 kW / 937,5 kVA at 900 rpm - 440 Volt 60 Hz |
|
Emergency + Harbour gen. |
1x 634 DSBIG diesel generatorset 187 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 40 litres - 30,0 bar 1x Receiver 200 litres - 30,0 bar |
|
Bow thruster |
1x 3 Steps, electrical-driven Jastram BU 100 - 750 kW, forward |
|
Number of cargo tanks |
13 |
|
Tank capacity 98% |
No. 1 P + S: 1.149,58 / 1.145,50 m³ No. 2 P + S: 1.081,64 / 1.085,30 m³ No. 3 P + S: 986,55 / 996,69 m³ No. 4 P + S: 1.573,01 / 1.579,22 m No. 5 P + S: 1.690,22 / 1.689,69 m³ No. 6 P + S: 1.382,25 / 1.380,94 m³ Slop tank: 377,55 m³ Total (98%): 16.118,14 m³ |
|
Pumps |
12x Deepwell hydraulic driven cargo pumps each pump capacity is 335 m³/h 1x Deepwell hydraulic driven slop pump 80 m³/h Max. loading rate: 2.010 m³/h Max discharging rate: 2.010 m³/h |
|
Cargo system |
|
|
Ballast system |
|
|
Anchor equipment |
3x Anchors weight each 4.320 kg Chain length: 550,00 m Diameter: 50 mm |
|
Lifting equipment |
1x Hydraulic hose handling crane - SWL 5,0t |
|
Manager |
Carl Büttner Shipmanagement GmbH Herrlichkeit 2 28199 Bremen Federal Republic of Germany |
|
ISM manager |
Carl Büttner GmbH & Co. KG, Carl Büttner Shipmanagement GmbH Herrlichkeit 2 28199 Bremen Federal Republic of Germany |
|
Previous managers |
2009 - 2009 Carl Büttner GmbH & Co. KG |
|
Registered owner |
MT "LEMONIA" Schiffahrtsgesellschaft mbH & Co. KG Herrlichkeit 2 28199 Bremen Federal Republic of Germany |
|
Previous owners |
2009 - 2009 MT "LEMONIA" Schiffahrtsgesellschaft mbH & Co. KG 2009 - 2009 Neunte Büttner Schiffahrtsgesellschaft mbH & Co. KG |
|
Renamed |
11/2021 Bondi Marshall Island, Majuro - Call sig: V7A5065 Reg. owner: Balmoral Partners Ltd. Operator: Atlantic Ship Management Ltd. |
|
Latest data adjustment |
02 January 2022 |
