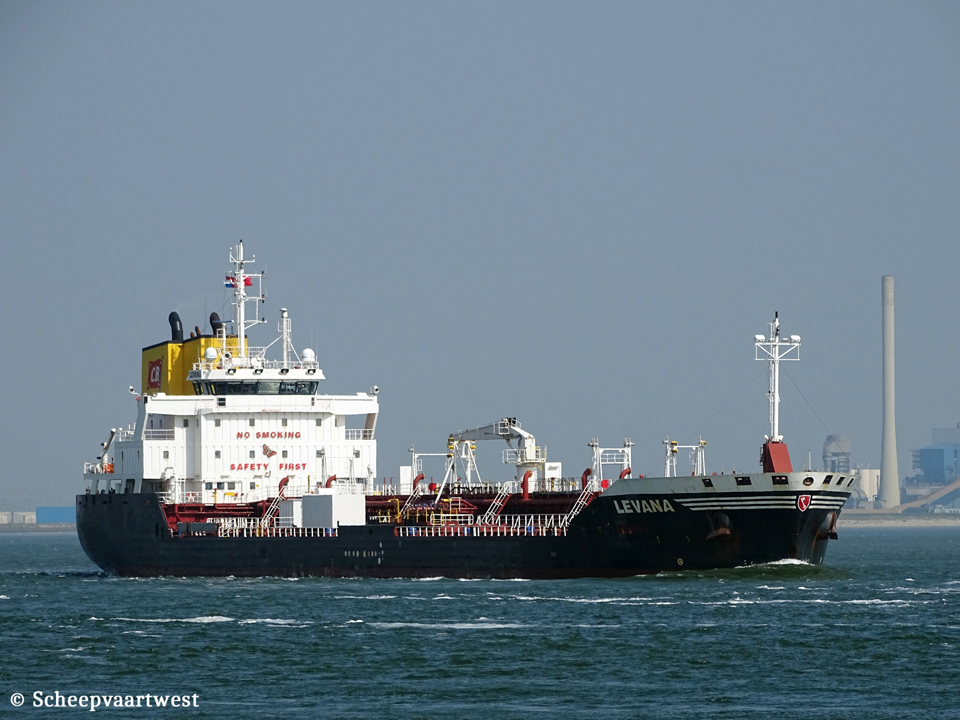

| Westerschelde 06 September 2018 |
 |
 |
 |
 |
 |
 |
|||||

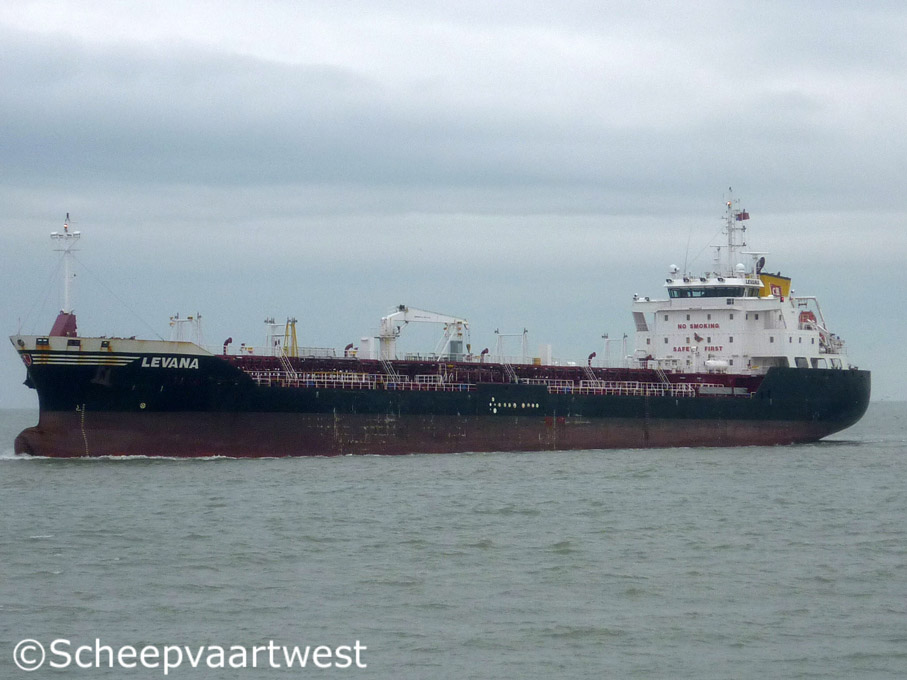

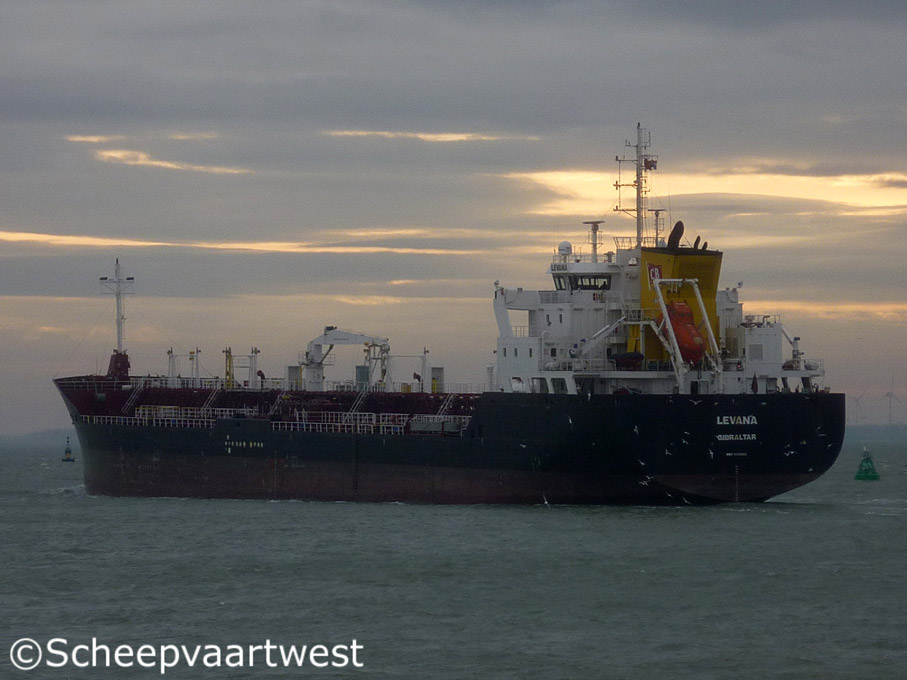

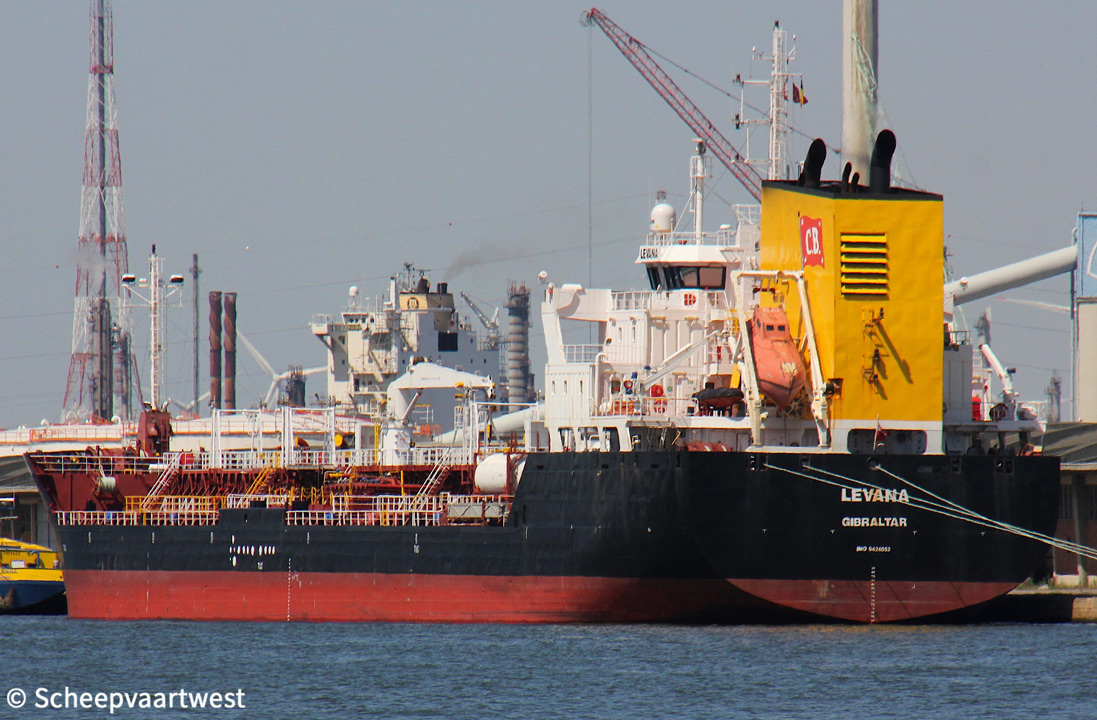

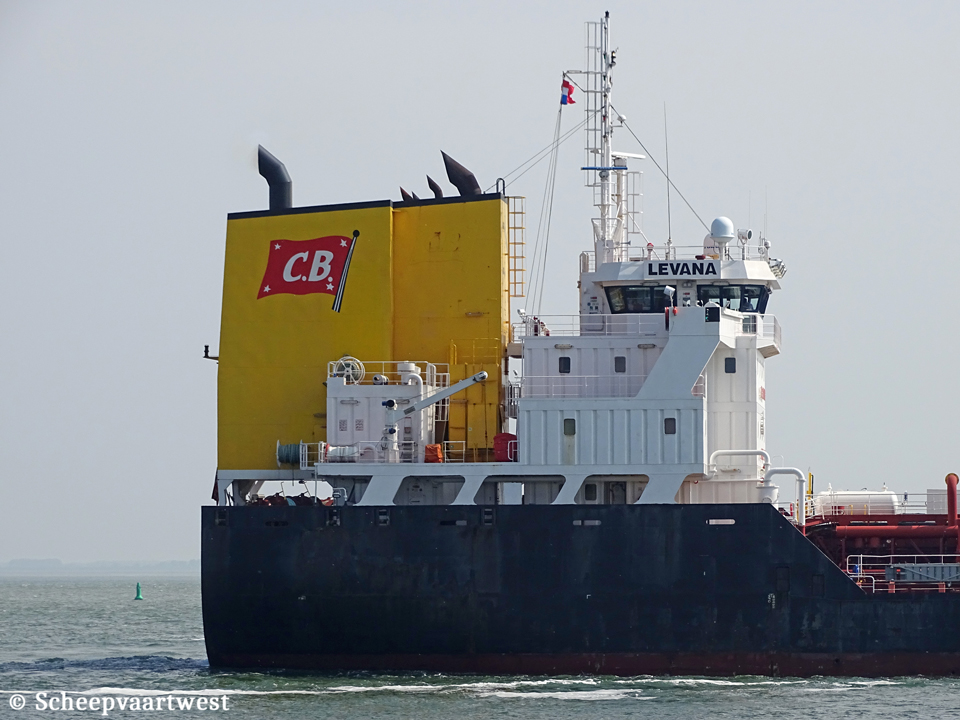

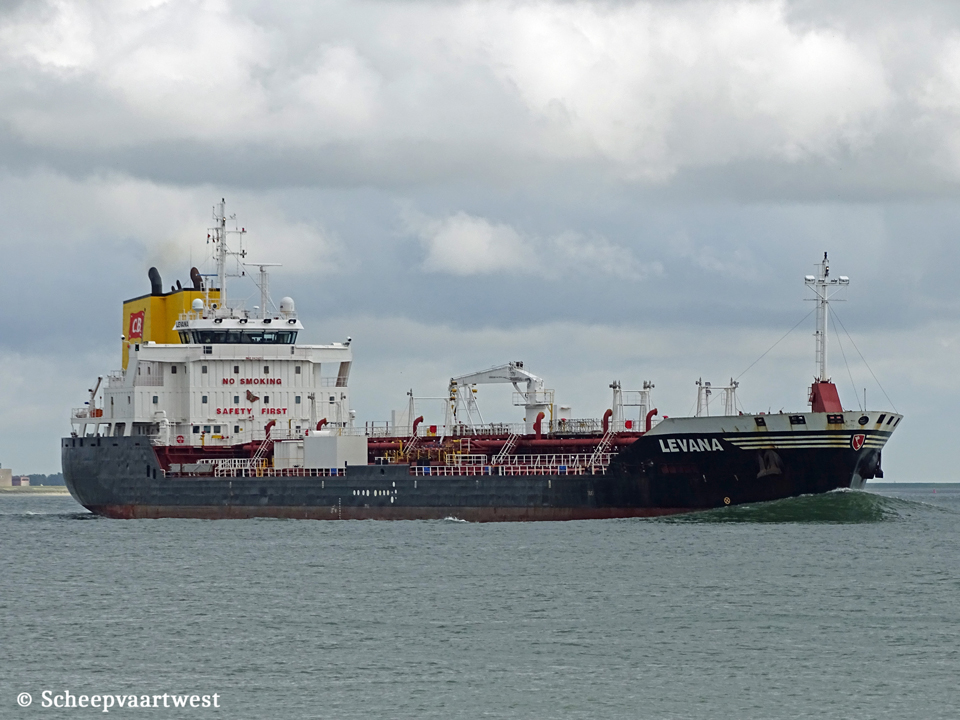

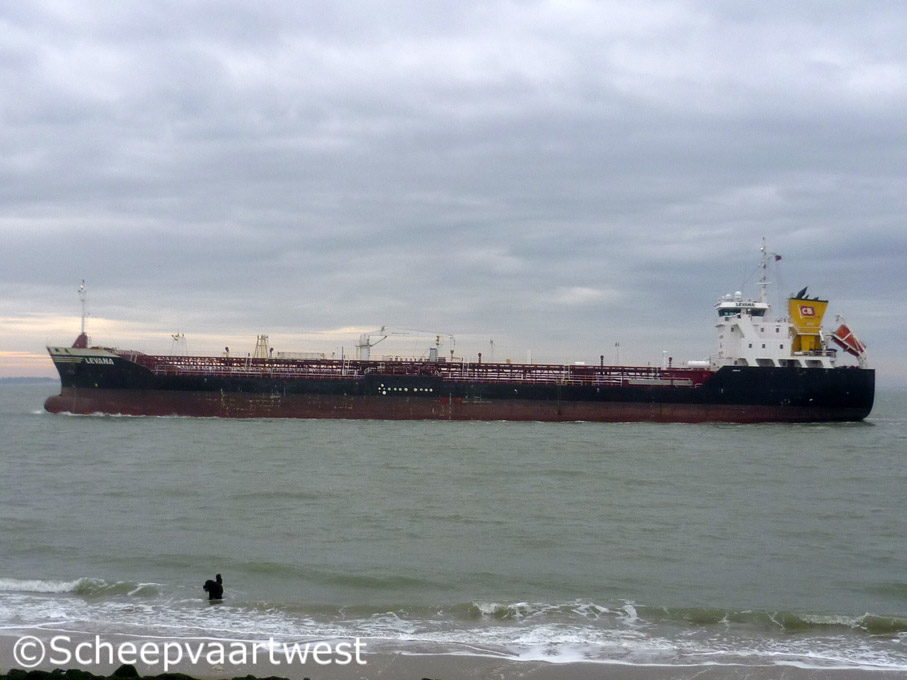

| Westerschelde 11/12/11 | Westerschelde 11/12/11 | Westerschelde 11/12/11 | Antwerpen 23/07/19 | Westerschelde 06/05/17 | Westerschelde 06/05/17 | |||||
|
Name |
LEVANA |
|
Type |
Tanker for oil & chemicals |
|
IMO-number |
9424053 |
|
Call sign |
ZDJD2 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
8.652 t |
|
DWT |
15.160 t |
|
NT |
4.670 t |
|
Length |
139,95 m overall 134,75 m registered |
|
Breadth |
21,00 m registered |
|
Draught |
8,10 m |
|
Keel to mast end |
35,40 m |
|
Depth |
10,60 m moulded |
|
Speed |
14,0 knots |
|
Built |
2009 |
|
Keel laid |
01/11/2007 |
|
Launch date |
26/07/2008 |
|
Date of completion |
03/03/2009 |
|
Builder |
TVK Gemi Yapim San. ve Tic. A.S. Kocaeli Serbest Bölgesi Pars. 24-3 Arpali Mevkii Yeniköy, Izmit 41275 Kocaeli Turkey |
|
Yard number |
04 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M43C - 4 stroke 6 cylinder 430 x 610 mm combustion engine 5.400 kW at 500 rpm Year of manufacture: 2007 Manufacturer: Caterpillar Motoren Rostock GmbH Werftallee 13 18119 Rostock Federal Republic of Germany |
|
Propeller |
1x Controllable pitch propeller ZF Marine Type KH1070 - aft at 158 rpm Diameter: 4.200 mm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 135,0 m² 1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 53,2 m² Manufacturer: HTI - GESAB Hoch-Temperatur Industrieanlagen GmbH Sauerbruchstr. 11 25479 Ellerau Federal Republic of Germany |
|
Electric installations |
1x Plant 440 V - 937,5 kVA 1x Plant 440 V - 937,5 kVA 1x Plant 440 V - 937,5 kVA 1x Plant 440 V - 1650 kVA 1x Plant 440 V - 187 kVA |
|
Shaft generator |
1x 1.750 kVA / 1.400 kW at 1.800 rpm |
|
Generators |
3x Yanmar 6N21AL-UV main diesel generatorsets each 937,5 kVA / 750 kW at 900 rpm- 440 Volt, 60 Hz |
|
Emergency + Harbour gen. |
1x Diesel generatorset 187 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 40 litres - 30,0 bar 1x Receiver 200 litres - 3,0 bar |
|
Bow thruster |
1x 3 Steps Electrical-Driven JASTRAM BU 100 - 750 kW, forward |
|
Number of cargo tanks |
13 12x Cargo tanks & 1x Slop tank |
|
Cargo capacity volume 98% |
Tank 1 P + S: 1.145,50 m³ Tank 2 P + S: 1.085,30 m³ Tank 3 P + S: 996,69 m³ Tank 4 P + S: 1.579,22 m³ Tank 5 P + S: 1.689,69 m³ Tank 6 P + S: 1.380,94 m³ Slop tank 377,55 m³ Total: 16.118,14 m³ |
|
Cargo system |
|
|
Ballast system |
2x Deepwell hydraulic driven pumps each pump capacity is 450 m³/h Total ballast water capacity 100%: 6.211,4 m³ |
|
Anchor equipment |
3x Anchors weight each 4.320 kg Chain length: 550,00 m Diameter: 50 mm |
|
Lifting equipment |
1x Hydraulic hose handling crane - SWL 5,0 t |
|
ISM & commercial manager |
Carl Büttner Shipmanagement GmbH Herrlichkeit 2 28199 Bremen Federal Republic of Germany |
|
Owner |
Neunte Büttner Schiffahrtsgesellschaft mbH & Co. KG Care of Carl Buttner GmbH & Co KG Herrlichkeit 2 28199 Bremen Germany |
|
Renamed |
11/2021 DBP Spirit Marshall Islands, Majuro - Call sign: V7A5064 owner: Duxton Partners Limited Manager: Atlantas Ship Management Limited |
|
Latest data adjustment |
14 September 2022 |
