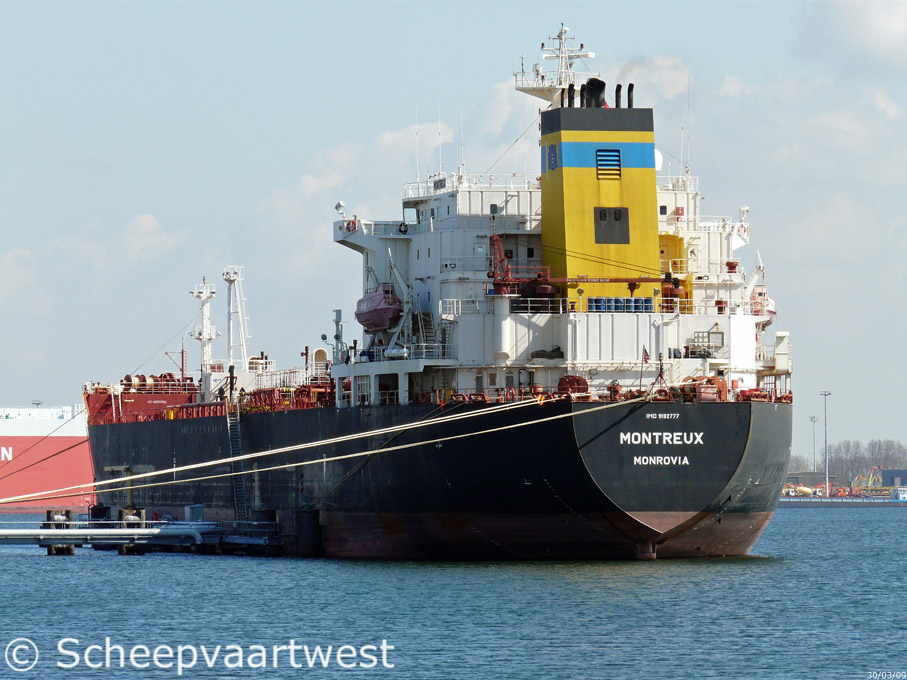

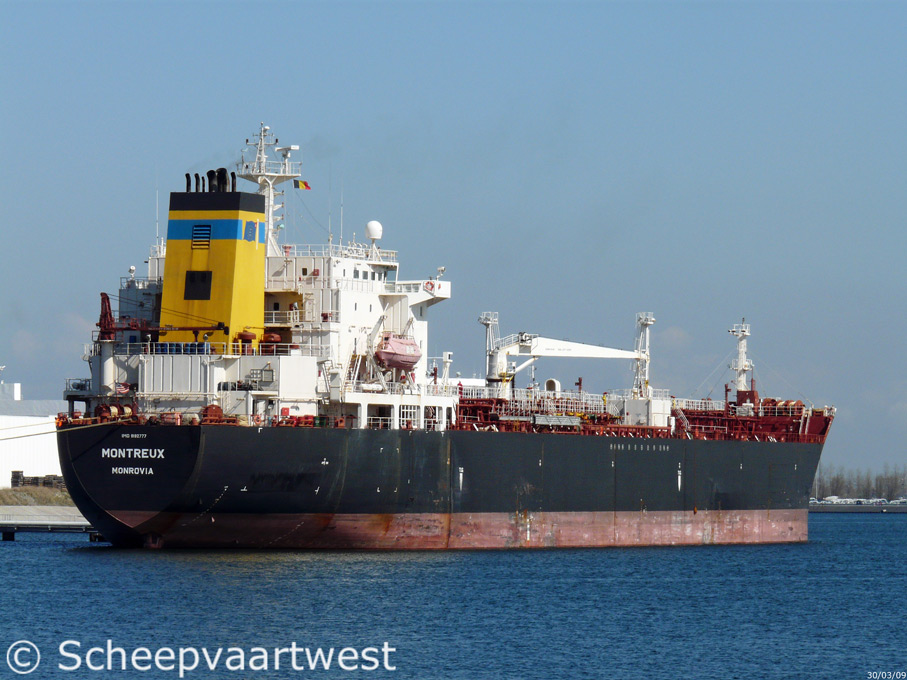

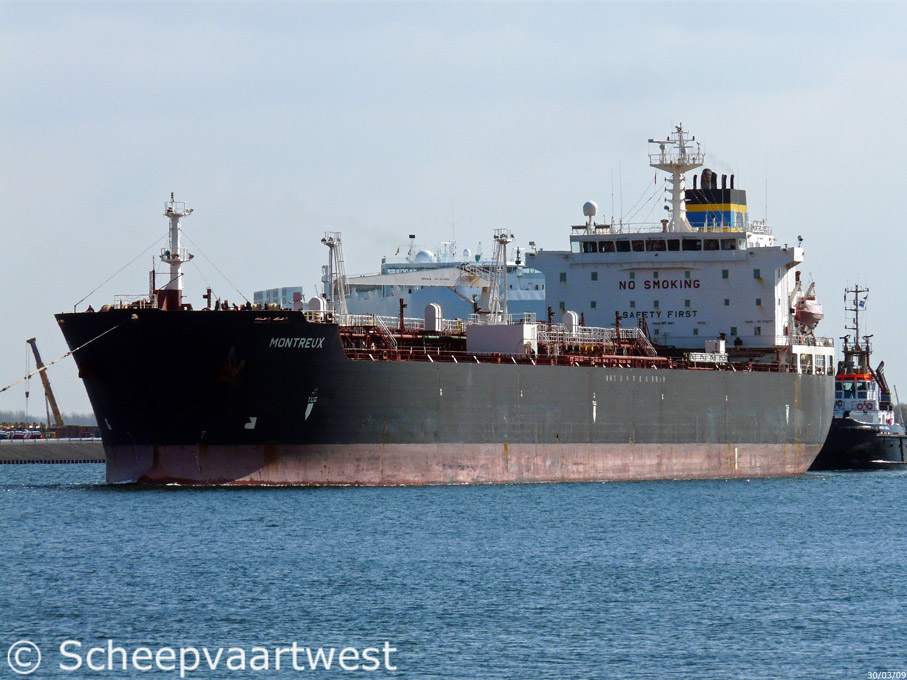

Montreux - IMO 9192777

Name

MONTREUX

Type

Double hull oil and chemical carrier

IMO-number

9192777

Call sign

A8JU6

Flag

Liberia

Previous flags

27.08.2000 Liberia
17.02.2003 Italy

Port of registry

Monrovia

GT

23.843 t registered
Suez: 25.277,36 t

DWT

Summer: 35.953 t

NT

8.835 t registered
Suez: 21.513,67 t

Length

183,00 m overall
176,17 m between perpendiculars
174,50 m registered

Breadth

27,43 m overall

Draught

Summer: 11,02 m

Bow to bridge

146,44 m

Keel to masthead

43,20 m

Freeboard

Summer: 6.611 mm

Depth

17,60 m moulded

Speed

14,0 knots

Built

1999

Keel laid

18.01.1999

Launch date

25.05.1999

Delivery date

03.09.1999

First movement

20.09.1999

Builder

STX Shipbuilding
Jinhae
Seoul
South Korea

Yard number

1031

Hull material

High strength steel

Hull type

Double hull

Bulkheads

2 Non tight
12 Oil tight

Main engine

1x Sulzer 6RTA48T - 6 Cylinder 480 x 2.000 mm diesel engine - 8.280,6 kW at 124 rpm
Builder: HHI - Hyundai Heavy Industries, Engine & Machinery Div., Ulsan - South Korea

Propeller

1

Steam piping system

Auxiliary water tube boiler
Waste heat water tube boiler

Generators

3x MAN B&W 5L23/30 diesel generatorsets each 500 kW at 720 rpm

Cargo capacity

Liquid / oil: 40.644,66 t - 43.239 m³

Cargo pumps

14

Tank capacities

Ballast: 20.594 t
Bunker: 1.316 t
Freshwater: 332,22 t / 339 m³
Fuel oil: 1.343,26 t / 1.429 m³

Number of tanks

Ballast: 14
Cargo oil: 12
Lubricating oil: 8
Fuel oil: 7
Sludge: 4
Diesel oil: 3
Waste water: 2
Fresh water: 2
Slop: 2
Hydraulic oil: 1

Tank coating

Epoxy coating

Lifting equipment

1x Cargo hose handling crane - SWL 10,0 t
1x Engine room crane - SWL 2,5 t
1x Stores crane - SWL 3,0 t

Crew

20

Manager

Ahrenkiel Shipmanagement
Hamburg
Germany

Operator

MT "Levantia", Chartername "Montreux"
FHH Fonds Nr. 7 MT "Levantia" GMBH & CO. Tankschiff KG
C/O Ahrenkiel Shipmanagement GMBH & CO. KG
An Der Alster 45
D-20099 Hamburg

Germany

Charter

MT "Levantia", Chartername "Montreux"
FHH Fonds Nr. 7 MT "Levantia" GMBH & CO. Tankschiff KG
C/O Ahrenkiel Shipmanagement GMBH & CO. KG
An Der Alster 45
D-20099 Hamburg

Germany

Owner

MT "Levantia", Chartername "Montreux"
FHH Fonds Nr. 7 MT "Levantia" GMBH & CO. Tankschiff KG
C/O Ahrenkiel Shipmanagement GMBH & CO. KG
An Der Alster 45
D-20099 Hamburg

Germany

Registered owner

MT "Levantia", Chartername "Montreux"
