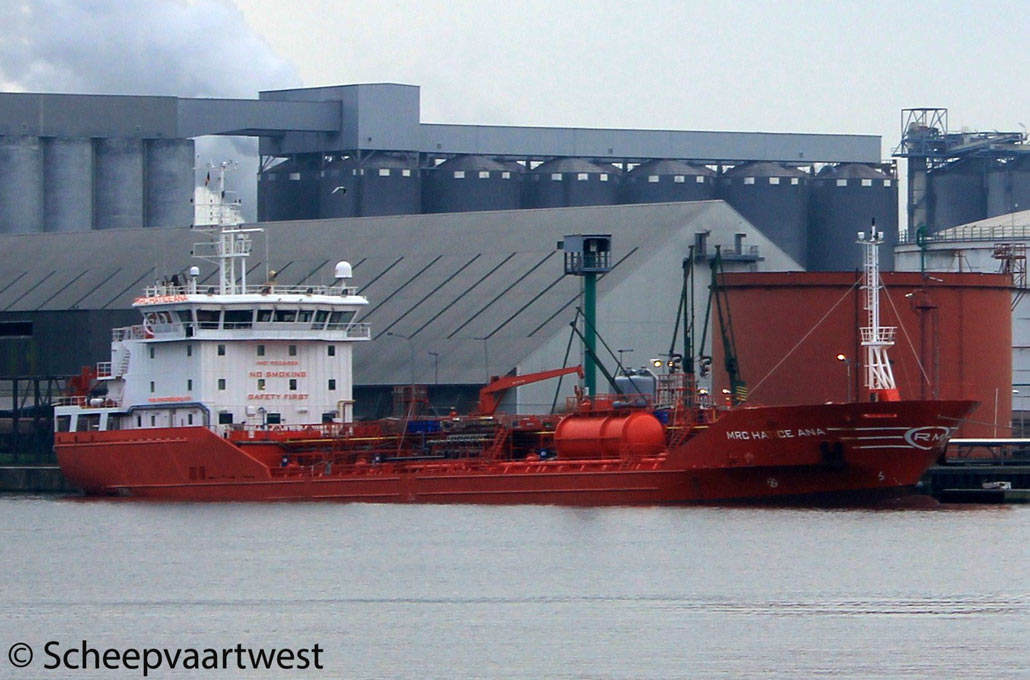

| Gent, Belgium 20 October 2012 |
 |

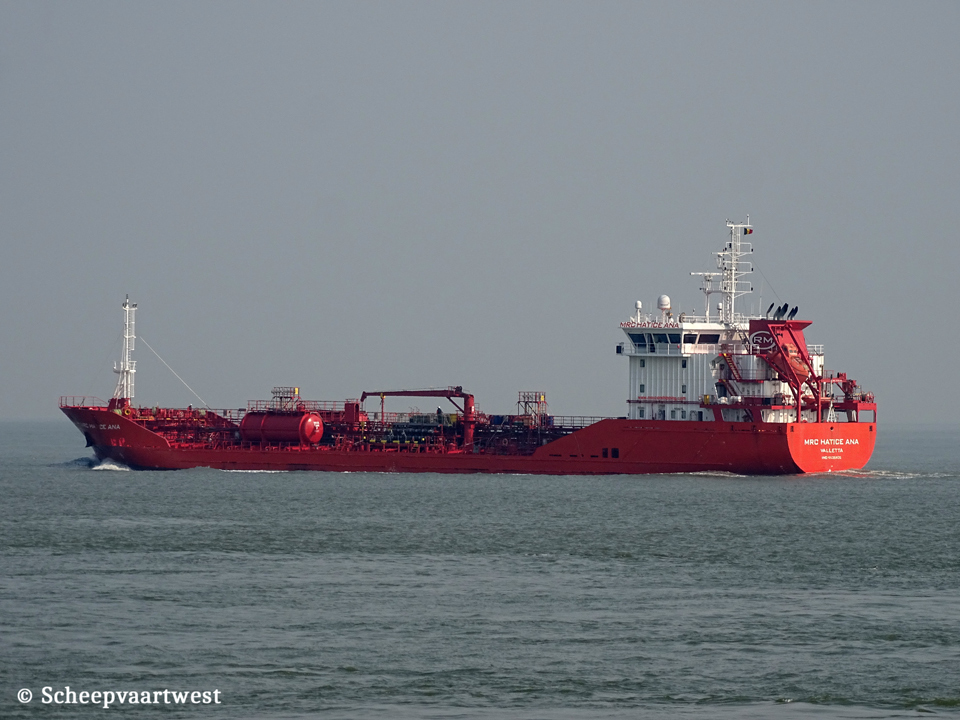

| Westerschelde 07/04/19 |
|
Name |
MRC HATICE ANA |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9536935 |
|
Call sign |
9HA2704 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2011 - 2017 Liberia, Monrovia - Call sign: D5DW9 |
|
GT |
3.999 t |
|
DWT |
6.124,51 t |
|
NT |
1.887 t |
|
Displacement |
8.439,47 t |
|
Length |
107,34 m overall 101,60 m between perpendiculars |
|
Breadth |
15,80 m |
|
Draught |
6,58 m |
|
Keel to mast end |
33,85 m |
|
Freeboard |
1.681 mm |
|
Depth |
8,25 m moulded |
|
Speed |
Service: 11,0 knots Max: 12,5 knots |
|
Built |
2011 |
|
Date of completion |
09/03/2011 |
|
Builder |
Torlak Denizcilik San. VE TIC. A.S Istanbul Turkey |
|
Yard number |
62 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Number of decks |
1 |
|
Main engine |
1x MaK 9M25 C - 4 stroke single acting 9 cylinder 255 x 400 mm combustion engine 2.999 kW / 4.076 hp at 750 rpm Built: 18/05/2009 Builder: Caterpillar Motoren GmbH & Co. KG, Hamburg - Germany |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
2x CHO Garioni Naval 35,00 m² - 10,0 bar 1x CHR Garioni Naval 89,00 m² - 10,0 bar |
|
Shaft generator |
1x 1.300 kVA / 1.040 kW 450 Volt 60 Hz |
|
Generators |
3x MAN D2876LE - 4 stroke 6 cylinder 128 x 166 mm diesel enghines each Mcr 390 kW connected with generators each 365 ekW - 450 Volt 60 Hz |
|
Emergency generator |
1x Diesel generatorset 124 kVA - 99 kW - 149 hp |
|
Bow thruster |
1x Tunnel thruster 345 kW / 469 bhp, forward |
|
Number of tanks |
12 + 2 slop tanks |
|
Total capacity of tanks 98% |
Tank 1P: 505,067 m³ Tank 1S: 506,229 m³ Tank 2P: 573,137 m³ Tank 2S: 575,411 m³ Tank 3P: 478,069 m³ Tank 3S: 480.050 m³ Tank 4P: 580,803 m³ Tank 4S: 582,954 m³ Tank 5P: 513,094 m³ Tank 5S: 512,255 m³ Tank 6P: 619,236 m³ Tank 6S: 622,570 m³ Total: 6.547,56 m³ excluding slop tanks |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
Slop tank P: 68,801 m³ Slop tank S: 68,785 m³ Total: 137,586 m³ |
|
Number of pumps |
12x Cargo pumps each 200 m³/h |
|
Tank capacities |
Fuel: 407,8 m³ |
|
Lifting equipment |
2x Cranes - SWL 5,0 t each , centre and aft stb poop deck |
|
Crew size |
15 |
|
ISM & commercial manager |
MRC Denizcilik Turizm Kuzguncuk Carsi Caddesi 39, Kuzguncuk Mah, Uskudar 34674 Istanbul Turkey |
|
Registered owner |
MRC Hatice Ana Shipping Corporation, Majuro - Marshall Care of MRC Denizcilik Turizm ve Petrol Urunleri Ticaret Ltd Sti, Kuzguncuk Carsi Caddesi 39, Kuzguncuk Mah, Uskudar 34674 Istanbul Turkey |
|
Latest data adjustment |
26 September 2021 |
