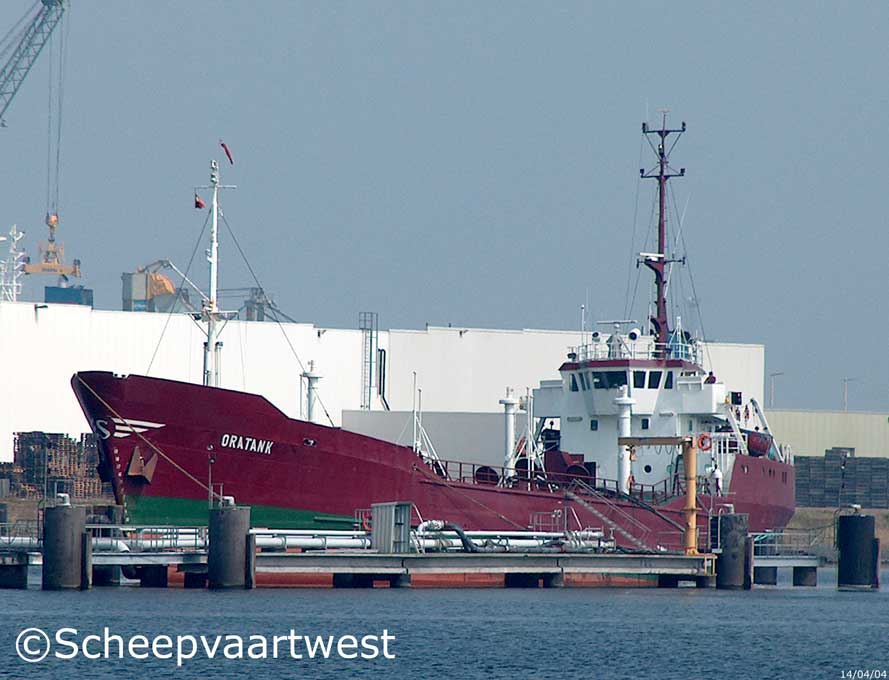

Oratank - IMO 6902810

Name

ORATANK

Previous names

1968 - 1971 Bras
1971 - 1984 Toratank

Type

Tanker of oil and chemicals
Vegetable oil tanker

IMO-number

6902810

Call sign

OXPJ2

Previous call sign

OWJH2

Flag

Denmark

Port of registry

Grenå

GT

986 t

DWT

Summer: 2.100 t
Winter: 2.020 t

NT

454 t

Length

72,90 m overall
67,60 m between perpendiculars

Breadth

11,50 m moulded

Draught

Summer: 4,72 m

Air Draft

28,00 m

Speed

11,5 knots

Built

1968

Launch date

27.09.1968

Date of completion

18.11.1968

Builder

Aker Trondelag
Trondheim
Norway

Yard number

270

Hull type

Single hull

Propulsion engine

1x MaK 6M451AK - 820 kW / 1.100 bhp at 375 rpm
Manufacture: Caterpillar

Number of screws

1

Generators

3x VALMET diesel generatorsets each 70 kW, 220 Volt 50 Hz

Cargo capacity

1.601 m³

Tank capacities

Gas oil: 70 m³
Ballast water: 387 m³
Fresh water: 27 m³
Slop tank: 115 m³

Cargo handling

Loading rate: 400 t/h
Discharge rate: 330 t/h
Stb. Cargo pump: 150 m³/h
Port cargo pump: 150 m³/h
Centre cargo pump steam pump: 150 m³/h
Cargo lines: 6''
Manifold to deck: 0,80 m
Manifold to rail: 1,90 m

Cargo heating

1x Clayton E 100
1x Clayton E 125
3.450 kg steam/h
Enable to heat cargo to 60 C°
Heating coils AISI 316 L Stainless steel
Heating medium; steam

Tank size in m³

Cargo
1C 115,01
1P 67,70
1S 68,79
2P 246,45
3P 260,77
3S 260,77
2S 246,45
4P 225,26
4S 225,26

Shipping company

Rederiet M.H. Simonsen ApS
Christiansmindevej 76 Postboks 22
DK-5700 Svendborg
Denmark
