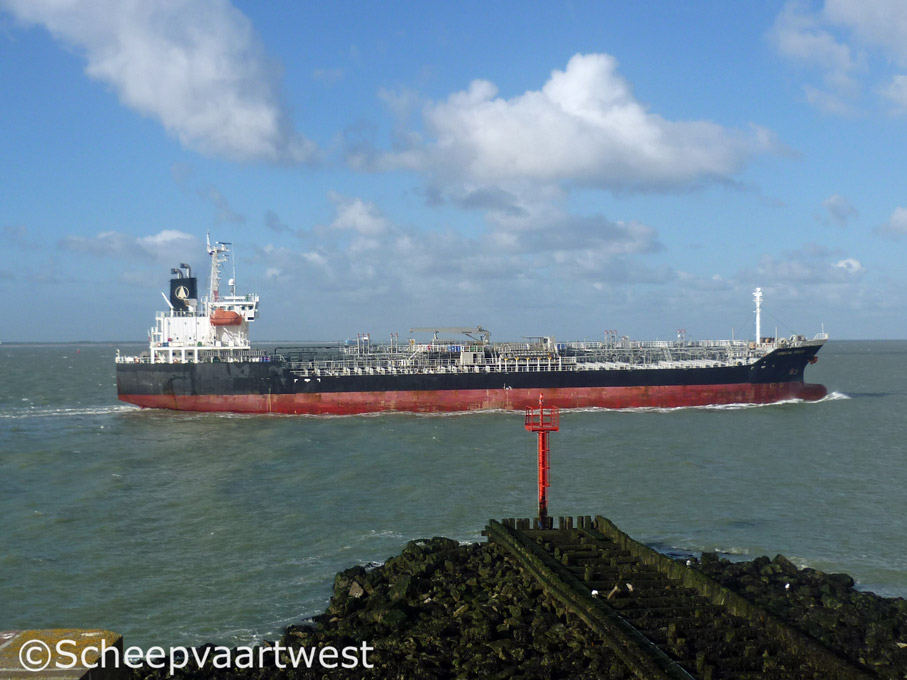

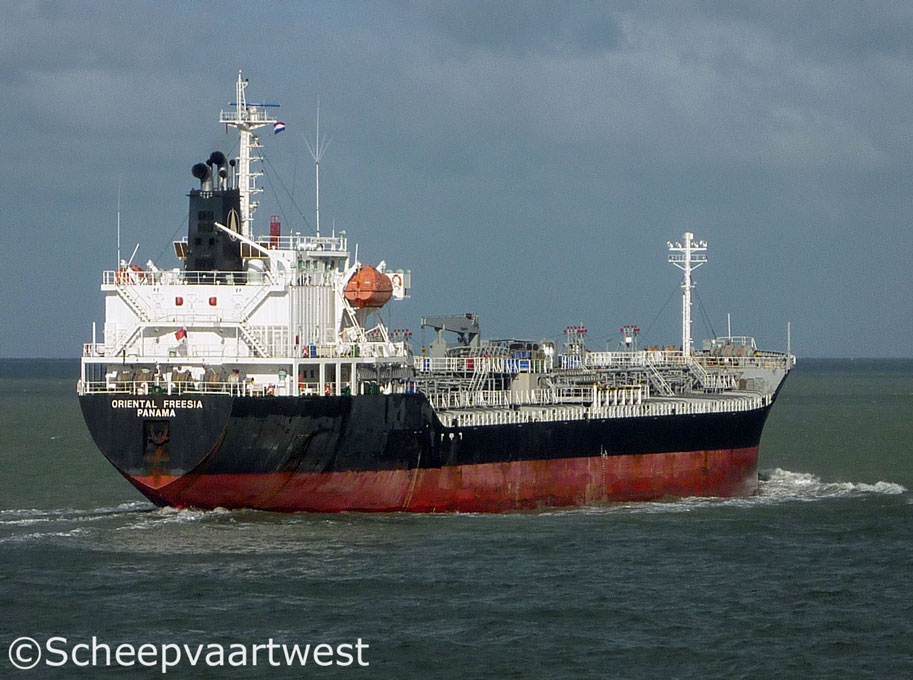

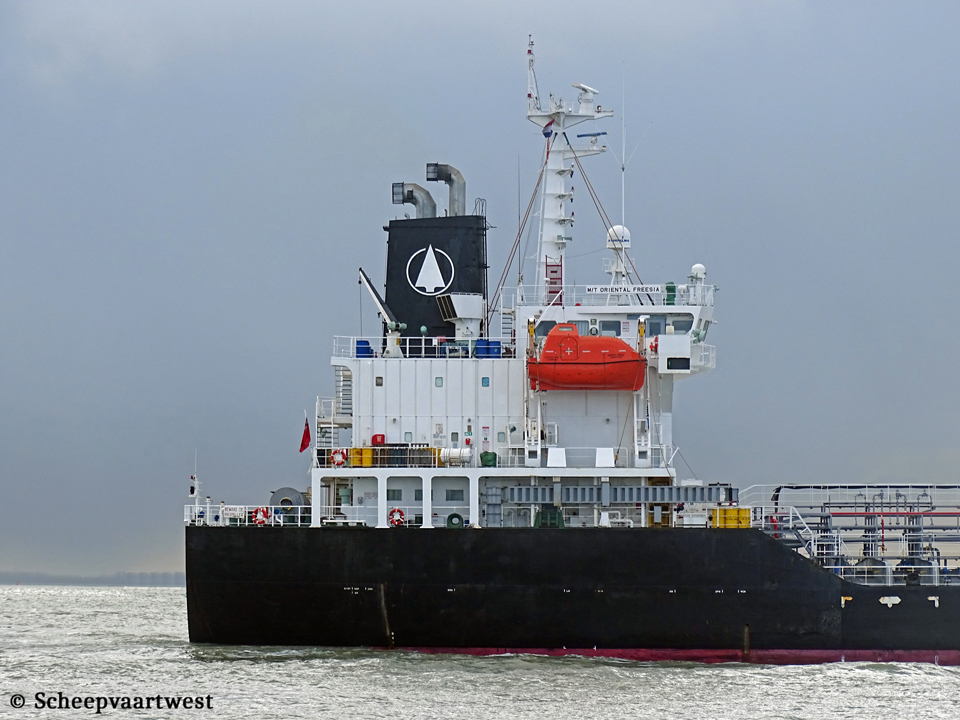

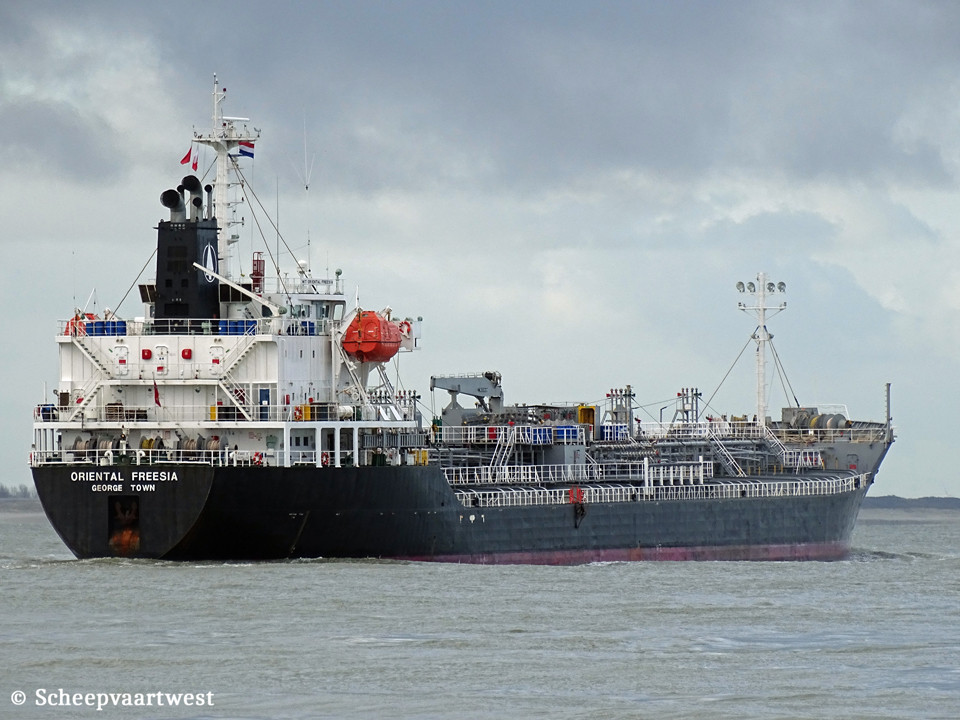

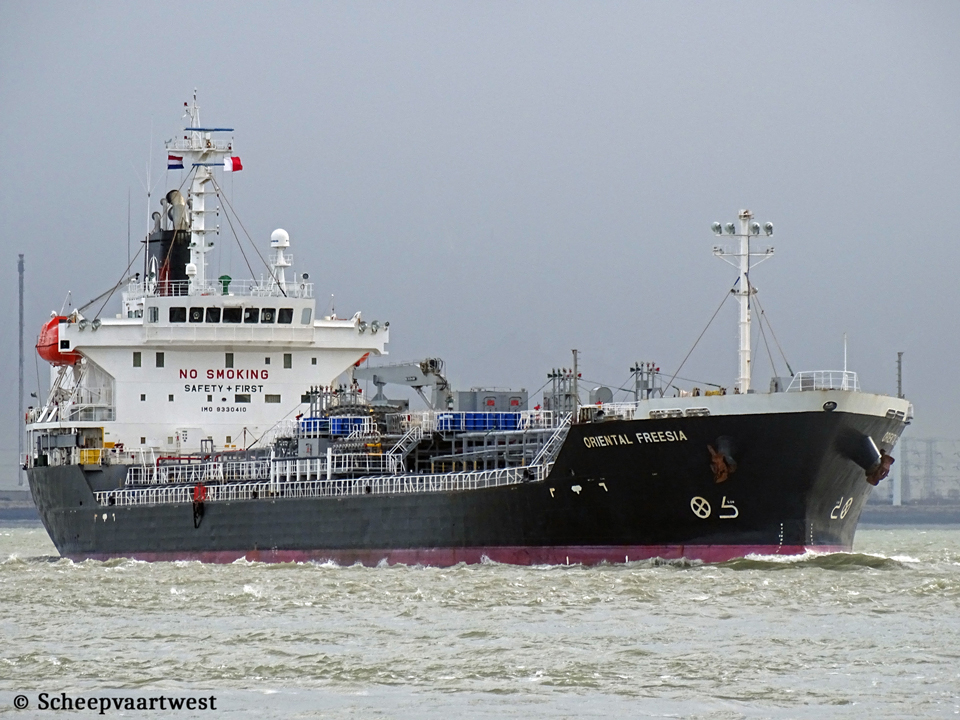

| Westerschelde 15 February 2016 |
 |
 |
 |
 |
|||
| Westerschelde 15/02/16 | Westerschelde 15/02/16 | Westerschelde 14/09/11 | Westerschelde 14/09/11 | |||
|
Name |
ORIENTAL FREESIA |
|
Type |
Oil / Chemical carrier |
|
IMO-number |
9330410 |
|
Call sign |
ZGCD7 |
|
Flag |
Cayman Islands |
|
Port of registry |
George Town |
|
Previous flags |
2006 - 2011 Republic of Panama, Panama City - Call sign: 3EHV7 |
|
GT |
8.260 t registered |
|
DWT |
Summer: 14.383 t |
|
NT |
4.735 t registered |
|
Length |
134,16 m over all |
|
Breadth |
20,00 m |
|
Draught |
8,81 m |
|
Moulded L x B x D |
125,00 x 20,50 x 11,60 m |
|
Registered L x B x D |
125,00 x 20,50 x 11,60 m |
|
Keel to mast end |
36,55 m |
|
Freeboard |
Summer: 2.813 mm |
|
Depth |
11,60 m moulded |
|
Speed |
Service: 14,5 knots Max: 15,6 knots |
|
Built |
2006 |
|
Keel laid |
24/11/2005 |
|
Launch date |
27/09/2006 |
|
Date of completion |
20/12/2006 |
|
Builder |
Asakawa Shipbuilding Co., Ltd. Imabari Japan |
|
Yard number |
S-557 |
|
Hull type |
Double hull |
|
Main engine |
1x MAN- B&W 6S35MC - 2 stroke single acting 6 cylinder 350 x 1.400 mm combustion engine 4.440 kW / 6.037 hp at 173,0 rpm Manufacturer: Hitachi Zosen Corporation, Innoshima (Imex Co., Ltd.) - Japan |
|
Propeller |
1x Fixed pitch propeller |
|
Propeller Shaft |
1x Sea water lubrication shaft |
|
Bow thruster |
1x 422 kW |
|
Boiler |
1x Auxiliary vertical boiler - 9,8 bar Heating Surface: 131,6 m² 1x Economizer EGE - 12,8 bar Heating Surface: 105,4 m² Manufacturer: Miura Protec Co., Ltd. Manufacturer: Miura Co., Ltd., Matsuyama - Jaan |
|
Generators |
2x Diesel generatorsets each 600 kVA / 450 Volt |
|
Number of tanks |
18 + 2 slop tanks |
|
Cargo capacity 100% |
16.563 m³ |
|
Pumps |
10x 300 m³/h each 8x 200 m³/h each |
|
Tank capacities |
Fuel oil: 845,9 m³ Fresh water: 250 m³ Water ballast: 4.184 m³ |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Crew size |
25 |
|
Commerical manager |
Serromah Shipping BV Hoofdweg 236 3067 GJ Rotterdam The Netherlands |
|
ISM manager |
Norstar Ship Management Pte Ltd. 58-00, One Raffles Place, 1, Raffles Place Singapore 048616 Republic of Singapore |
|
Registered Owner |
Freesia Transporte S.A. Care of Serromah Shipping BV Prinsenlaan 633 3067 TZ Rotterdam The Netherlands |
|
Renamed |
2020 Bangkok Chemi Marshall Islands, Majuro - Call Sign: V7A5809 Owner: Ocean Trinity SH No 37 SA Manager: GFSM Co., Ltd. |
|
Latest data adjustment |
17 August 2023 |
