| Westerschelde 02 February 2012 |
 |
| Westerschelde 02/02/12 |
|
Name |

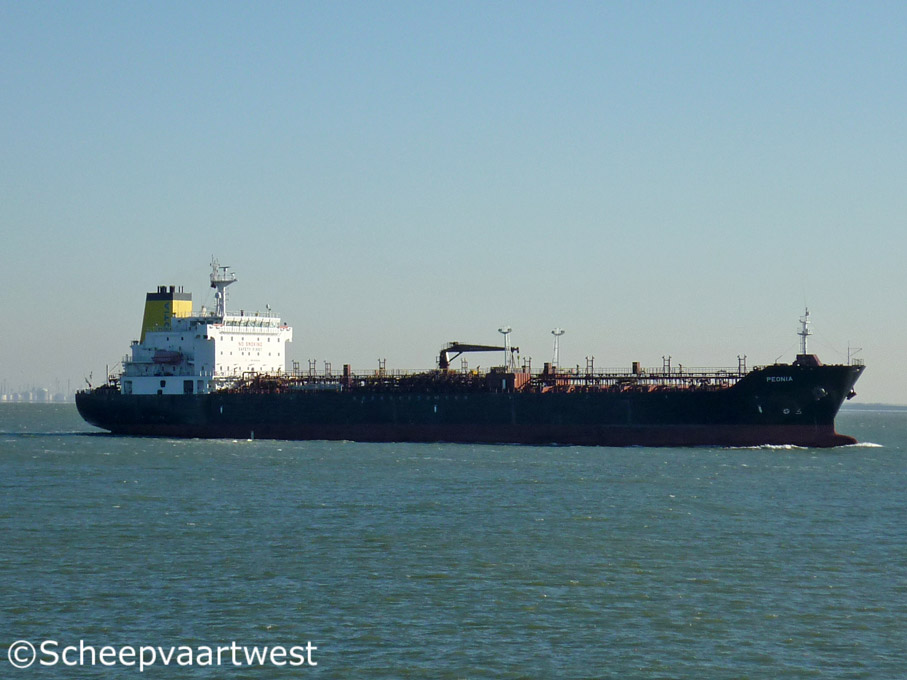

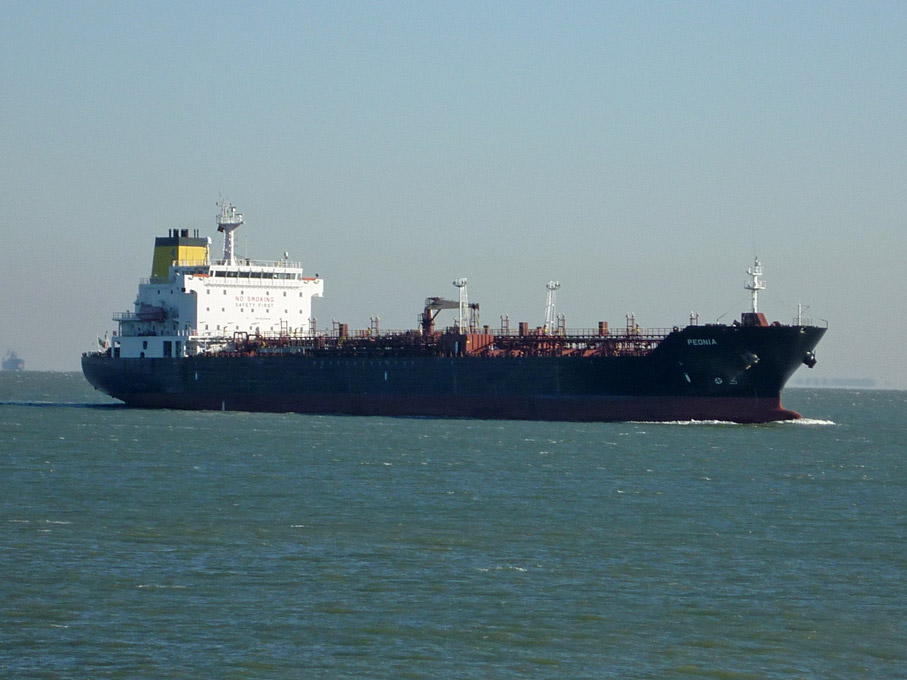

PEONIA |
|
Type |
Chemical / Oil products tanker |
|
Products |
Aviation Gasoline-Aviation Turbine Fuels - Motor Gasolines - Gasolines - Naphtas - Vaporising Oils - Kerosines - Gasolils - Diesel Oils - Vacuum Gasoils |
|
IMO-number |
9313436 |
|
Call sign |
IBXF |
|
Flag |
Italy |
|
Port of registry |
Palermo |
|
GT |
19.549 t registered Suez: 20.550 t |
|
DWT |
29.005,65 t |
|
NT |
7.487 t registered Suez: 17.500 t Panama: 16.400 t |
|
Length |
164,50 m overall 156,00 m between perpendiculars |
|
Breadth |
27,60 m moulded |
|
Draught |
10,50 m |
|
Freeboard |
5.414 mm |
|
Depth |
15,90 m |
|
Built |
2005 |
|
Keel laid |
30.04.2005 |
|
Launch date |
21.07.2005 |
|
Date of completion |
29.09.2005 |
|
Builder |
STX Offshore & Shipbuilding Co., Ltd. |
|
Yard number |
S-2002 |
|
Hull material |
High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Non tight: 1 Water tight: 7 Oil tight: 10 |
|
Main engine |
1x HSD MAN B&W 6S46MC-C - 6 cylinder 460 x 1.932 mm diesel engine - 7.860 kW at 129,0 rpm Manufacturer: STX Engine Co. |
|
Propellers |
1 |
|
Steam piping system |
1x Auxiliary boiler MB05S10 - 9,0 bar Total heating surface: 157,3 m² 1x Exhaust gas economizer EM11DD12A1 - 12,0 bar Manufacturer: Kang Rim Ind. Co. |
|
Generators |
3x HFC6 506-14K diesel generatorsets each 740 kW Manufacture: Hyundai Heavy Ind. |
|
Number of cargo tanks |
14 |
|
Slop tanks |
2 |
|
Cargo oil capacity 98% |
31.460 m³ |
|
Slop 98% |
864 m³ |
|
Total cargo capacity 98% |
32.354 m³ |
|
Pumps |
14x Each 450 m³/h at 130 m submerged centrifugal type |
|
Lines |
8 |
|
Segregation |
8 Double valve |
|
Number of tanks |
Ballast : 16 Lubricating oil: 9 Fuel oil: 8 Diesel oil: 5 Fresh water: 5 Chain: 2 Sludge: 2 Kerosene: 2 Waste water: 1 Portable water: 1 Hydraulic oil: 1 |
|
Tank capacities |
Diesel oil: 82,9 m³ / 74,61 t Freshwater: 479,2 m³ Fuel oil: 899 m³ / 881 t Hydraulic oil: 9,5 m³ Lube oil: 108 m³ / 97,2 t Tank ballast: 16.697,6 m³ / 17.115,04 t |
|
Lifting equipment |
1x Derrick: hydraulic crane - SWL 10 t |
|
Manager |
Motia Di Navigazione |
|
Operator |
Motia Compagnia Di Navigazione SpA. |
|
Registered owner |
Motia Compagnia Di Navigazione SpA. |
