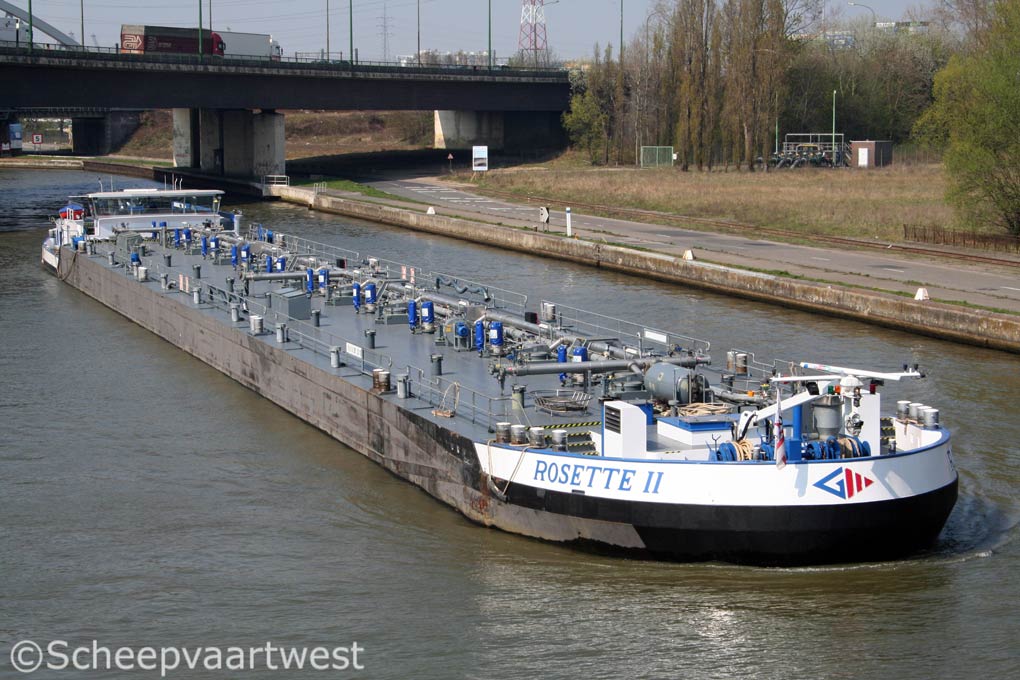

Rosette II 03
Merksem, Belgium 06 April 2012

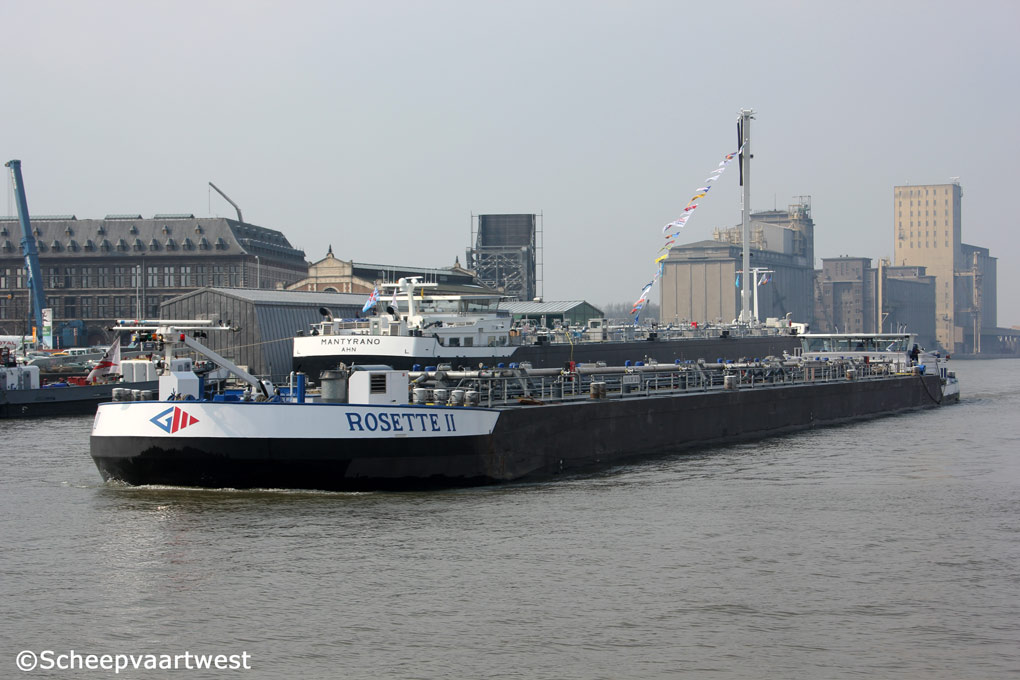

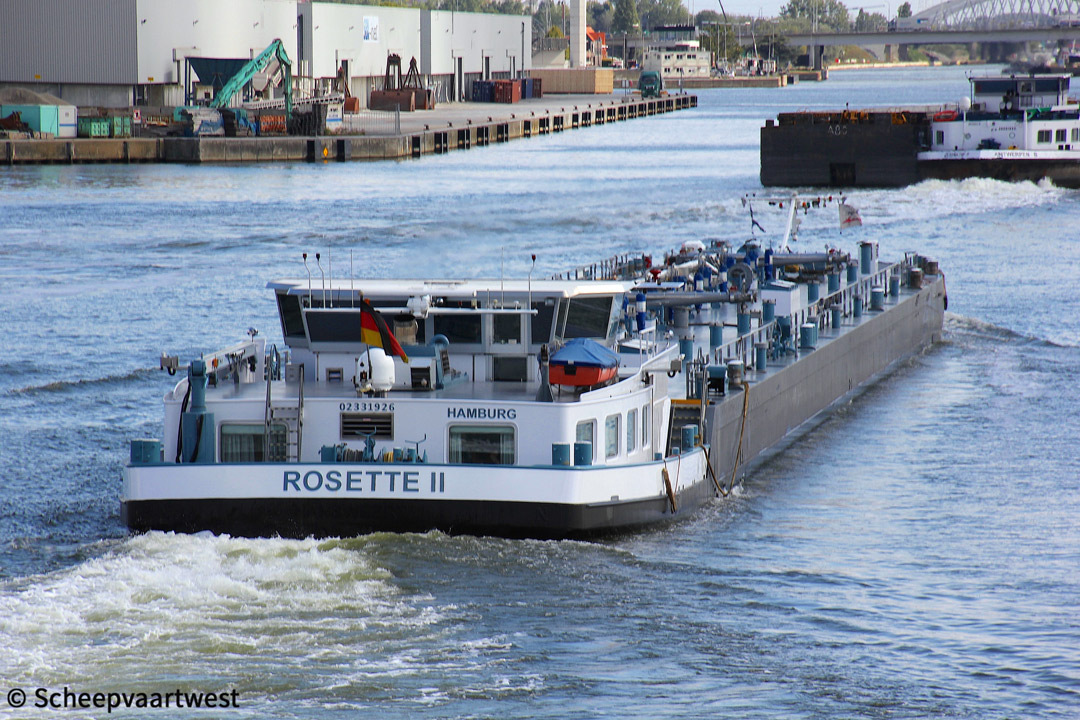

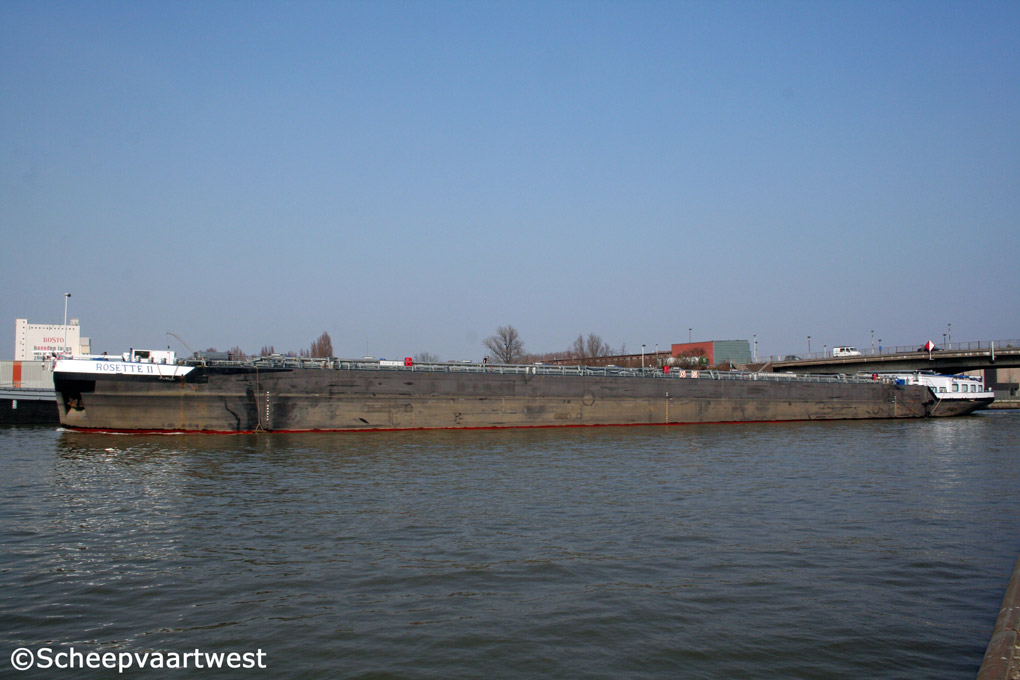

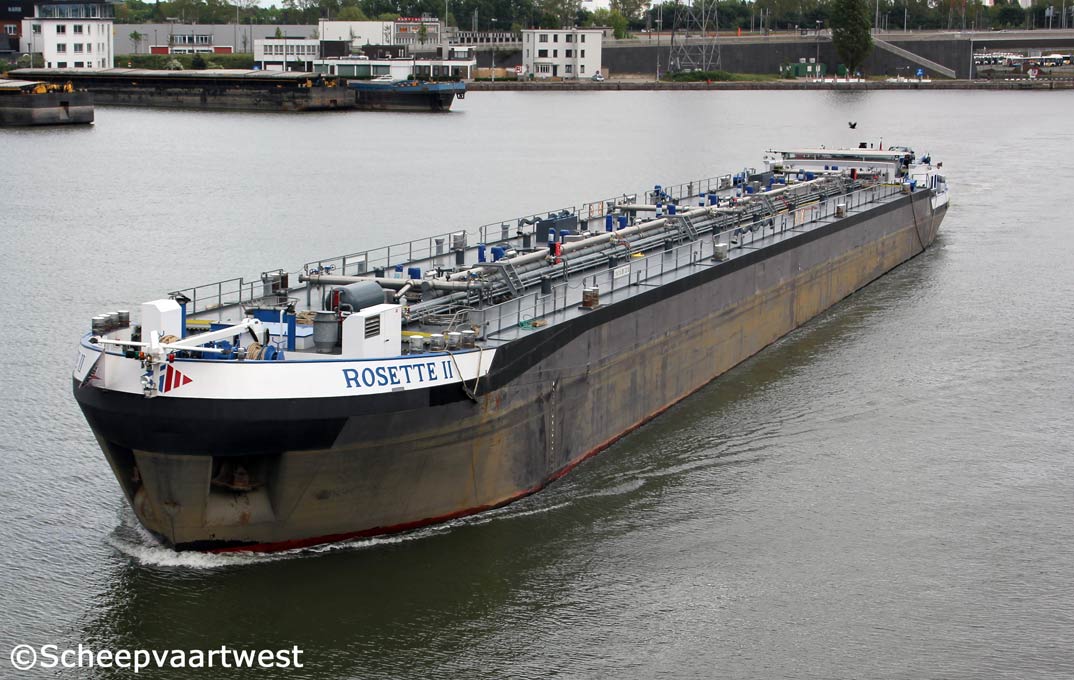

Rosette II 02   Rosette II 04   Rosette II 01   Rosette II 06   Rosette II 07
Merksem 06/04/12 Deurne 29/03/13 Antwerpen 21/03/12 Antwerpen 27/04/14   Antwerpen 19/09/19


Name

ROSETTE II

Type

Inland oil tanker

ENI-number

02331926

Flag

Germany

Port of registry

Hamburg

Previous flag

2009 - 2016 The Netherlands

Tonnage

2.909 t

Length

110,00 m

Breadth

11,45 m

Draught

3,50 m

Depth

5,50 m

Built

2009

Builder casco

Centromost Stocznia Rzeczna w Plocku

Plock

Poland

Builder completion

De Waal Machinefabriek B.V.

Werkendam

The Netherlands

Main engine

1x ABC 6MDZC - 6 cylinder combustion engine engine 1.325 kW / 1.803 hp at 1.000 rpm

Builder: Anglo Belgian Corporation N.V.

Wiedauwkaai 43

9000 Gent

Belgium

Gearbox

1x Reintjes WGF 763

Reduction: 3,007:1

Propeller

1x AMW propeller type Kaplan

Diameter: 1.750 - 5 blades - Counter clockwise rotation

Generators

1x Cummins QSK 19 M diesel engine coupled with Marathon 573 RSL 4043 generator 660 kVA for bow thruster and pumps

1x Cummins QSB 6.7C diesel engine coupled with Marathon 431 PSL 6202 generator 140 kVA

1x Cummins QBS 5 G3 diesel engine coupled with Marathon 363 CSL 1607 generator 93 kVA

Bow thruster

1x Cummins-Oudakker - 510 hp

Cargo capacity

3.700 m³

Pump

10x Pumps each 100 m³/h

Owner

Gefo Oiltransport GmbH & Co KG

Hamburg

Germany

Previous owner

2009 - 2016 Fam. van de Guchte

V.O.F. Scheepvaartbedrijf v/d Guchte en Zonen, Hansweer - The Netherlands

Latest data adjustment

12 February 2020
