Name
|

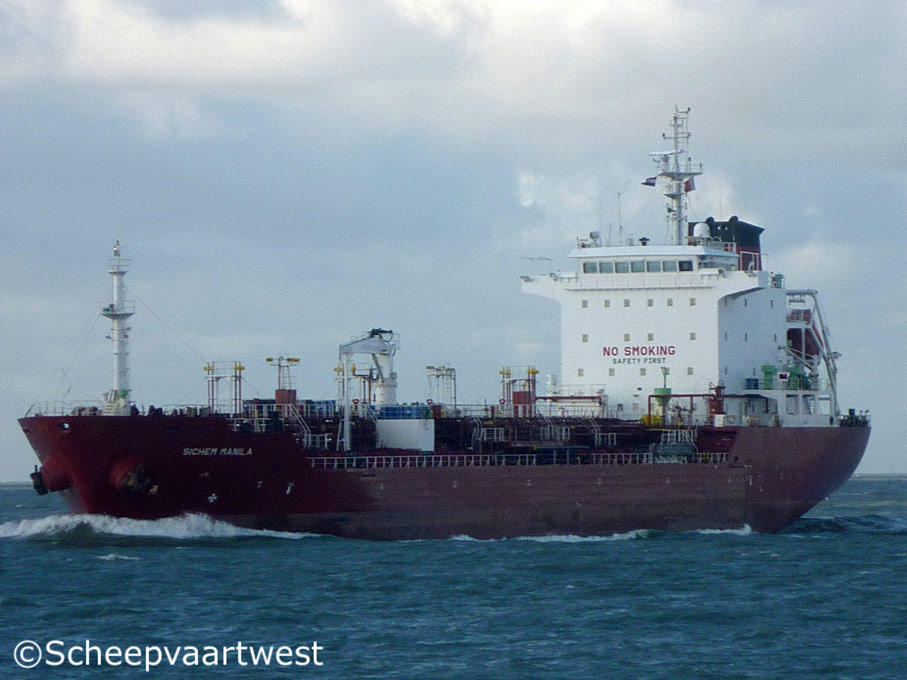

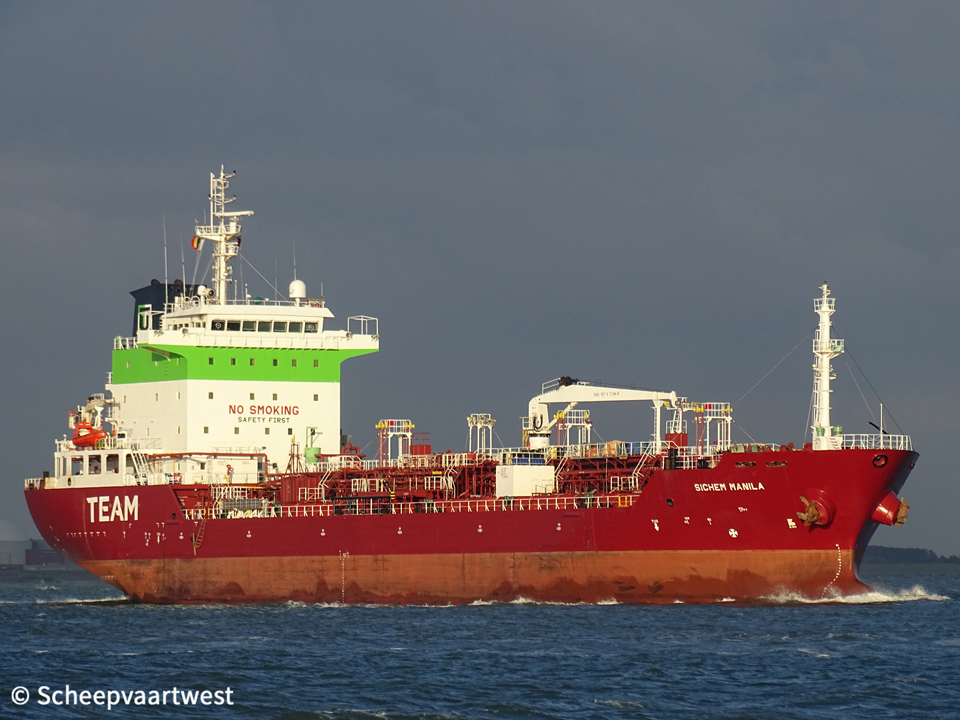

SICHEM MANILA
|
|
Type
|
Tanker for oil and chemicals
|
|
IMO-number
|
9322097
|
|
Call sign
|
9HA3324
|
|
Flag
|
Malta
|
|
Port of registry
|
Valletta
|
|
Previous flag
|
2007 - 2007 Marshall Islands
2007 - 2015 Republic of Singapore, Singapore city - Call sign: 9VEZ6
|
|
GT
|
8.562 t
|
|
DWT
|
Summer: 13.125 t
|
|
NT
|
4.095 t
|
|
Length
|
128,60 m overall
120,85 m between perpendiculars
|
|
Breadth
|
20,43 m extreme
|
|
Draught
|
8,714 m
|
|
Keel to masthead
|
40,83 m
|
|
Freeboard
|
Summer: 2.812 mm
Winter: 2.993 mm
|
|
Depth
|
11,50 m moulded
|
|
Built
|
2007
|
|
Keel laid
|
12/06/2006
|
|
Date of completion
|
26/01/2007
|
|
Builder
|
21st Century Shipbuilding Co. Ltd.
14-1 Pongpyong-dong
650-140 Tongyong
Republic of Korea
|
|
Yard number
|
216
|
|
Hull material
|
Steel
|
|
Hull type
|
Double Hull
|
|
Main engine
|
1x MAN 6S35MC - 6 cylinder combustion engine 5.454 kW
|
|
Propeller
|
1x Fixed pitch propeller
Builder: Wärtsilä CME Zhenjiang Propeller Co. Ltd
|
|
Boilers
|
Auxiliary boiler, vertical shell type Mission OL
Auxiliary boiler, exhaust gas water tube AV-6N
Builder: Alfa Laval Aalborg A/S
|
|
Generators
|
3x Yanmar type 6N18(A)L-EV diesel generatorsets
Builder: Yanmar Co., Ltd. Amagasaki Plant
|
|
Bow thruster
|
400 kW
|
|
Cargo capacity
|
Seg#1: 930,207 m³ (1P)
Seg#2: 930,437 m³ (1S)
Seg#3: 1102,045 m³ (2P)
Seg#4: 1102,566 m³ (2S)
Seg#5: 1208,328 m³ (3P)
Seg#6: 1207,873 m³ (3S)
Seg#7: 1208,317 m³ (4P)
Seg#8: 1208,045 m³ (4S)
Seg#9: 1207,496 m³ (5P)
Seg#10: 1207,587 m³ (5S)
Seg#11: 1048,794 m³ (6P)
Seg#12: 1048,883 m³ (6S)
Seg#13: 343,355 m³ (SLOP-P)
Seg#14: 343,613 m² (SLOP-S)
|
|
Total cubic capacity 98%
|
13.410,578 m³ excluding slop tanks
|
|
Slop tanks capacity 98%
|
686,968 m³
|
|
Pumps
|
12x Centrifugal cargo pumps each 300 m³/h
2x Centrifugal cargo pumps each 100 m³/h
2x Centrifugal ballast pumps each 350 m³/h
|
|
Manifolds
|
Bow to centre Manifold: 60,80 m
Stern to centre Manifold: 67,80 m
Distance bridge front to centre of manifold: 40,32 m
Distance between cargo manifold centres: 700 mm
Distance ships rail to manifold: 3.760 mm
Distance manifold to ships side: 3.980 mm
Top of rail to centre of manifold: 1.050 mm
Distance main deck to centre of manifold: 2.640 mm
|
|
Ballast capacity
|
5.287,18 m³
|
|
Anchor
|
Length: 550 m
Diameter: 60 mm
|
|
Lifting equipment
|
1x Cranes - SWL 10,0 t mid ship
|
|
Technical manager
|
Selandia Ship Management (India) Pvt. Ltd.
301, Supreme Chambers
Off Veera Desai Road
Andheri (W). Mumbai 400053
India
|
|
Commerical manager
|
Team Tankers International
Williams House 4th Floor
20 Reid Street
Hamilton HM 11
Bermuda
|
|
Registered owner
|
Team Tankers City Class Ltd.
|
|
Latest data adjustment
|
04 March 2019
|
