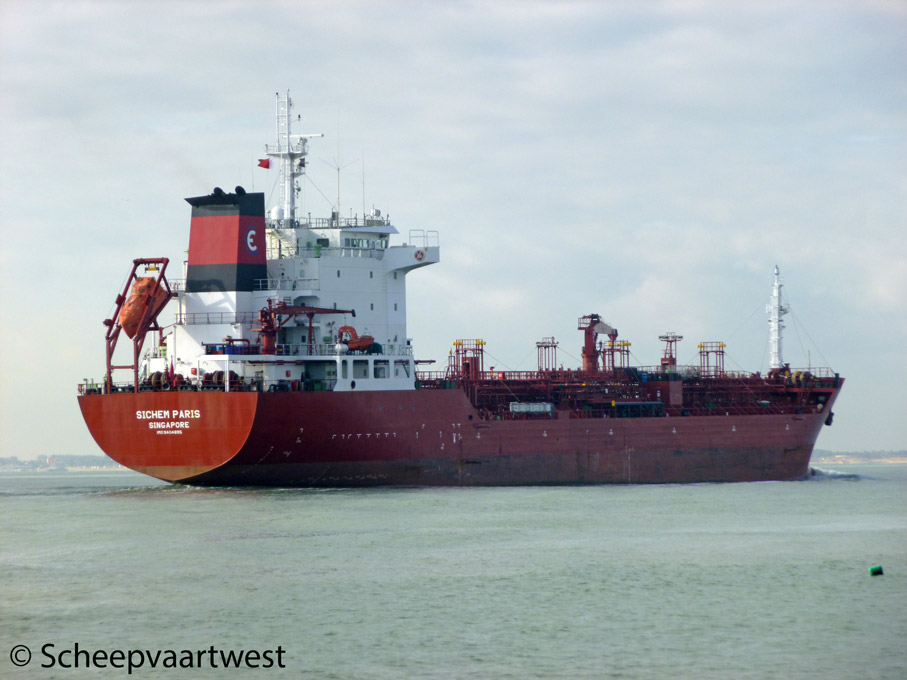

Sichem Paris - IMO 9404895

Name

SICHEM PARIS

Type

Oil tanker / Chemical tanker

IMO-number

9404895

Call sign

9VLS3

Flag

Republic of Singapore

Port of registry

Singapore City

GT

8.581 t registered

Suez: 8.986,73 t

DWT

Summer: 13.079,19 t

NT

4.117 t registered

Panama: 7.253 t

Suez: 7.231,91 t

Length

128,60 m overall

120,85 m between perpendiculars

Breadth

20,42 m extreme

Draught

8,71 m

Keel to masthead

40,83 m

Air draft

Lightship: 38,33 m

Normal ballast: 35,13 m

At loaded summer deadweight: 32,11 m

Freeboard

Summer: 2.812 mm

Winter: 2.993 mm

Tropical: 2.631 mm

Depth

11,50 m moulded

Speed

12,8 knots

Built

2008

Keel laid

11.02.2008

Launch date

23.05.2008

Date of completion

21.07.2008

Builder

21st Century Shipbuilding Co., Ltd.
Tongyoung
South Korea

Yard number

CSN242

Hull material

Ordinary strength steel

Hull type

Double hull

Bulkheads

Water tight: 11

Oil tight: 8

Main engine

1x STX-MAN B&W 6S35MC-MK7 - 6 cylinder 350 x 1.400 mm diesel engine - 4.440 kW at 173,0 rpm

Manufacturer: STX Engine Co., Ltd.

Propellers

1

Manufacturer: Wärtsilä CME Zhenjiang Propeller Co.,Ltd.

Boilers

Exhaust gas boiler AV6N/17710 - 12,0 bar

Auxiliary boiler - 9,0 bar

Heating surface: 78 mm²

Manufacturer: Aalborg Ind. Co., Ltd.

Generators

3x Taiyo FE547A-10/272526 generatorsets each 550 kW

Manufacturer: Taiyo Electric Co., Ltd.

Number of cargo tanks

12

Cargo tank capacity 98%

Seg#1: 928,327 m³ (1P)
Seg#2: 928,531 m³ (1S)
Seg#3: 1.100,868 m³ (2P)
Seg#4: 1.100,956 m³ (2S)
Seg#5: 1.206,876 m³ (3P)
Seg#6: 1.207,513 m³ (3S)
Seg#7: 1.207,785 m³ (4P)
Seg#8: 1.207,422 m³ (4S)
Seg#9: 1.207,513 m³ (5P)
Seg#10: 1.207,785 m³ (5S)
Seg#11: 1.048,139 m³ (6P)
Seg#12: 1.048,319 m³ (6S)
Seg#13: 343,685 m³ (SLOP-P)
Seg#14: 344,029 m³ (SLOP-S)

Total: 13.400,034 m³

Number of slop tanks

2

Slop tank capacity

Seg#13: 343,685 m³ (SLOP-P)
Seg#14: 344,029 m³ (SLOP-S)

Total: 688,746 m³

Pumps

Cargo:

12x Centrifugal pumps each 300 m³/h

2x Centrifugal pumps each 100 m³/h

Ballast:

2x Centrifugal pumps each 350 m³/h

Manifolds

Bow to centre manifold: 68,80 m

Stern to centre manifold: 67,80 m

Distance bridge front to centre of manifold: 4,32 m

Distance between cargo manifold centres: 700 mm

Distance ships rail to manifold: 3.760 mm

Distance manifold to ships side: 3.980 mm

Top of rail to centre of manifold: 1.050 mm

Distance main deck to centre of manifold: 2.640 mm

Number of tanks

Ballast: 15

Fuel oil: 9

Lubricating oil: 9

Fresh water: 5

Diesel oil: 4

Waste water: 3

Chain: 2

Sludge: 2

Chemical: 1

Hydraulic oil: 1

Tank capacities

Diesel oil: 76,82 m³ / 66,06 t

Fresh water: 429,90 m³

Fuel oil: 659,24 m³ / 646,05 t

Hydraulic oil: 5,78 m³ / 5,21 t

Lube oil: 88,37 m³ / 79,53 t

Tank ballast: 5.457,84 m³ / 5.594,29 t

Lifting equipment

1x Hose handling crane - SWL 10,0 t

1x Stern hose and rescue boat handling crane - SWL 2,1 t

Manufacturer: A Rim Mach. & Eng., Co.

Manager

Eitzen Chemical (SIngapore) Pte., Ltd.
One Temasek Avenue, #35-05
Millenia Tower
Singapore
Republic of Singapore

Operator

Selandia Ship Management (India) Pvt Ltd.
R-102, Remi-Bizcourt,Plot No.9, ShahIndustrial Estate,Veera Desai Road,Andheri (West),Mumbai
India

Owner

Eitzen Chemical A/S
Camillo Eitzen House
Amerika Plads 38
DK-2100 Copenhagen
Denmark

Registered owner

Eitzen Chemical (Singapore) Pte., Ltd.

One Temasek Avenue, #35-05
Millenia Tower
Singapore
Republic of Singapore

Last update

26.03.2013
