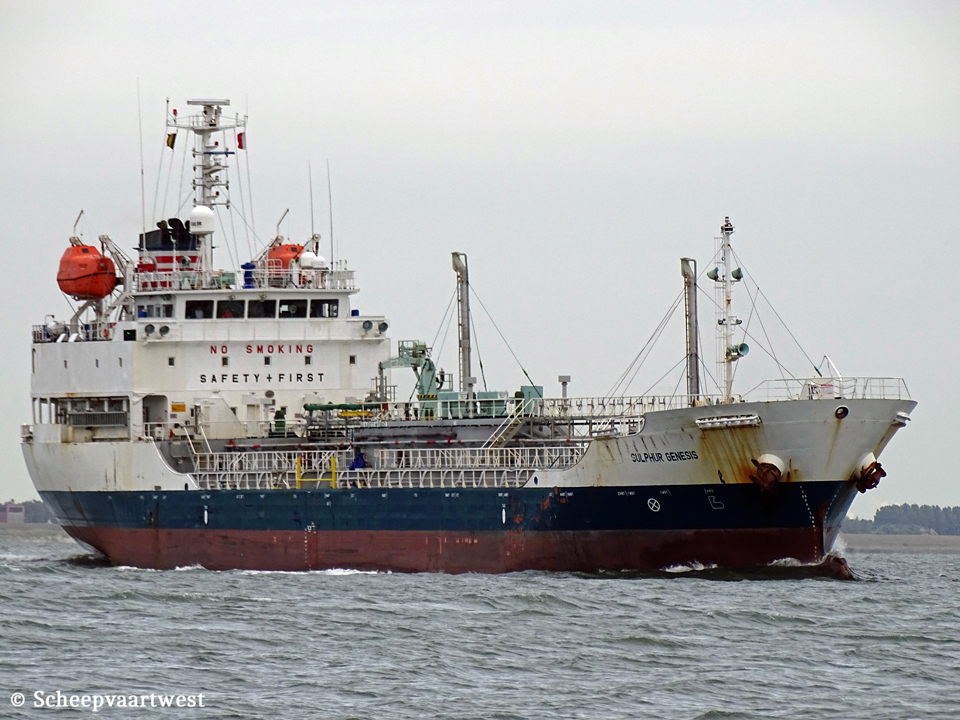

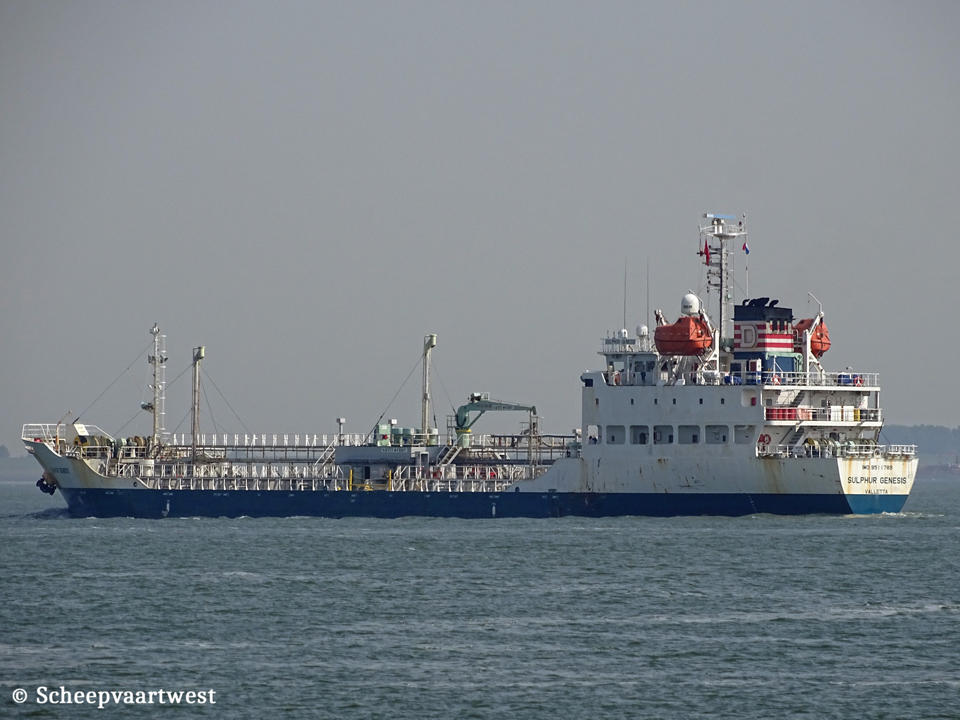

| Westerschelde 03 September 2016 |
 |
 |
 |
 |
 |
 |
|||||

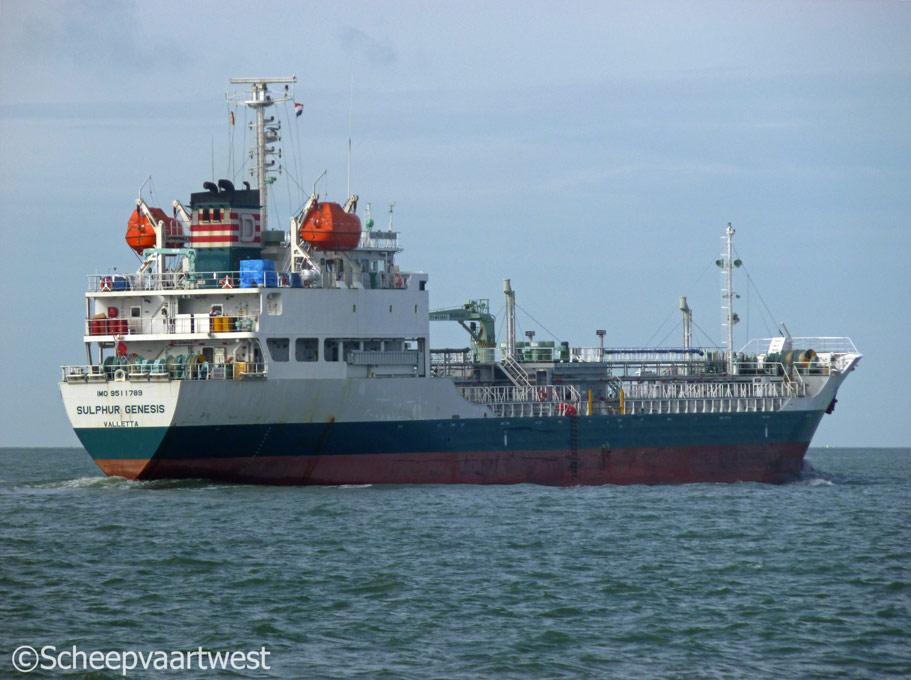

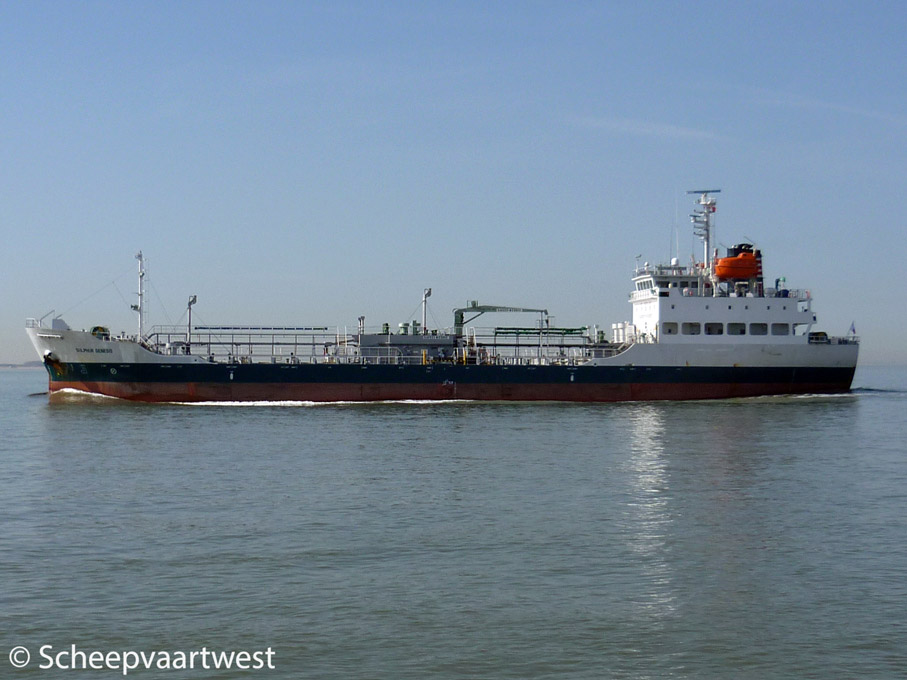

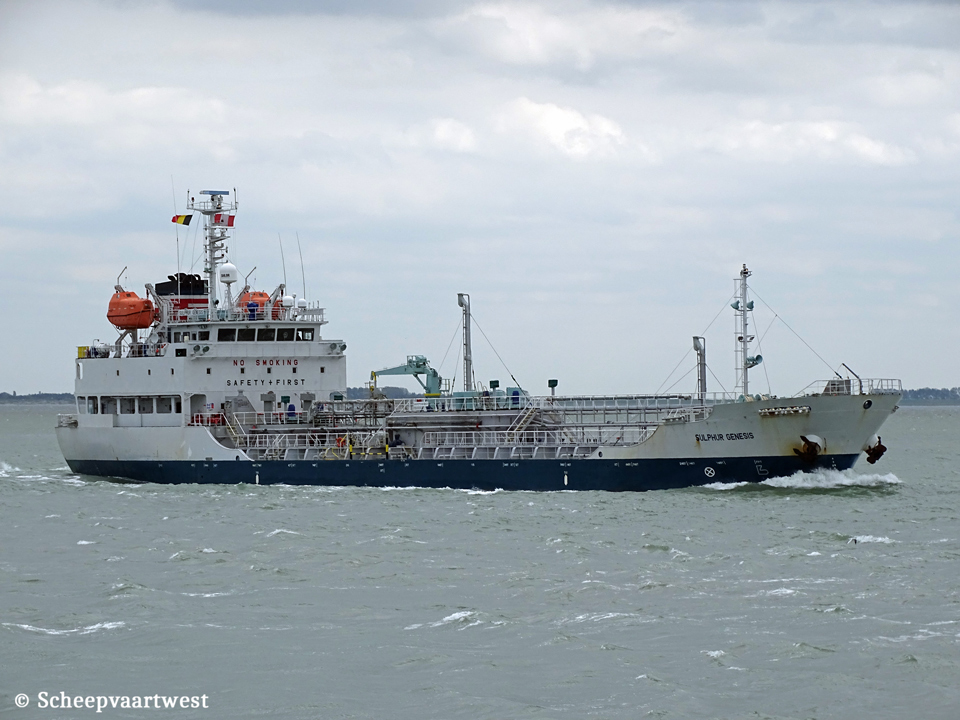

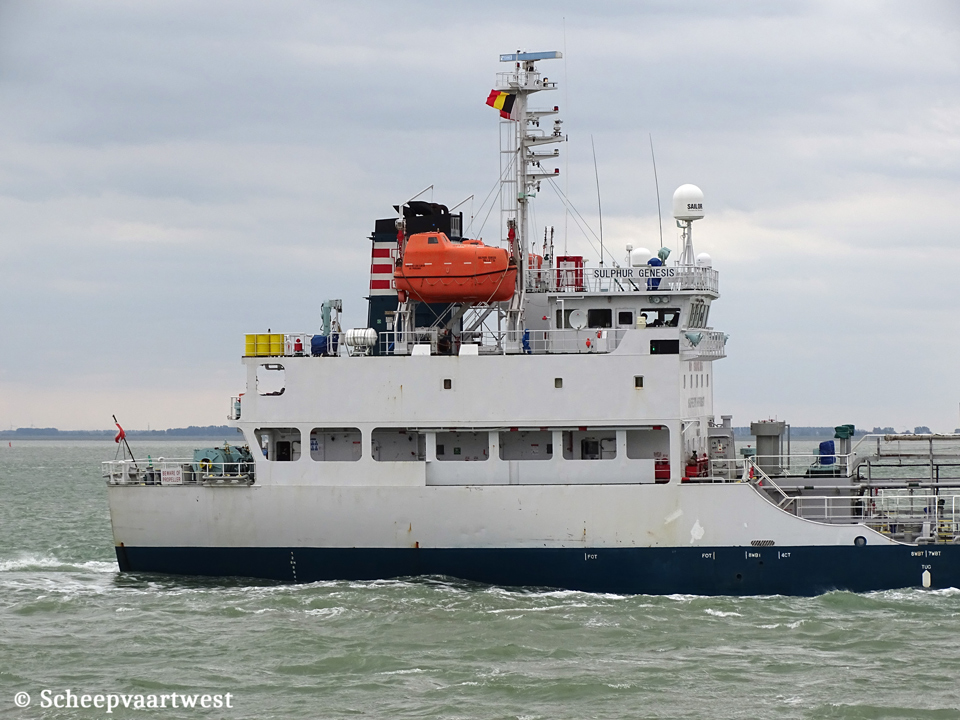

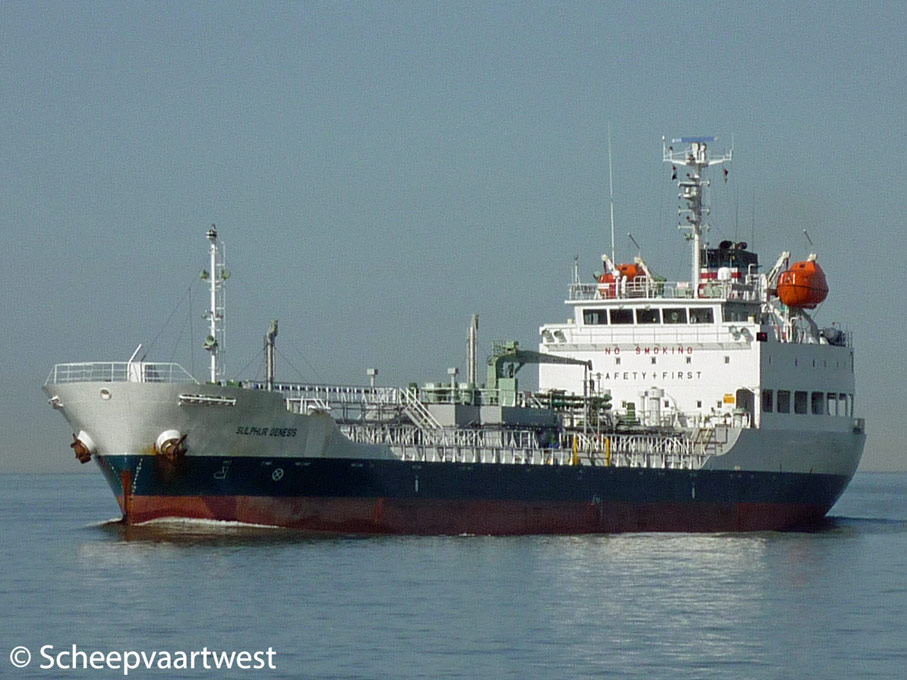

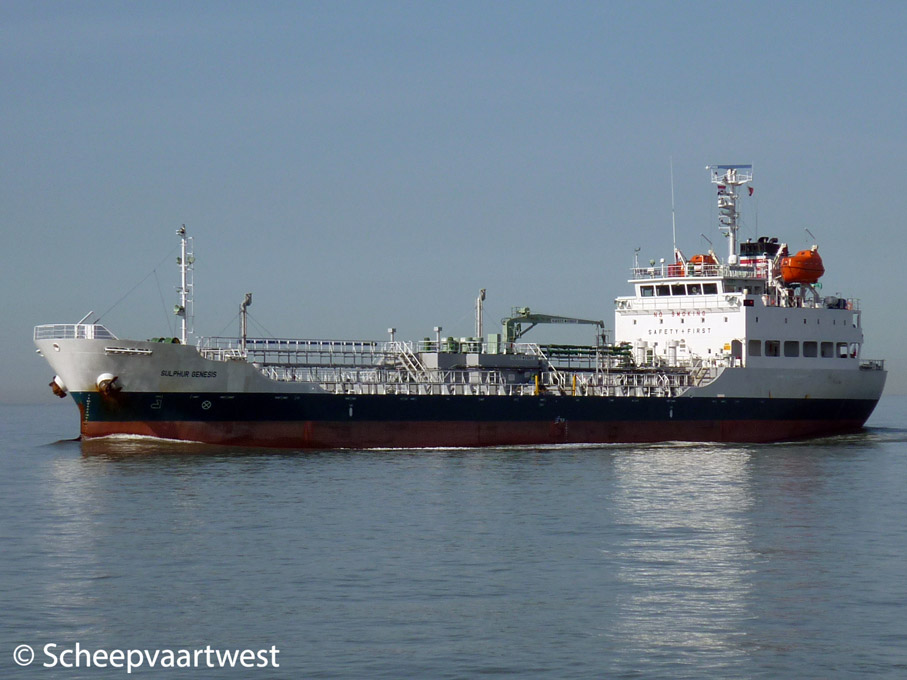

| Westerschelde 13/10/19 | Westerschelde 13/10/19 | Westerschelde 27/03/12 | Westerschelde 27/03/12 | Westerschelde 27/03/12 | Westerschelde 02/10/12 | |||||
 |
 |
 |
 |
|||||||

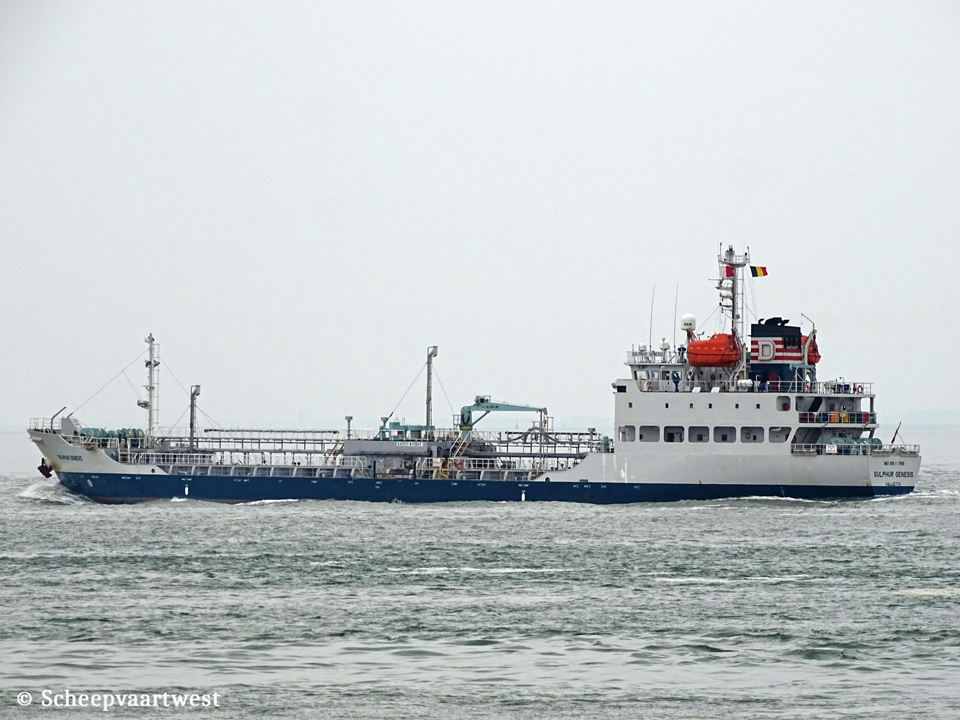

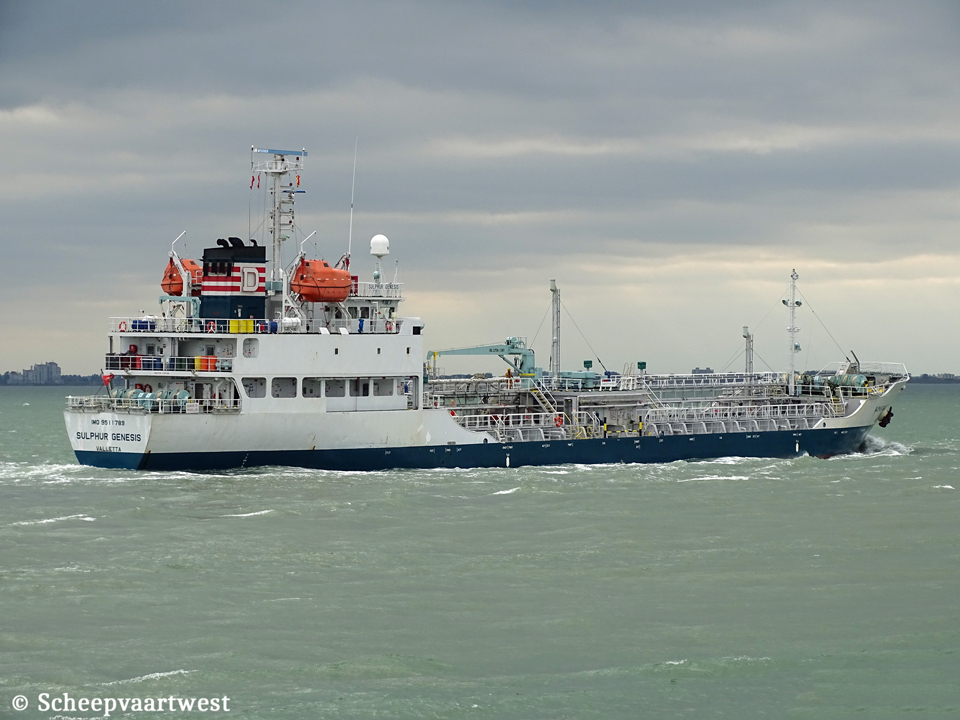

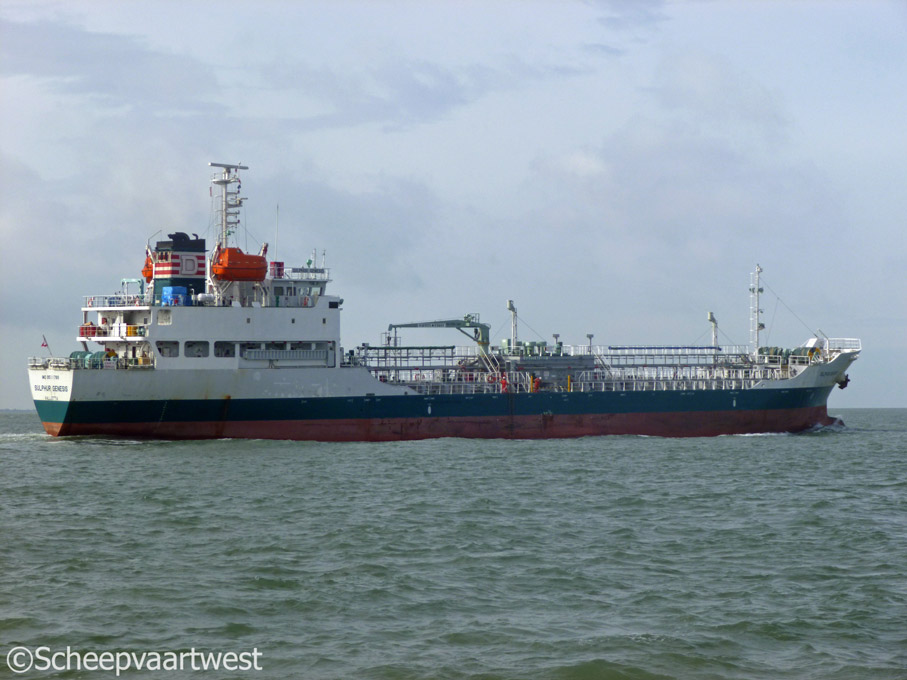

| Westerschelde 02/10/12 | Westerschelde 17/05/19 | Westerschelde 13/10/19 | Westerschelde 26/08/17 | |||||||
|
Name |
SULPHUR GENESIS |
|
Type |
Chemical carrier |
|
Sub type |
Designed for carriage of molten sulphur |
|
IMO-number |
9511789 |
|
Call sign |
9HA2898 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2008 - 2014 Republic of Panama, Panama city - Call sign: 3ESM5 2014 - 2014 Cyprus, Limassol - Call sign: 9HA2898 |
|
GT |
3.235 t |
|
DWT |
Summer: 4.451 t |
|
NT |
971 t |
|
Length |
94,86 m overall |
|
Breadth |
14,00 m |
|
Draught |
6,67 m |
|
Moulded L x B x D |
89,50 x 14,50 x 8,50 m |
|
Registered L x B x D |
89,52 x 14,50 x 8,50 m |
|
Freeboard |
Summer: 1.850 mm |
|
Depth |
8,50 m moulded |
|
Speed |
13,2 knots |
|
Built |
2008 |
|
Keel laid |
26/02/2008 |
|
Launch date |
08/05/2008 |
|
Date of completion |
20/08/2008 |
|
Builder |
Onishigumi Shipbuilding Co., Ltd. Mihara Japan |
|
Yard number |
360 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Akasaka/B&W - 4 stroke single acting 6 cylinder 410 x 800 mm combustion 2.647 kW - 3.599 hp at 240,0 rpm Manufacturer: Akasaka Diesels Ltd., Shizuoka - Japan |
|
Propellers |
1x Fixed pitch propeller |
|
Propeller shaft |
1x Sea water lubrication shaft Diameter: 310 mm |
|
Boilers |
1x Auxiliary vertical boiler - 9,0 bar Evaporation: 1,88 t/h 1x Auxiliary vertical boiler - 9,0 bar Evaporation: 1,44 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
2x Diesel generatorsets - 800 kVA |
|
Number of tanks |
2 |
|
Cargo capacity |
Liquid: 2.287 m³ |
|
Tank capacities |
Fuel oil: 333 m³ Fresh water: 168 m³ Water ballast: 1.988 m³ |
|
ISM & commercial manager |
Daiichi Tanker Co., Ltd. 6th Floor, PMO Kandatsukasamachi, 8-1, Kandatsukasa-machi 2-chome, Chiyoda-ku Tokyo, 101-0048 Japan |
|
Registered owner |
DT Chemical S.A. - Republic of Panama Care of Daiichi Tanker Co Ltd. 6th Floor, PMO Kandatsukasamachi, 8-1, Kandatsukasa-machi 2-chome, Chiyoda-ku Tokyo, 101-0048 Japan |
|
Latest data adjustment |
20 January 2022 |
