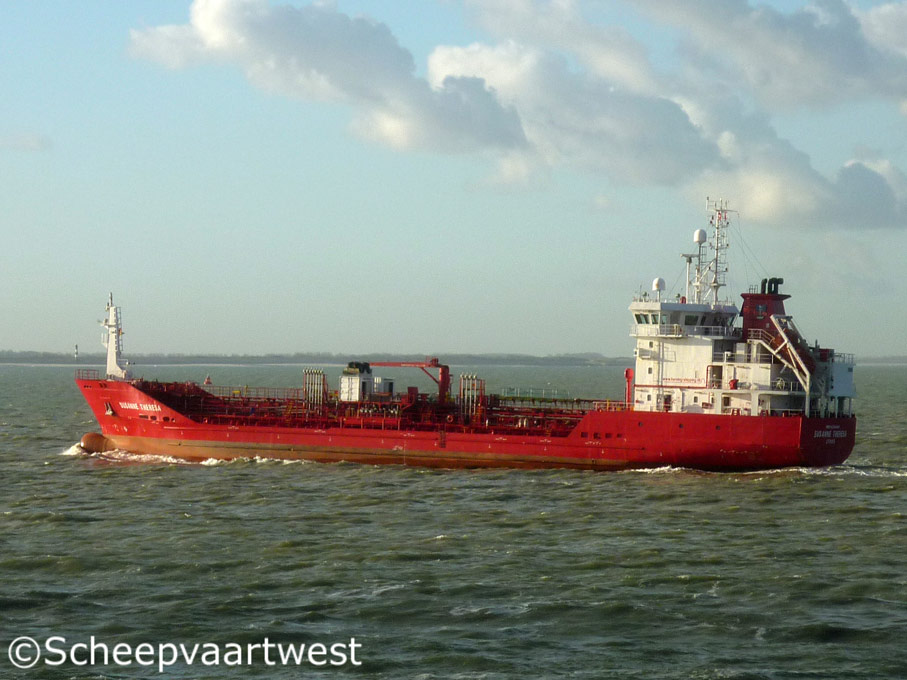

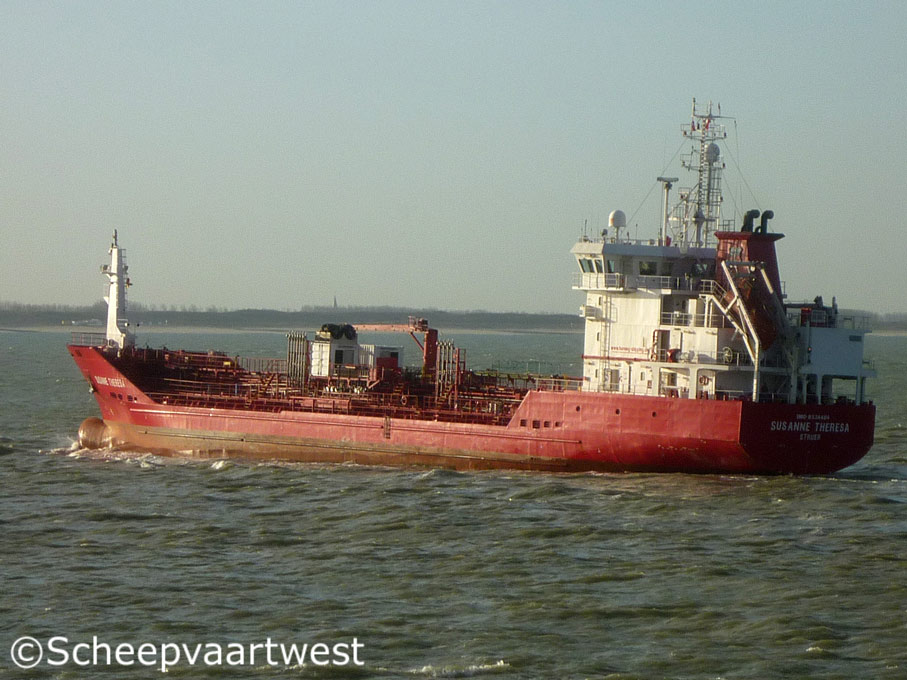

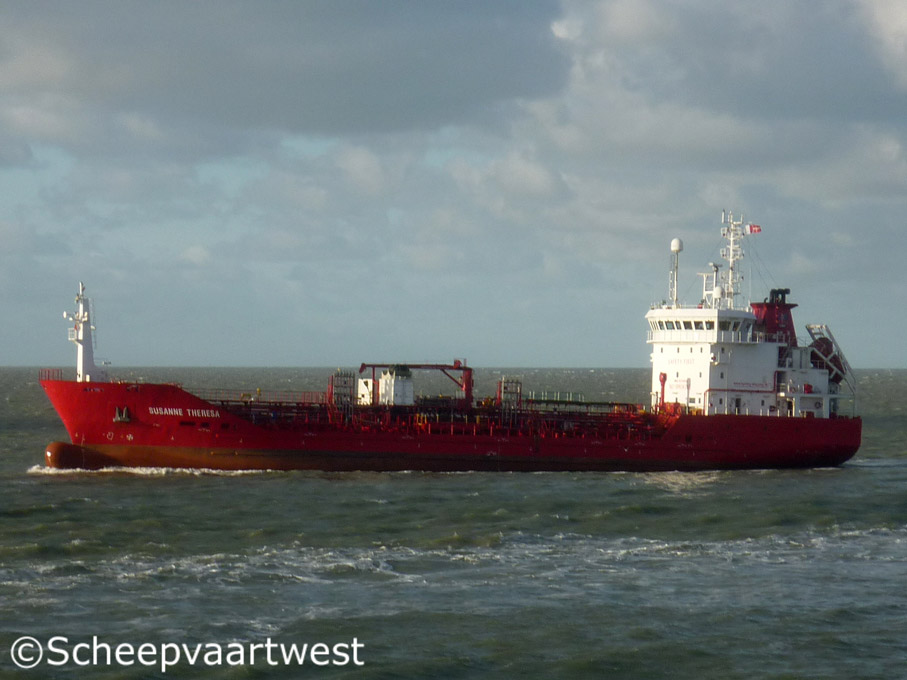

| Westerschelde 10 December 2011 |
 |
 |
 |
 |
|||

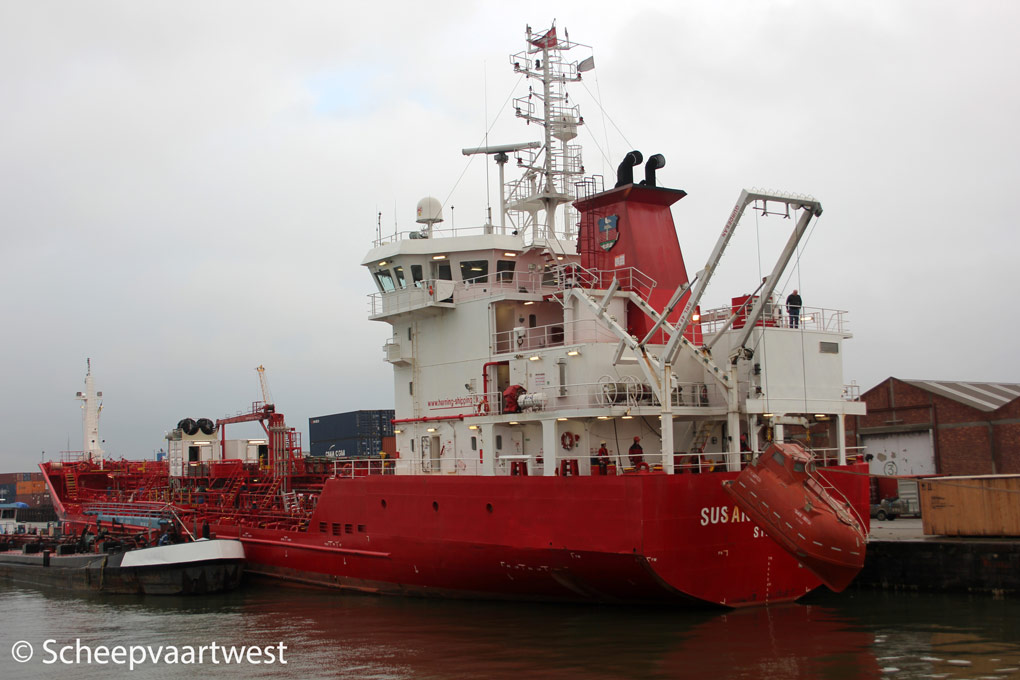

| Westerschelde 10/12/11 | Westerschelde 10/12/11 | Westerschelde 10/12/11 | Antwerpen 21/12/12 | |||
|
Name |
SUSANNE THERESA |
|
Previous names |
2006 - 01/02/2006 Varin |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9334404 |
|
Call sign |
OVJP2 |
|
Flag |
Denmark |
|
Port of registry |
Struer |
|
GT |
2.623 t |
|
DWT |
Summer: 3.464,3 t Winter: 3.335,3 t |
|
NT |
1.133 t |
|
Length |
92,86 m overall 86,65 m between perpendiculars |
|
Breadth |
14,10 m |
|
Draught |
5,70 m |
|
Keel to mast end |
34,00 m |
|
Air draft |
34,00 m from keel to top |
|
Freeboard |
1.511 mm |
|
Depth |
7,20 m |
|
Speed |
13,5 knots |
|
Built |
2006 |
|
Date of completion |
01/05/2006 |
|
Builder |
Dearsan Gemi Insaat San. A.S. Istanbul Turkey |
|
Yard number |
2024 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm combustion engine 1.980 kW / 2.690 hp at 750 rpm Built: 2005 Builder: Caterpillar Motoren, Kiel - Germany |
|
Electrical propulsion gen. |
1x 540 kW - 400 volt |
|
Propeller |
1x Screw propeller controllable pitch |
|
Boilers |
2x CHO Garioni 43,00 m² -12,0 bar 1x CHR Garioni 42,20 m² -12,0 bar |
|
Electrical installation |
Power voltage: 380 V Lighting voltage: 220 V |
|
Generators |
3x Volvo Penta diesel generatorsets each 365 kVA - 292 kW - 421 hp |
|
Emergency generators |
1x Diesel generatorset 166 kVA - 133 kW - 204 hp |
|
Bow thruster |
1x 240 kW |
|
Number of cargo tanks |
11 + 1 slop tank |
|
Total capacity of tanks |
Liquid: 4.161,8 m³ |
|
Number of pumps |
10x Marflex Deepwell cargo pumps each 150 m³/h 1x Marflex Deepwell cargo pumps 100 m³/h |
|
Loading rate |
600 m³/h |
|
Discharging rate |
600 m³/h |
|
Heating capacity |
Maximum loading / maintaining temp. 80 C. |
|
Manifolds |
Manifold to deck: 2,00 m Manifold to stern: 51,00 m Manifold to bow: 42,00 m Manifold to rail: 2,75 m |
|
Tank capacities |
Fuel oil: 186,41 m³ Diesel oil: 29,4 m³ Ballast water: 1.432 m³ |
|
Lifting capacity |
Deck: 1 cranes -SWL 3 t / 12,00 m Aft: 1 Crane - SWL 2 t / 7,00 m |
|
Manager |
Christiania Shipping A/S Amerika Plads 38 2100 Copenhagen Denmark |
|
Registered owner |
Ross Chemicals AS NO-0113 Oslo Norway |
|
Latest data adjustment |
26 November 2022 |
