| Westerschelde 07 September 2011 |
 |
 |
 |
 |
 |
 |
|||||

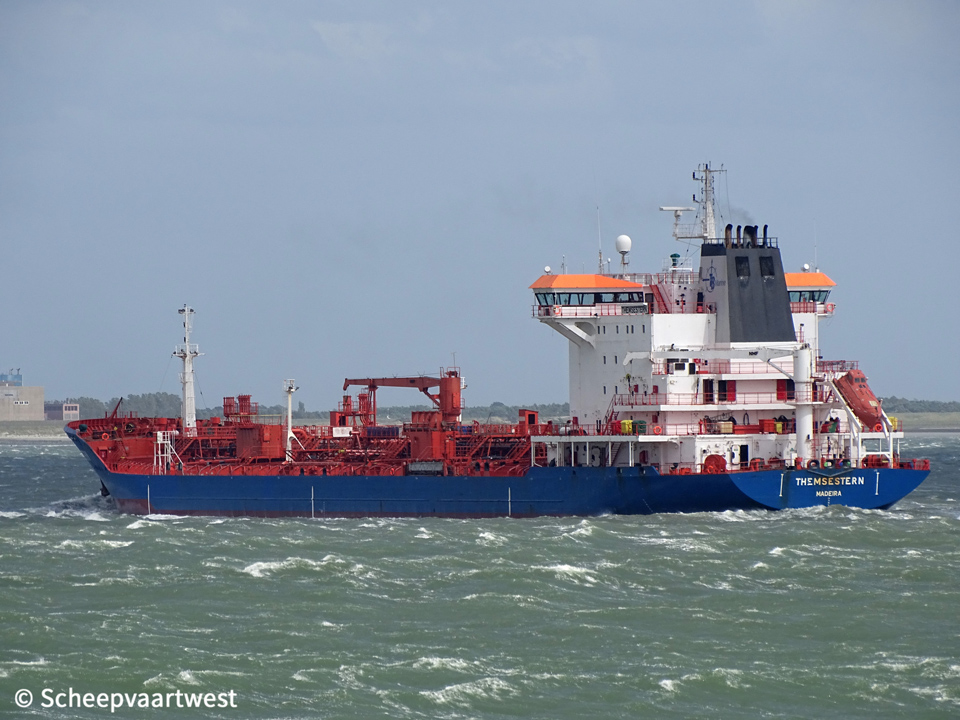

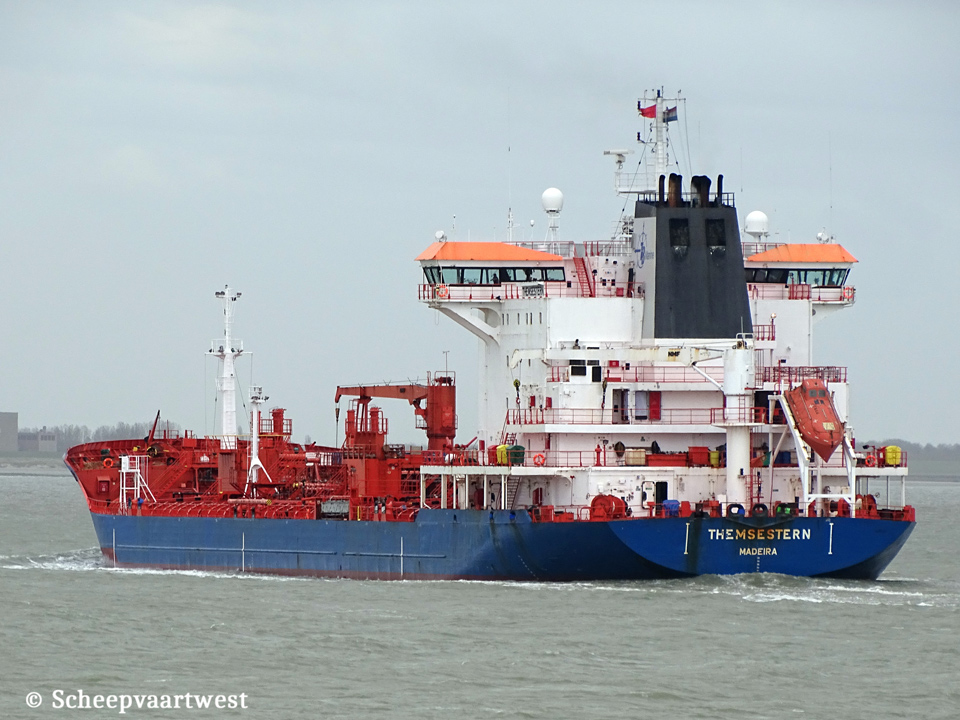

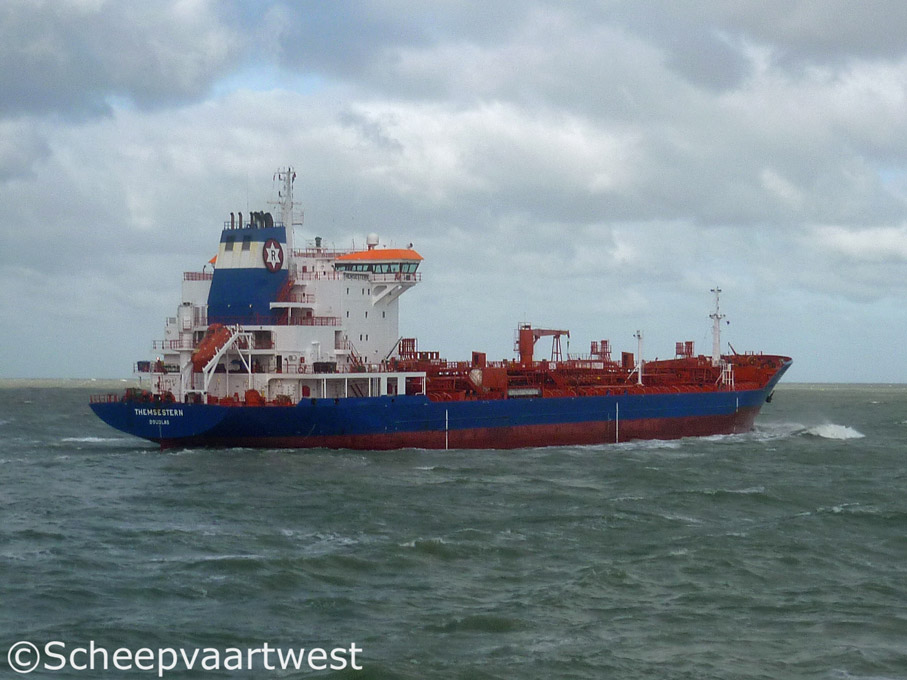

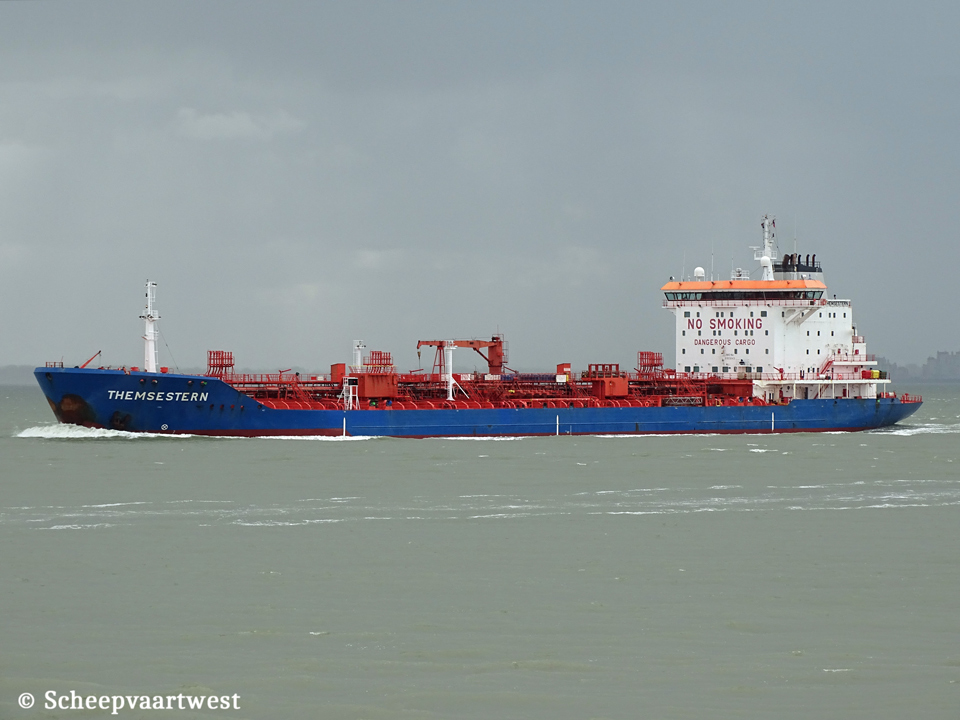

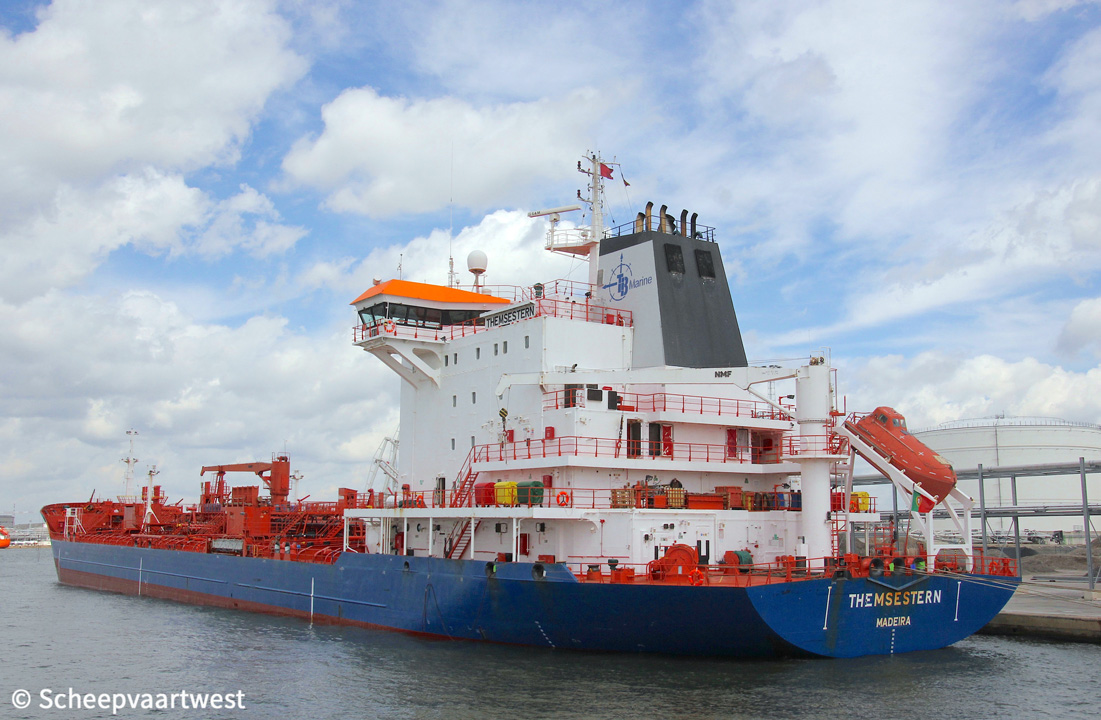

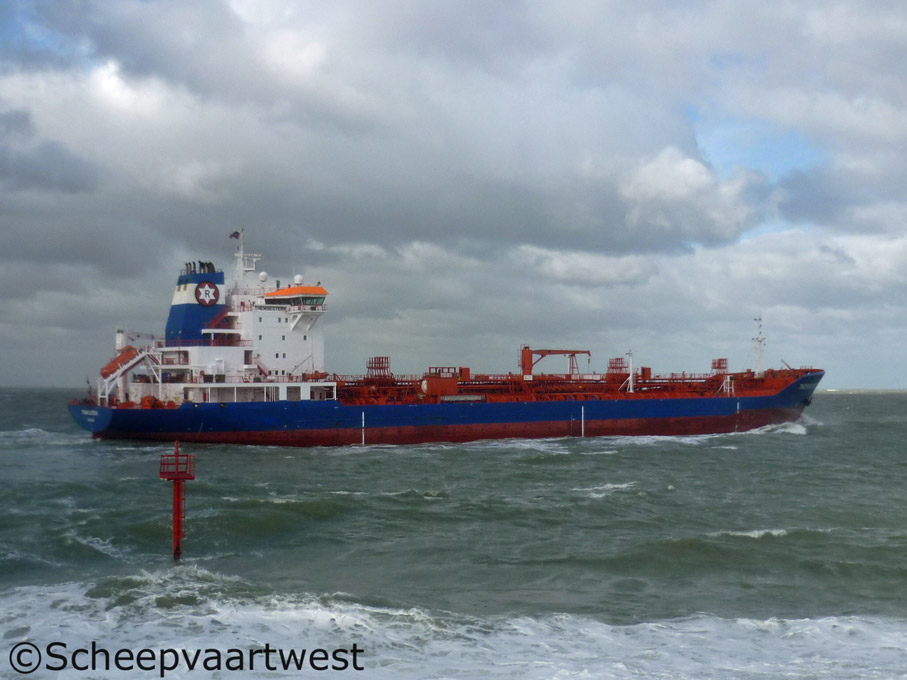

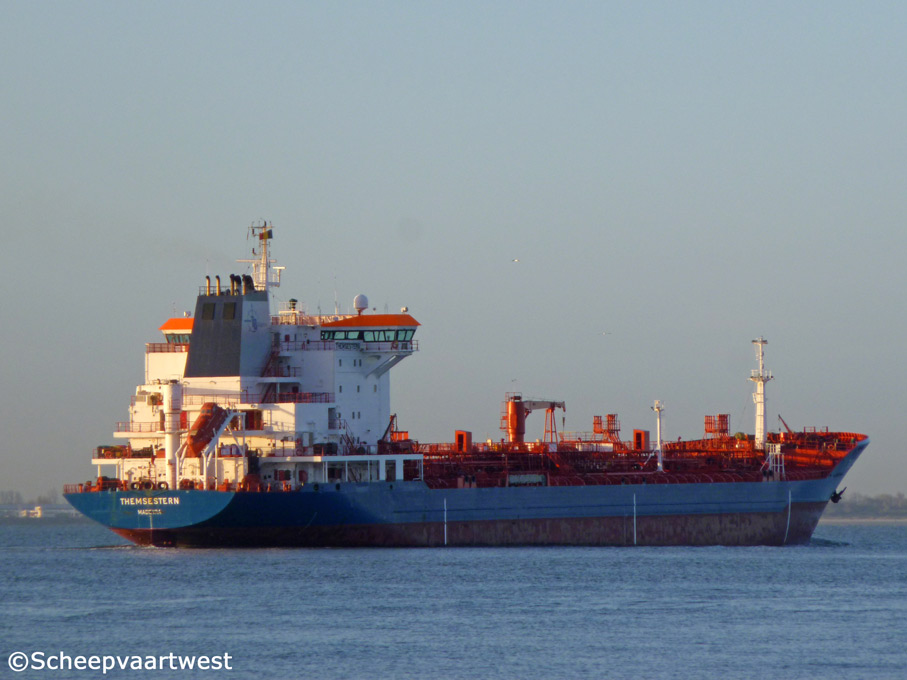

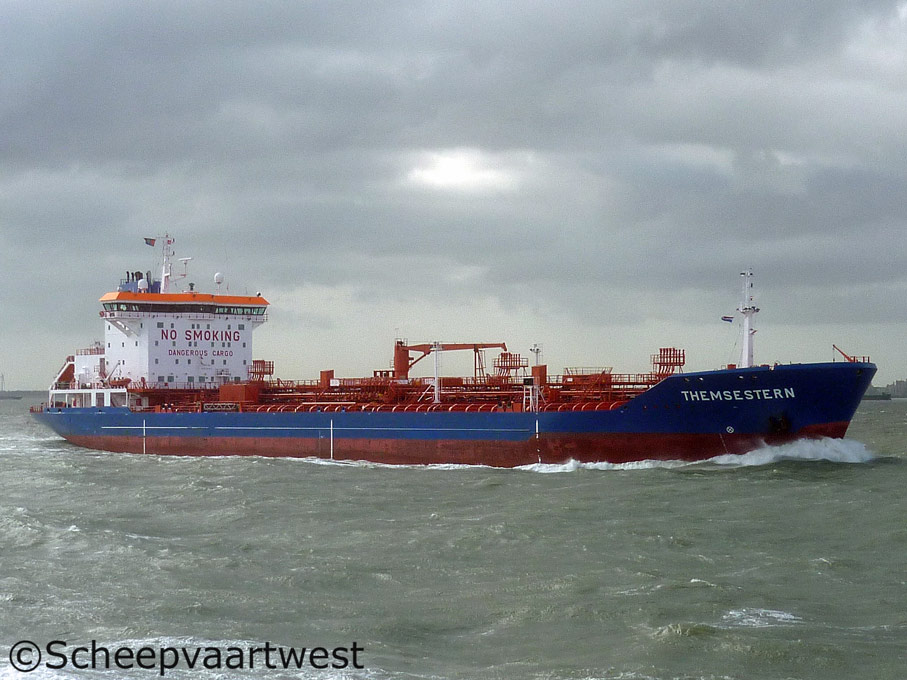

| Westerschede 07/09/11 | Westerschelde 07/09/11 | Westerschede 15/11/13 | Antwerpen 19/04/19 | Antwerpen 19/04/19 | Antwerpen 26/04/19 | |||||
 |
 |
 |
||||||||
| Westerschelde 10/08/19 | Westerschelde 13/03/20 | Westerschelde 13/03/20 | ||||||||
|
Name |

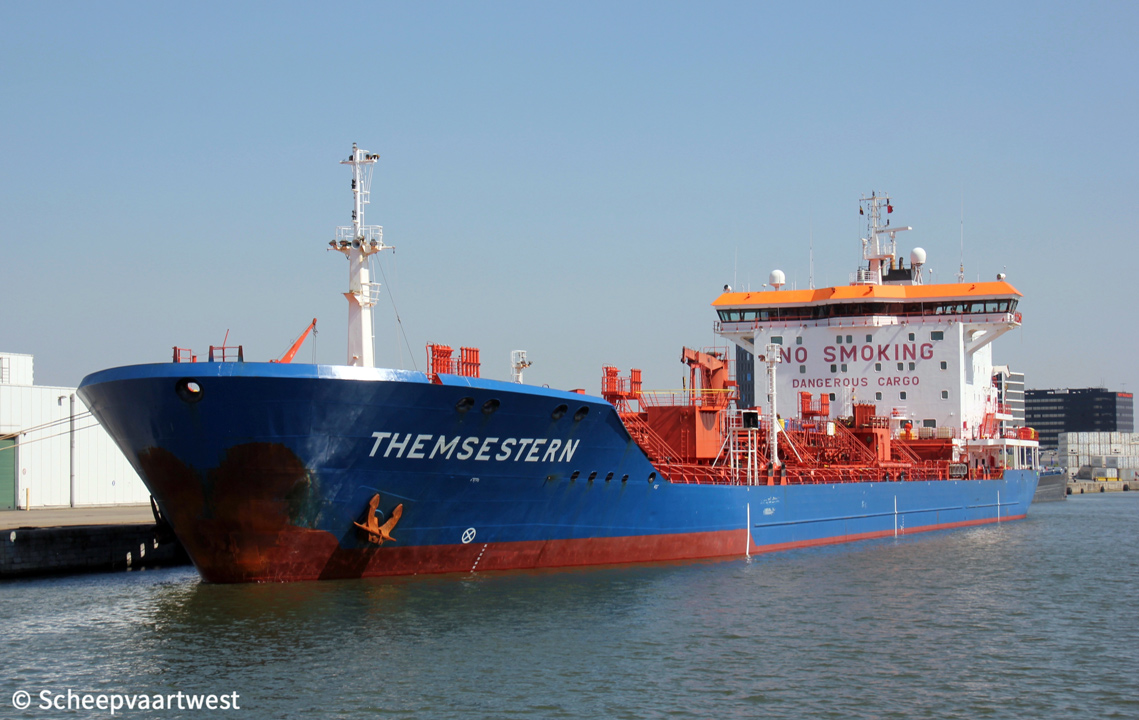

THEMSESTERN |
|
Type |
Tanker for oil & Chemical |
|
IMO-number |
9183843 |
|
Call sign |
CQLG |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
Germany Isle Of Man - United Kingdom, Douglas - Call sign: ZQFZ5 |
|
GT |
14.400 t registered |
|
DWT |
21.866 t |
|
NT |
6.937 t registered Panama: 12.078 t Suez: 12.206,46 t |
|
Length |
162,16 m overall 155,87 m registered |
|
Breadth |
27,00 m moulded |
|
Draught |
8,80 m |
|
Keel to mast end |
41,00 m |
|
Freeboard |
3.214 mm |
|
Depth |
12,00 m moulded |
|
Speed |
14,5 knots |
|
Built |
2000 |
|
Keel laid |
11/01/2000 |
|
Launch date |
13/05/2000 |
|
Date of completion |
30/06/2000 |
|
Builder |
Stocznia Gdynia S.A. ul. Czechoslowacka 3 81-969 Gdynia Republic of Poland |
|
Yard number |
8189/4 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
15 |
|
Continuous decks |
1 |
|
Main engine |
1x Cegielski/MAN-B&W 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 7.878 kW / 10.711 hp at 129,0 rpm Year of Manufacture: 1999 Manufacturer: H. Cegielski-Poznan S.A. ul. 28 Czerwca 1956 223/229 60-965 Poznan Republic of Poland |
|
Propeller |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 12,0 bar Heating surface: 273,2 m² 1x Steam boiler, oil fired - 10,0 bar Heating surface: 99,0 m² Year of manufacture: 1999 Manufacturer: Aalborg Boilers A/S 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
1x Plant 440/220 V - 830 kVA 1x Plant 440/220 V - 830 kVA 1x Plant 440/220 V - 830 kVA 1x Plant 440 V -900 kVA 1x Plant 440 V - 215 kVA |
|
Shaft generator |
1x 900 kVA |
|
Generators |
3x Cegielski/MAN-B&W 7L16/24 - 7 cylinder 160 x 240 mm diesel engines each 697 kW at 1.200 rpm connected with generators each 830 kVA |
|
Emergency generator |
1x Diesel generatorset 215 kVA |
|
Compressed air receivers |
2x Receivers each 4.000 litres - 30,0 bar 1x Receiver 200 litres - 30,0 bar 1x Receiver 1.000 litres - 8,0 bar 1x Receiver 50 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster ULSTEIN - 750 kW, forward |
|
Number of segregations |
8 |
|
Number of cargo tanks |
15 |
|
Total cargo capacity 98% |
24.565 m³ incl. slop tanks |
|
Cargo pumps |
6x Framo Deepwell pumps 550 m³/h each 8x Framo Deepwell pumps 350 m³/h each 1x Framo Deepwell pump 40 m³/h |
|
Pumping capacity |
Abt. 2.750 m³/h (theoretical) |
|
Loading capacity |
Abt. 4.000 m³/h (theoretical) |
|
Tank coating |
Epoxy 60 %, zinc 40 % |
|
Number of tanks |
Ballast: 15 Sludge: 13 Fuel oil: 8 Lubricating oil: 5 Fresh water: 5 Diesel oil: 4 Chain: 2 |
|
Tank capacities 100% |
Fuel oil: 1.276 m³ Ballast water: 9.549 m³ Diesel Oil: 145 m³ Freshwater: 438 m³ Lube Oil: 63,6 m³ |
|
Anchor equipment |
3x Anchors weight each 6.450 kg Chain length: 605,00 m |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Crew size |
24 |
|
Commercial manager |
MOL Chemical Tankers Europe AS Tuborg Havnevej 15 2900 Hellerup, O Denmark. |
|
ISM manager |
TB Marine Shipmanagement GmbH & Co. KG Paul Dessau Str. 6 22761 Hamburg Federal Republic of Germany |
|
Previous manager |
Rigel Schiffahrts GmbH & Co. KG, 28195 Bremen - Federal Republic of Germany |
|
Owner |
MT "THEMSESTERN" Schifffahrtsgesellschaft mbH & Co. KG, 22761 Hamburg - Germany Care of MOL Chemical Tankers Europe A/S Tuborg Havnevej 15 2900 Hellerup, O Denmark |
|
Previous owners |
Rigel Reederei GmbH & Co. KG MT "THEMSESTERN", 26789 Leer - Federal Republic of Germany |
|
Latest date adjustment |
15 May 2022 |
