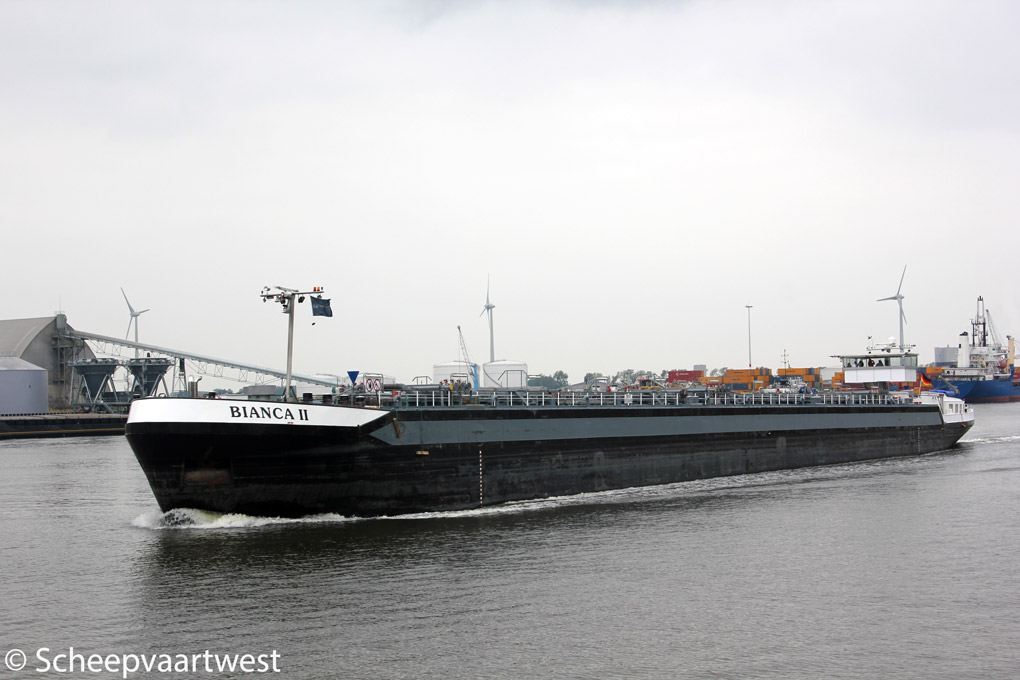

Bianca II 01
Gent, Belgium 18 May 2013


Name

BIANCA II

Type

Inland tanker

ENI-number

02334018

Call sign

DB4422

Flag

Germany

Port of registry

Duisburg

GT

2.211 t

DWT

2.979 t

Length

110,00 m

Breadth

11,45 m

Draught

3,60 m

Depth

5,32 m

Built

2010

Date of completion

15.12.2010

Builder casco

Stig Jiangsu Sugang Shipbuilding Machinery Imp. & Exp. Corp
Yizheng
China

Builder completion

Bodewes Binnenvaart BV
Millingen a/d Rijn
The Netherlands

Hull material

Steel

Watertight compartments

16

Continuous decks

1

Main engine

1x Caterpillar 3512 (C) DI-TA electronic - 4 stroke 12 cylinder 105 c 127 mm diesel engine - 1350 kW / 1836 hp at 1.600 rpm

Built: 2009

Gearbox

1x Reintjes type WAF 763 L - reduction: 5,136:1

Propellers

1x Promarin propeller solid with nozzle type Van de Giessen Optima diameter: 1.762 mm

Generators

1x Caterpillar type C18Acert diesel engine 448 kW / 608 hp at 1.800 rpm coupled with generator 500 kW / 625 kVA

1x Caterpillar type C6.6 diesel engine coupled with generator 143 kW / 179 hp

1x Caterpillar type C4.4 engine coupled with generator 51 kW / 64 kVA

Bow thruster

1x Caterpillar - Verhaar Omega-Jet 31120-4k - 608 hp / 393 kW at 1.780 rpm

Number of cargo tanks

10

Tank capacity

3.726 m³

Fuel capacity

40 m³

Owner

Supply Transport Service GmbH (H. Schievelbusch)
Moers
Germany

Last update

25 May 2013
