| Westerschelde 08 November 2012 |
|
Name |

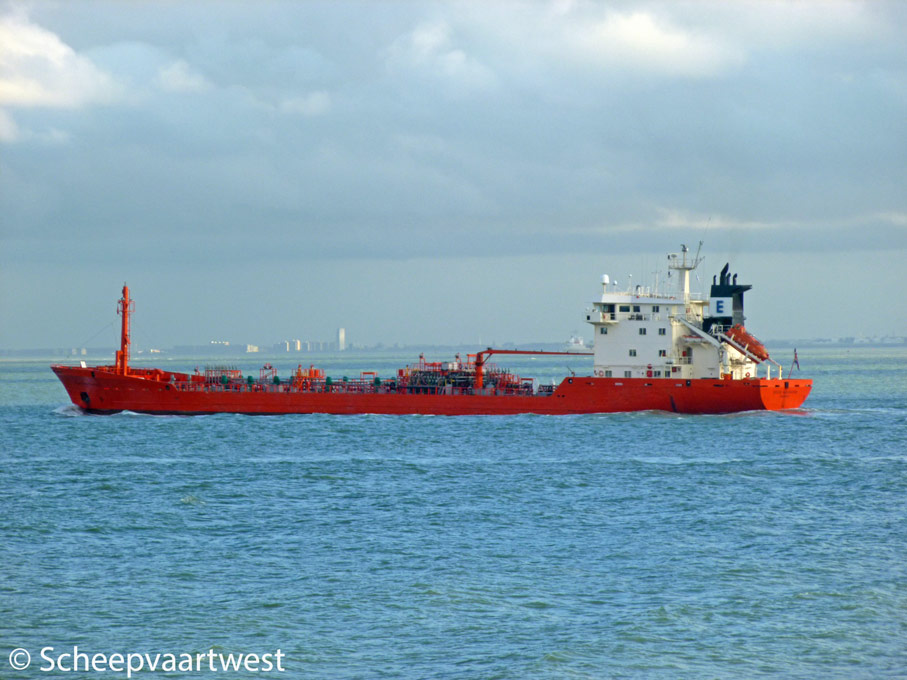

DUTCH NAVIGATOR |
|
Type |
Tank for oil & chemicals |
|
IMO-number |
9000613 |
|
Call sign |
PDTP |
|
Flag |
The Netherlands |
|
Port of registry |
Dordrecht |
|
GT |
4.297 t |
|
DWT |
Summer: 6.221 t Winter: 6.015 t |
|
NT |
1.799 t |
|
Displacement |
Summer: 8.721,2 m³ |
|
Unladen vessel |
2.140,0 t |
|
Length |
118,04 m overall 111,28 m between perpendiculars |
|
Breadth |
17,02 m |
|
Draught |
Summer: 6,21 m |
|
Air draft |
35,20 m |
|
Depth |
8,70 m |
|
Speed |
14,5 knots |
|
Built |
1991 |
|
Date of completion |
20.09.1991 |
|
Builder |
Verolme Scheepswerf |
|
Yard number |
1024 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Wärtsilä 9R 32D - 4 stroke 9 cylinder diesel engine - 3.374 kW / 4.588 hp |
|
Propellers |
1x Pitch propeller |
|
Bow thruster |
330 kW |
|
Number of tanks |
22 |
|
Cargo tank capacity |
6.622,3 m³ |
|
Tank capacities |
Ballast tanks: 2.999 m³ Fresh water: 171,4 m³ Bunker capacity: 375,4 m³ |
|
Manager |
John T. Essberger BV Dordrecht |
|
Operator |
John T. Essberger BV |
|
Owner |
Pungelaer BV 3316BG Dordrecht |
|
Last update |
29.04.2013 |
