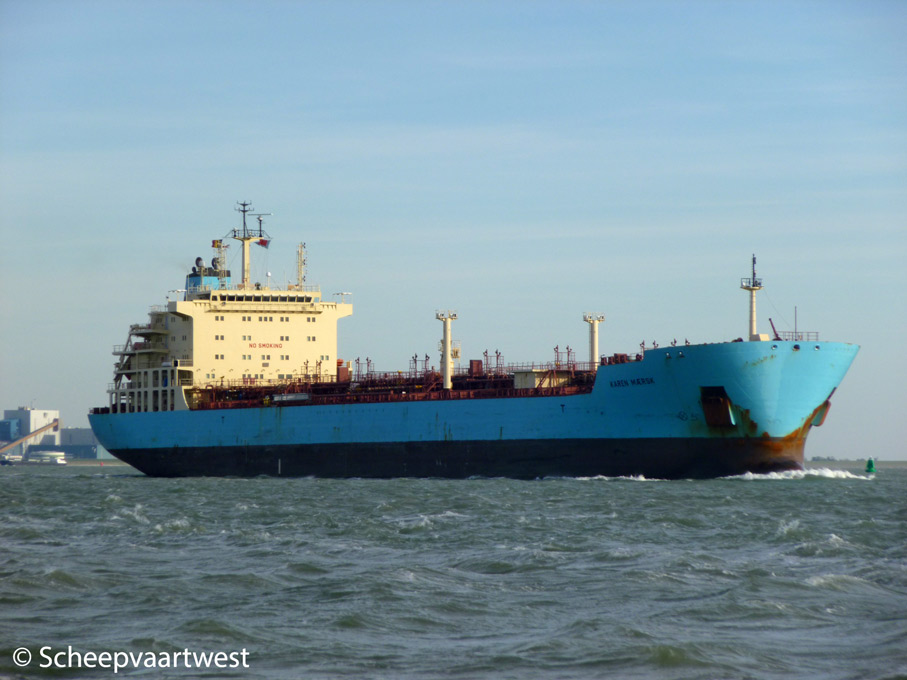

| Westerschelde 21 August 2017 |
 |
 |
 |
 |
 |
 |
|||||

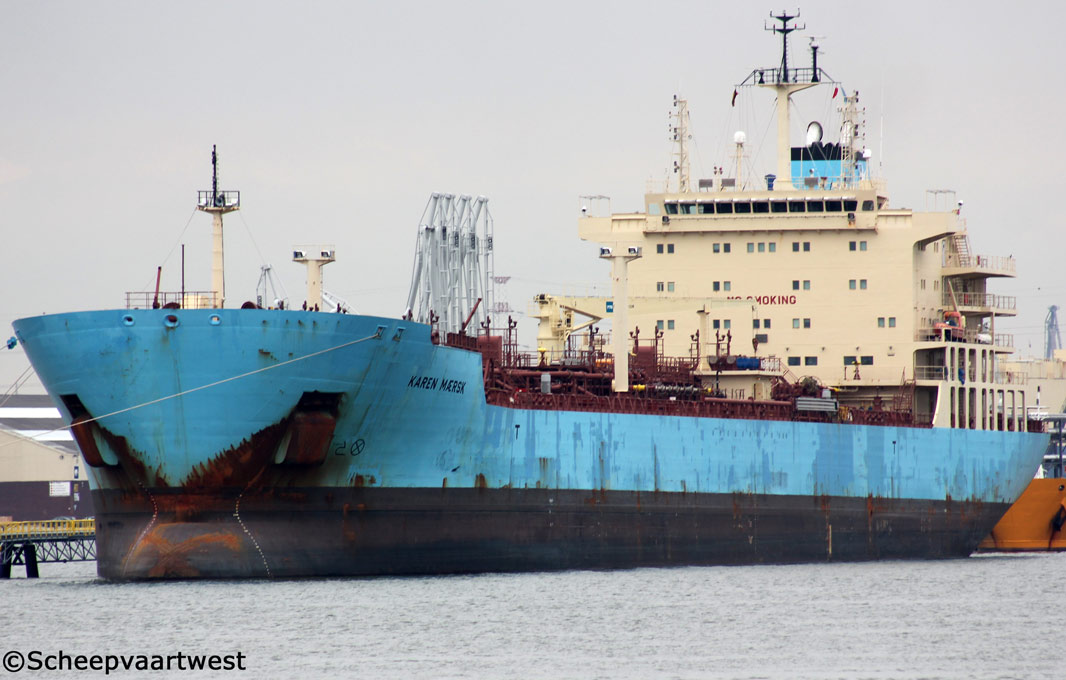

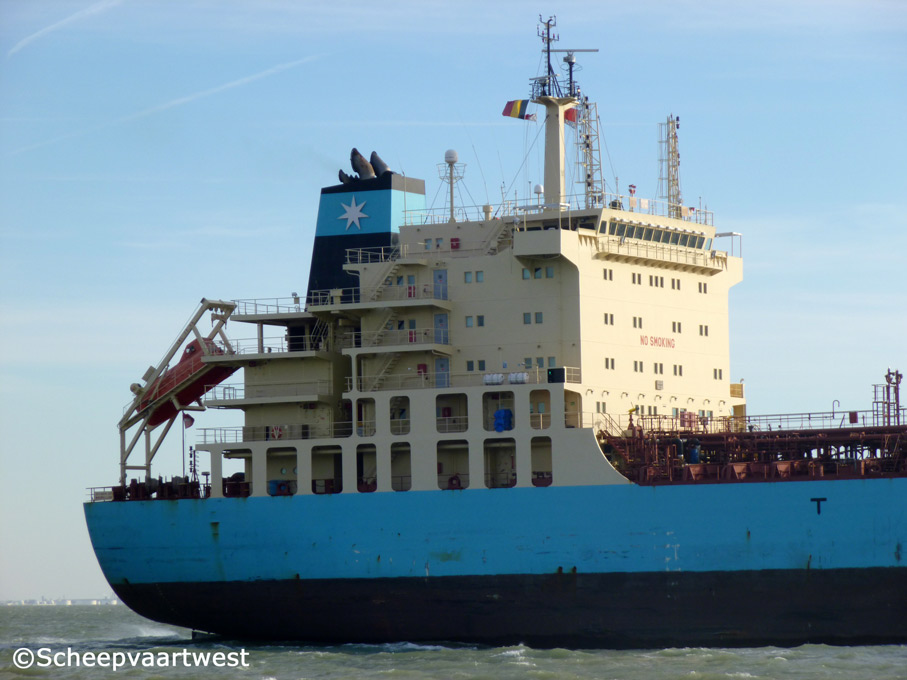

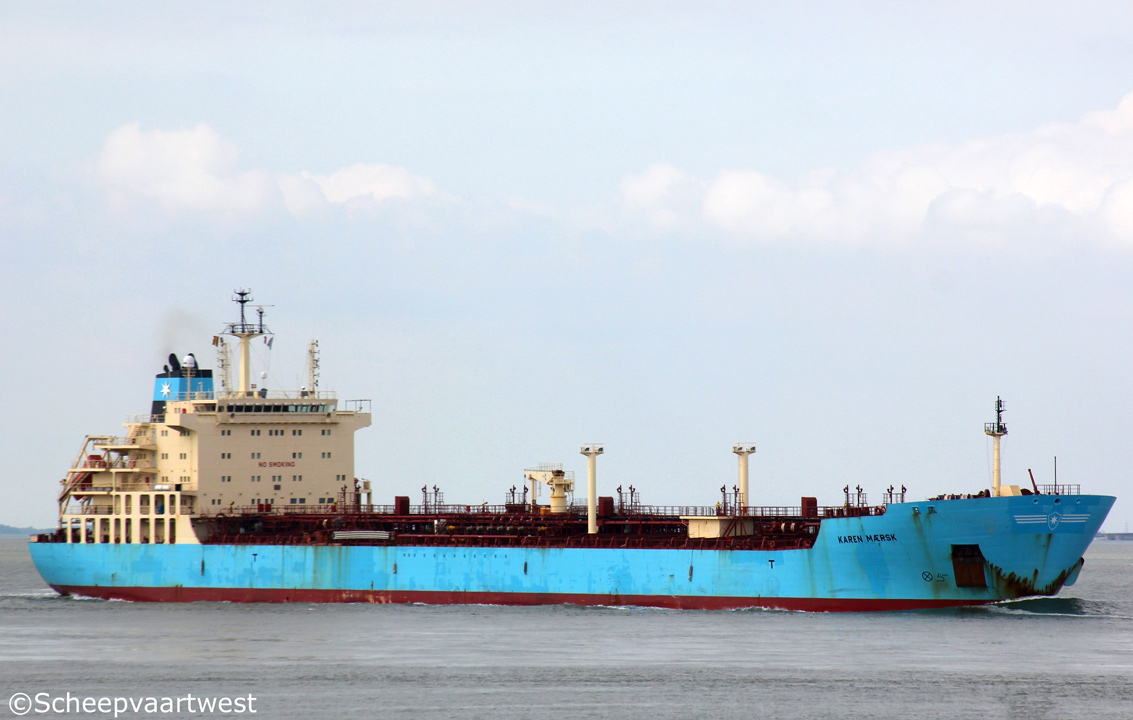

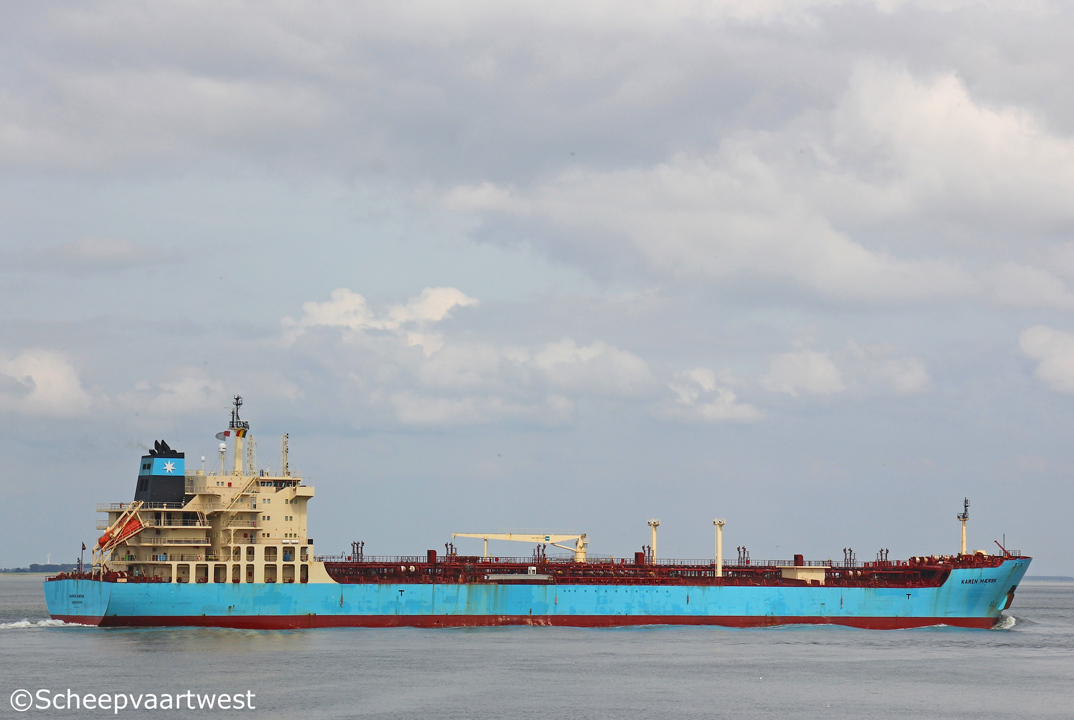

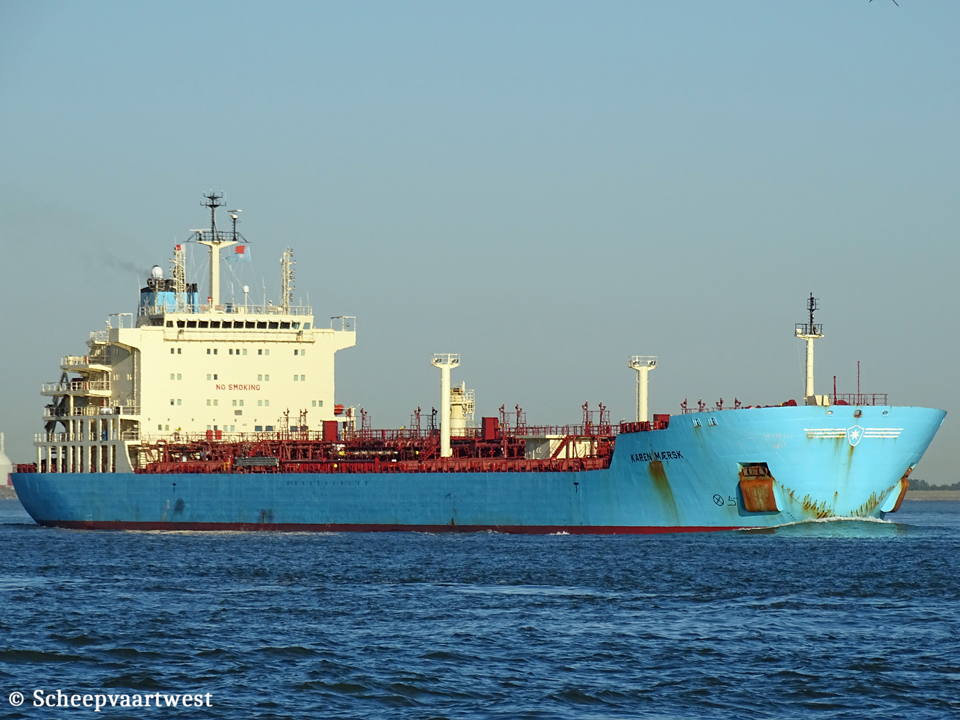

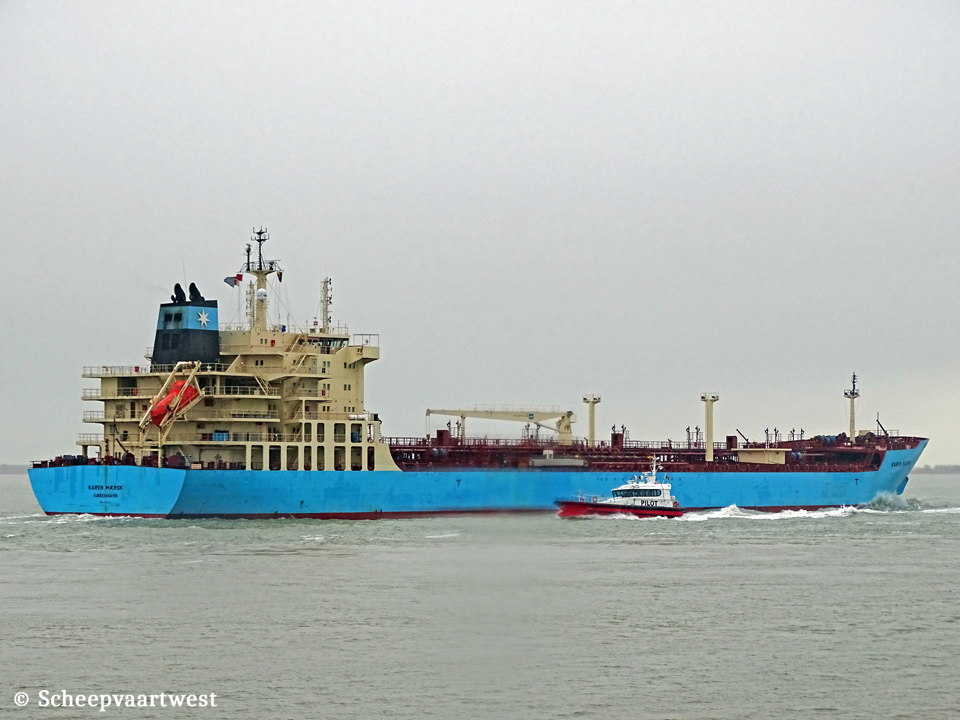

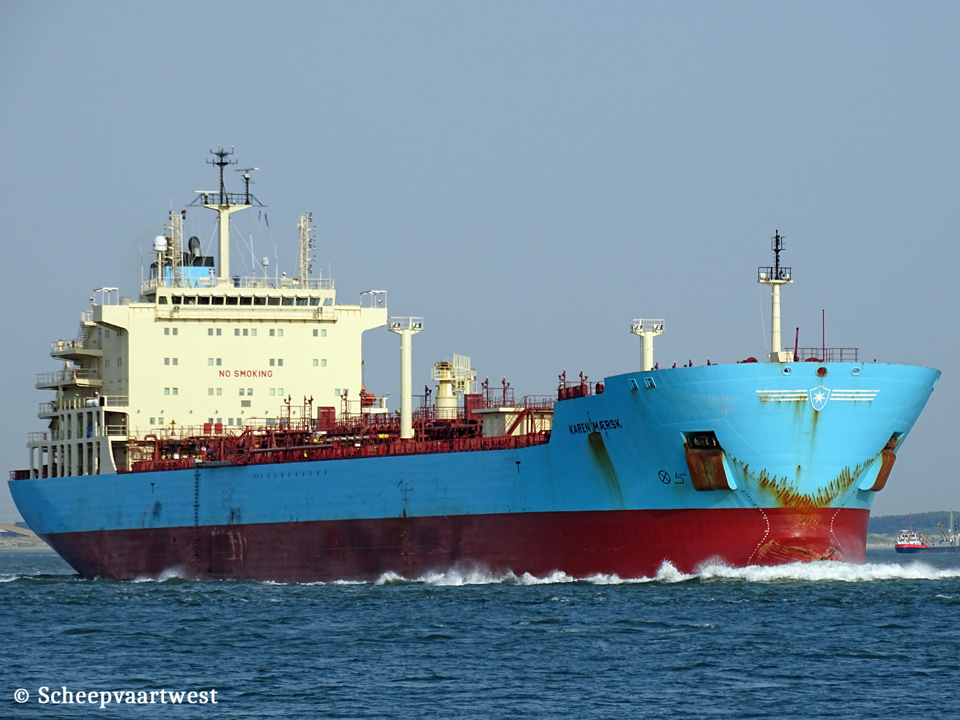

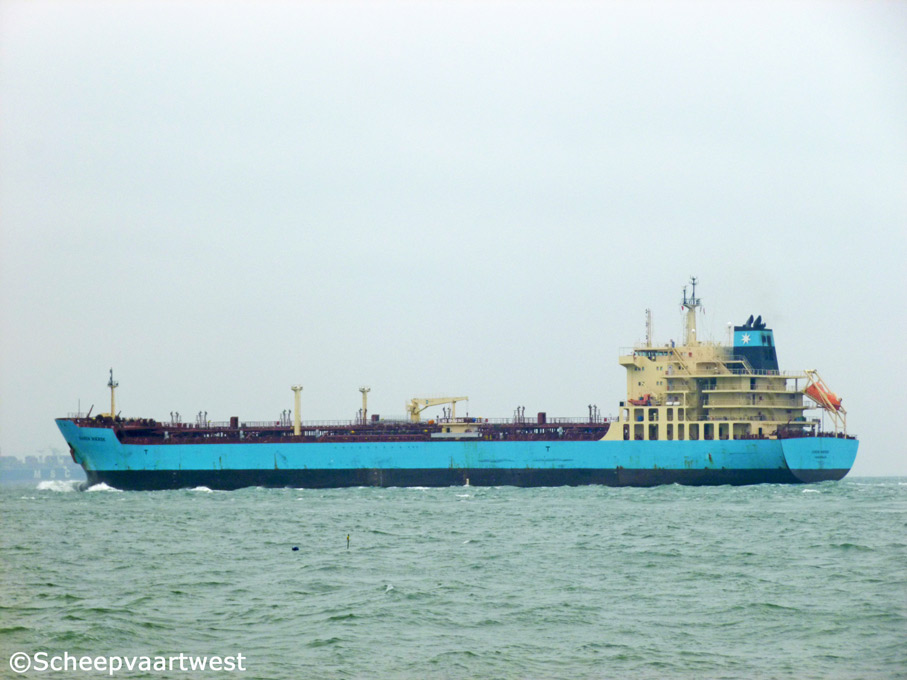

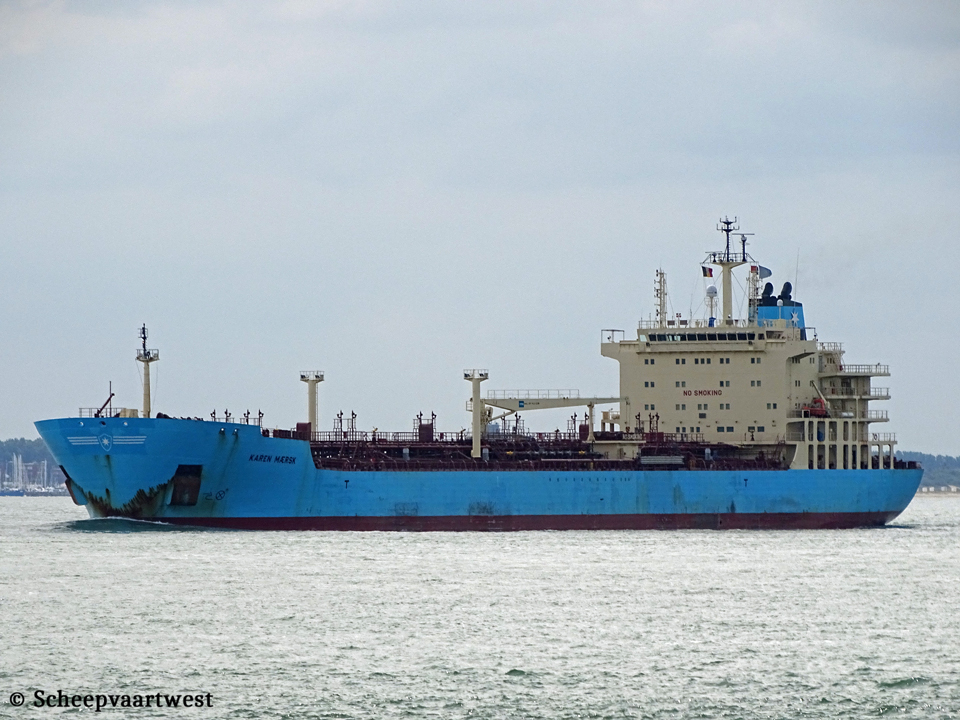

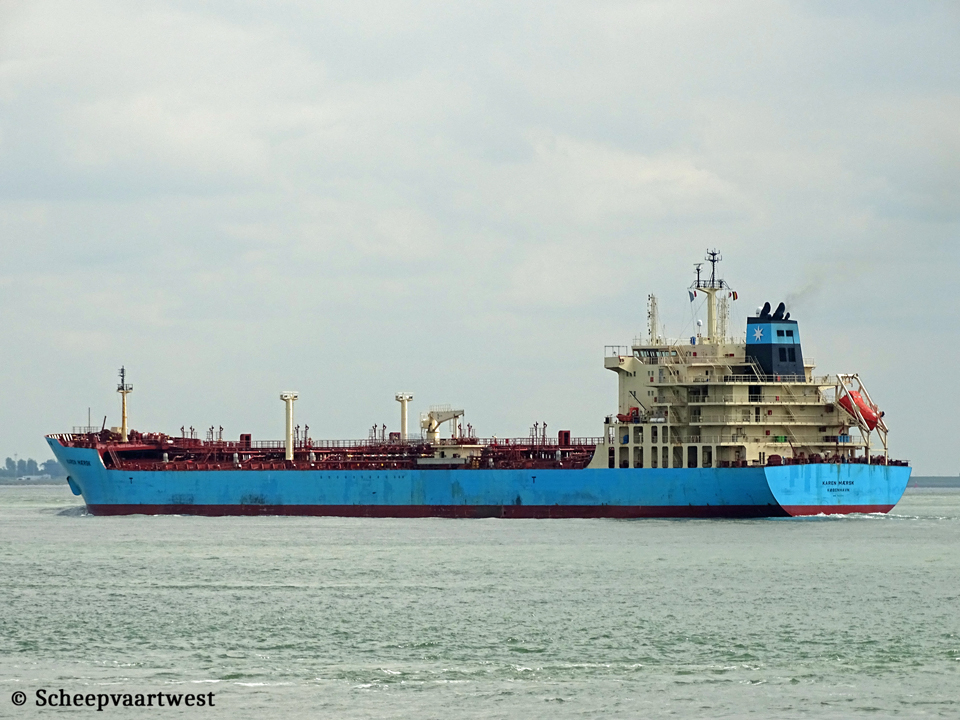

| Westerschelde 31/10/12 | Westerschelde 14/10/13 | Westerschelde 14/10/13 | Westerschelde 31/10/12 | Antwerpen 30/07/14 | Westerschelde 21/08/17 | |||||
 |
 |
 |
 |
|||
| Westerschelde 24/08/16 | Westerschelde 31/08/16 | Westerschelde 21/08/14 | Westerschelde 21/08/14 | |||
|
Name |
KAREN MAERSK |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9423712 |
|
Call sign |
OYDB2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
GT |
24.463 t registered Suez: 25.406,63 t |
|
DWT |
Summer: 39.708 t |
|
NT |
11.668 t registered Suez: 21.768,71 t |
|
Length |
183,20 m overall 176,00 m between perpendiculars |
|
Breadth |
27,40 m moulded |
|
Draught |
9,55 m |
|
Freeboard |
5.013 mm |
|
Depth |
16,80 m moulded |
|
Speed |
Max: 15,2 knots |
|
Built |
2010 |
|
Keel laid |
30/06/2009 |
|
Launch date |
20/10/2009 |
|
Date of completion |
31/03/2010 |
|
Builder |
Guangzhou Shipyard International Co., Ltd. No. 40 Fang Cun Road South 510382 Guangzhou China |
|
Yard number |
06130024 |
|
Hull material |
High strength steel |
|
Hull type |
Double bottom with hopper Double side |
|
Bulkhead |
Water tight: 5 Gas tight: 5 Oil tight: 7 |
|
Main engine |
1x MAN-B&W/Dalian Marine 6S50MC-C MK7 - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine Mcr 9.480 kW / 12.889 hp at 127,0 rpm Build: 2010 Manufacturer: Dalian Marine Diesel Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Yuanhang Propellers Manufacturing Co., Ltd. |
|
Boilers |
1x Fired boiler AQ-18 1x Fired exhaust gas boiler AQ-10/16 Builder: Alfa Laval Aalborg A/S |
|
Generators |
3x MAN 6L23/30H main diesel generatorsets each 910 kW |
|
Emergency generator |
2x Sisu 634 diesel generatorset Builder: AGCO Sisu Power, GenPowex |
|
Number of cargo tanks |
12 |
|
Cargo tank oil capacity 100% |
40.790,10 m³ |
|
Number of tanks |
Ballast: 17 Cargo oil: 12 Fuel oil: 11 Lubricating oil: 8 Slop: 3 Fresh water: 3 Waste water: 2 Chain: 2 Diesel oil: 2 Sludge: 1 |
|
Tank capacities |
Diesel Oil: 152,80 m³ Freshwater: 371,00 m³ Fuel Oil: 1.477,80 m³ Lube Oil: 130,90 m³ Tank Ballast: 18.560 m³ |
|
Lifting equipment |
1x Cargo hose handling crane - SWL 10,0 t 1x Monorail stores crane - SWL 3,0 t Manufacture: TTS Marine 1x Engine room crane - SWL 3,0 t Manufacture: Danish Crane Building |
|
Anchor equipment |
Length: 632,5 m Diameter: 70 mm |
|
Manager |
Synergy Denmark A/S Kay Fiskers Plads 10 2300 Copenhagen Denmark |
|
Registered owner |
Maersk Product Tankers A/S Holmbladsgade 133 2300 København S Denmark |
|
Latest data adjustment |
06 November 2023 |
