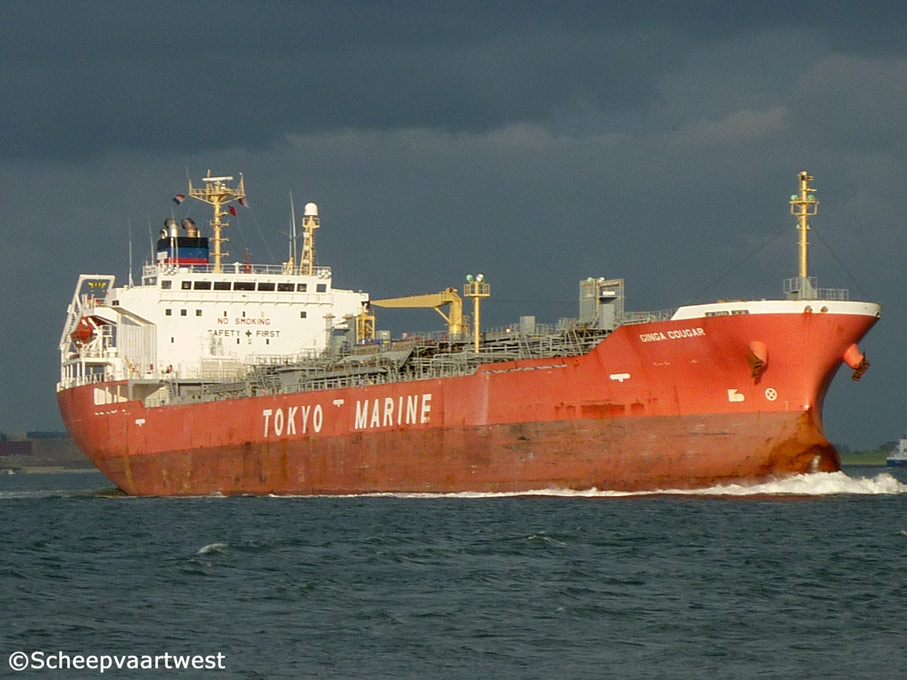

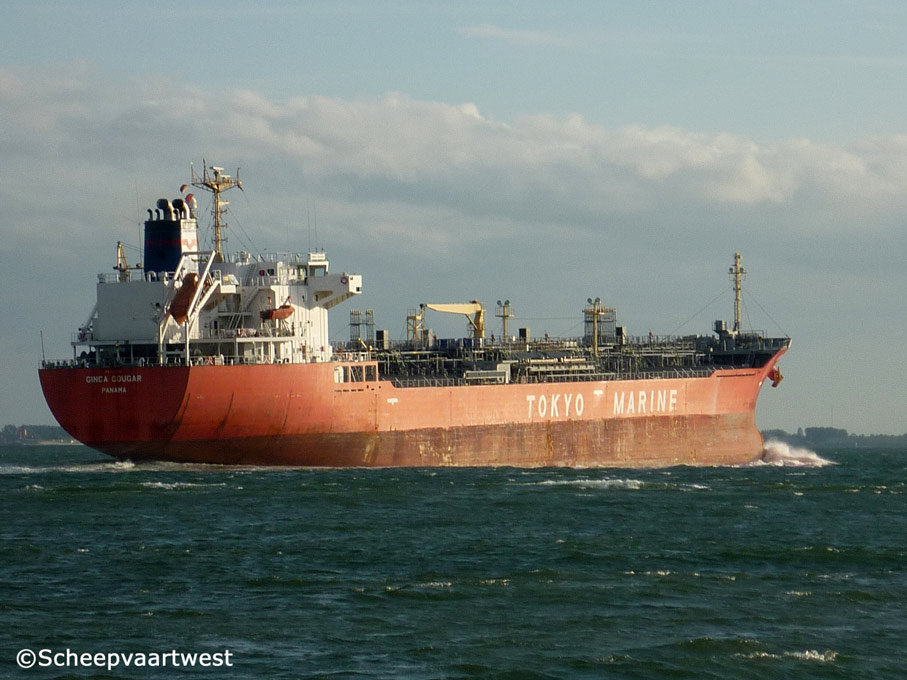

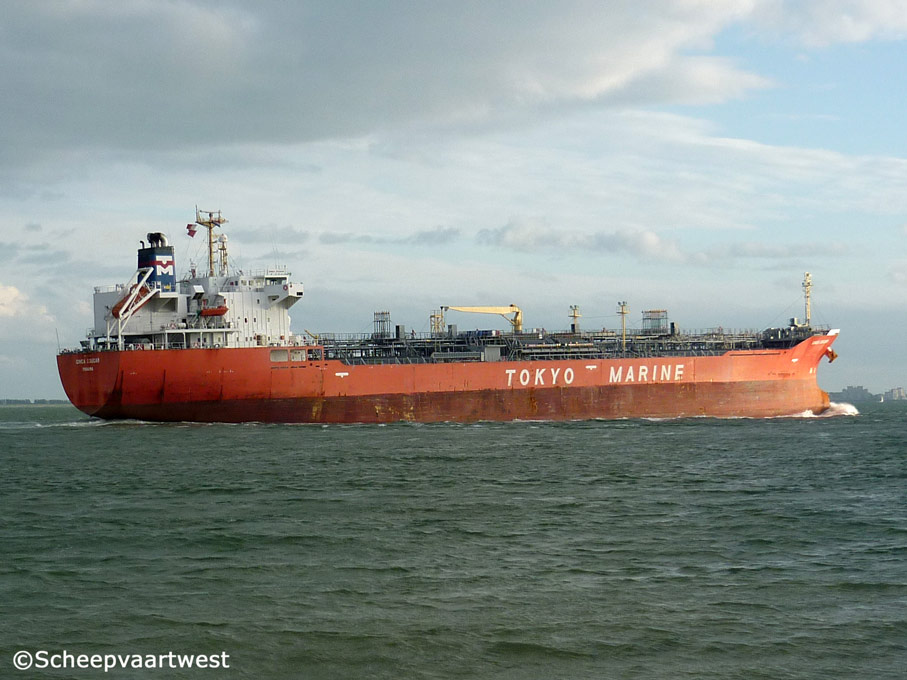

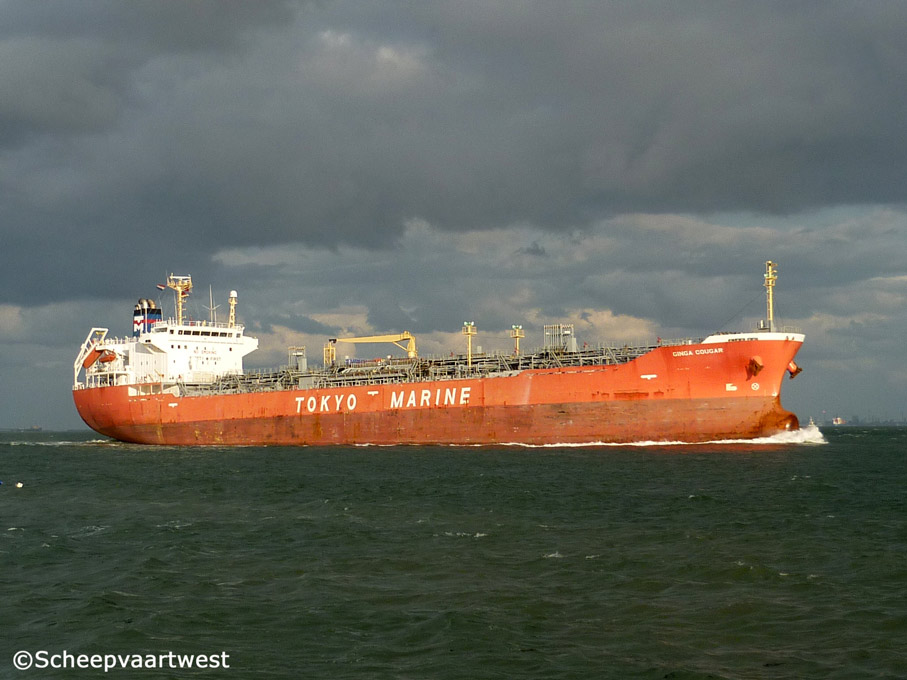

| Westerschelde 13 July 2012 |
 |
 |
 |
||
| Westerschelde 13/07/12 | Westerschelde 13/07/12 | Westerschelde 13/07/12 | ||
|
Name |
GINGA COUGAR |
|
Type |
Oil / Molasses / Chemical tanker |
|
IMO-number |
9321861 |
|
Call sign |
3EAG7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
16.232 t registered |
|
DWT |
Summer: 26.180 t |
|
NT |
7.983 t registered |
|
Length |
159,98 m overall |
|
Breadth |
26,80 m moulded |
|
Draught |
Summer: 10,08 m |
|
Moulded L x B x D |
154,00 x 26,80 x 14,20 m |
|
Registered L x B x D |
154,31 x 26,80 x 14,20 m |
|
Freeboard |
4.165 mm |
|
Depth |
14,20 m moulded |
|
Speed |
16,2 knots |
|
Built |
2005 |
|
Keel laid |
04.06.2004 |
|
Launch date |
13.10.2004 |
|
Date of completion |
09.03.2005 |
|
Builder |
Shin Kurushima Hiroshima Dockyard |
|
Yard number |
5317 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi-Kobe Hatsudoki 6UEC52LA - 2 stroke single acting 6 cylinder 520 x1.600 mm diesel engine - 7.080 kW at 133,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works |
|
Propeller shaft |
1x Oil lubrication shaft without monotoring device Diameter: 445 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 9,8 bar Evaporation: 16,06 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Bow thruster |
1x 707 kW |
|
Number of cargo tanks |
28 |
|
Liquid tank capacity |
29.631 m³ |
|
Tank capacities |
Fuel oil: 1.248 m³ Fresh water: 531 m³ Water ballast: 10.807 m³ |
|
Manager |
Unix Line Pte., Ltd. 18-01, SGX Centre 2, 4, Shenton Way |
|
Operator |
Tokyo Marine |
|
Registered owner |
Panther Navigation Inc. 18-01, SGX Centre 2 Shenton Way Republic of Singapore |
|
Last data update |
15 January 2014 |
