| Westerschelde 05 October 2013 |
|
Name |

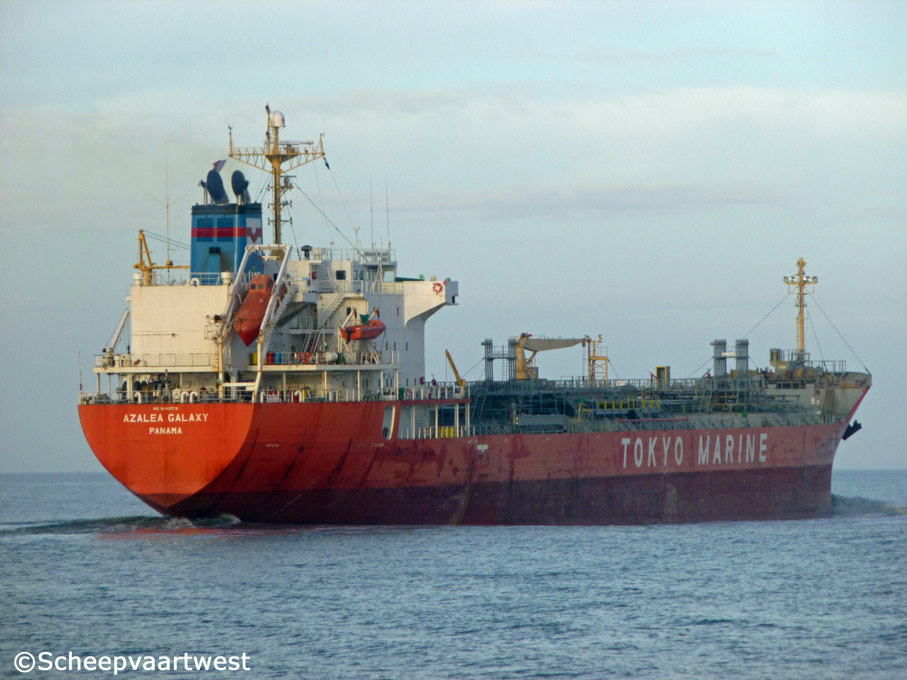

AZALEA GALAXY |
|
Type |
Oil /Molasses / Chemical |
|
IMO-number |
9343778 |
|
Call sign |
3EEV4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
12.105 t registered |
|
DWT |
Summer: 19.998 |
|
NT |
6.378 t registered |
|
Length |
147,83 m overall |
|
Breadth |
24,20 m |
|
Draught |
Summer: 9,47 m |
|
Moulded L x B x D |
141,00 x 24,20 x 12,85 m |
|
Registered L x B x D |
141,20 x 24,20 x 12,85 m |
|
Freeboard |
3.434 mm |
|
Depth |
12,85 m moulded |
|
Speed |
17,1 knots |
|
Built |
2006 |
|
Keel laid |
01.12.2004 |
|
Launch date |
20.10.2005 |
|
Date of completion |
14.02.2006 |
|
Builder |
Shin Kurushima Hiroshima Dockyard Co., Ltd. |
|
Yard number |
5365 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi / Kobe 7UEC45LA - 2 stroke single action 7 cylinder 450 x 1.350 mm diesel engine - 6.230 kW / 8.400 hp at 158,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 400 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 9,8 bar Evaporation: 15,00 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Diesel generatorsets - 1.965 kVA |
|
Bow thruster |
1x 758 hp |
|
Number of tanks |
22 |
|
Segregation |
22 |
|
Cargo capacity |
21.933 m³ |
|
Manifolds |
Manifold to bow: 76,62 m Manifold to stern: 71.21 m |
|
Tank capacities |
Fuel oil: 1.102 m³ Fresh water: 205 m³ Water ballast: 7.865 m³ |
|
Management |
Commercial manager: Atlas Chemical Tankers AS Technical manager: TM Shipmanagement Co. Ltd. |
|
Operator |
Unix Line Pte. Ltd. |
|
Registered owner |
Sun Fortune Shipping S.A. |
|
Last data update |
22 January 2014 |
