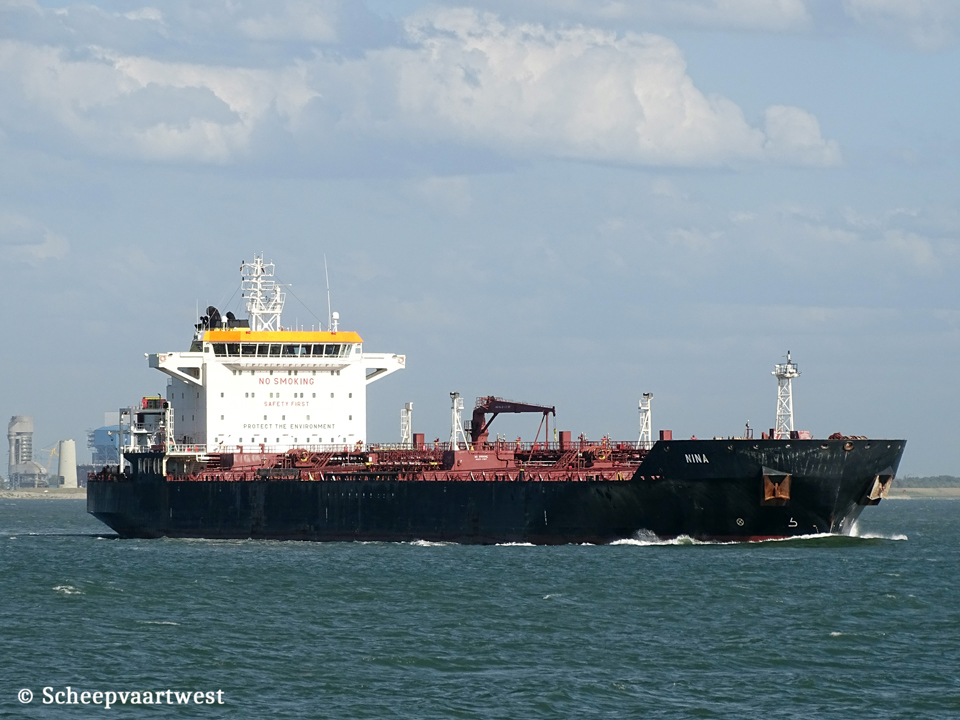

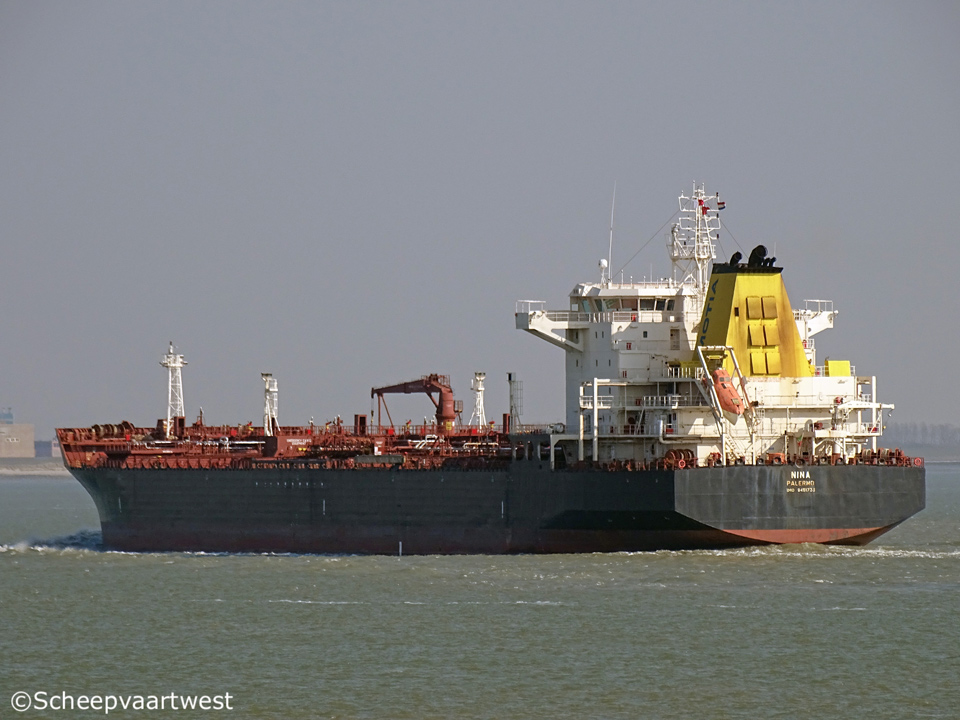

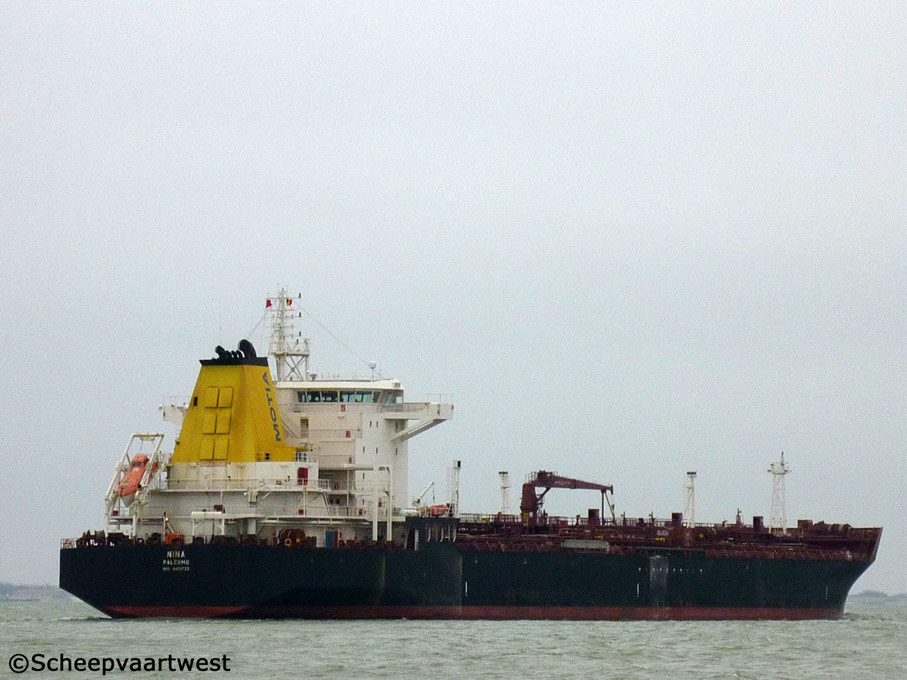

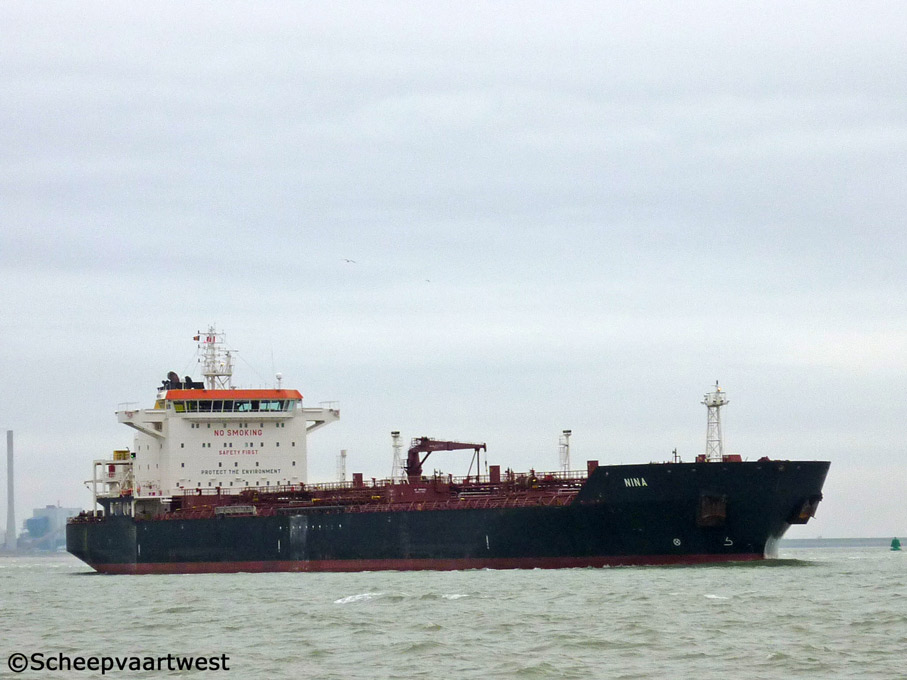

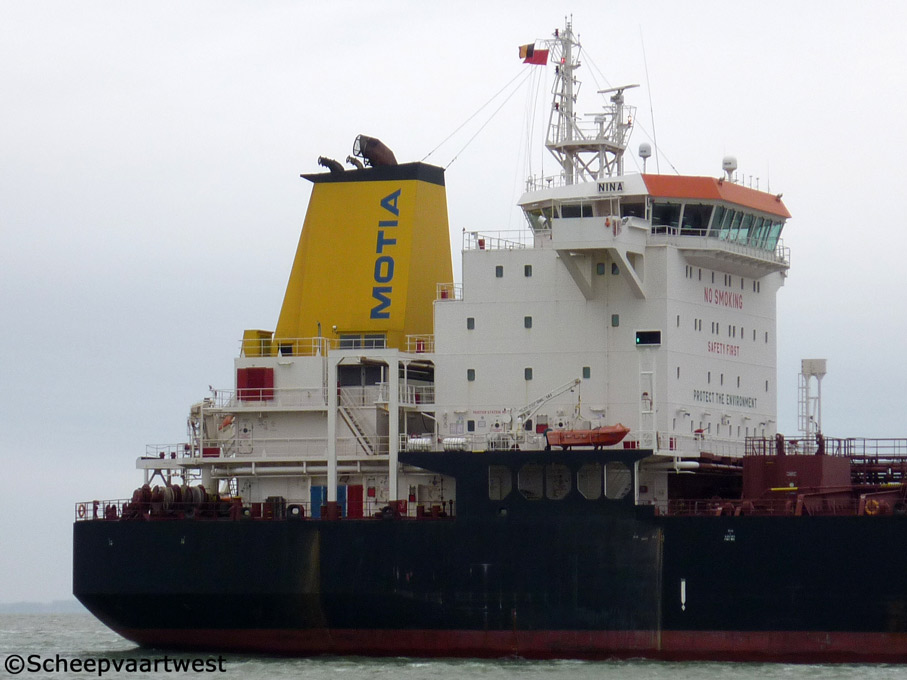

Westerschelde 25 January 2014 |
 |
 |
 |
 |
|||
| Westerschelde 25/01/14 | Westerschelde 25/01/14 | Westerschelde 17/03/16 | Westerschelde 21/08/20 | |||
|
Name |
NINA |
|
Type |
Chemical / Oil products tanker |
|
IMO-number |
9451733 |
|
Call sign |
ICMG |
|
Flag |
Italy |
|
Port of registry |
Venezia |
|
GT |
25.864 t |
|
DWT |
Summer: 40.401 t |
|
NT |
11.369 t |
|
Length |
179,87 m overall 173,65 m registered |
|
Breadth |
32,20 m registered |
|
Draught |
11,00 m |
|
Keel to mast end |
43,74 m |
|
Freeboard |
4.515 mm |
|
Depth |
16,50 m moulded |
|
Speed |
15,0 knots |
|
Built |
2010 |
|
Keel laid |
10/12/2008 |
|
Launch date |
14/04/2010 |
|
Date of completion |
04/11/2010 |
|
Builder |
Santierul Naval Constanta S.A. Incinta Port 1 Constanta Romania |
|
Yard number |
585 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/STX 6S50MC-C - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW / 12.889 hp at 127,0 rpm Year of manufacture: 2009 Manufacturer: STX Heavy Industries Co., Ltd. 222, Jeokhyeon-ro, Seongsan-gu Changwon-si, 642-370 Kyongsang-namdo Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 127,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating Surface: 34,0 m² 1x Steam boiler, exhaust gas heated - 10,0 bar Heating Surface: 230,0 m² 1x Steam boiler, oil fired - 12,0 bar Heating Surface: 174,0 m² Year of manufacture: 2009 Manufacturer: TPK Nova d.o.o. Slavonska avenija 20 10000 Zagreb Croatia |
|
Electric installations |
3x Plants each 450 V - 1.219 kVA 1x Plant 450 V - 250 kVA 2x Plants each 24 V - 180 Ah 2x Plants each 24 V - 200 Ah 2x Plants each 24 V - 200 Ah |
|
Generators |
3x Main diesel generatorsets each 1.219 kVA |
|
Emergency generator |
1x Diesel generatorset 250 kVA |
|
Batteries |
2x Batteries for automation each 200 Ah 2x Batteries for UPS navigation each 200 Ah 2x Batteries for UPS radio each 180 Ah |
|
Compressed air receivers |
2x Receivers each 5.000 litres - 30,0 bar 1x Receiver 500 litres - 30,0 bar 1x Receiver 2.000 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster 850 kW, forward |
|
Number of tanks |
10 |
|
Segregation |
5 |
|
Liquid capacity 98% |
46.820,6 m³ |
|
Number of slop tanks |
2 |
|
Slop tank 98% |
981,6 m³ |
|
Total capacity 98% |
47.802,6 m³ |
|
Pumps |
10x Cargo centrifugal submerged each 500 m³/h 2x Slop centrifugal submerged each 200 m³/h |
|
Ballast capacity |
18.653,5 m³ |
|
Anchor equipment |
3x Anchors weight each 8.700 kg Chain Length: 632,50 m Diameter: 73 mm |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t |
|
Crew size |
31 |
|
Commercial manager |
Premuda SpA Via Fieschi 3/22 16121 Genoa GE Italy |
|
ISM manager |
COLUMBIA Shipmanagement (Deutschland) GmbH Grosse Elbstrasse 275 22767 Hamburg Germany |
|
Registered owner |
Finav Italy 1 S.r.l. Care of Premuda SpA Via Fieschi 3/22 16121 Genoa GE Italy |
|
Previous owner |
Motia Compagnia di Navigazione S.p.A., 30174 Venezia - Italy |
|
Latest data adjustment |
18 January 2022 |
