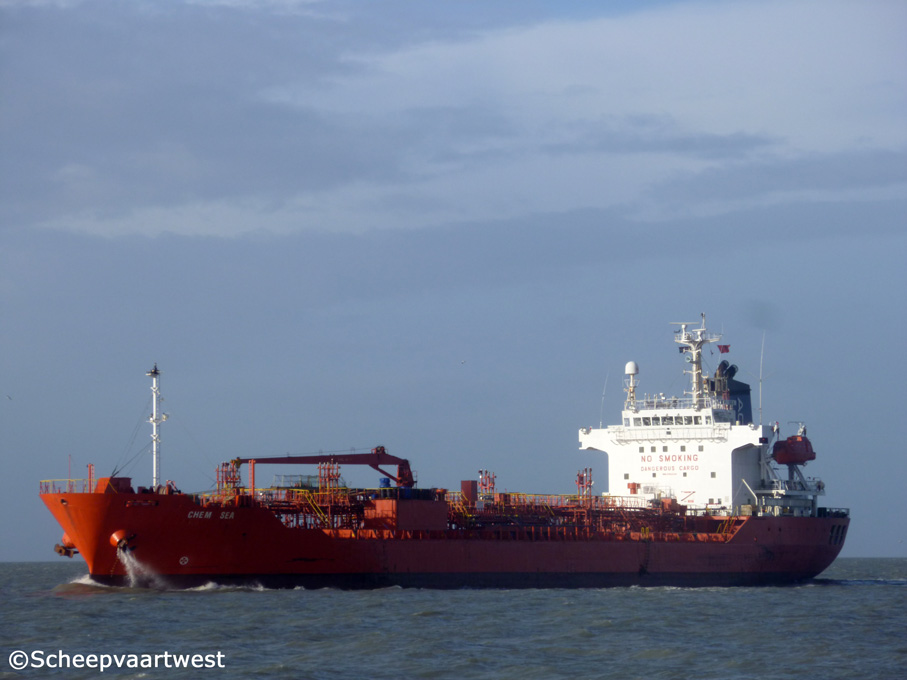

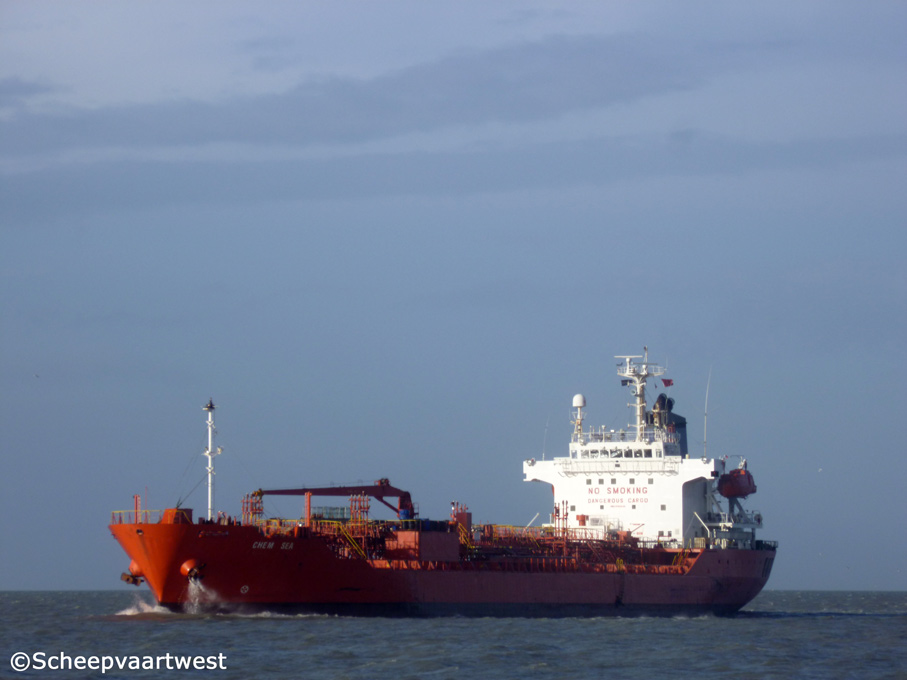

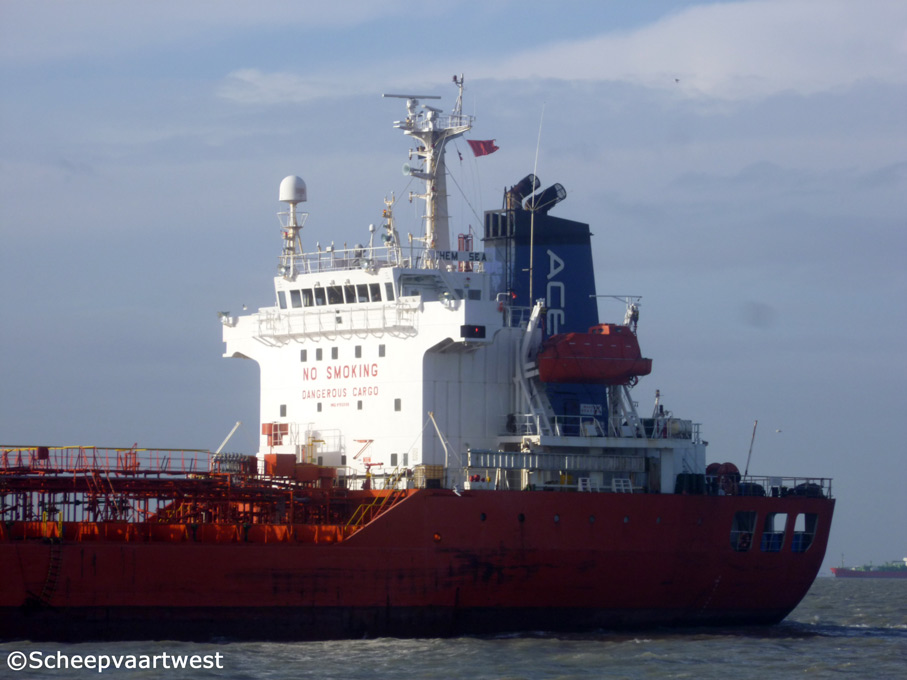

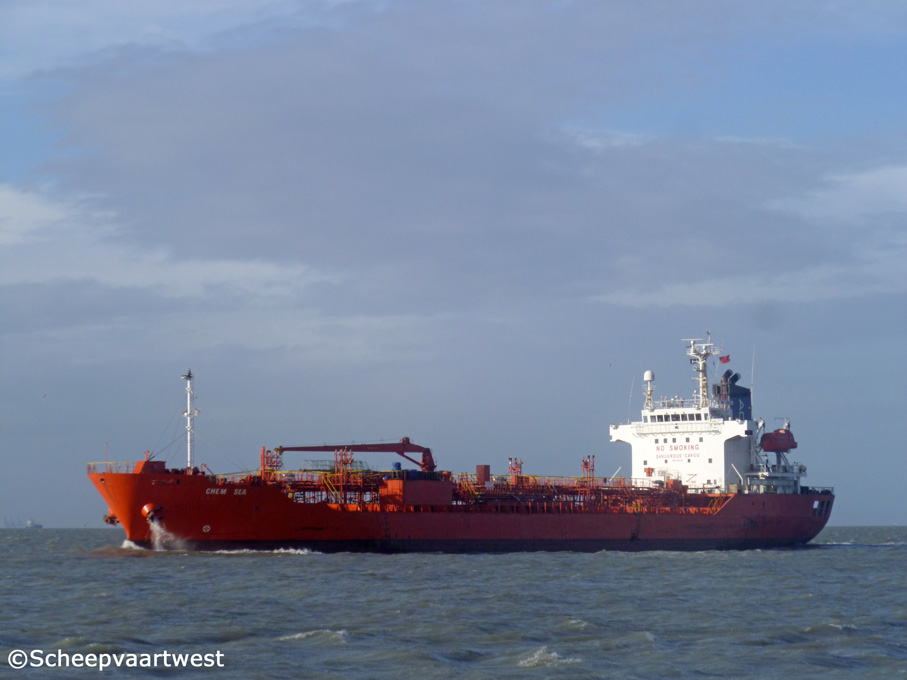

| Westerschelde 05 February 2014 |
 |
 |
 |
||
| Westerschelde 05/02/14 | Westerschelde 05/02/14 | Westerschelde 05/02/14 | ||
|
Name |
CHEM SEA |
|
Previous names |
1999 - 03.2009 Panam Flota |
|
Type |
Oil / Molasses / Chemical |
|
IMO-number |
9193599 |
|
Official number |
1946 |
|
Call sign |
V7FI4 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
6.301 t |
|
DWT |
Summer: 11.641,98 t |
|
NT |
3.549 t |
|
Length |
117,27 m overall |
|
Breadth |
20,00 m |
|
Draught |
Summer: 8,77 m |
|
Moulded L x B x D |
110,00 x 20,00 x 11,20 m |
|
Registered L x B x D |
110,10 x 20,00 x 11,20 m |
|
Freeboard |
2.460 mm |
|
Depth |
11,20 m moulded |
|
Speed |
Service: 13,0 knots Max.: 16,1 knots |
|
Built |
1999 |
|
Keel laid |
21.02.1999 |
|
Launch date |
07.05.1999 |
|
Date of completion |
10.08.1999 |
|
Builder |
Fukuoka Shipbuilding Co., Ltd. |
|
Yard number |
1208 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi/Akasaka 7UEC37LA - 2 stroke single acting 7 cylinder 370 x 880 mm diesel engine - 3.603 kW / 4.900 hp at 210,0 rpm Manufacturer: Akasaka Diesels Ltd. |
|
Propeller shaft |
1x Sea water lubrication shaft Diameter: 305 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 10,75 t/h Manufacturer: Miura Co., Ltd. |
|
Generator capacity |
4x Generators - 1.749 kVA |
|
Number of tanks |
20 |
|
Segregations |
20 |
|
Liquid cargo tank capacity |
12.291 t |
|
Tank capacities |
Fuel oil: 814 m³ fresh water: 371 m³ Water ballast: 3.316 m³ |
|
Manager |
Fleet Management Hong Kong Ltd. |
|
Operator |
Ace Tankers The Netherlands |
|
Owner |
Chemsea Shipping S.A. |
|
Latest data adjustment |
23 February 2014 |
