Westerschelde 14 July 2014 |
 |
 |
 |
 |
 |
||||
| Westerschelde 28/07/12 | Westerschelde 28/07/12 | Westerschelde 24/08/14 | Westerschelde 06/03/18 | Westerschelde 19/06/15 | ||||
|
Name |
LOUISE KNUTSEN |
|
Location |

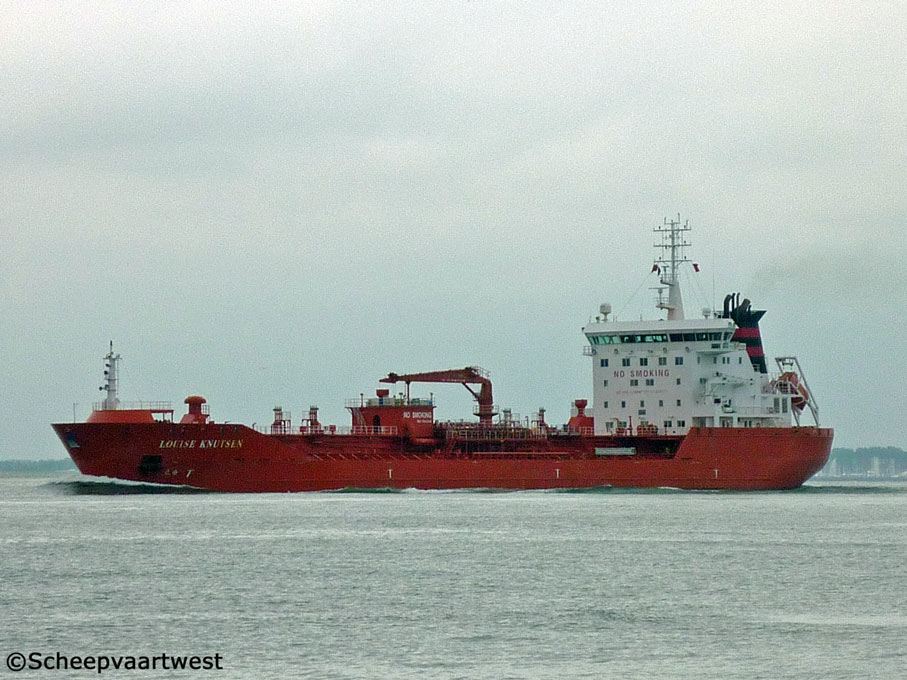

Westerschelde 14 July 2014 sailing near Vlissingen |
|
Type |
Tanker for chemicals and oil products |
|
IMO-number |
9442249 |
|
Call sign |
2FOP4 |
|
Flag |
United Kingdom |
|
Port of registry |
Aberdeen |
|
Previous flags |
2010 - 2012 Norway, Haugesund - Call sign: LAIQ7 |
|
GT |
11.889 t |
|
DWT |
Summer: 16.512 t winter: 16.058 t |
|
NT |
5.151 t |
|
Length |
144,16 m overall 134,80 m between perpendiculars |
|
Breadth |
23,00 m moulded 23,19 m extreme |
|
Draught |
Summer: 8,90 m Winter: 8,71 m |
|
Keel to mast end |
41,99 m |
|
Air draft |
Summer: 33,09 m Ballast: 34,79 m |
|
Freeboard |
3.512 mm |
|
Depth |
12,40 m moulded |
|
Speed |
13,2 knots |
|
Built |
2010 |
|
Keel laid |
20/04/2009 |
|
Launch date |
07/08/2009 |
|
Date of completion |
10/03/2010 |
|
Builder |
Jiangnan Shipyard Group Co., Ltd. Shanghai China |
|
Yard number |
H2439 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN 6L48/60B - 4 stroke 6 cylinder combustion engine 6.300 kW / 8.560 hp at 500 rpm Builder: MAN Diesel & Turbo |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
Auxiliary boiler, composite Mission OC Auxiliary boiler, oil/gas fired MISSION OM Builder: Aalborg Industries AS |
|
Shaft generator |
1x AVK 1.500 kW |
|
Generators |
2x Wärtsilä 4L20 diesel generatorsets each 640 kW 1x Wärtsilä 6L20 diesel generatorsets each 960 kW Builder: Wärtsilä Finland Oy |
|
Emergency generator |
1x AGCO Sisu Power GenPowex 634 diesel generatorset 125 kVA |
|
Bow thruster |
1x Kamewa Ulstein 750 kW |
|
Number of tanks |
12 |
|
Cargo tank capacity |
Tank 1 P :1.041,9 m³ Tank 1 S: 1.034,2 m³ Tank 2 P&S: 3.373,3 m³ Tank 3 P&S: 3.534,3 m³ Tank 4 P: 1.765,0 m³ Tank 4 S: 1.772,8m³ Tank 5 P&S :3.537,5m³ Tank 6 P&S 2.421,8 m³ Slop Tanks: P&S 560,3 m³ Drain Tank: 120,5 m³ Total: 19.161,7 m³ |
|
Number of slop tanks |
2 |
|
Number of pumps |
12x Deepwell Framo pumps each 300 m³/h |
|
Tank capacities |
Ballast: 8.179,4 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Lifting equipment |
1x Store crane - SWL 10 t at 18,5 at |
|
Crew |
18 |
|
Manager |
Knutsen OAS Shipping AS Smedasundet 40 N-5504 Haugesund Norway |
|
Previous managers |
2010 - 2011 Columbia Shipmanagement Ltd. |
|
Owner |
Knutsen Product Tanker XII AS |
|
Previous owners |
2010 - 2012 Knutsen Product Tanker XIII AS |
|
Renamed |
03/2019 Louise K Tuvalu - Call sign: T2JS5 04/2019 Algoterra Canada, Halifax - Call sign: VCZR Owner & manager: Algoma Tankers Ltd.,St. Catharines - Canada |
|
Latest data adjustment |
25 August 2024 |
