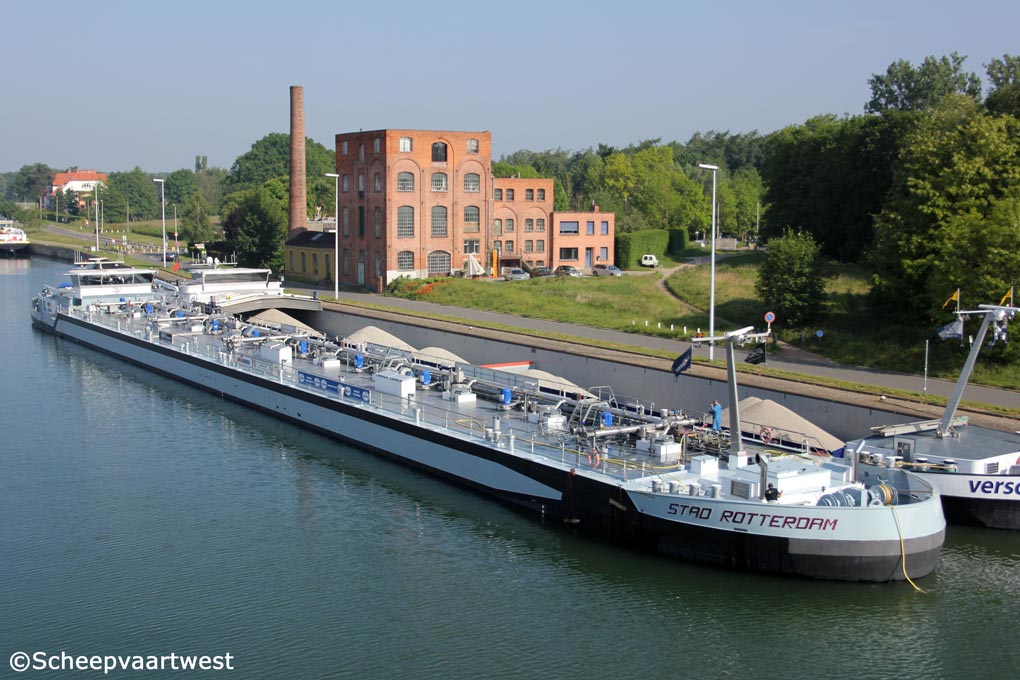

Wijnegem, Belgium 18 May 1914 |
 |

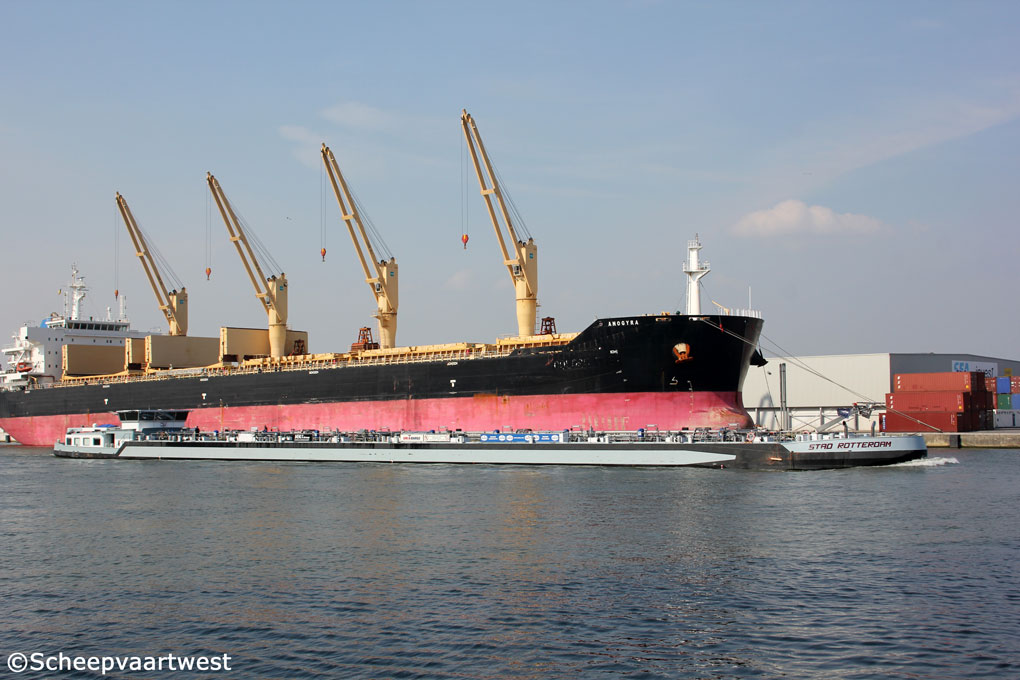

| Antwerpen 28/03/14 |
|
Name |
STAD ROTTERDAM |
|
Type |
Inland tanker |
|
ENI-number |
02333110 |
|
Call sign |
PD2214 |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Tonnage |
3.293 t |
|
Length |
110,00 m |
|
Breadth |
11,45 m |
|
Draught |
3,78 m |
|
Built |
2011 |
|
Date of completion |
03.12.2011 |
|
Builder casco |
China |
|
Builder completion |
Veka |
|
Hull material |
Steel |
|
Main engine |
1x Caterpillar 3512 (C) DI-TA electronic - 1.350 kW / 1.836 hp at 1.600 rpm |
|
Gearbox |
1x Masson Marine type MM W7350 |
|
Propellers |
1x 5 blades diameter 1.750 mm |
|
Generators |
1x Caterpillar type C18Acert diesel engine 448 kW / 608 hp at 1.800 rpm coupled with generators 625 kVA 1x Caterpillar type C4.4 diesel engine 86 kW / 107 hp coupled with generator 123 kVA 1x Caterpillar type C4.4 engine 51 kW coupled with generator 64 kVA |
|
Bow thruster |
1x caterpillar 608 hp - Verhaar Omega-Jet 31130-4k - 375 kW at 1.780 rpm |
|
Tank capacity 97% |
3.687 m³ |
|
Pumps |
8x Marflex type MDPD-80 deepwell cargo pumps each 100 m³/h |
|
Operator |
Unibarge B.V. 3331 ML Zwijndrecht |
|
Owner |
Elanja Scheepvaart BV |
|
Latest data adjustment |
04 May 2014 |
