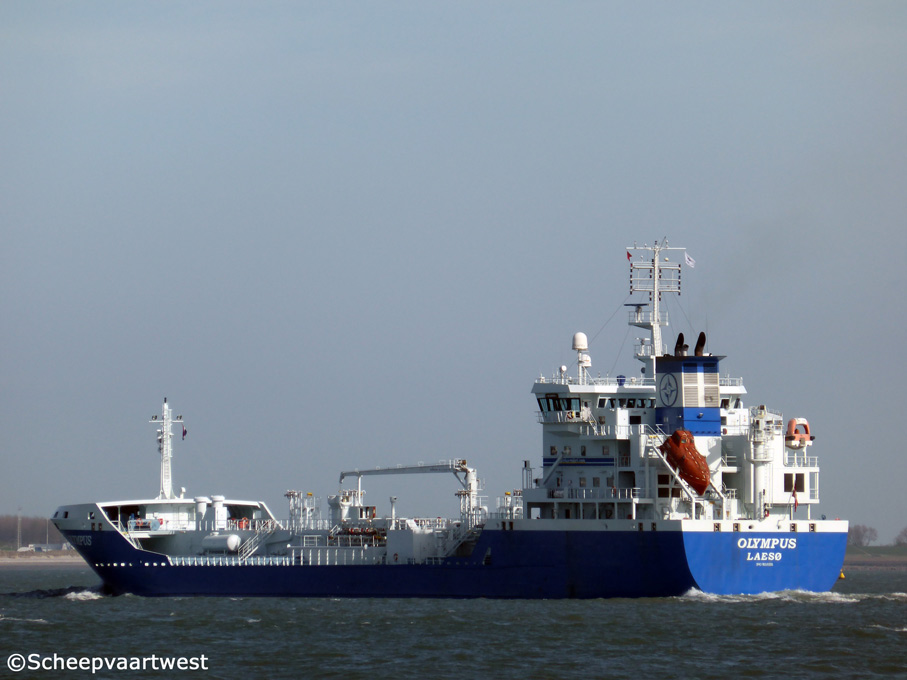

Westerschelde 09 April 2014 |
|
Name |
OLYMPUS |
|
Previous names |
2006 Launch as: Scanvik |
|
Type |
Chemical and product tankers |
|
IMO-number |
9310355 |
|
Call sign |
OXPL2 |
|
Flag |
Denmark |
|
Previous flags |
2006 - 2010 Sweden |
|
Port of registry |
Laesø |
|
GT |
7.515 t |
|
DWT |
Summer: 9.189 t |
|
NT |
3.031 t |
|
Length |
124,50 m overall 116,88 m between perpendiculars |
|
Breadth |
18,13 m extreme |
|
Draught |
8,12 m |
|
Keel to Masthead |
39,52 m |
|
Depth |
10,85 m |
|
Speed |
15,0 knots |
|
Built |
2006 |
|
Keel laid |
09.02.2004 |
|
Date of completion |
31.05.2006 |
|
Builder |
RMK Marine Gemi Yapim San. ve Deniz Tas. Isl. A.S. Istanbul |
|
Yard number |
58 |
|
Hull material |
Steel |
|
Hull type |
Double sides, double bottom |
|
Main engine |
1x MaK 9M32C diesel engine - 4.320 kW at 600 rpm |
|
Propellers |
1x Controllable pitch propeller CP 130 Builder: Wärtsilä/Lips |
|
Shaft generator |
1x 1.200 kW |
|
Generators |
3x Volvo Penta D34A-MS diesel generatorsets each 761 kW, 440 V, 60 Hz at 1 800 rpm |
|
Emergency generator |
1x Volvo Penta TAMD 103A RC/EME/HCM/434 D-2 diesel generatorset |
|
Bow thruster |
1x BRUNVOLL Electric powered 475 kW |
|
Total cap. of cargo tanks |
10.692,6 m³ basis 98% filling |
|
Cargo tank layout |
1 centre and 2-6 port and starboard |
|
Slop tanks capacity |
2x Each 166,2 m³ |
|
Segregation |
6x Grades completely segregated by separate lines and pumps |
|
Cargo pumps |
11x FRAMO deepwell pumps 330 m³/h each |
|
Loading rate |
2.000 m³/h for homogeneous cargo |
|
Discharging rate |
2.500 m³/h theoretical |
|
Heating capacity |
The ship is equipped with thermal oil system for cargo heating. Each tank has two individual heating coils made of stainless steel |
|
Inert gas system |
Inert Gas System fitted, Hamworthy Moss, capacity 2 500 Nm³/h |
|
Tank cleaning system |
2x Fixed tank-cleaning machines of Alfa Laval/Toftejorg TZ-82 Fin type for each cargo tank |
|
Manifolds |
Manifold No. 1-6 port and starboard side, 10 inches Manifold to deck: 2.710 mm Manifold to rail: 3.700 mm Manifold to stern: 62,00 m Manifold to bow: 67,10 m |
|
Tank capacities |
Fuel oil: 331 m³ Diesel oil: 107 m³ Water ballast: 3.798 m³ |
|
Anchor equipment |
Length: 522,50 m Diameter: 50 mm |
|
Lifting equipment |
2x Hose handling crane - SWL 2,0 t each with a rigid beam of 18,00 m |
|
Manager |
Sirius Shipping AB Munkebo |
|
Previous managers |
2006 - 2010 Sirius Rederi AB |
|
Registered owner |
PR för M/T Olympus, Sirius Shipping ApS |
|
Previous owners |
2006 - 2010 Sirius Shipping AB |
|
Latest data adjustment |
10 May 2014 |
