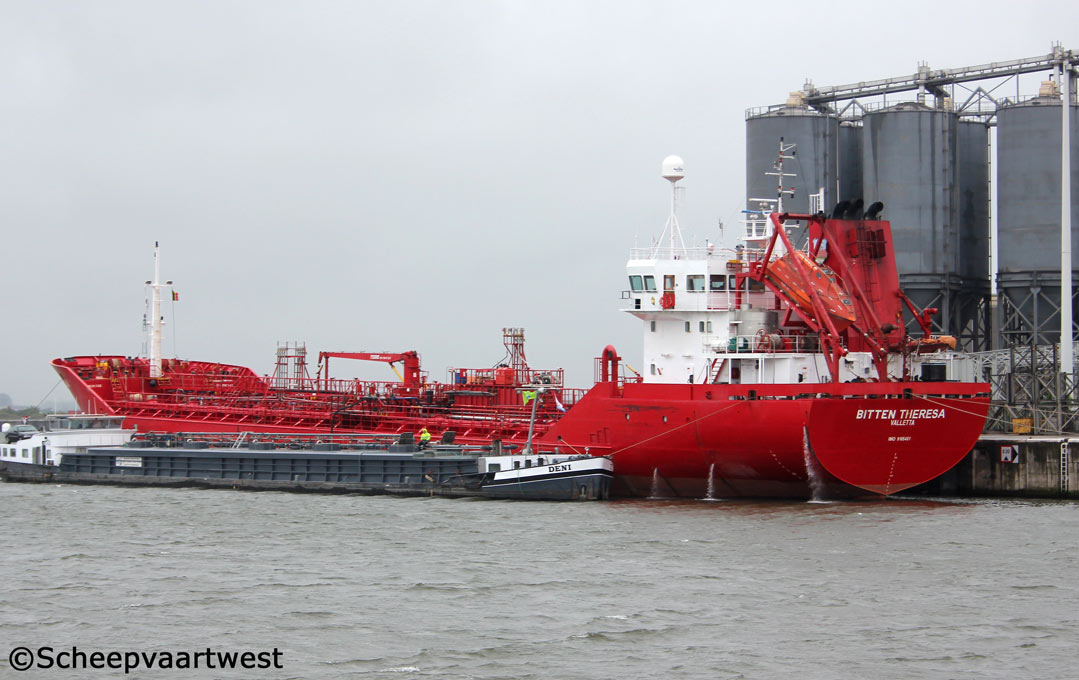

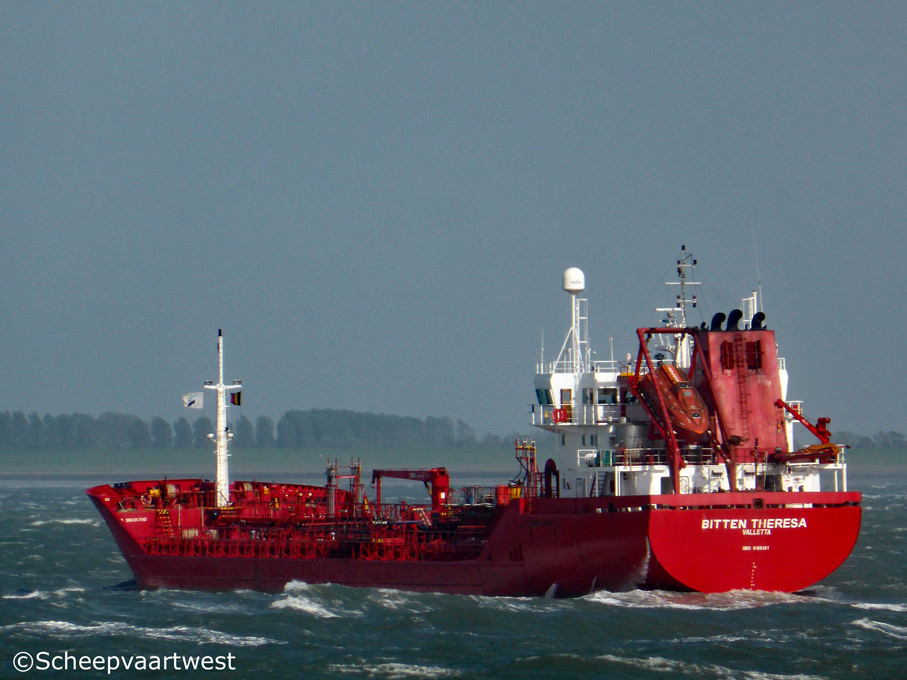

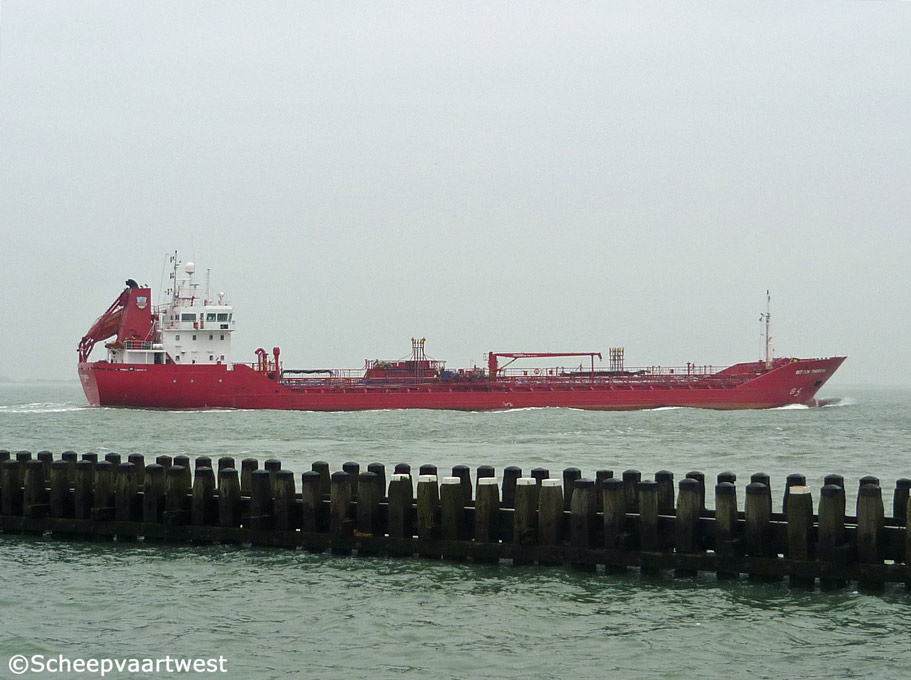

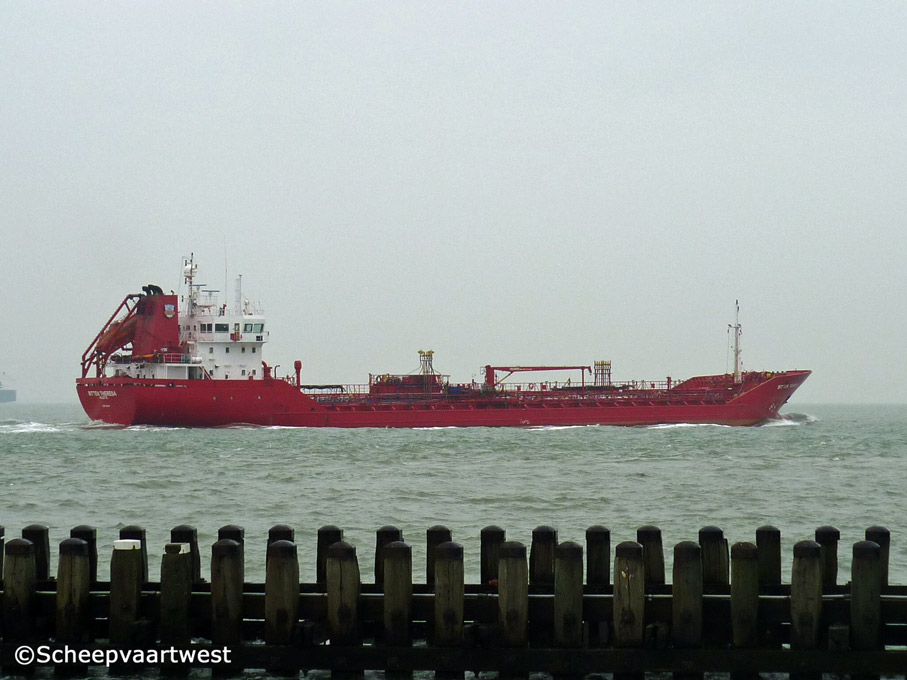

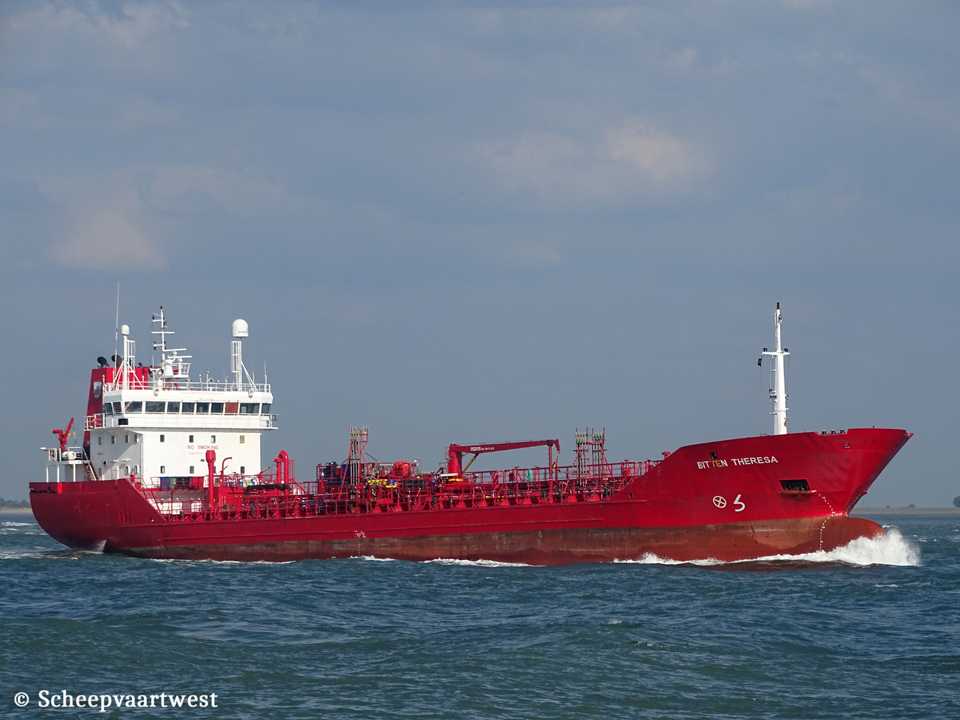

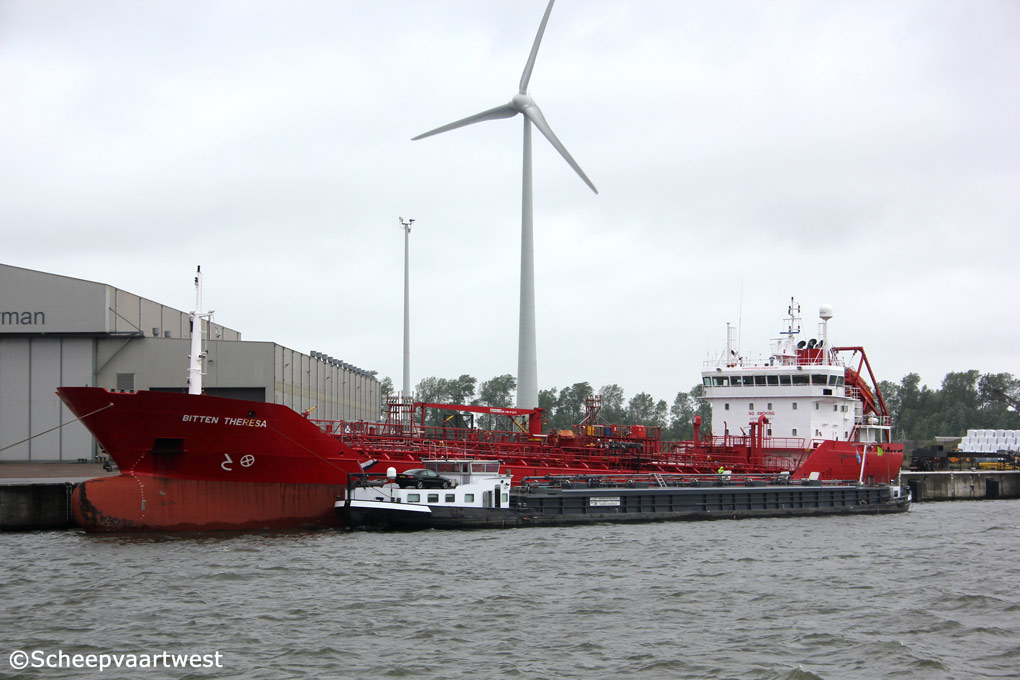

Westerschelde 08 June 2017 |
 |
 |
 |
 |
 |
||||
| Westerschelde 17/03/12 | Westerschelde 17/03/12 | Gent, Belgium 10/05/14 | Gent, Belgium 10/05/14 | Westerschelde 09/05/14 | ||||
|
Name |
BITTEN THERESA |
|
Previous names |
1998 - 09/2002 Emilia Theresa |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9165451 |
|
Call sign |
9HA2337 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
3.356 t |
|
DWT |
Summer: 5.527 t Winter: 5.285 t |
|
NT |
1.587 t |
|
Length |
106,30 m overall 97,10 m between perpendiculars |
|
Breadth |
16,00 m |
|
Draught |
5,73 m |
|
Air draft |
21,50 m in ballast |
|
Freeboard |
1.531 mm |
|
Depth |
7,25 m |
|
Speed |
12,1 knots |
|
Built |
1998 |
|
Keel laid |
01/03/1997 |
|
Launch date |
28/02/1998 |
|
Date of completion |
12/08/1998 |
|
Builder |
Tuzla Shipbuilding Industry (Tuzla Gemi Endustrisi A.S.) Istanbul Turkey |
|
Yard number |
21 |
|
Hull material |
Steel |
|
Hull type |
Double sides, double bottom |
|
Watertight compartments |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W Alpha Diesel 8L28/32 - 4 stroke 8 cylinder 280 x 320 mm combustion engine 1.960 kW / 2.663 hp at 775 rpm Built: 1999 Builder: MAN Diesel & Turbo SE, Frederikshavn - Denmark |
|
Propellers |
1x Screw controllable pitch propeller - aft at 150 rpm |
|
Boilers |
2x CHM 21,50 m² - 11,0 bar 1x CHR 103,00 m² - 11,0 bar |
|
Electric installations |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Shaft generator |
1x 390 kVA - 312 kW |
|
Generators |
2x Scania DSI diesel generatorsets each 390 kVA - 312 kW - 450 hp |
|
Emergency generator |
1x Diesel generatorset 120 kVA - 96 kW - 450 hp |
|
Bow thruster |
1x 300 kW |
|
Number of cargo tanks |
12 2x 6 Wing tanks |
|
Total cap. of tank 100% |
5.743,12 m³ epoxy coated |
|
Segregation |
8 grades by use of double valves, but lines and pumps in common, 3 grades with separate lines and pumps |
|
Separate slop tank |
659 m³ in cargo tanks no. 2 p/s |
|
Heating capacity |
Maintain 75°C with outside temperature 0°C |
|
Tank cleaning system |
2x Fixed BW machines in each tank. 11 m³/h at 10,0 bar |
|
Cargo handling |
12x Houtin screw cargo pumps each 540 m³/h at 6,0 bar 1x Houtin screw pump 350 m³/h at 6,0 bar |
|
Loading rate |
1.300 m³/h |
|
Discharging rate |
1.100 m³/h |
|
Manifolds |
Manifold to deck: 2,00 m Manifold to stern: 50,00 m Manifold to bow: 56,00 m Manifold to rail: 2,50 m |
|
Tank capacities |
Fuel oil: 223 t Diesel oil: 40 t Water ballast: 2.302 m³ |
|
Lifting equipment |
1x Crane - SWL 1,0 t at 15,00 m |
|
Manager |
Herning Shipping AS Theresavej 1 7400 Herning Denmark |
|
Registered owner |
VL Shipping Holding A/S |
|
Renamed |
09/2019 Guardians
06/2022 Shin’I
07/2022 Guardians
01/2024 Stellar
|
|
Latest data adjustment |
24 October 2024 |
