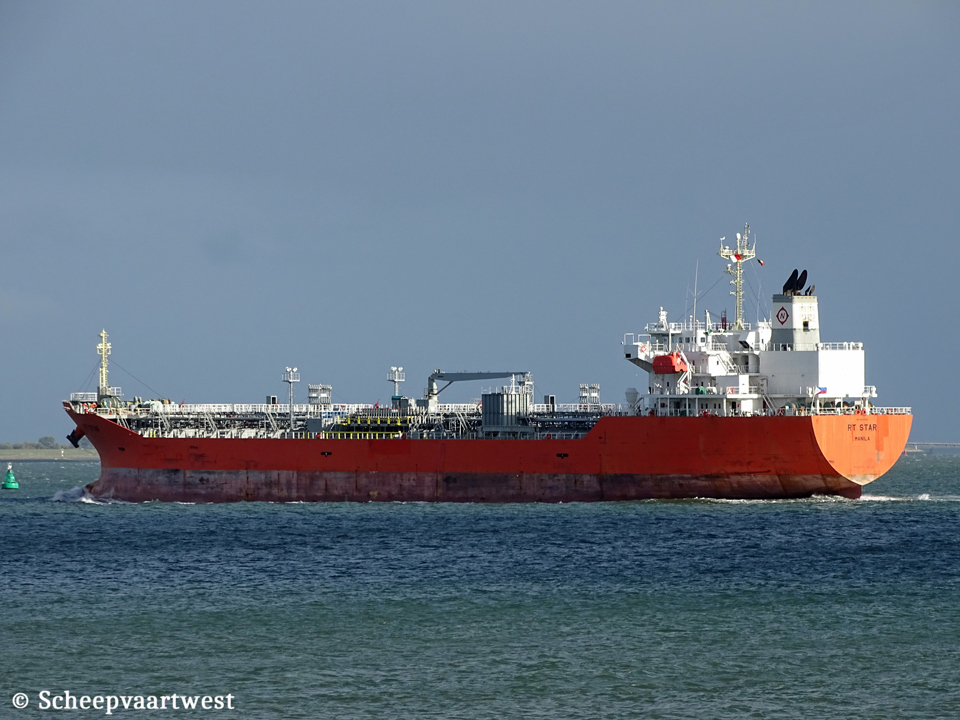

RT Star IMO 9523835 03

Westerschelde 01 October 2018

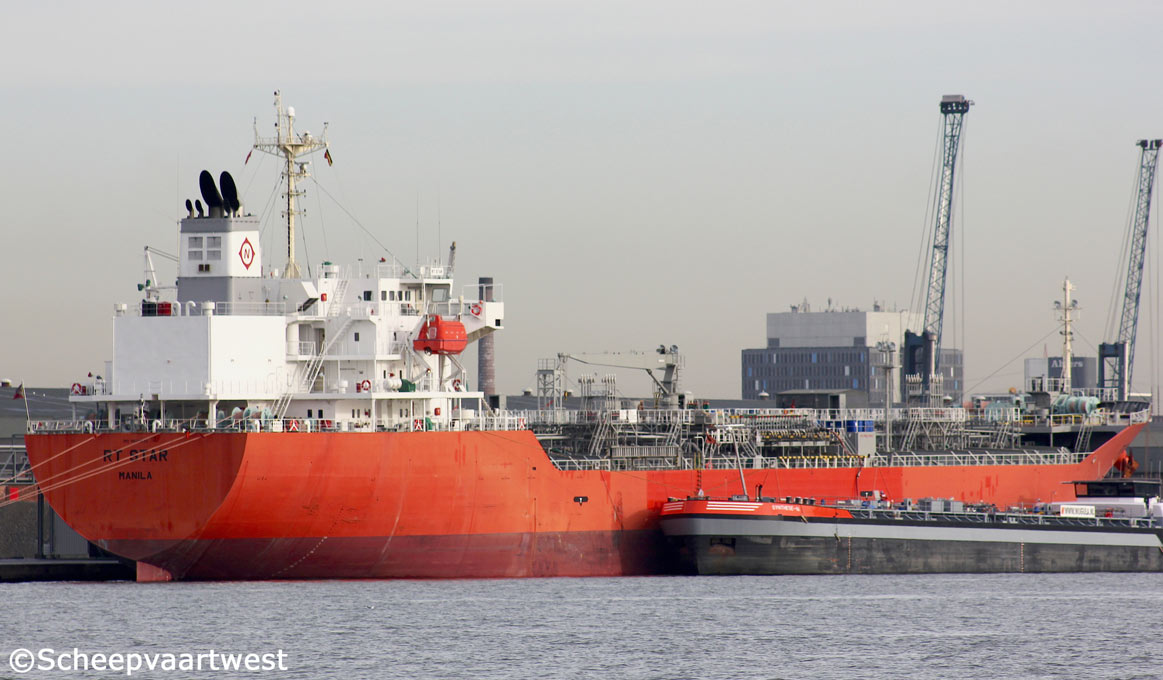

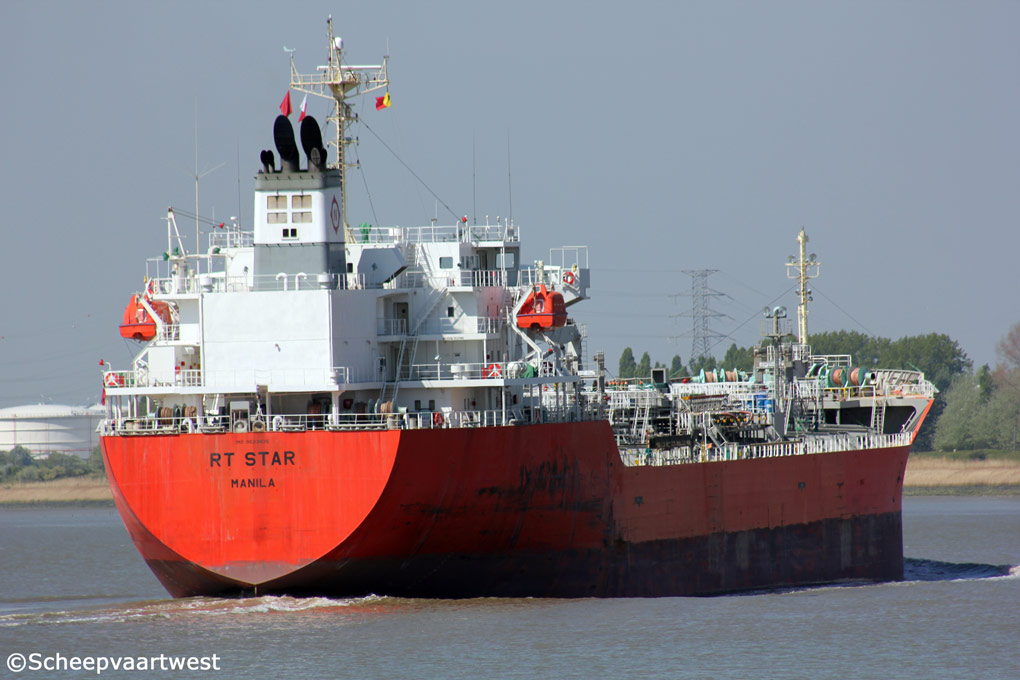

RT Star 01   RT Star 02
Antwerpen 16/04/14 Antwerpen 09/12/14


Name

RT STAR

Type

Chemical and product tankers

IMO-number

9523835

Call sign

DUDN

Flag

Philippines

Port of registry

Manila

GT

16.363 t

DWT

Summer: 26.199 t

NT

7.616 t

Length

159,03 m overall

151,50 m between perpendiculars

Breadth

27,10 m

Draught

10,03 m

Freeboard

4.208 mm

Depth

14,22 m

Speed

15,5 knots

Built

2001

Date of completion

05/10/2011

Builder

Shin Kurushima Hiroshima Dockyard Co., Ltd.

Higashihiroshima
Japan

Yard number

5713

Hull material

Steel

Hull type

Double hull

Watertight compartments

15

Continuous decks

1

Main engine

1x Makita-Mitsui/MAN-B&W - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 7.450 kW / 10.122 hp at 126,0 rpm

Built: 02.02.2011

Builder: Makita Corporation, Takamatsu - Japan

Propellers

1x Screw propeller solid - aft at 126,0 rpm

Boilers

1x CHR Tortoise Engineering 154,01 m² - 13,70 bar

1x CHO Tortoise Engineering 188,70 m² - 0,98 bar

Generators

3x Main diesel generatorsets each 750 kVA - 600 kW - 897 hp

Emergency generator

1x Diesel generatorset 65 kVA - 52 kW - 82 hp

Bow thruster

412 kW

Number of cargo tanks

18

Total capacity of tanks

29.747,01 m³

Pumps

16x Cargo pumps each 300 m³/h

Tank capacities

Fuel: 1.182,84 m³

Lifting equipment

1x Hose handling crane - 10,0 t

Manager

Nisshin Shipping

Tokyo

Japan

Operator

Victoria Ship Management Inc.

1418 San Marcelino Street

Ermita, Manila, 1000 Metro

Philippines

Registered owner

Sagana Shipping, Inc.

Latest data adjustment

29 March 2021
