| Antwerpen 04 May 2014 |
|
Name |

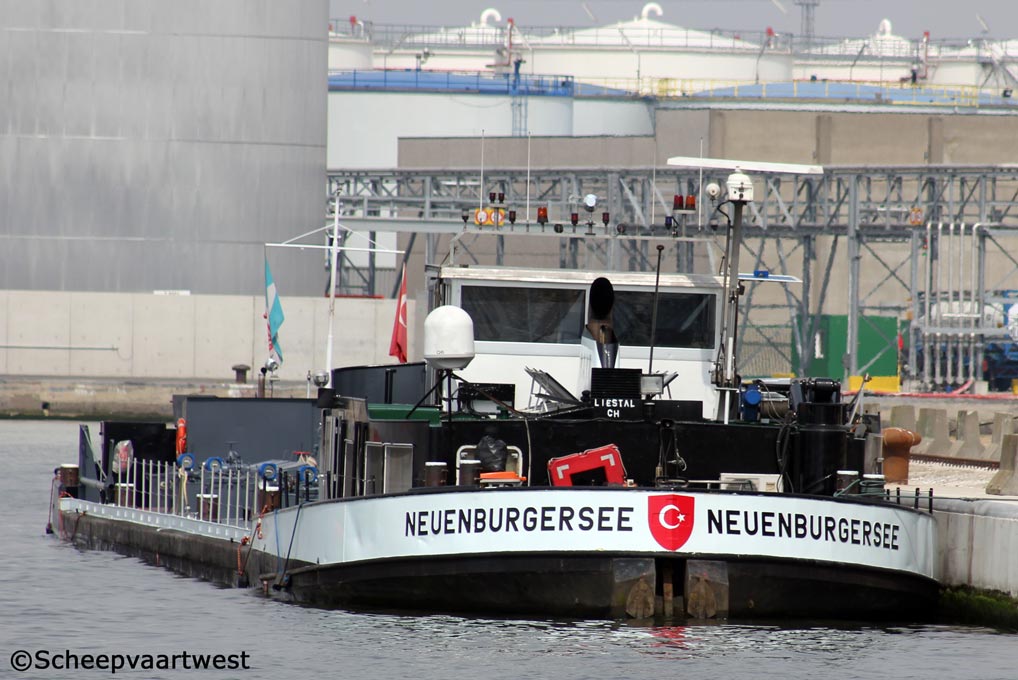

NEUENBURGERSEE |
|
Type |
Inland tanker |
|
ENI-number |
07100007 |
|
Call sign |
HE6849 |
|
Flag |
Switzerland |
|
Tonnage |
1.259 t |
|
Length |
80,35 m |
|
Breadth |
8,28 m overall |
|
Draught |
2,80 m |
|
Depth |
3,20 m |
|
Built |
1962 |
|
Keel laid |
02.07.1962 |
|
Launch date |
13.11.1962 |
|
Date of completion |
12.1962 |
|
Builder |
DSD Hilgers Stahlbau GmbH Hilgerstr. 56598 Rheinbrohl Federal Republic of Germany |
|
Yard number |
8210 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x Deutz SBA 12 M 816 - 4 stroke 12 cylinder 142 x 160 mm diesel engine - 680 kW / 925 hp at 1.800 mm Transmission: Main propulsion acts through gear on the propellershaft Starter type: Compressed air direct Year of manufacture: 1990 Manufacturer: Deutz MWM Motoren-Werke Mannheim AG Mannheim Federal Republic of Germany |
|
Propellers |
1x Solid propeller - aft at 356 rpm |
|
Electric installations |
1x Plant 380/220 V - 30 kVA 1x Plant 380/220 V - 40 kVA 1x Plant 24/220 V - 1,3 kW |
|
Generators |
1x Main generator 40 kVA 1x Main generator 30 kVA 1x Generator 1,3 kW |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 235 kW, forward |
|
Fuel capacity |
32 m³ |
|
Owner |
Igves Kaya AG Seestr. 93 6052 Hergiswil, Nidwalden Switzerland |
|
Previous names & owners |
1962 Neuenburgersee - Zurich Reederei AG, Basel - Switzerland 1987 Neuenburgersee - Wolfgang Kok - Truffer, Basel - Switzerland 1998 Neuenburgersee - Wolfgang Kok - Truffer, Reinach - Switzerland 2012 Neuenburgersee - Kayaag Igves, Hergiswil - Switzerland |
|
Latest data adjustment |
26 June 2014 |
