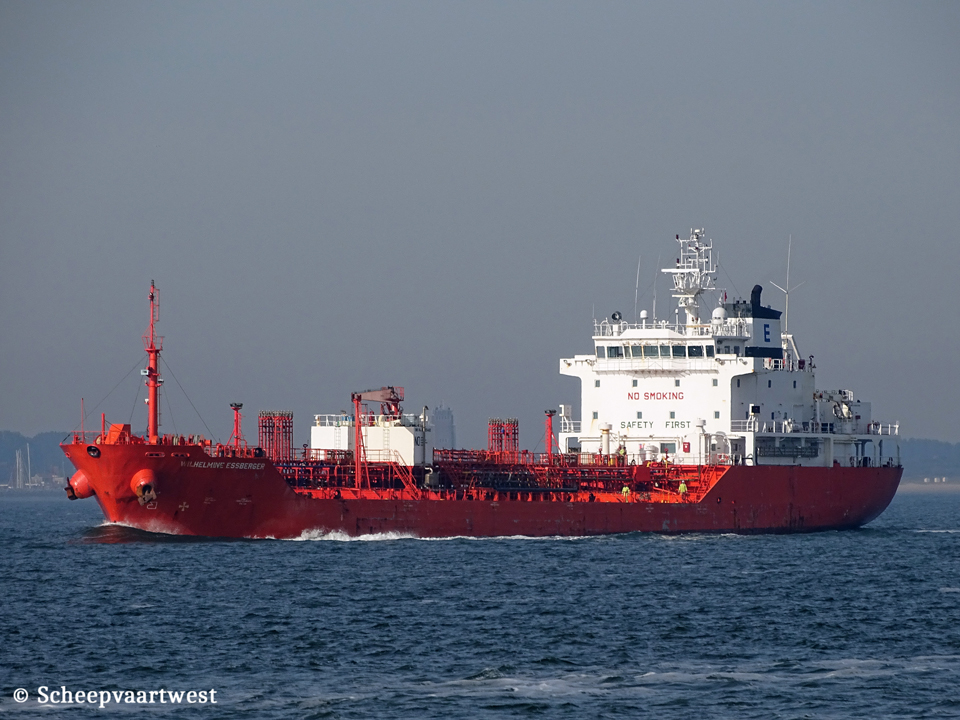

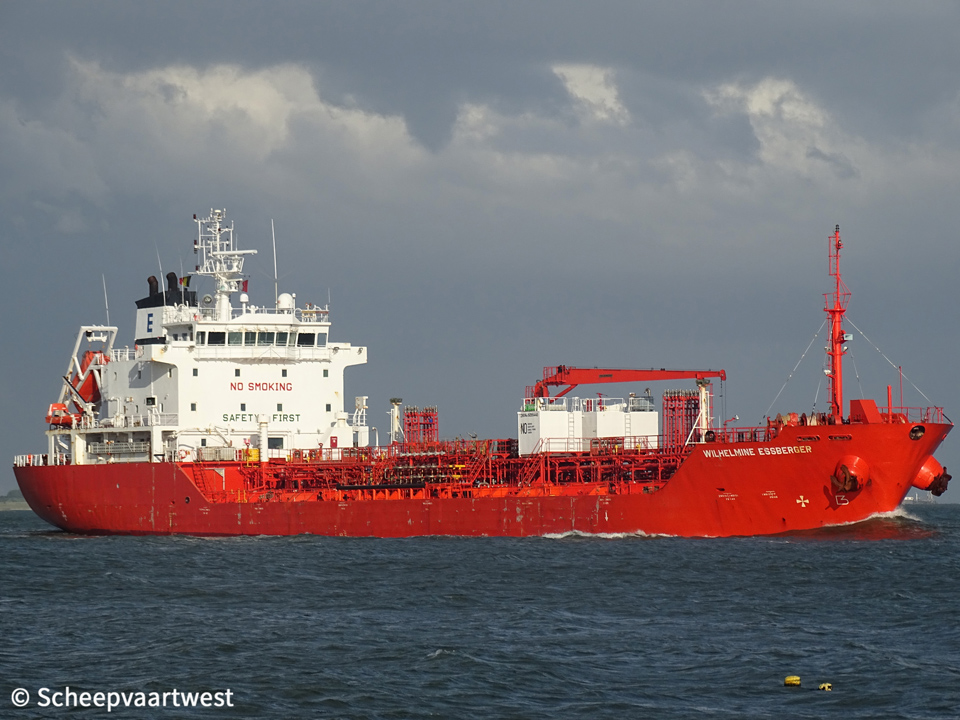

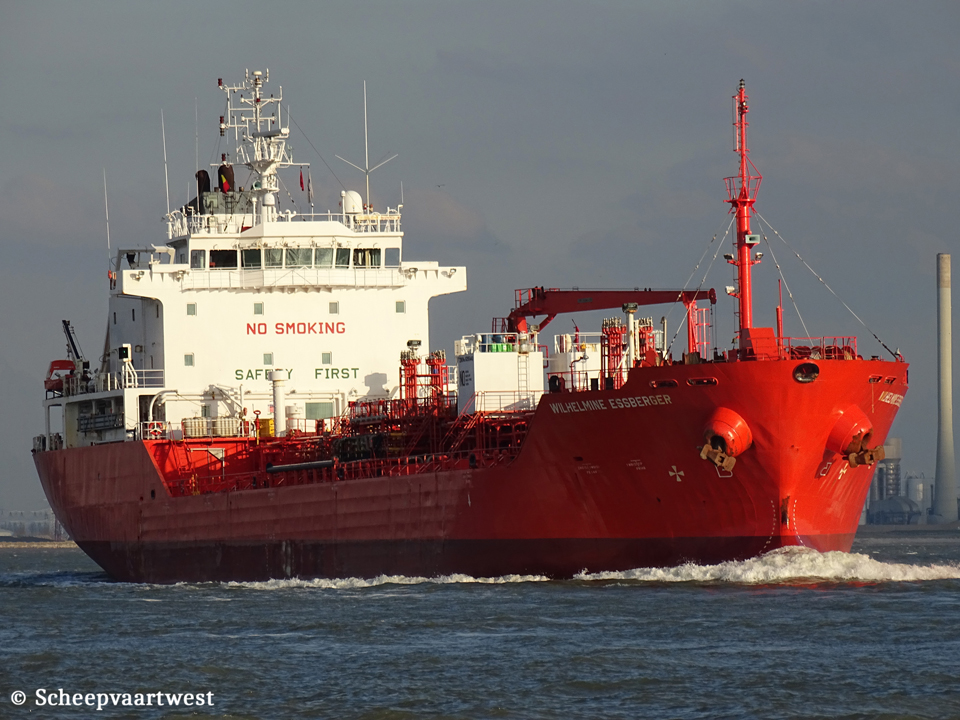

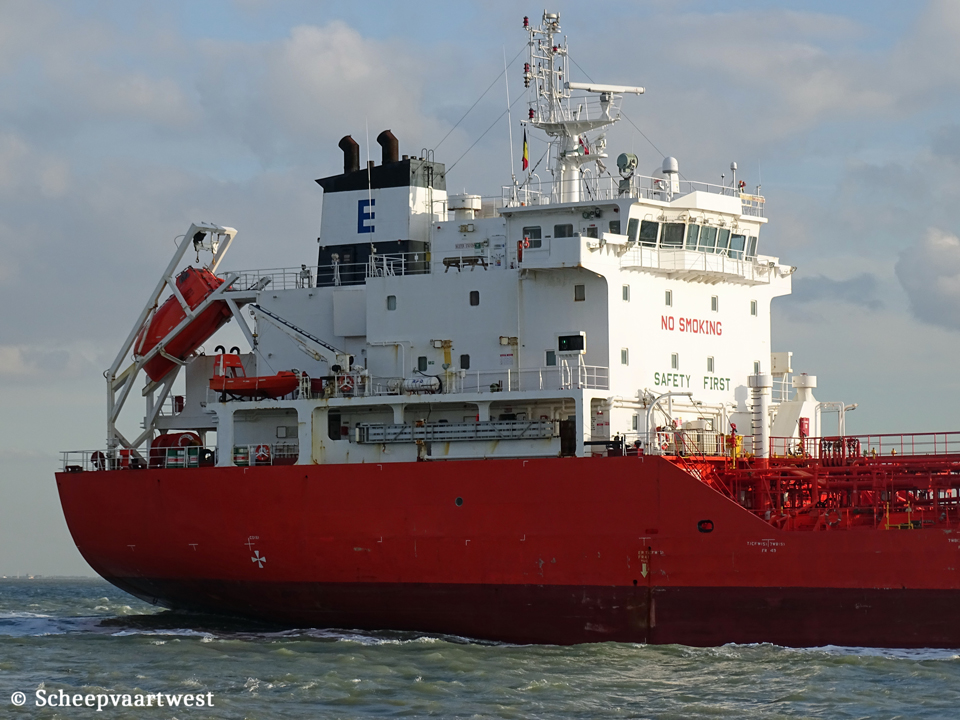

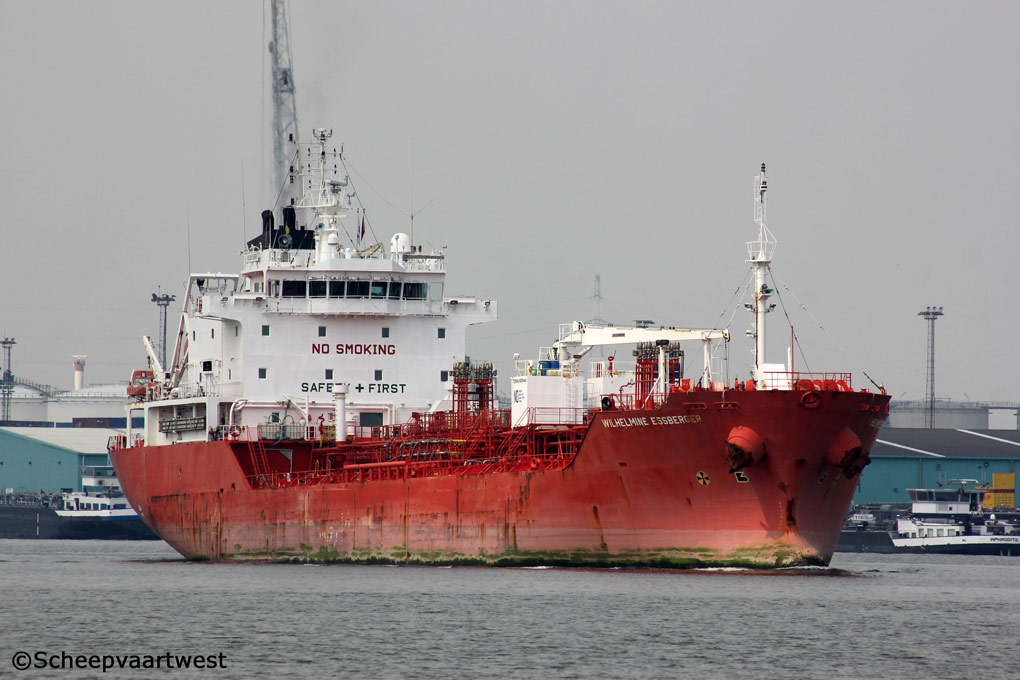

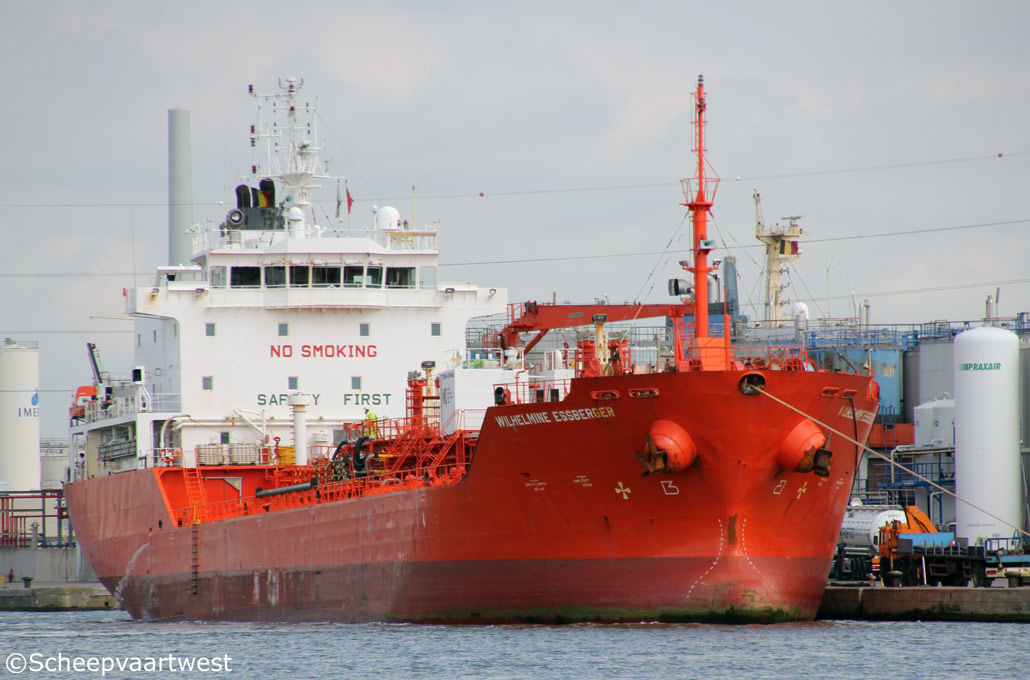

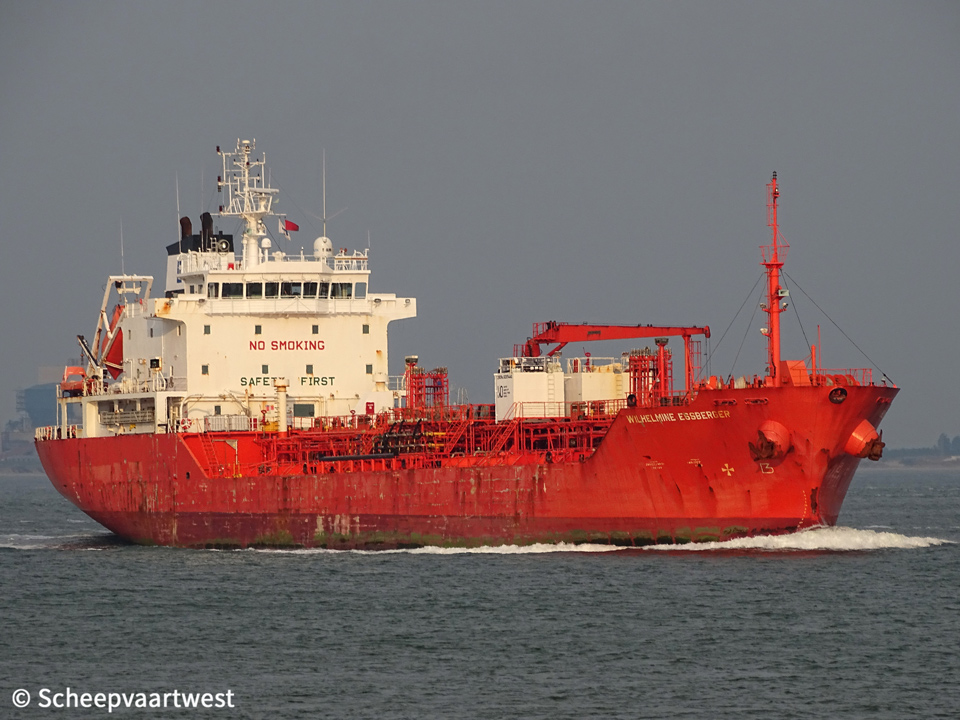

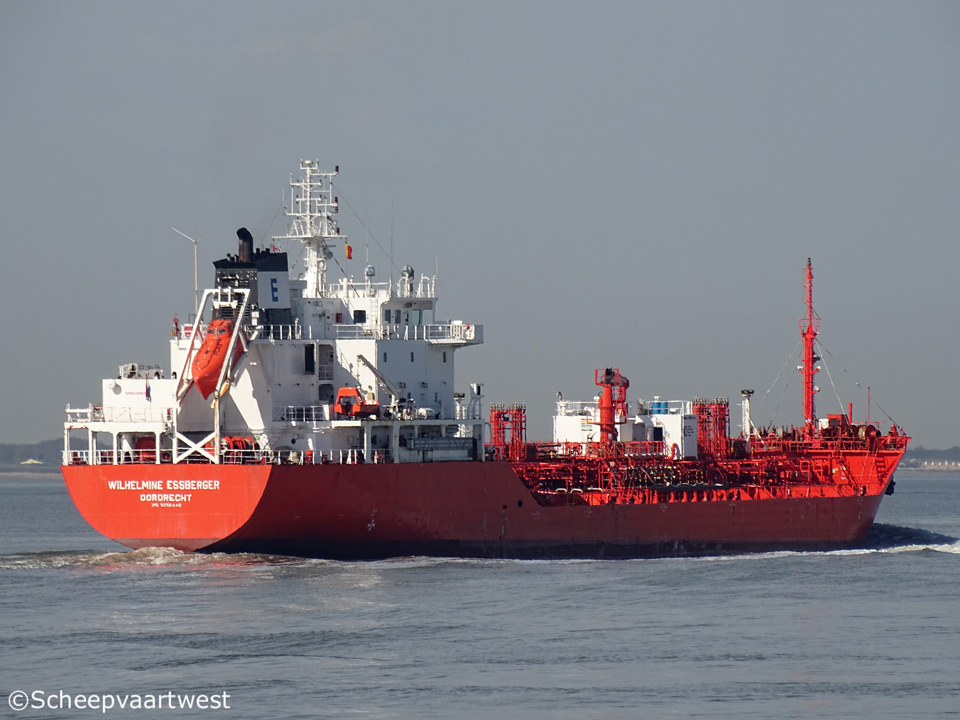

Westerschelde 18 June 2018 |
 |
 |
 |
 |
 |
 |
|||||
| Antwerpen 04/05/14 | Westerschelde 07/05/16 | Westerschelde 12/07/16 | Antwerpen 01/09/16 | Westerschelde 12/02/16 | Westerschelde 12/02/16 | |||||
 |
 |
|
| Westerschelde 22/05/17 | Westerschelde 23/05/18 | |
|
Name |
WILHELMINE ESSBERGER |
|
Previous names |
2005 - 07/2008 Cape Ellis 07/2008 - 05/2011 UCT Ellis |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9295440 |
|
Call sign |
PCAS |
|
Flag |
The Netherlands |
|
Port of registry |
Dordrecht |
|
Previous flag |
08/2005 - 07/2012 Marshall Islands, Majuro - Call sign: V7IP5 |
|
GT |
5.815 t |
|
DWT |
Summer: 8.630,7 t |
|
NT |
2.541 t |
|
Length |
115,00 m overall 108,18 m registered |
|
Breadth |
18,80 m registered |
|
Draught |
7,41 m |
|
Depth |
9,70 m moulded |
|
Speed |
14,0 knots |
|
Built |
2005 |
|
Keel laid |
24/12/2004 |
|
Launch date |
08/04/2005 |
|
Date of completion |
28/07/2005 |
|
Builder |
INP Heavy Industries Co., Ltd. 175-1 Pang-o-dong, Tong-gu Ulsan, 662-020 Kyongsang-namdo Republic of Korea |
|
Yard number |
H1135 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S35MC - 2 stroke single acting 6 cylinder 350 x 1.400 mm combustion engine 4.440 kW / 6.037 bhp at 173,0 rpm Year of manufacture: 2005 Manufacturer: Hyundai Heavy Ind. Co., Ltd. 1, Cheonha-dong, Dong-gu Ulsan, 682-792 Kyongsang-namdo Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 173 rpm |
|
Boilers |
1x Steam boiler, oil fired - 7,8 bar Heating surface: 101,10 m² 1x Exhaust gas heated - 7,8 bar Heating surface: 19,7 m² Year of manufacture: 2004 1x Steam boiler, oil fired - 9,8 bar Heating Surface: 88,2 m² Year of manufacture: 2005 Manufacturer: Miura Co., Ltd. 7, Horie Matsuyama, 799-2696 Ehima-ken Japan |
|
Electric installations |
3x Plants each 440 V - 700 kVA 1x Plant 440 V - 100 kVA |
|
Shaft generator |
3x Yanmar 6N18AL-SV main diesel generatorsets each 700 kVA |
|
Generators |
1x Sisu 420 DSRIG diesel generatorset 100 kVA |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 100 litres - 30,0 bar 1x Receiver 80 litres - 7,7 bar |
|
Bow thruster |
1x 475 kW - aft 1x 475 kW - forward |
|
Number of cargo tanks |
18 |
|
Liquid cargo capacity |
9.139 m³ |
|
Tank capacities |
Fuel oil: 583 m³ Ballast: 3.520,14 m³ |
|
Anchor equipment |
3x Anchors weight each 3.540 kg Chain length: 522,50 m Diameter: 52 mm |
|
Crew size |
19 |
|
Manager |
John T. Essberger G.m.b.H. & Co. K.G. Hamburg Germany |
|
Previous managers |
|
|
Registered owner |
Wilhelmine Essberger Tankreederei G.m.b.H. & Co. K.G Wieldrechtseweg 50 3316 BG Dordrecht The Netherlands |
|
Previous names & owner |
|
|
Latest data adjustment |
27 August 2023 |
