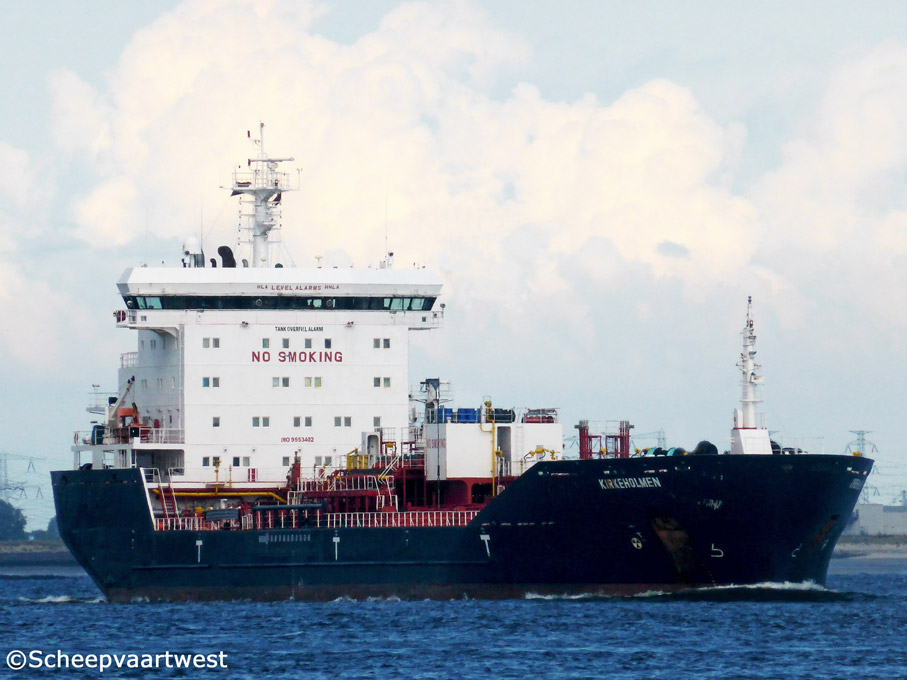

Westerschelde 24 June 2014 |
|
Name |
KIRKEHOLMEN |
|
Previous names |
2010 - 2012 CF Sophia - Clydeport Shipping Inc |
|
Type |
Oil / Chemical tanker |
|
IMO-number |
9553402 |
|
Call sign |
3FIV4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
11.908 t |
|
DWT |
Summer: 16.730 t |
|
NT |
5.180 t |
|
Length |
144,22 m overall 134,00 m between perpendiculars |
|
Breadth |
23,00 m extreme |
|
Draught |
7,70 m |
|
Keel to masthead |
32,70 m |
|
Air draft |
30,30 m lightship 26,90 m normal ballast 23,80 m at loaded summer deadweight |
|
Freeboard |
3.512 mm |
|
Depth |
12,40 m moulded |
|
Speed |
13,0 knots |
|
Built |
2010 |
|
Date of completion |
29.11.2010 |
|
Builder |
Zhejiang Jingang Shipbuilding Co., Ltd. |
|
Yard number |
ZJG012 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/STX 7S35MC - 2 stroke 7 cylinder 350 x 1.400 mm diesel engine - 5.180 kW / 7.038 hp at 173 rpm Built: 13.04.2009 Builder: STX Engine Co., Ltd., Changwon - South Korea |
|
Propellers |
1x Screw propeller solid |
|
Boilers |
1x CHM 415HL75-00 - 123,00 m² / 7,0 bar |
|
Generators |
3x Main diesel generatorsets each 770 kVA - 616 kW - 897 hp |
|
Emergency generator |
1x diesel generatorset 155 kVA - 124 kW - 168 hp |
|
Bow thruster |
1x 1.020 bhp / 760,61 kW |
|
Number of cargo tanks |
12 |
|
Total capacity of cargo tanks 98% |
Seg#1: 2.129,90 m³ (1 P and S : 2.129,90 m³) Seg#2: 3.371,50 m³ (2 P and S : 3.371,50 m³) Seg#3: 3.538,40 m³ (3 P and S : 3.538,40 m³) Seg#4: 3.538,40 m³ (4 P and S : 3.538,40 m³) Seg#5: 3.538,40 m³ (5 P and S : 3.538,40 m³) Seg#6: 2.497,76 m³ (6 P and S : 2.497,76 m³) Total: 18.614,36 m³ excluding slop tanks |
|
Slop tank capacity 98% |
Seg#7: 556,20 m³ (Slop P and S : 556,20 m³) |
|
Pumping system |
12 x Cargo pumps Framo hydraulic, Submerged, Centrifugal each 335 m³/h 2x ballast pumps Framo hydraulic, Submerged, Centrifugal each 300 m³/h |
|
Maximum loading rate |
1.276 m³/h |
|
Manifolds |
Bow to centre manifold: 72,45 m Stern to centre manifold: 71,75 m Distance bridge front to centre of manifold: 41,05 m Distance between cargo manifold centres: 1.000 mm Distance ships rail to manifold: 4.400 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 2.000 mm Distance main deck to centre of manifold: 3.500 mm |
|
Fuel capacity |
748,13 m³ |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Manager |
Norbulk Shipping UK LTD |
|
Owner |
Kirkeholmen Shipping |
|
Latest data adjustment |
20 July 2014 |
