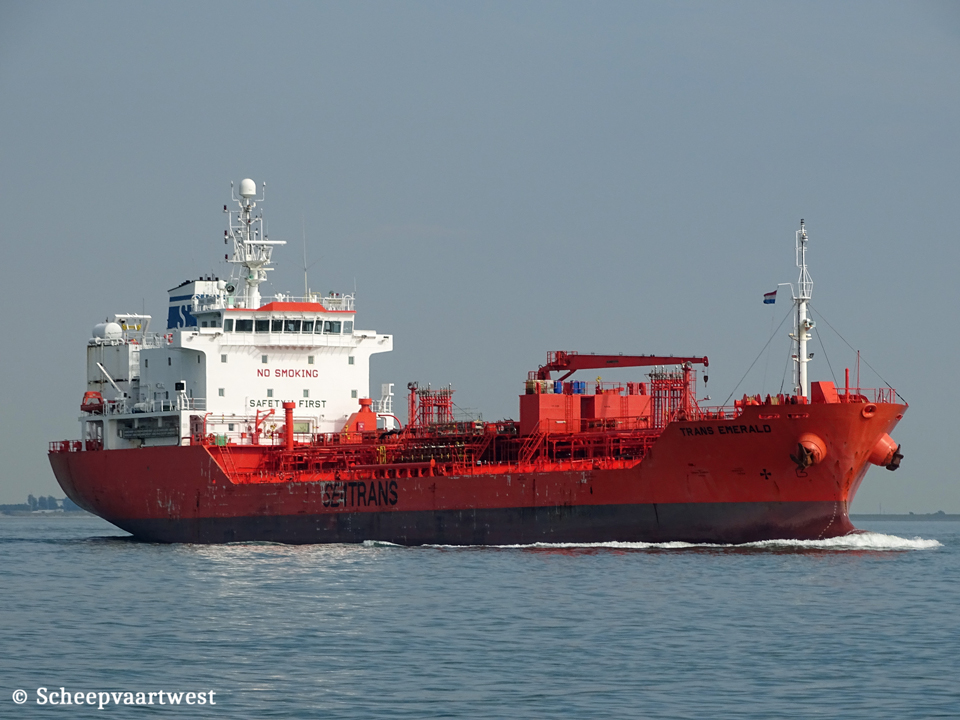

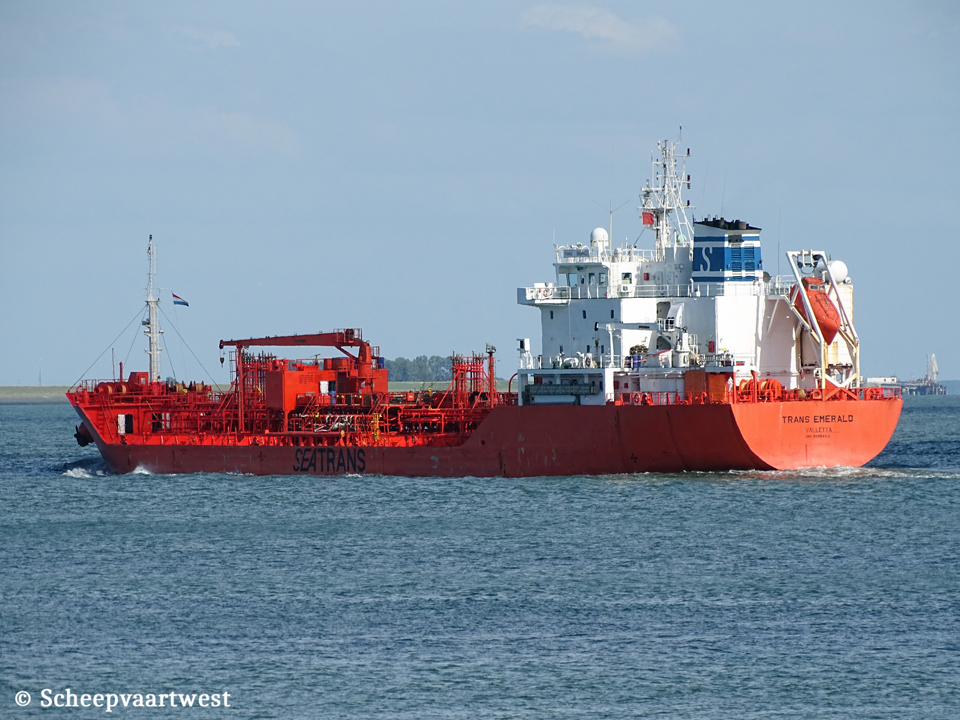

Westerschelde 22 August 2017 |
 |
 |
 |
 |
 |
 |
|||||

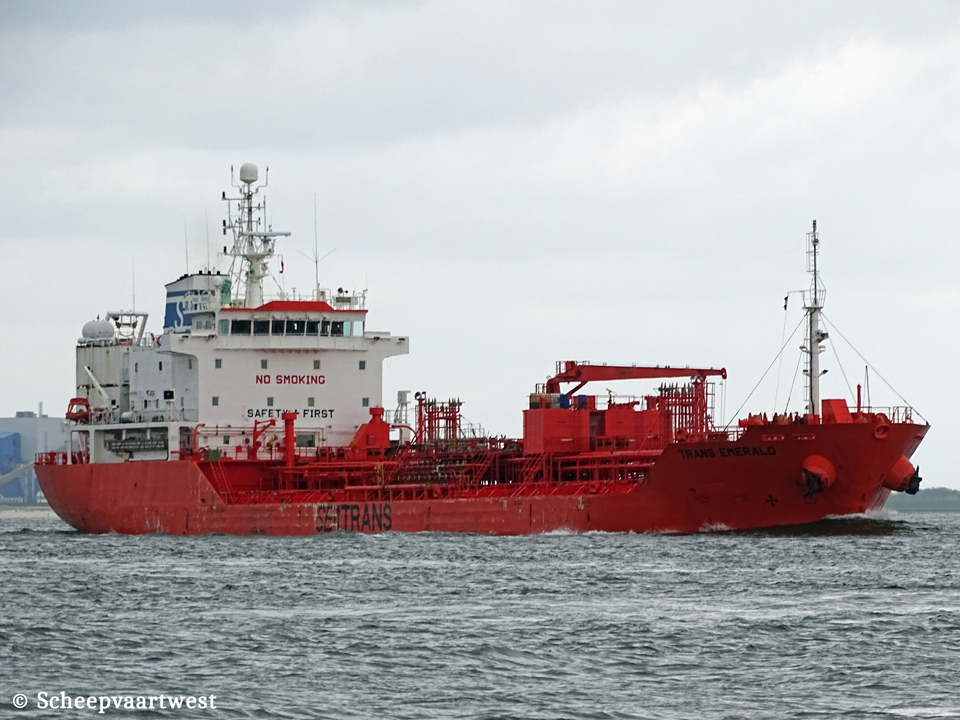

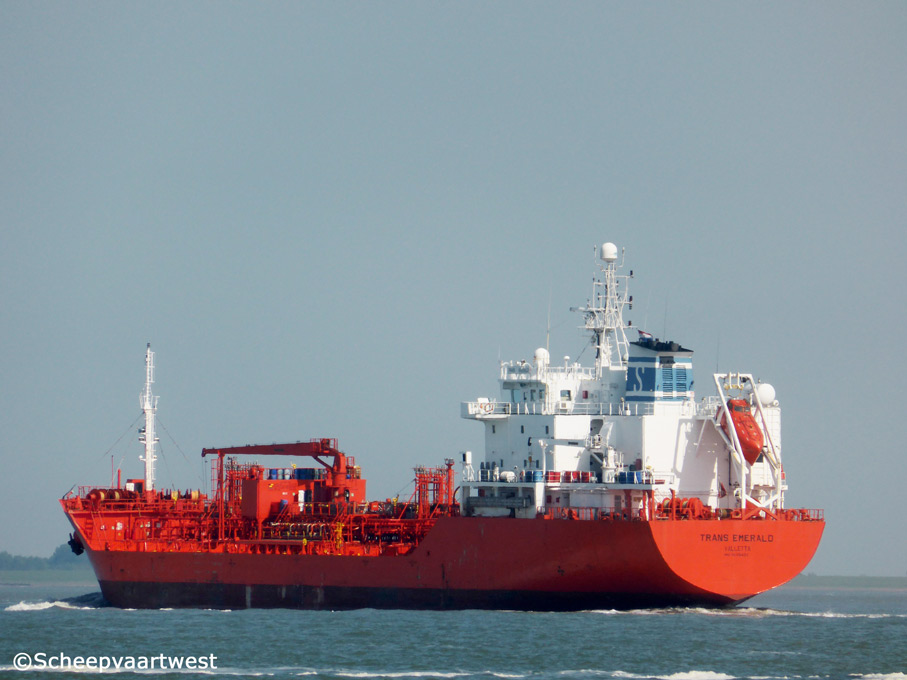

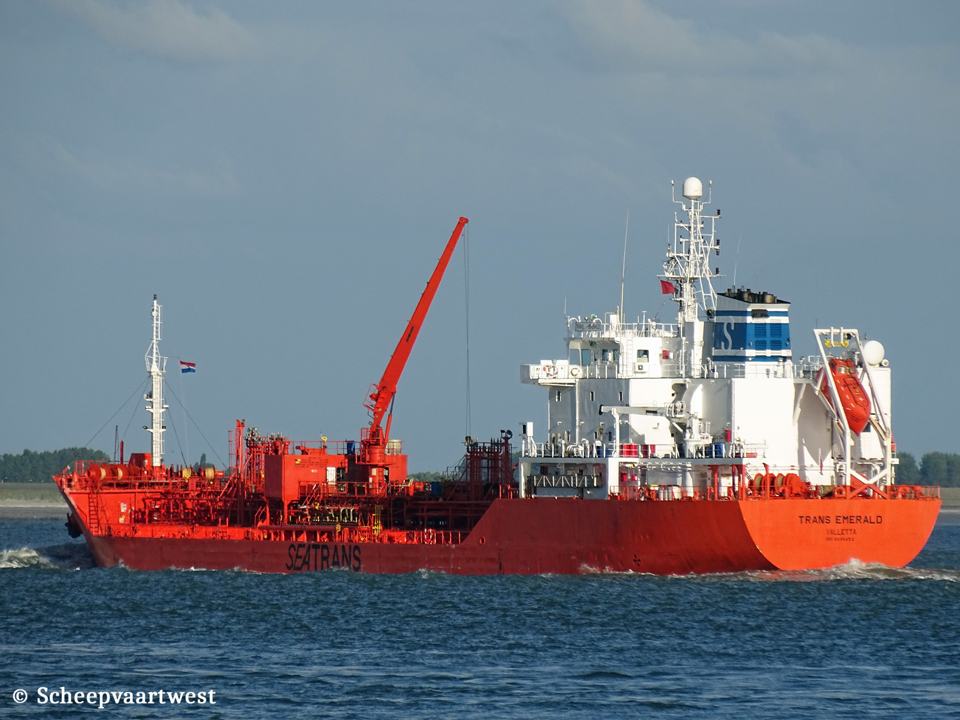

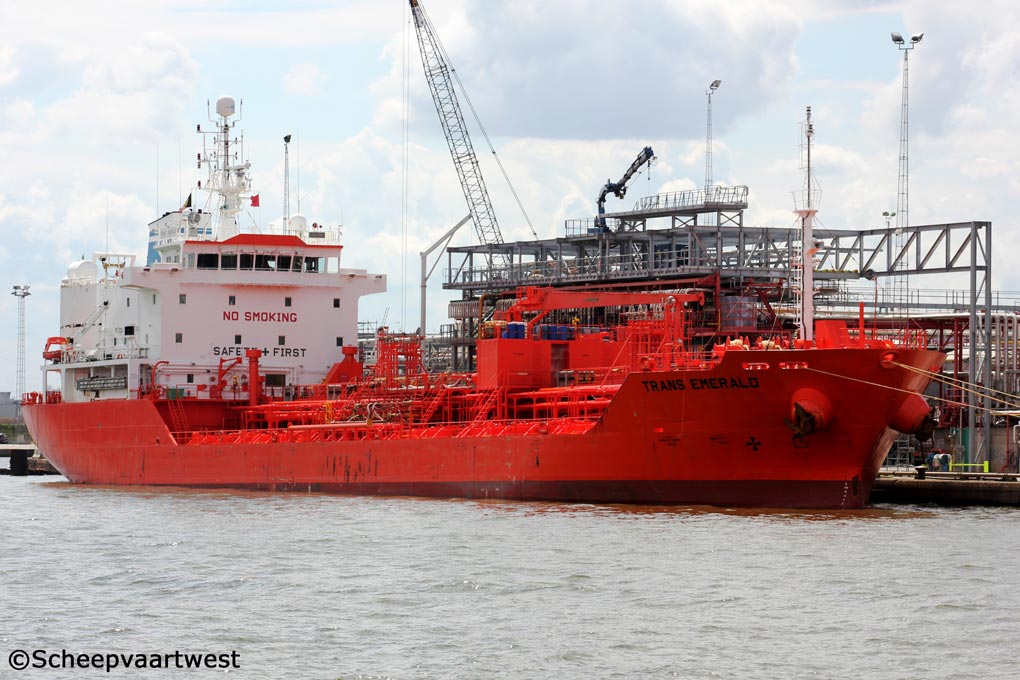

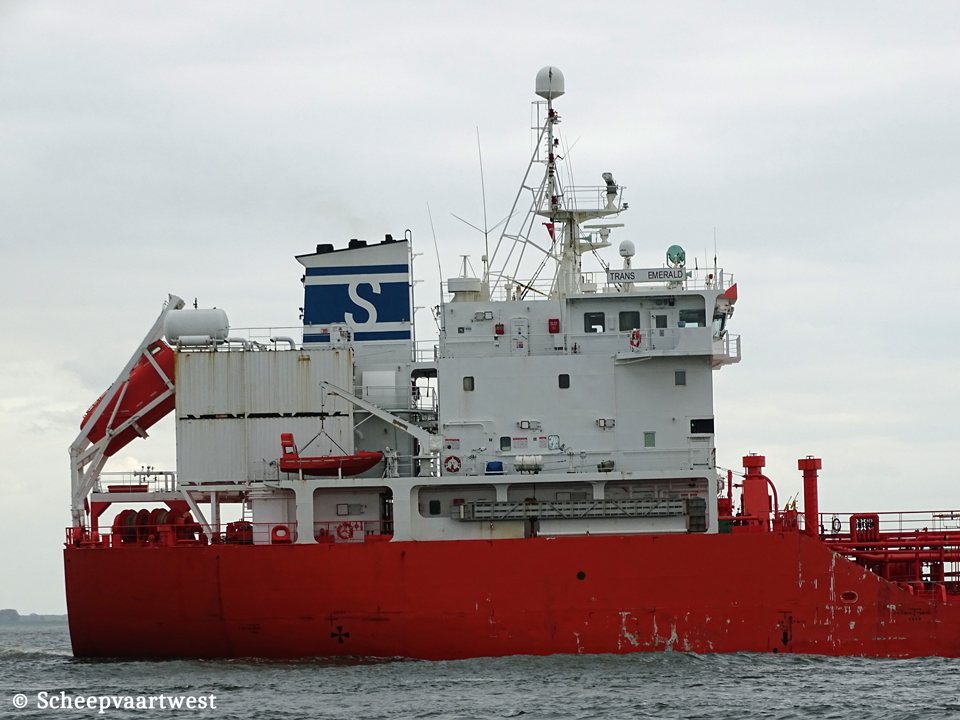

| Westerschelde 16/04/17 | Westerschelde 16/04/17 | Westerschelde 14/01/17 | Antwerpen 30/06/14 | Westerschelde 17/05/14 | Westerschelde 20/07/20 | |||||
 |
 |
|||||||||

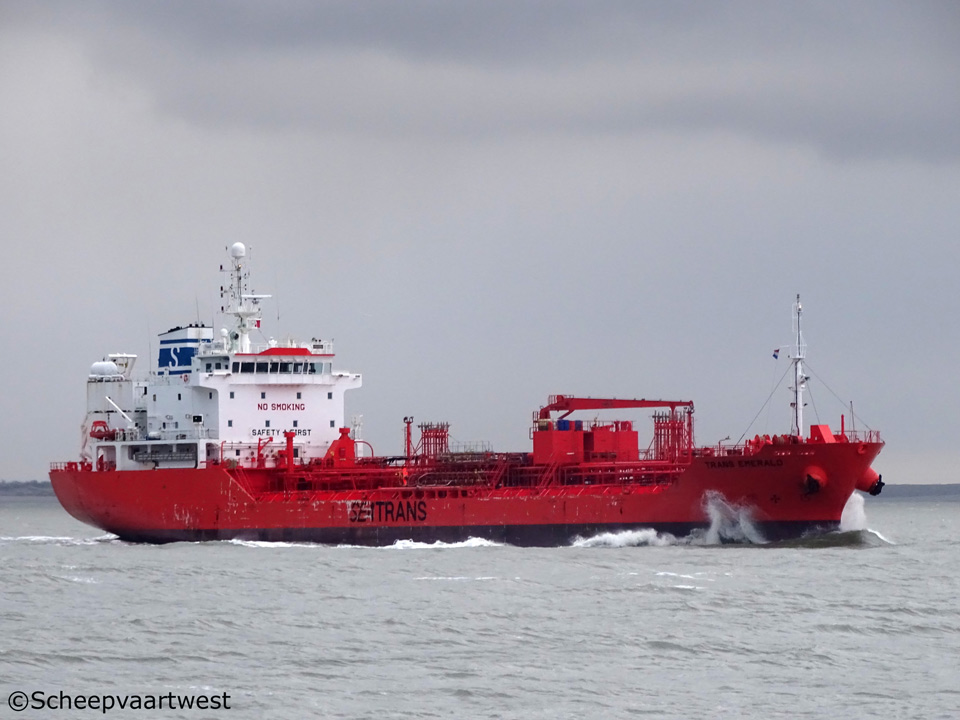

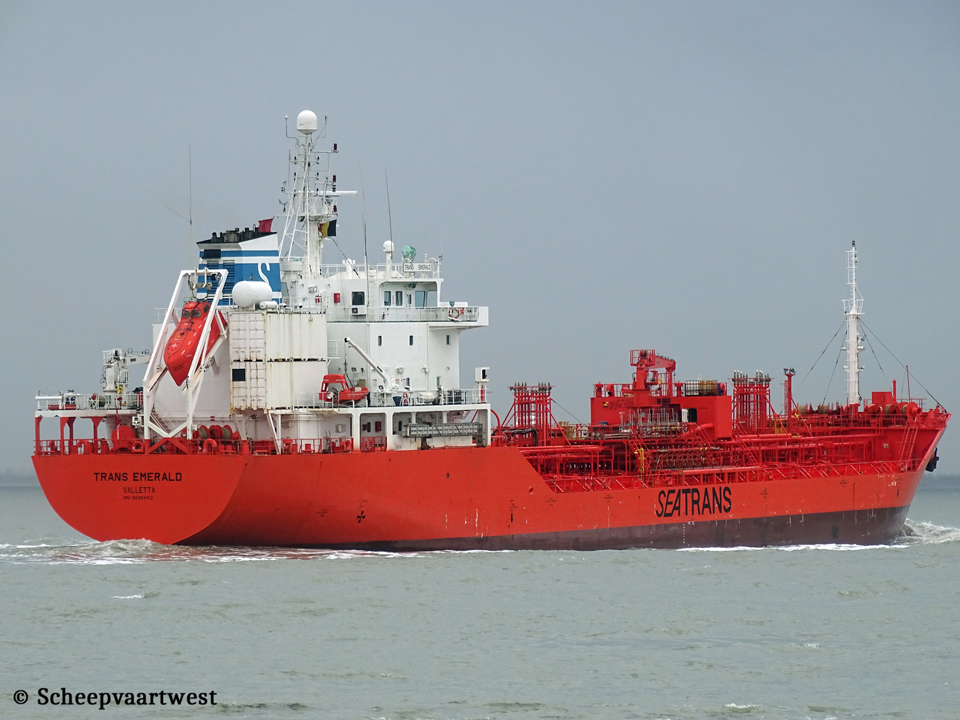

| Westerschelde 29/08/16 | Westerschelde 10/02/16 | |||||||||
|
Name |
TRANS EMERALD |
|
Previous names |
2005 Launch as: Cape Emerald |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9295452 |
|
Call sign |
9HA2565 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2005 - 2005 Cyprus 2005 - 2005 Marshall Islands 2005 - 2010 Norway - Call sign: LAGL6 |
|
GT |
5.815 t Suez: 6.271,26 t |
|
DWT |
Summer: 8.674,3 t Winter: 8.386,16 t |
|
NT |
2.541 t Suez: 5.022,24 t Panama: 4.943 t |
|
Displacement |
Lightship: 3.287 t Summer: 11.936,70 t Winter: 11.648,56 t |
|
Length |
115,00 m overall 108,17 m between perpendiculars |
|
Breadth |
18,83 m extreme |
|
Draught |
Summer: 7,41 m Winter: 7,26 m |
|
Keel to mast end |
34,00 m |
|
Air draft |
Summer deadweight: 26,59 m Normal ballast: 27,70 m Lightship: 31,57 m |
|
Freeboard |
Summer: 2.310 mm Winter: 1.470 mm |
|
Depth |
9,70 m moulded |
|
Speed |
Ballast: 15,5 knots Laden: 14,5 knots |
|
Built |
2005 |
|
Keel laid |
09/04/2005 |
|
Date of completion |
08/11/2005 |
|
Builder |
INP Heavy Industries Co., Ltd. 175-1 Pang-o-dong, Tong-gu Ulsan, 662-020 Kyongsang-namdo South Korea |
|
Yard number |
1136 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Double bottom |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Hyunday 6S35MC- 2 stroke 6 cylinder 350 x 1.400 mm combustion engine 4.440 kW at 173,0 rpm Year of manufacture: 2004 Manufacturer: Hyundai Heavy Industries Co., Ltd. 1, Cheonha-dong, Dong-gu Ulsan, Kyongsang-namdo Republic of Korea |
|
Propellers |
1x Solid propeller (keyless), aft |
|
Boilers |
1x Steam boiler, oil fired - 7,8 bar Heating surface: 19,7 m² 1x Steam boiler, exhaust gas heated - 7,8 bar Heating Surface: 101,1 m² 1x Steam boiler, oil fired - 9,8 bar Heating surface: 88,2 m² Year of manufacture: 2004 Manufacturer: Miura Co., Ltd. 7, Horie Matsuyama, 799-2696 Ehima-ken Japan |
|
Electric installations |
3x Plants each 440 V - 700 kVA 1x Plant 440 V - 112 kVA |
|
Generators |
3x Yanmar 6N18AL-SV diesel generatorsets each 700 kVA |
|
Emergency generator |
1x Sisu 420DSRIG diesel generatorset 112 kVA |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 33,0 bar 1x Receiver 100 litres - 33,0 bar 1x Receiver 80 litres - 7,7 bar |
|
Bow thruster |
1x Bow thruster 690 hp, forward 1x Stern thruster 630 hp, aft |
|
Number of cargo tanks |
16 + 2 deck tanks |
|
Total tanks capacity 98% |
8..956,60 m³ |
|
Natural segregation with double valve 98% |
Seg#1: 755,764 m³ (P+S combined) Seg#2: 1.198,612 m³ (P+S combined) Seg#3: 372,654 m³ (P+S combined) Seg#4: 1.424,077 m³ (P+S combined) Seg#5: 1.614,197 m³ (P+S combined) Seg#6: 1.329,350 m³ (P+S combined) Seg#7: 379,809 m³ (P+S combined) Seg#8: 1.137,408 m³ (P+S combined) Seg#9: 709,657 m³ (P+S combined) |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
664,50 m³ |
|
Number of pumps |
12x Framo deepwell cargo pumps each 300 m³/h 2x Framo deepwell cargo pumps each 200 m³/h 4x Framo deepwell cargo pumps each 100 m³/h 1x Framo portable pump 71 m³/h 2x Centrifugal ballast pumps each 300 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 35,35 m Bow to centre manifold: 52,64 m Stern to centre manifold: 62,30 m Distance between cargo manifold centres: 800 mm Distance ships rail to manifold: 3.190 mm Distance manifold to ships side: 3.370 mm Top of rail to centre of manifold: 1.171 mm Distance main deck to centre of manifold: 2.330 mm Spill tank grating to centre of manifold: 1.200 mm |
|
Tank capacities |
Fuel oil: 204,2 m³ Diesel oil: 272,5 m³ Ballast: 3.390,45 m³ |
|
Anchor equipment |
3x Anchors weight each 3.540 kg Chain length: 522,50 m Diameter: 52 mm |
|
Lifting equipment |
1x Crane midship - SWL 4,0 t |
|
Crew size |
19 |
|
Commerical manager |
Seatrans Chemicals Tankers AS Wernersholmvegen 5 5232 Paradis Norway |
|
ISM manager |
Stödig Ship Management AS Wernersholmvegen 5 5232 Paradis Norway |
|
Registered owner |
Kjemikalietank AS Care of Seatrans AS Wernersholmvegen 5 5232 Paradis Norway |
|
Disponent owner |
Seatrans Chemical Tankers AS Wernersholmvegen 5 Hop N-5232 Paradis Norway |
|
Latest data adjustment |
23 April 2022 |
