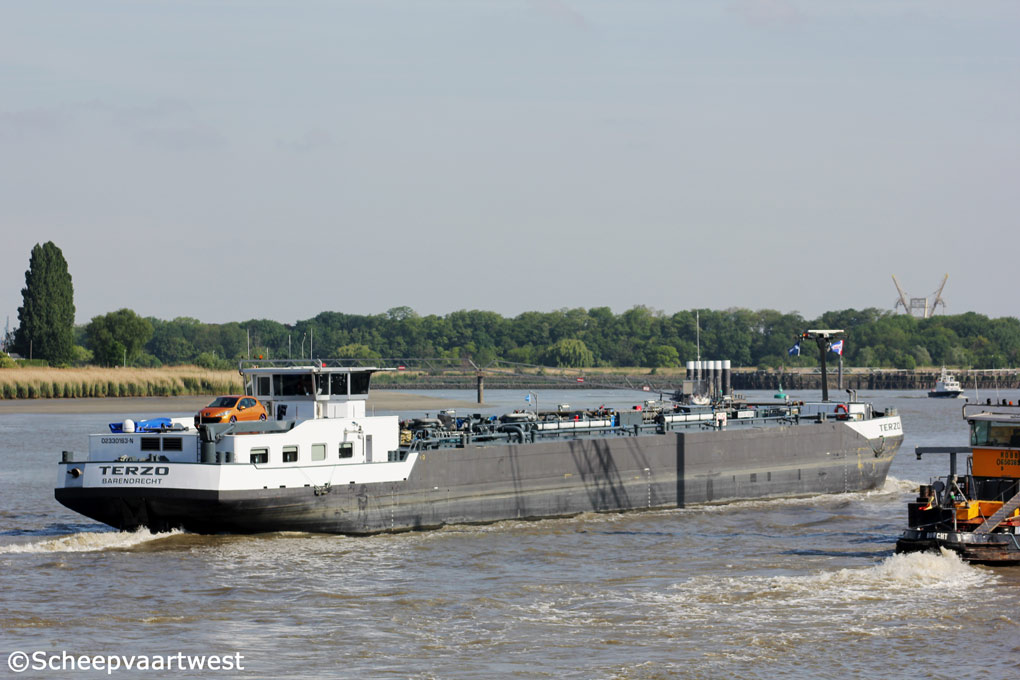

Terzo 02

Antwerpen 16 May 2014


Terzo 01
Antwerpen 30/06/14


Name

TERZO

Type

Inland tanker

ENI-number

02330163

Call sign

PC2397

Flag

The Netherlands

Port of registry

Barendrecht

Tonnage

1.627 t

Length

85,00 m

Breadth

9,60 m

Draught

3,05 m

Depth

4,70 m

Built

2008

Builder casco

China

Builder completion

TeamCo Shipyard BV
Heusden
The Netherlands

Hull material

Steel

Main engine

1x Caterpillar 3508 (C) DI-TA electronic engine 779 kW / 1.060 hp at 1.600 rpm

Propellers

1x 4 bladed propeller - Diameter: 1.600 mm with nozzle

Generators

1x Cummins QSX 15 diesel engine coupled with Marathon 572 RSL 4030 generator 356 kVA

1x Cummins QSX 6.7C diesel engine coupled with Marathon 431 RSL 6202 generator 135 kVA

1x Cummins 4BT 3.9G3 diesel engine coupled with Marathon 361 CSL 1602 generator 56 kVA

Bow thruster

1x Cummins van Wijk type SD 100 C

Pumps

2x Bornemann type HC 180 cargo pumps each 250 m³/h

1x Bornemann type W7T ballast pump 300 m³/h

Liquid cargo capacity

1.900 m³

Owner

Scheepvaartbedrijf Kwantes - van der Vlist
Randmeer 21
2993 RM Barendrecht
The Netherlands

Latest data adjustment

25 April 2015
