Westerschelde 29 July 2014 |
 |
 |
 |
 |
 |
 |
|||||

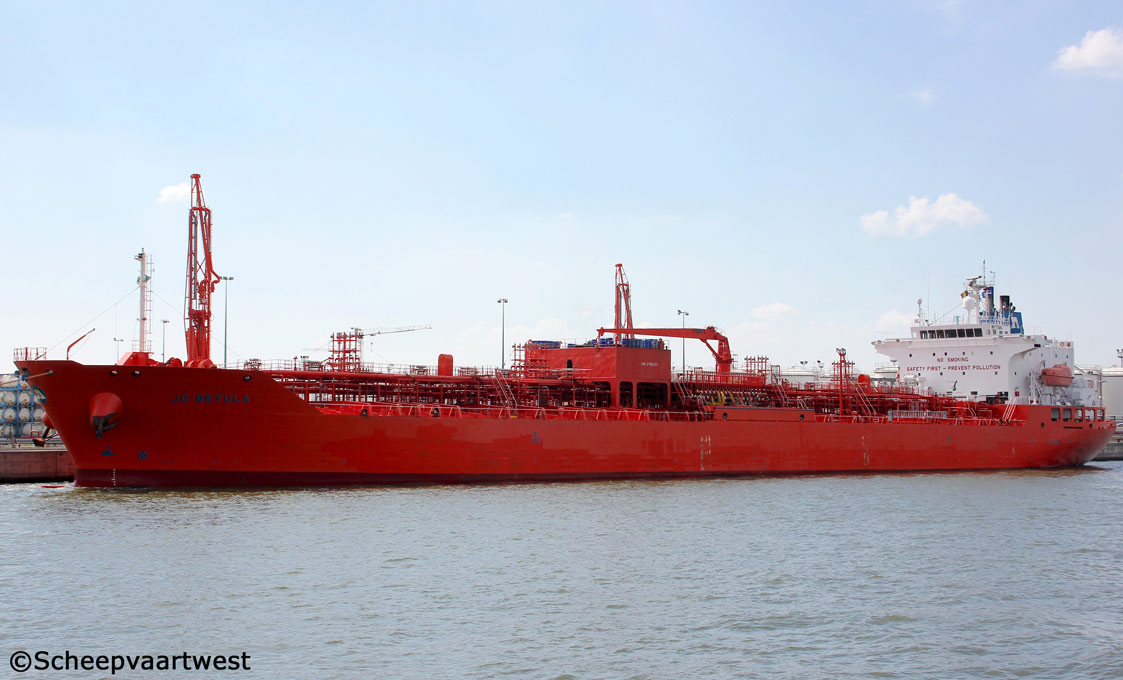

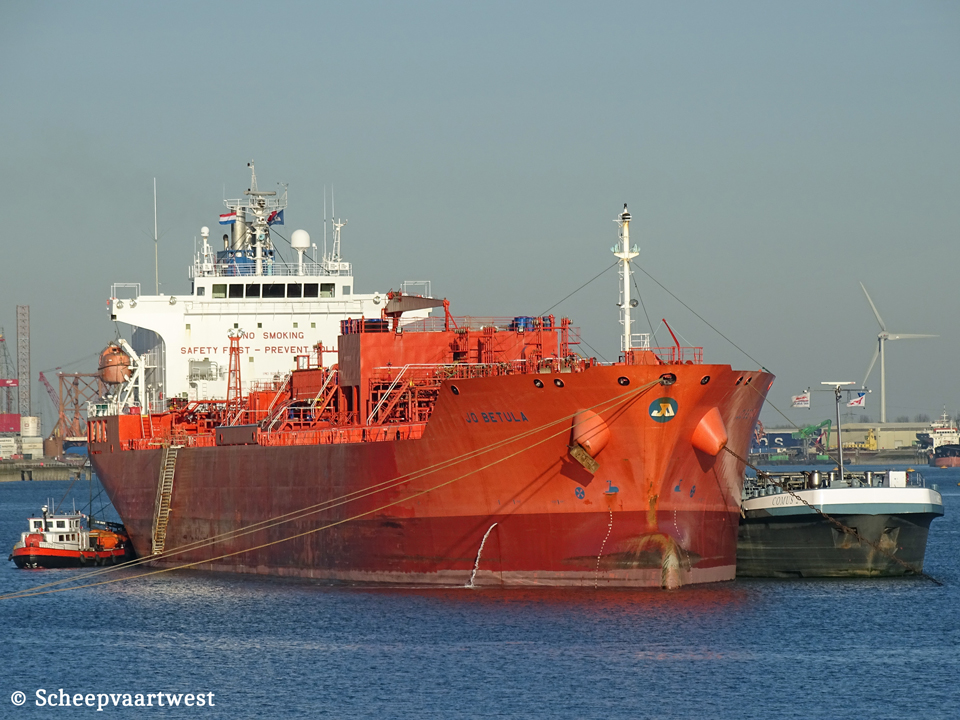

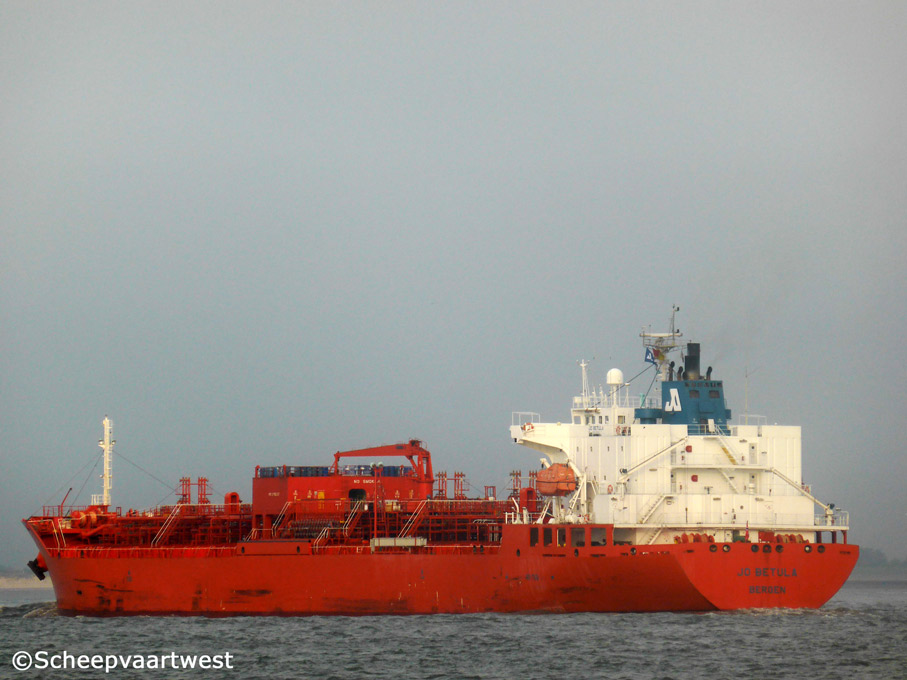

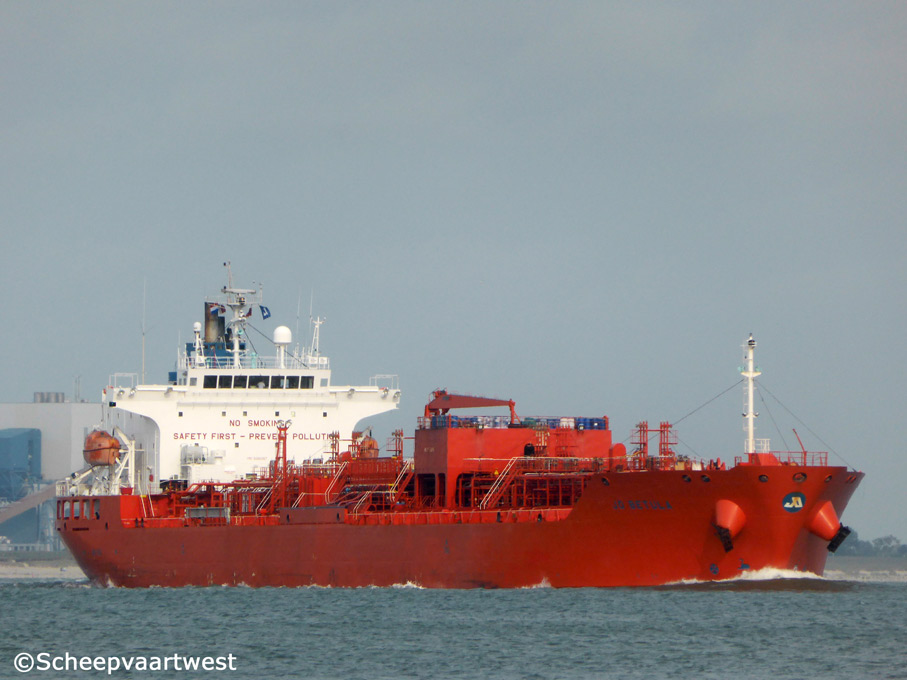

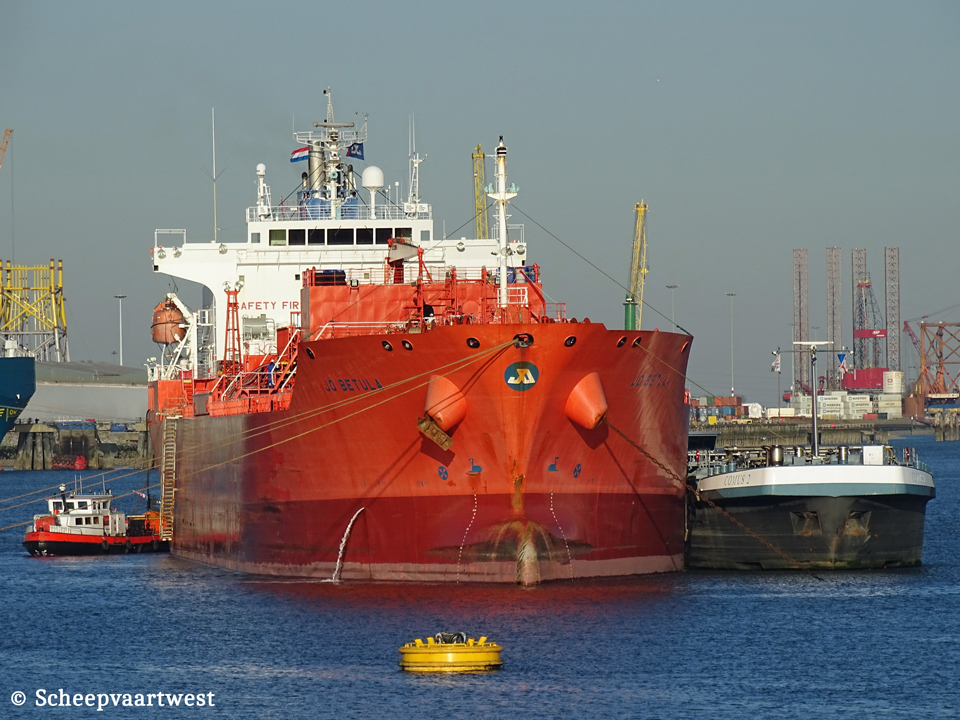

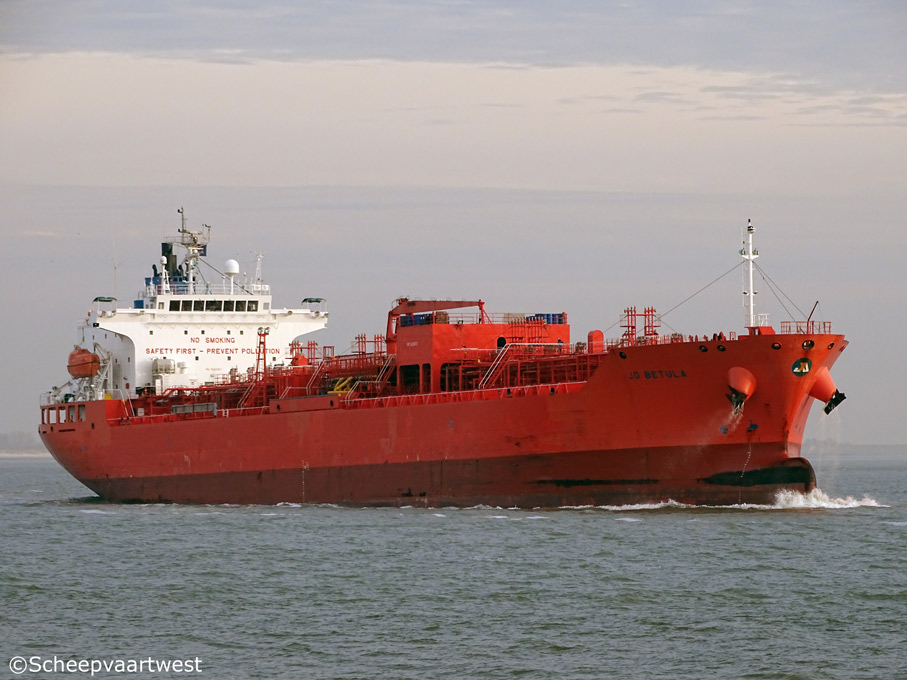

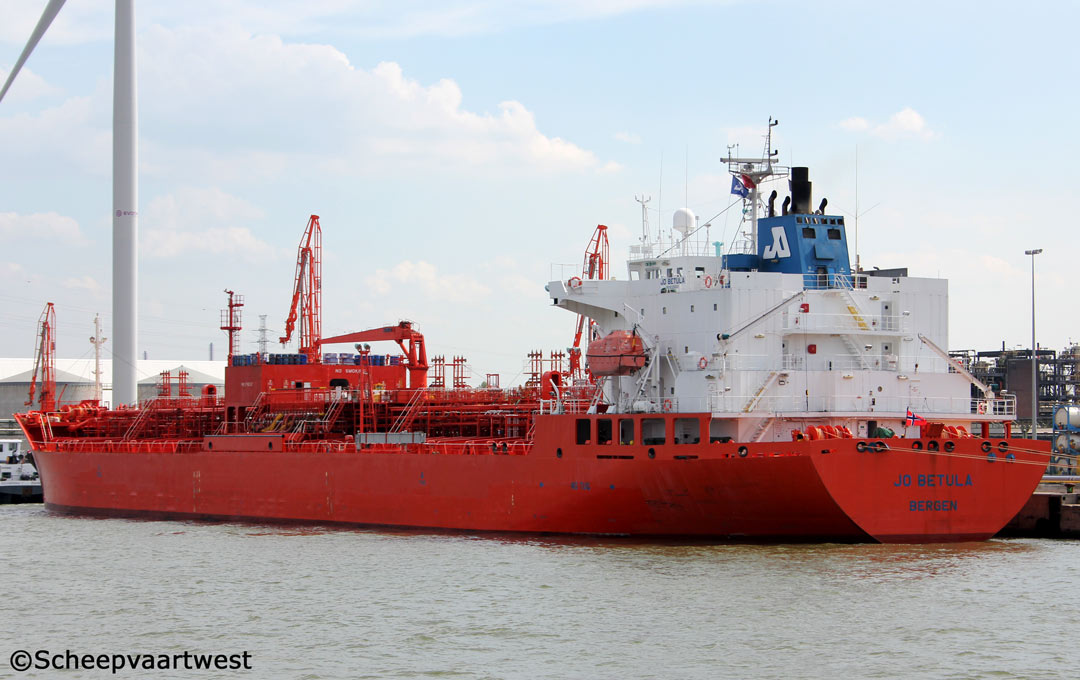

| Westerschelde 12/07/14 | Antwerpen 24/07/14 | Antwerpen 24/07/14 | Westerschelde 07/12/16 | Vlissingen 16/02/16 | Vlissingen 16/02/16 | |||||
|
Name |
JO BETULA |
|
Type |
Tanker for chemicals & oil products |
|
IMO-number |
9266267 |
|
Call sign |
LAWQ5 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
15.992 t Suez: 16.303 t |
|
DWT |
Summer: 25.024 f |
|
NT |
7.356 t Suez: 14.468 t Panama: 15.992 t |
|
Length |
159,20 m overall 150,00 m between perpendiculars |
|
Breadth |
25,03 m extreme |
|
Draught |
10,41 m on summer load line |
|
Keel to top of mast |
38,30 m |
|
Depth |
15,30 m moulded to main deck |
|
Speed |
15,0 knots |
|
Built |
2003 |
|
Keel laid |
18/10/2002 |
|
Launch date |
25/03/2003 |
|
Date of completion |
15/06/2003 |
|
Builder |
Kitanihon Shipbuilding CO., Ltd. Hachinohe Japan |
|
Yard number |
337 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 9 Longitudinal: 3 |
|
Main engine |
1x Mitsubishi/Akasaka 6UEC52LA - 2 stroke 6 cylinder combustion engine 7.943 kW at 127,0 rpm Builder: Akasaka diesels Ltd. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated KF-185F 1x Auxiliary boiler, oil/gas fired HB-18 Builder: Miura Co., Ltd. |
|
Generators |
3x MAN-B&W 5L23/30H diesel generatorsets Builder: MAN-B&W Diesel AG |
|
Emergency generator |
1x Deutz diesel generatorset |
|
Bow thruster |
1x 696 kW |
|
Number of tanks |
28 |
|
Total tank capacity |
30.289 m³ |
|
Manifolds |
Bow to centre manifold: 80,30 m Stern to centre manifold: 78,70 m Deck to manifold: 2,75 m Rail to manifold connection: 4,43 m |
|
Ballast capacity |
10.508,64 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 60 mm |
|
Lifting equipment |
1x Deck crane - SWL 5,0 t |
|
Manager |
Jo Tankers AS Kokstadflaten 5 5257 Kokstad Norway |
|
Previous managers |
2003 - 2003 Jo Tankers AS 2003 - 2013 Jo Tankers UK Limited |
|
Operator |
Jo Tankers AS |
|
Registered owner |
Skibsaksjeselskapet Hassel AS |
|
Previous owners |
2003 - 2003 Skibs Hassel Nederland B.V. 2003 - 2012 Blaf (No. 2) Limited |
|
Renamed |
2017 Stolt Betula Liberia, Monrovia - Call sign: D5MX9 Owner: FPG Shipholding Liberia 13 SA Manager: Stolt Tankers BV; Roterdam - the Netherlands |
|
Latest data adjustment |
12 May 2023 |
