Westerschelde 04 August 2017 |
 |
 |
 |
||
| Westerschelde 12/07/14 | Westerschelde 27/07/14 | Antwerpen 26/05/16 | ||
|
Name |

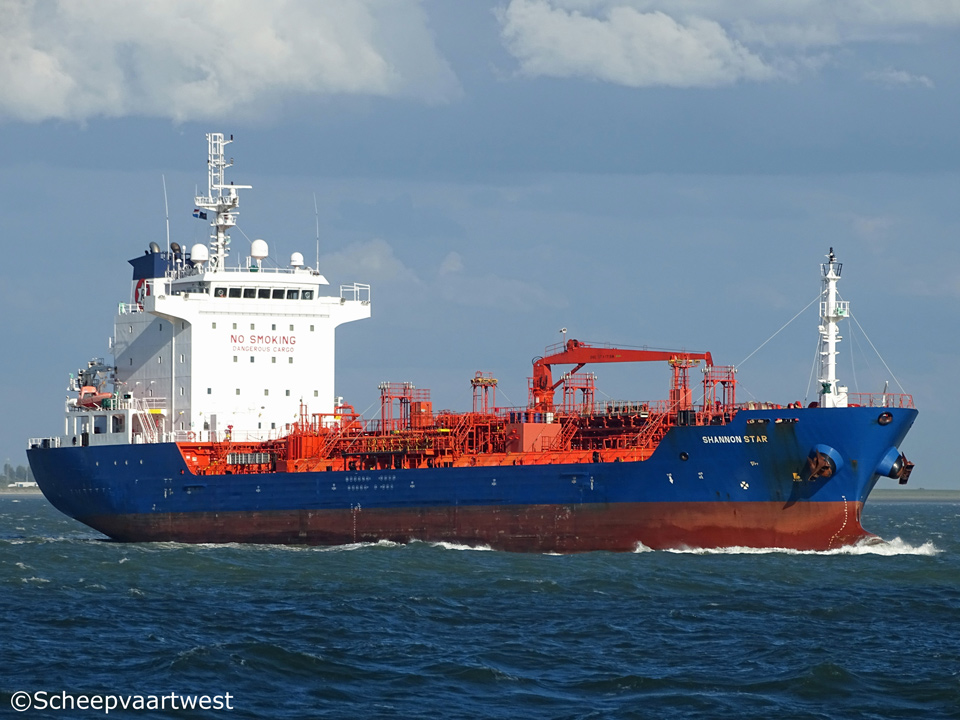

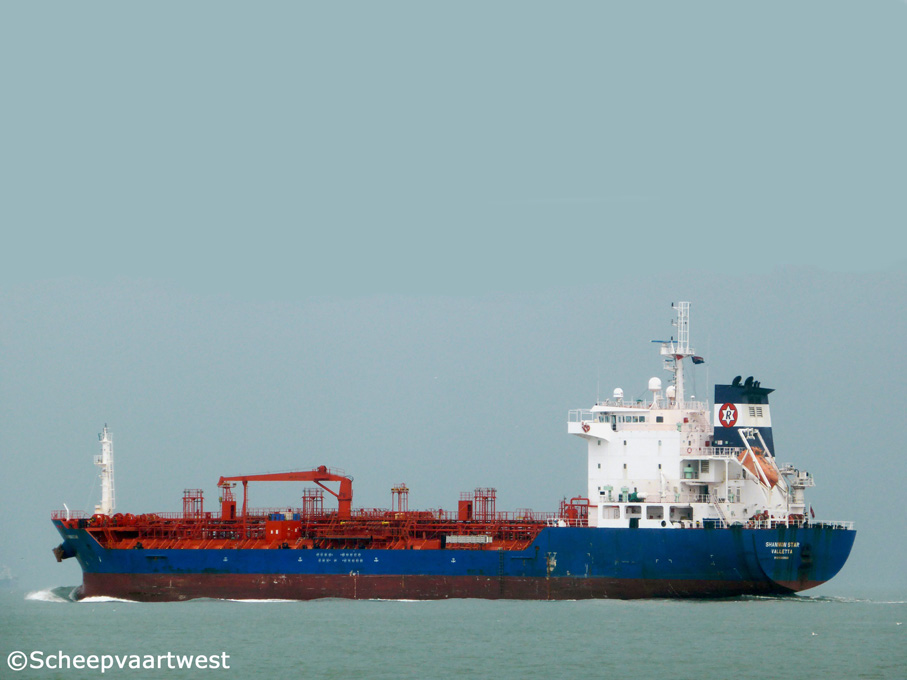

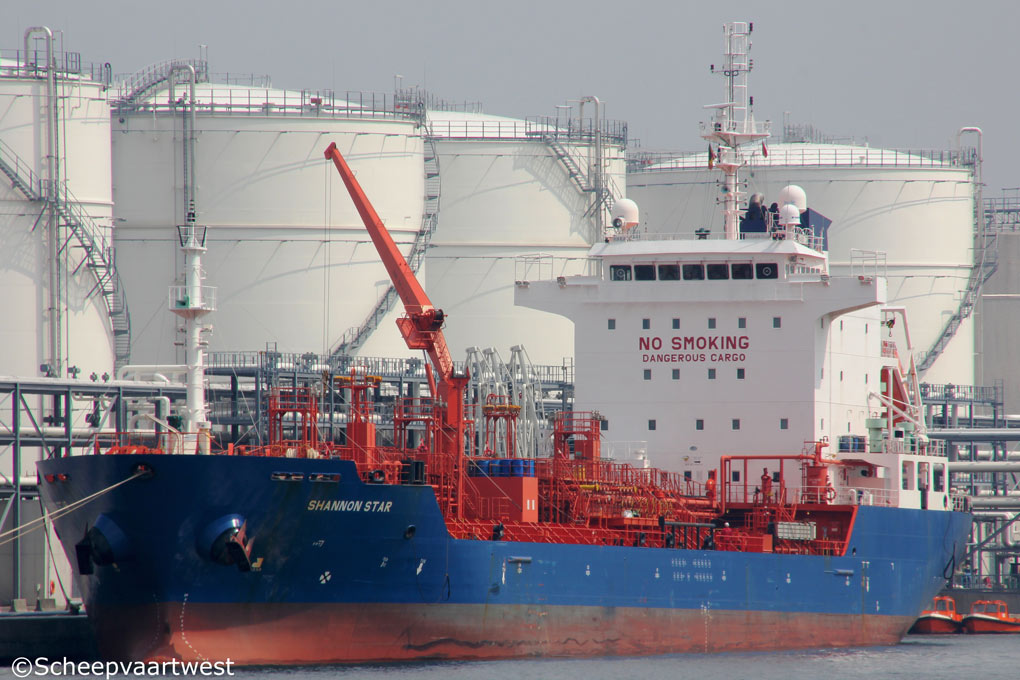

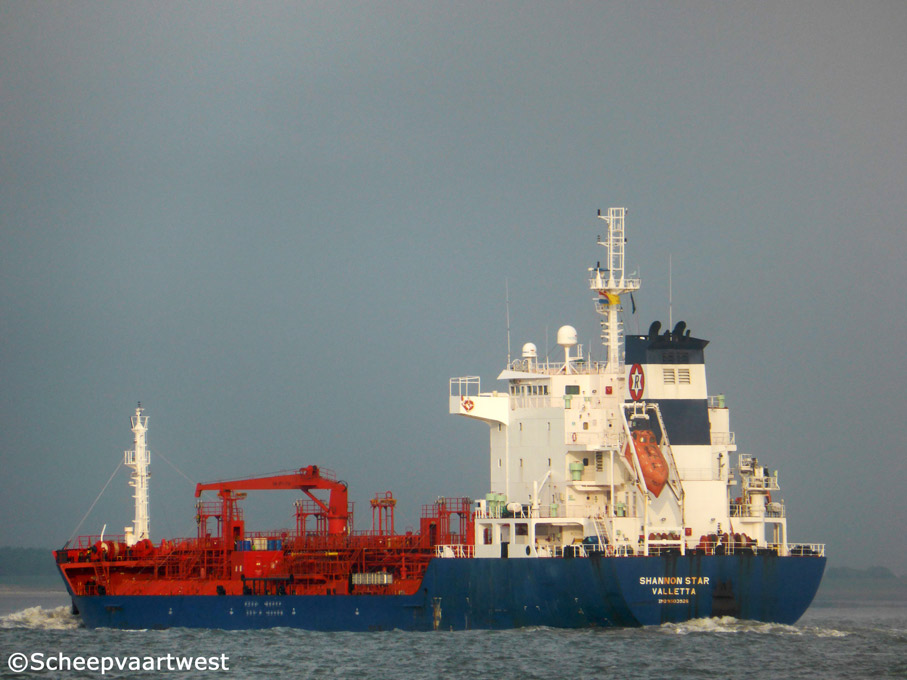

SHANNON STAR |
|
Previous names |
2010 Launch as: Seine Star |
|
Type |
Chemical and product tankers - type COT 14,5 |
|
IMO-number |
9503926 |
|
Call sign |
9HA2409 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
8.537 t |
|
DWT |
Summer: 13.023 t |
|
NT |
4.117 t Panama: 7.216 t Suez: 6.845 t |
|
Length |
128,60 m overall 120,40 m between perpendiculars |
|
Breadth |
20,40 m moulded |
|
Draught |
8,70 m |
|
Keel to top of mast |
40,80 m |
|
Depth |
11,50 m moulded |
|
Speed |
13,4 knots |
|
Built |
2010 |
|
Date of completion |
08.07.2010 |
|
Builder |
21st Century Shipbuilding Co., Ltd. |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN B&W 6S35 MCC diesel engine - Output 5.920 kW at 173 rpm |
|
Propellers |
1x Fixed propeller |
|
Generators |
3x Main diesel generatorsets each 600 kVA |
|
Bow thruster |
1x 450 kW |
|
Number of tanks |
12 + 2 slop |
|
Cargo tanks |
Tank 1 P & Stb: 948 m³ each Tank 2 P & Stb: 1.124 m³ each Tank 3 P & Stb: 1.232 m³ each Tank 4 P & Stb: 1.233 m³ each Tank 5 P & Stb: 1.233 m³ each Tank 6 P & Stb: 1.070 m³ each Slop tanks P & Stb 352 m³ each |
|
Total cargo capacity 98 % |
13.916 m³ incl. slop tanks 87.527 bbls |
|
Number of segregations |
6+1 |
|
Number of cargo pumps |
12x Framo Deepwell pumps 300 m³/h each 2x Framo Deepwell pumps 100 m³/h each |
|
Pumping capacity |
± 1.800 m³/h (theoretical) |
|
Loading capacity |
± 1.800 m³/h (theoretical) |
|
Heating capacity |
70°C |
|
Manifolds |
Bow to centre of manifold: 61,20 m |
|
Lifting equipment |
1x Hose crane - SWL 5,0 t |
|
Manager |
Rigel Schiffahrts GmbH & Co. KG |
|
Operator |
Rigel Schiffahrts GmbH & Co. KG |
|
Registered owner |
RIGEL Bereederungs GmbH & Co. KG MT Shannon Star |
|
Latest data adjustment |
24 October 2017 |
