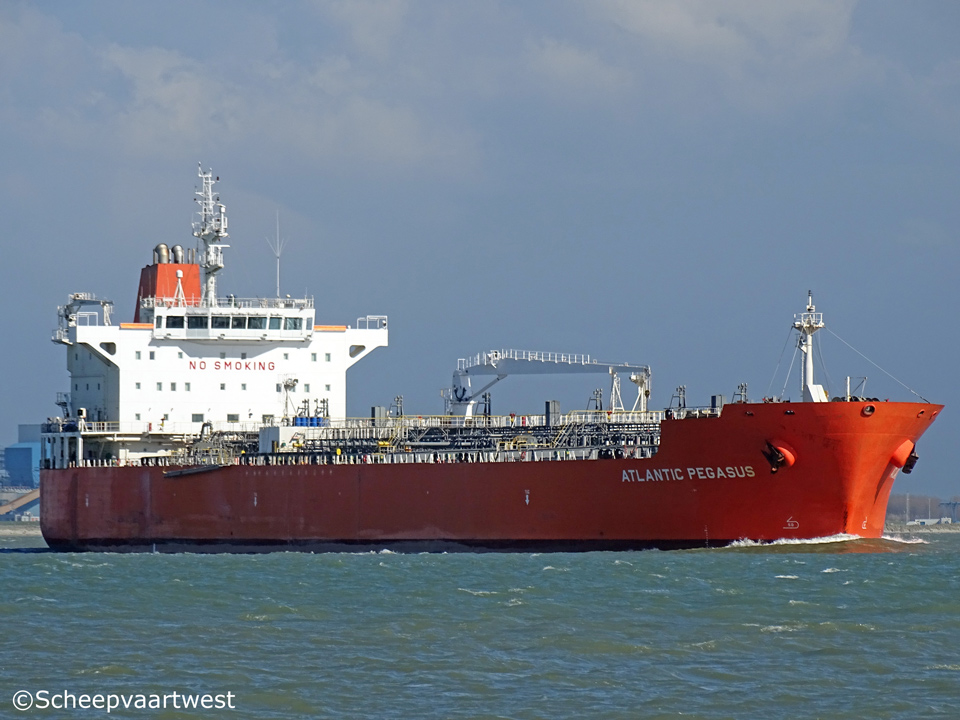

Westerschelde 07 April 2016 |
 |
 |
|

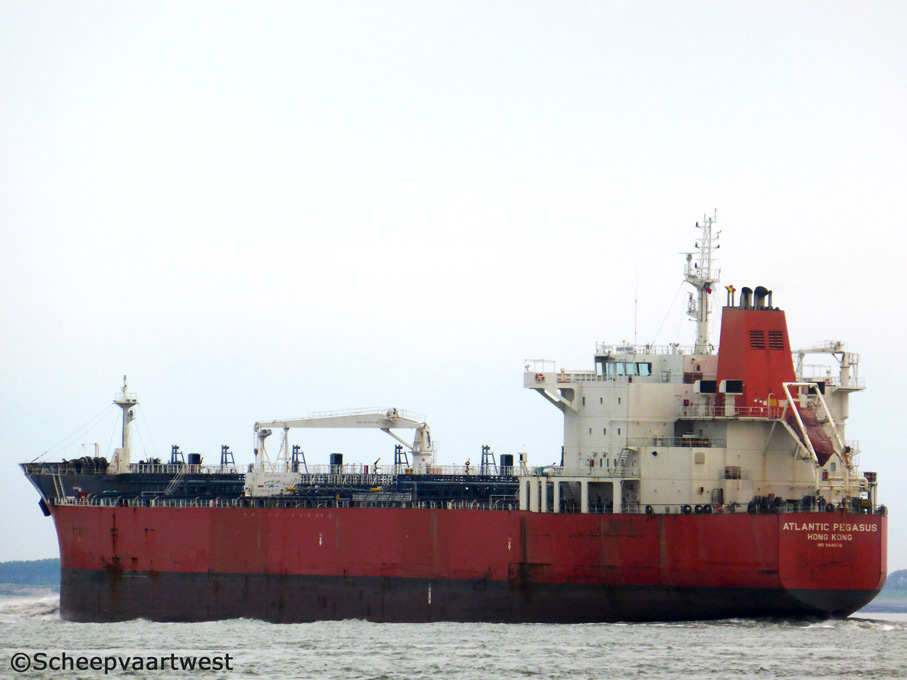

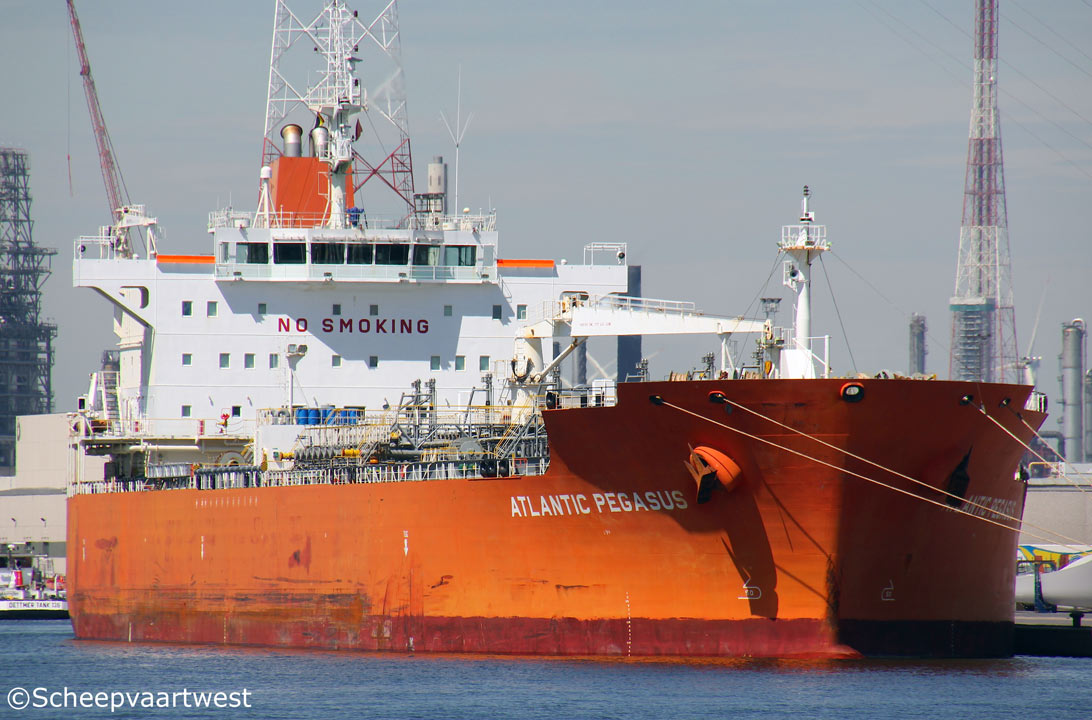

| Westerschelde 25/07/14 | Antwerpen 17/05/17 | |
|
Name |
ATLANTIC PEGASUS |
|
Type |
Oil / Chemical tanker |
|
IMO-number |
9440136 |
|
Call sign |
VRHG4 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
29.107 t |
|
DWT |
Summer: 46.838 t |
|
NT |
12.268 t |
|
Length |
183,17 m overall |
|
Breadth |
32,20 m |
|
Draught |
Max.: 12,32 m |
|
Reg. dimensions L x B x D |
175,54 x 32.20 x 18.80 m |
|
Rule dimensions L x B x D |
174,00 x 32.20 x 18,80 m |
|
Freeboard |
Summer: 6.513 mm |
|
Depth |
18,80 m |
|
Speed |
15,2 knots |
|
Built |
2010 |
|
Keel laid |
26.04.2010 |
|
Launch date |
18.06.2010 |
|
Date of completion |
13.08.2010 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. |
|
Yard number |
HMDC2101 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
Transverse: 10 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Hyundai 6S46MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm diesel engine - 9.480 kW / 10.690 hp at 127,0 rpm Built: 03.2010 Builder: Hyundai Heavy Ind. Engine & Machinery, Ulsan - South Korea |
|
Propellers |
1 |
|
Boilers |
1w Auxiliary water tube boiler - 8,8 bar Built: 05.2010 Builder: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea |
|
Generators |
4x Main diesel generatorsets each 912 kVA - 450 Volt |
|
Number of cargo |
12 |
|
Cargo tank capacity |
54.245 m³ |
|
Number of slop tanks |
2 |
|
Segregation |
7 |
|
Number of pumps |
15 12x Framo cargo pumps each 600 m³/h 2x Framo cargo pumps each 300 m³/h 1x Framo cargo pump each 75 m³/h |
|
Maximum loading rate |
3.600 m³/h |
|
Maximum discharging rate |
3.600 m³/h |
|
Tank capacities |
Fuel oil: 1.427,20 m³ Fresh water: 291,50 m³ Water ballast: 1.965,20 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t |
|
Manager |
Cido Shipping (Hong Kong.) Co., Ltd. |
|
Technical manager |
Anglo-Eastern Tanker Management (Hong Kong) Limited |
|
Registered owner |
Heroic Lupus Inc. |
|
Latest data adjustment |
01 June 2017 |
