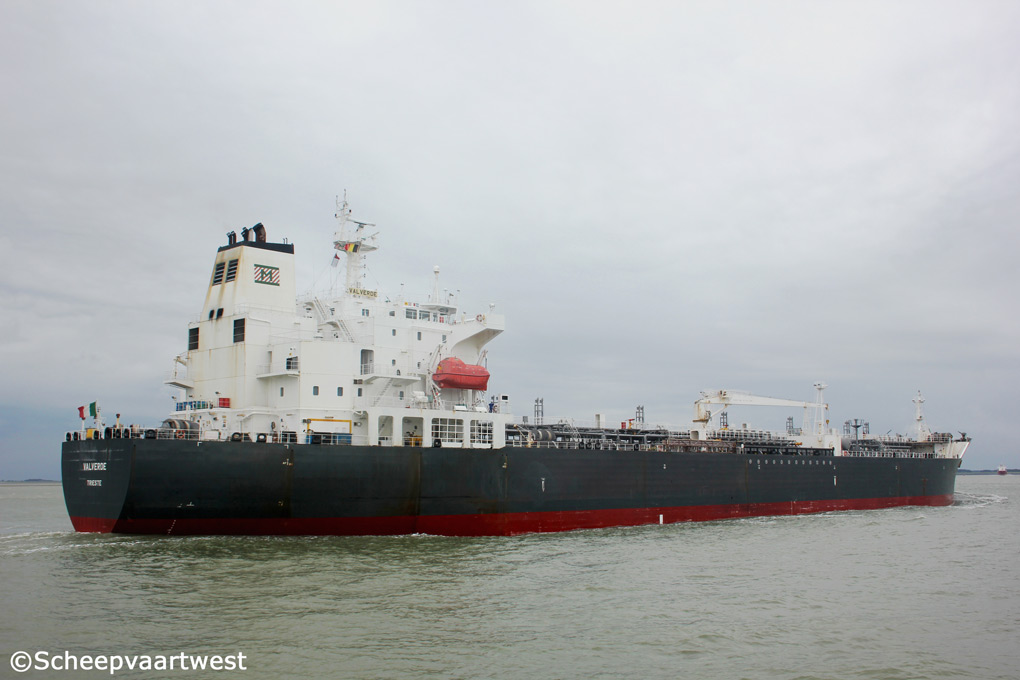

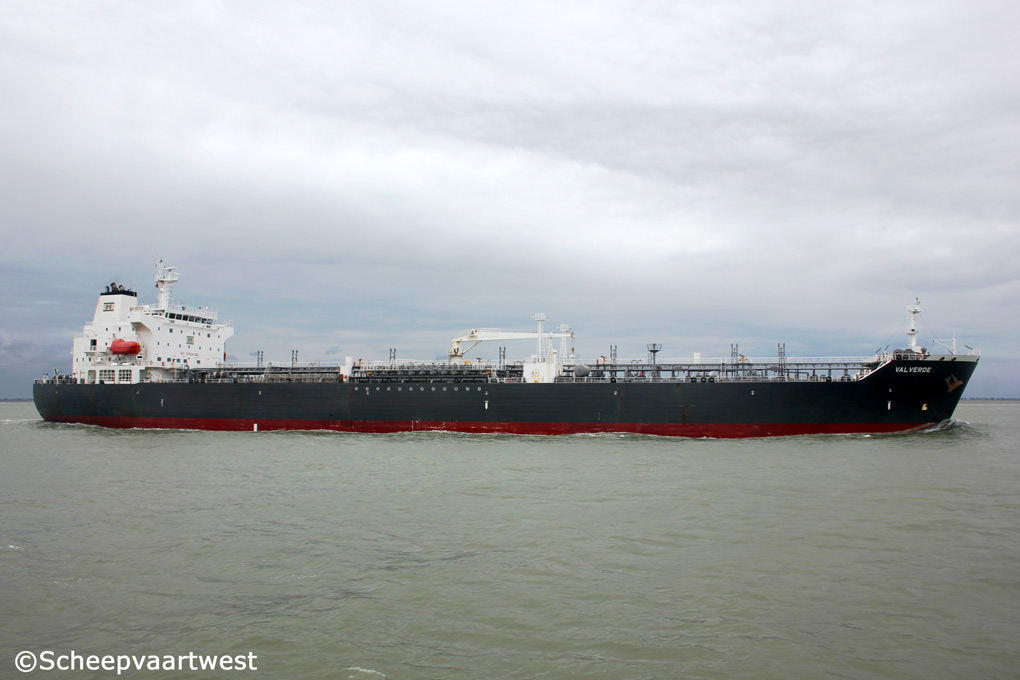

Westerschelde 17 August 2014 |
 |
| Westerschelde 17/08/14 |
|
Name |
VALVERDE |
|
Type |
Oil / chemical tanker |
|
IMO-number |
9391490 |
|
Call sign |
ICHJ |
|
Flag |
Italy |
|
Port of registry |
Trieste |
|
GT |
29.987 t |
|
DWT |
Summer: 50.344 t |
|
NT |
13.240 t |
|
Length |
183,00 m overall 172,66 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
13,01 m |
|
Freeboard |
6.113 mm |
|
Depth |
19,10 m moulded |
|
Speed |
14,9 knots |
|
Built |
2008 |
|
Keel laid |
06.08.2007 |
|
Launch date |
28.10.2007 |
|
Date of completion |
30.01.2008 |
|
Builder |
Spp Shipbuilding Tongyoung Shipyard Co., Ltd. |
|
Yard number |
H 1011 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x Sulzer 7RTA48T-B - 2 stroke 7 cylinder 480 x 2.000 mm diesel engine - 9.485 kW / 12.887 hp at 127,0 rpm Built: 09.2007 Builder: Yichang Marine Diesel Engine Co. Ltd., Yichang - China |
|
Propellers |
1x Screw Propeller Solid - aft at 124,0 rpm |
|
Boilers |
1x CHR Aalborg Industries 11,00 m² - 9,0 bar |
|
Generators |
3x Main diesel generatorsets each 1.125 kVA - 900 kW - 1.318 hp |
|
Emergency generator |
1x Diesel generatorset 187 kVA - 150 kW - 204 hp |
|
Number of cargo tanks |
12 |
|
Total cap. of tanks 100% |
53.183 m³ including slop |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
1.116 m³ |
|
Cargo handling |
12x Pumps 600 m³/h 2x Pumps 300 m³/h |
|
Fuel capacity |
1.503,9 m³ |
|
Manager |
Montanari Navigazione |
|
Registered owner |
Navigazione Montanari S.p.A. |
|
Latest data adjustment |
08 October 2014 |
