Terneuzen, The Netherlands 16 September 2019 |
 |
| Antwerpen 31/10/14 |
|
Name |

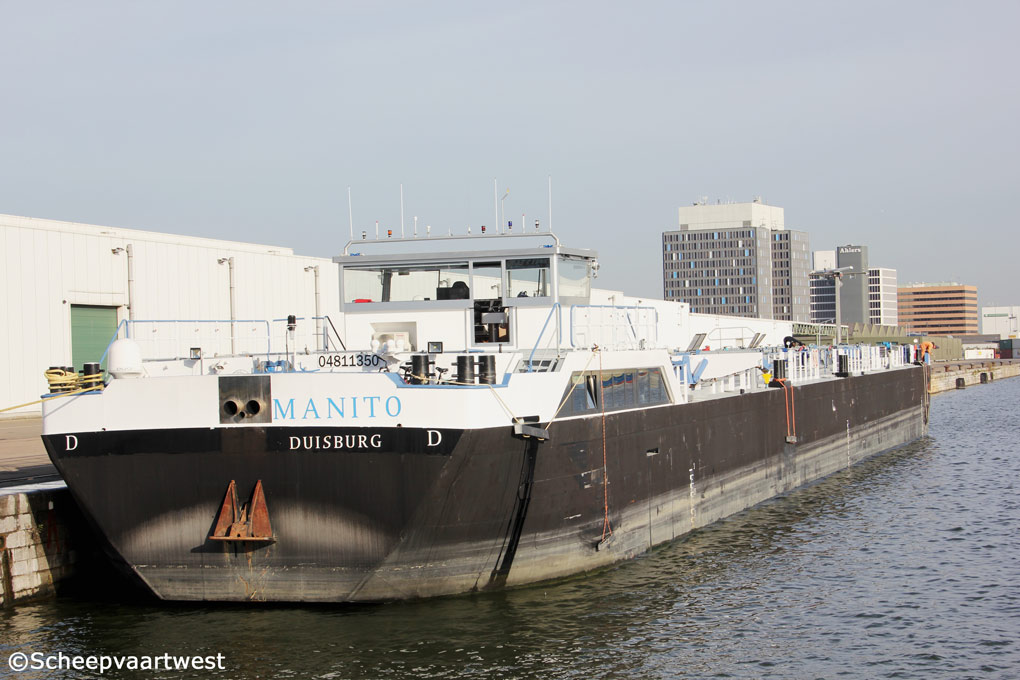

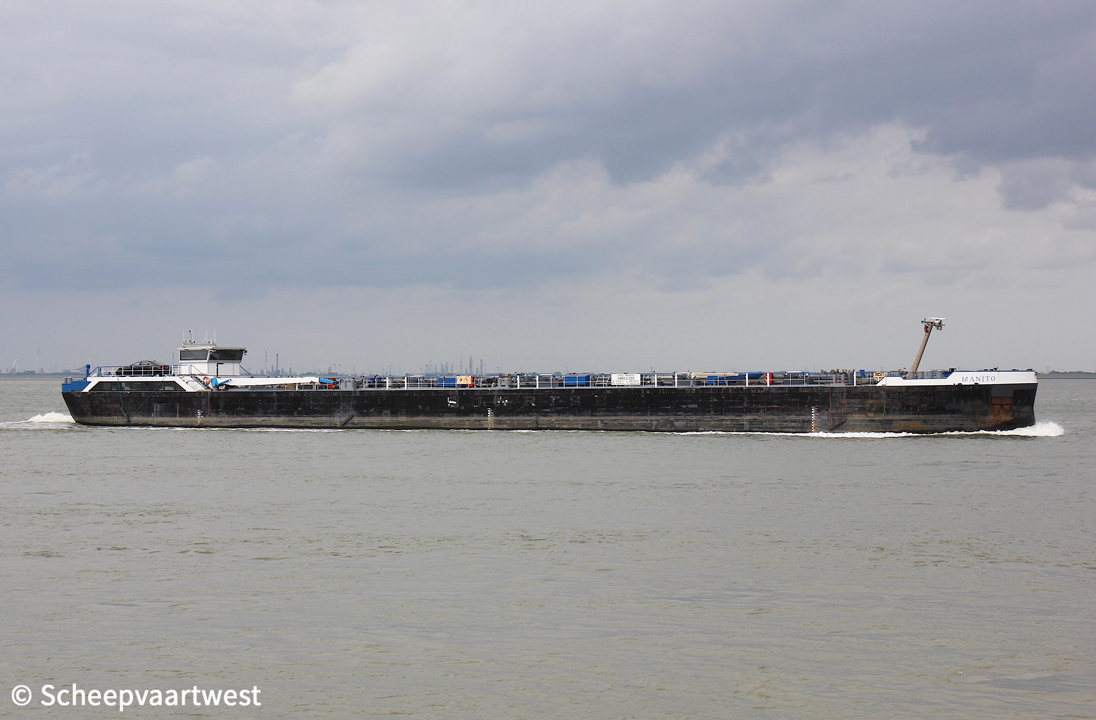

MANITO |
|
Type |
Inland tanker |
|
ENI-number |
04811359 |
|
Call sign |
DG5033 |
|
Flag |
Germany |
|
Port of registry |
Duisburg |
|
Tonnage |
1.652 t |
|
Length |
84,99 m |
|
Breadth |
9,59 m |
|
Draught |
3,00 m |
|
Built |
2014 |
|
Keel laid |
12/08/2013 |
|
Launch date |
17/10/2013 |
|
Date of completion |
21/01/2014 |
|
Builder |
Groningen Shipyard B.V. Waterhuizen 8 9609 PA Groningen The Netherlands |
|
Yard number |
148 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
2x Volvo Penta D13MH - 4 stroke 6 cylinder 131 x 158 mm combustion engines each 331 kW / 450 hp et 1.800 rpm Starter eype: Electrical starter Year of manufacture: 2013 Manufacturer: AB Volvo Penta 405 08 Göteborg Sweden |
|
Gearbox |
2x Reintjes WAF 164 - reduction 5,044:1 |
|
Propellers |
2x Solis propeller - aft at 257 rpm - 4 blades, diameter: 1.400 mm with Van de Giessen OPTIMA nozzles |
|
Electric installations |
1x Plant 400 V - 34 kVA 1x Plant 400 V - 60 kVA 1x Plant 400 V - 64 kVA 1x Plant 400 V - 370 kVA |
|
Generators |
1x Volvo Penta Type D9MH diesel generatorset 370 kVA - 400 Volt 1x John Deere diesel generatorsets each 60 kVA - 400 Volt 1x John Deere diesel generatorsets each 64 kVA - 400 Volt 1x Hatz diesel generatorset 35 kVA - 400 V |
|
Bow thruster |
1x Volvo Penta 258 hp- Verhaar Omega-Jet 190 kW at 1.780 rpm |
|
Cargo capacity |
1.840 m³ |
|
Pumps |
2x Kampers each 300 m³/h |
|
Manager |
SNG Schiffs - Neubau Generalvertretungsges. MbH Obere Gasse 24 97828 Marktheidenfeld Federal Republic of Germany |
|
Registered owner |
Tom Kieboom Tankschifffahrt Hafenstr. 76 47119 Duisburg Federal Republic of Germany |
|
Latest data adjustment |
20 February 2020 |
