Bow Hector 01

Westerschelde 29 June 2014

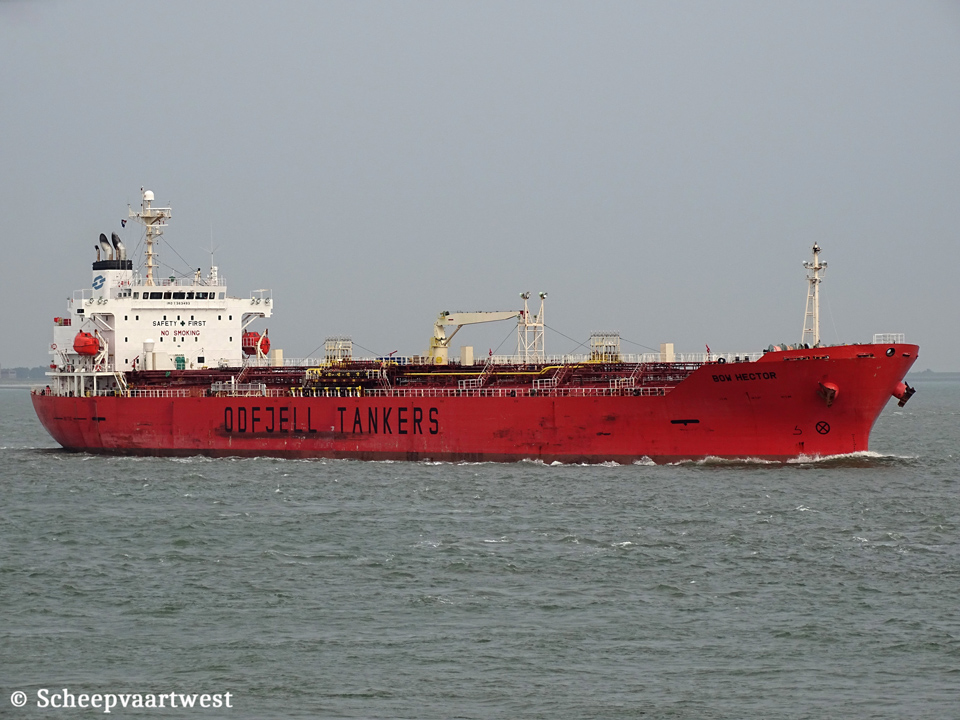

Bow Hector IMO 9363493 02
Westerschelde 28/05/19


Name

BOW HECTOR

Type

Tanker for oil and chemicals

IMO-number

9363493

Call sign

LAKE8

Flag

Norway

Port of registry

Bergen

Previous flag

2009 - 2020 Philippines, Manila - Call sign: DYWK

GT

20.145 t

Suez: 21.400 t

DWT

Summer: 33.694 t

NT

9.154 t

Suez: 18.992 t

Panama: 16.818 t

Lightship

8.077 t

Length

174,38 m overall

167,00 m between perpendiculars

Breadth

27,73 m

Draught

Summer: 11,02 m

Keel to top of mast

42,95 m

Freeboard

5.014 mm

Depth

16,00 m

Speed

14,2 knots

Built

2009

Date of completion

13/02/2009

Builder

Shin Kurushima Hashihama Dockyard Co., Ltd.

Onishi Shipyard

Hashihama

Japan

Yard number

5466

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Mitsui/MAN-B&W-6S50MC - 2 stroke 6 cylinder 500 x 1.910 mm combustion engine 7.980 kW / 10.842 hp at 120,0 rpm

Built: 29/08/2008

Builder: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano, Tamano - Japan

Propellers

1x Screw propeller solid - aft at 120,0 rpm

Boilers

1x CHO Aalborg 202,50 m² / 10,0 bar
1x CHR Aalborg 190,60 m² / 13,0 bar

Generators

3x Diesel generatorsets each 1.000 kVA - 800 kW - 1.196 hp

Emergency generator

1x Diesel generatorset 90 kVA - 72 kW - 143 hp

Bow thruster

1x 699 kW

Number of cargo tanks

16

Total tank capacity 98%

1CP: 1.715 m³

1CS: 1.715 m³

2CP: 2.283 m³

2CS: 2.287 m³

3CP: 2.361 m³

3CS: 2.363 m³

4CP: 2.844 m³

4CS: 2.845 m³

5CP: 2.845 m³

5CS: 2.844 m³

6CP: 2.838 m³

6CS: 2.838 m³

7CP: 2.860 m³

7CS: 2.848 m³

8CP: 572 m³

8CS: 581 m³

Total: 36.639 m³

Pumps

14 x Cargo pumps each 300 m³/h

Tank capacities

Fuel: 1.744,77 m³

Manifolds

Rail to manifold: 3,45 m

Bow to center of manifold: 89,59 m

Crew

21

ISM Manager

Thome Croatia D.O.O.

7.Domobranske Pukovnije 1

23000 Zada

Croatia

Previous technical manager

Victoria Ship Management Inc

Operator

Odfjell AS

Conrad Mohrsv. 29

Bergen

Norway

Registered owner

EGD Chemtank AS

Sydnesplassen 1

5007 Bergen

Norway

Previous owner

Seafarers Shipping Inc.

Manila

Philippines

Latest data adjustment

01 April 2021
