Name |

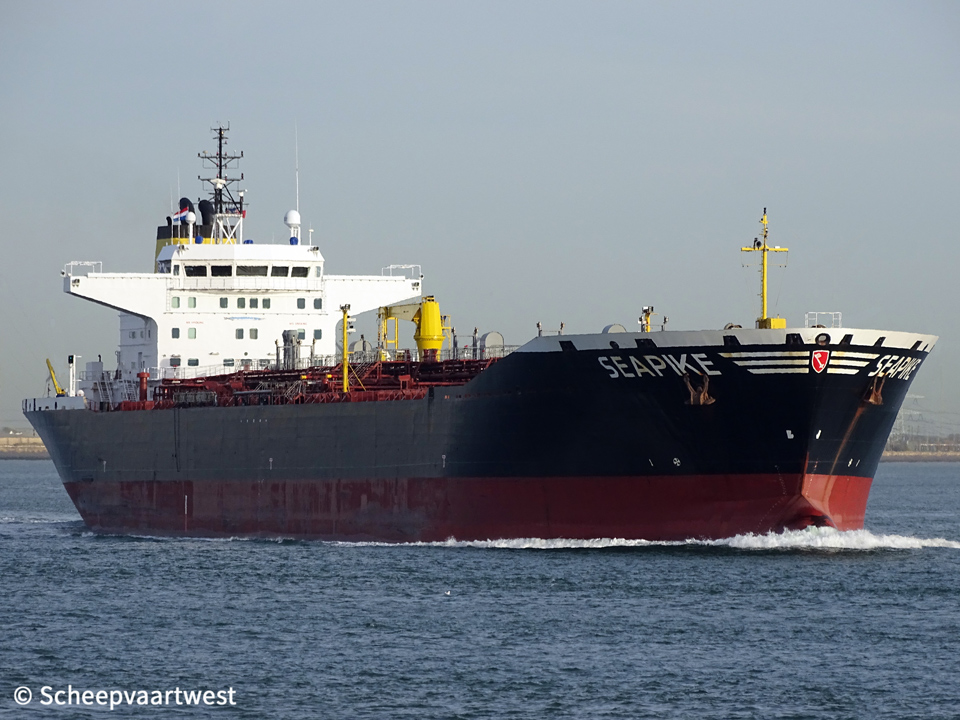

SEAPIKE |
|
Type |
Oil tanker - Suitable for carriage of various oil products |
|
IMO-number |
9423449 |
|
Call sign |
DEHR |
|
Flag |
Germany |
|
Port of registry |
Bremen |
|
GT |
28.449 t |
|
DWT |
Summer: 43.550 t |
|
NT |
11.293 t |
|
Length |
199,60 m overall 192,76 m registered |
|
Breadth |
32,20 m registered |
|
Draught |
11,00 m |
|
Forecastle |
13,56 m |
|
Depth |
17,05 m moulded |
|
Speed |
16,1 knots |
|
Built |
2009 |
|
Keel laid |
03.05.2008 |
|
Launch date |
14.03.2009 |
|
Date of completion |
22.06.2009 |
|
Builder |
Lindenau GmbH Schiffswerft & Maschinenfabrik |
|
Yard number |
S208 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 8L58/64 - 4 stroke 8 cylinder 580 x 640 mm diesel engine - 11.200 kW at 428 rpm Year of manufacture: 2008 Manufacturer: MAN Diesel & Turbo SE Stadtbachstr. 1 86153 Augsburg Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 116 rpm |
|
Boilers |
1x Steam boiler, exhaust gas heated - 12,0 bar Heating surface: 92,0 m² 1x Steam boiler, steam drum - 12,0 bar Heating surface: 92,0 m² 1x Steam boiler, oil fired - 12,0 bar Heating surface: 98,5 m² 1x Steam boiler, steam drum - 12,0 bar Heating surface: 98,5 m² Year of manufacture: 2008 Manufacturer: Alfa Laval Aalborg A/S Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
3x Plants each 400 V - 1.425 kVA 1x Plant 400 V - 1.700 kVA 1x Plant 400 V - 200 kVA 1x Plant 24 V - 135 Ah 1x Plant 24 V - 170 Ah 1x Plant 24 V - 170 Ah 1x Plant 24 V - 170 Ah 2x Plants each 24 V with 170 Ah |
|
Shaft generator |
1x 1.700 kVA |
|
Generators |
3x Main diesel generatorsets each 1.425 kVA |
|
Emergency generator |
1x Diesel generatorset 200 kVA |
|
Batteries |
2x Batteries for start emergency engine each 170 Ah 1x Battery for automation 170 Ah 1x Battery for UPS navigation 170 Ah 1x Battery for diesel control 170 Ah 1x Battery for UPS radio 135 Ah |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 1.000 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster 1.250 kW, forward |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
51.859 m³ |
|
Anchor equipment |
3x Anchors weight each 8.300 kg Chain length: 632,50 m Diameter: 70 mm |
|
Crew size |
28 |
|
Manager |
German Tanker Shipping GmbH & Co. KG |
|
Owner |
TMS Seapike GmbH & Co. KG |
|
Registered owner |
TMS "SEAPIKE" GmbH & Co.KG |
|
Latest data adjustment |
17 March 2015 |
