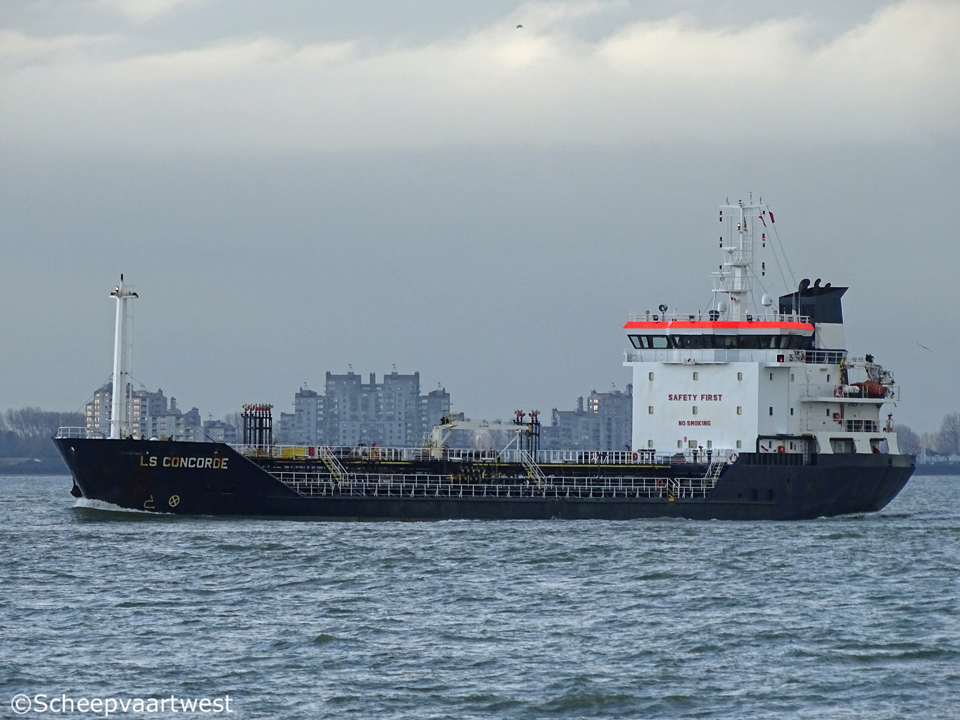

Westerschelde 12 September 2019 |
 |
 |
 |
 |
 |
||||

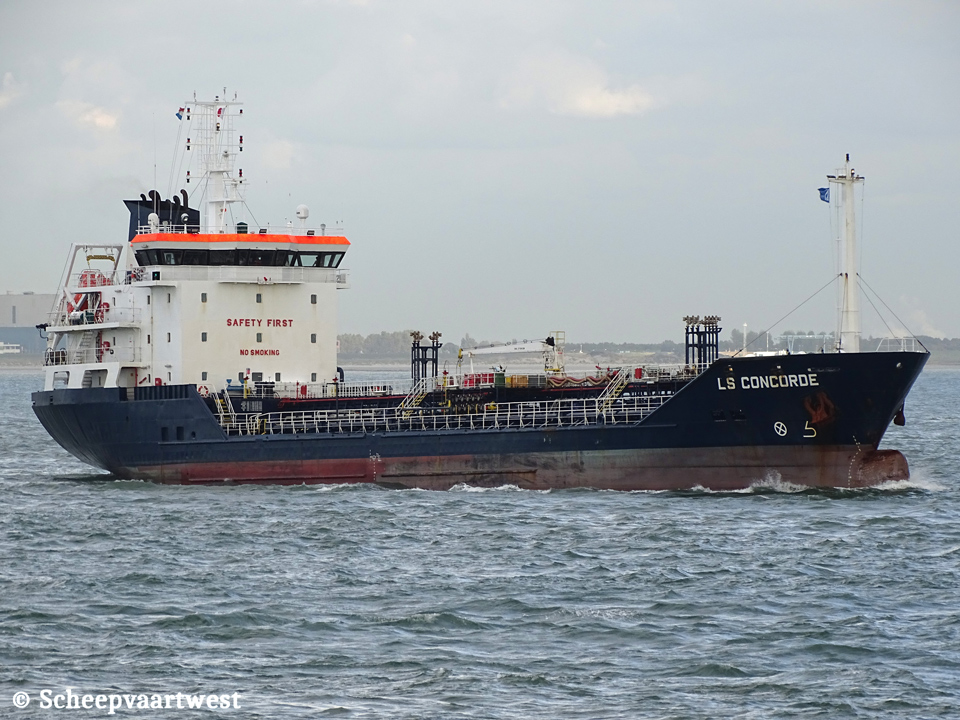

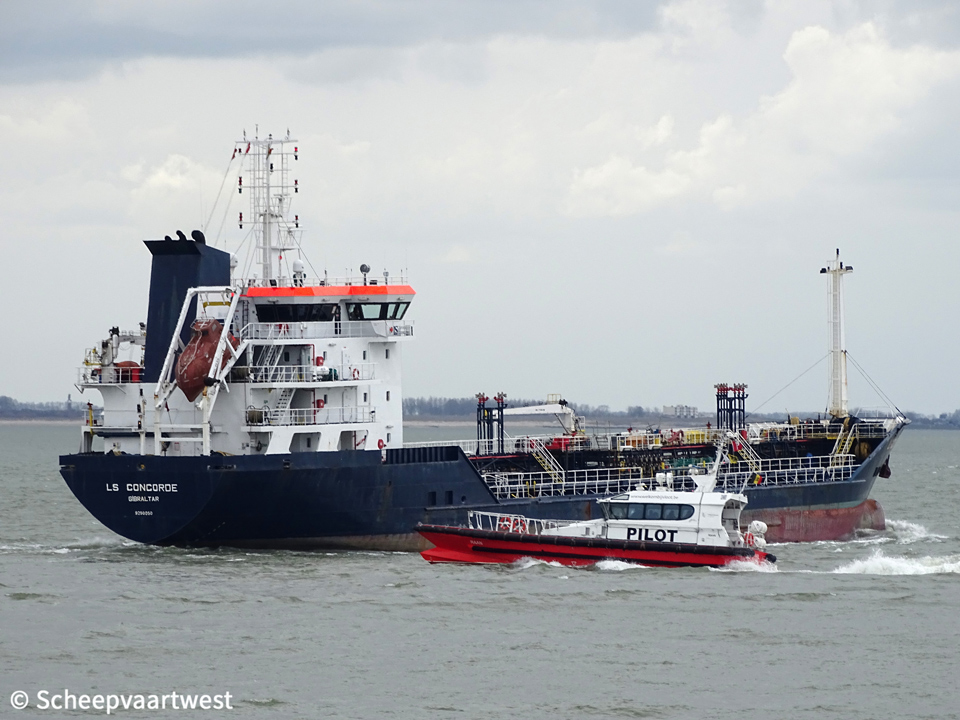

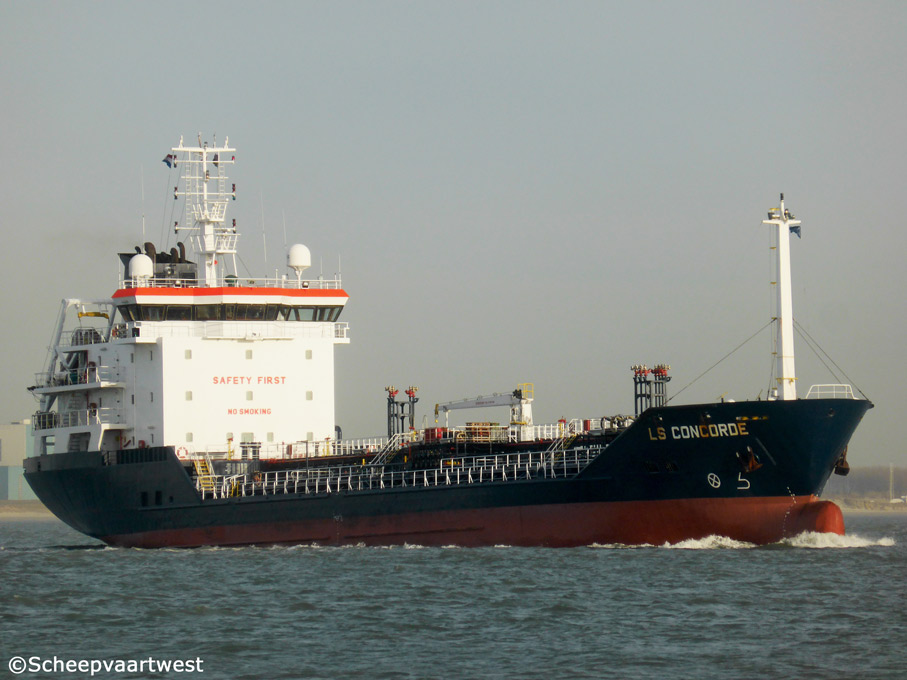

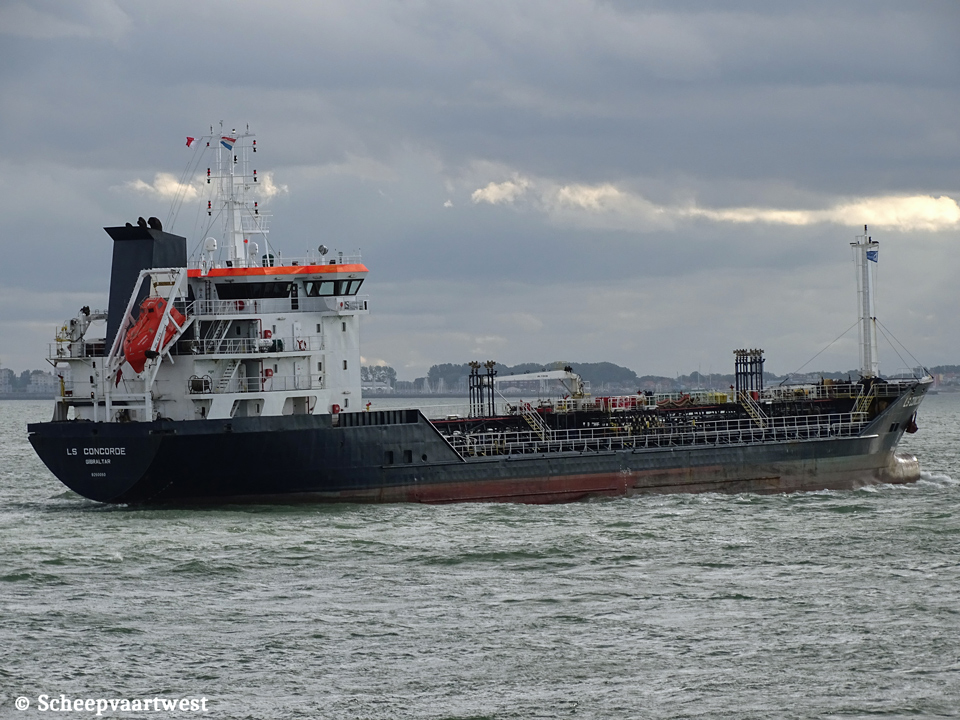

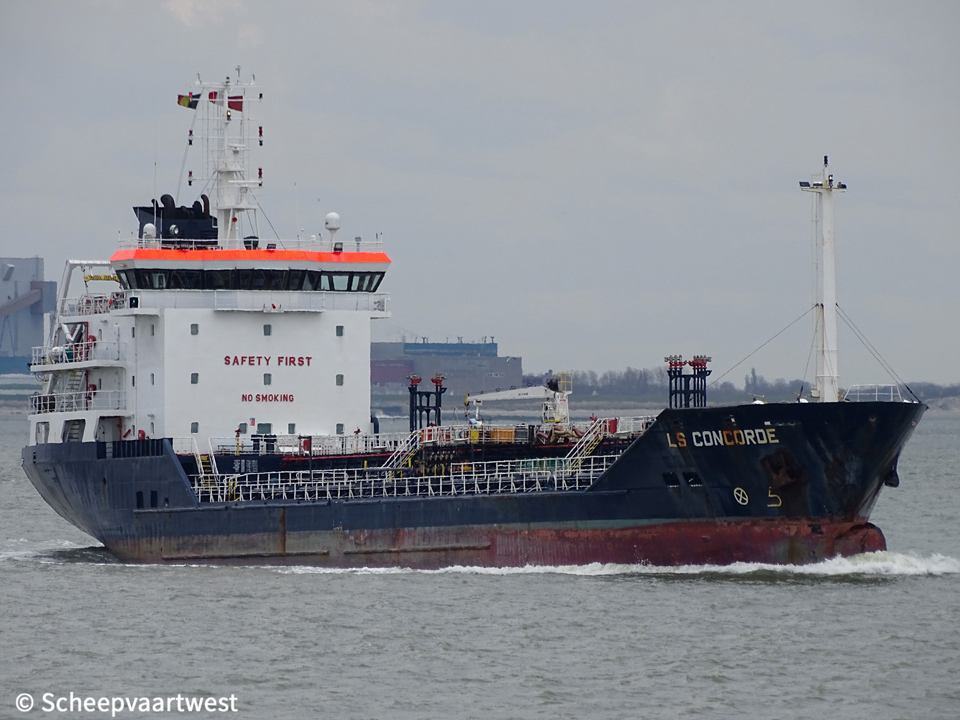

| Westerschelde 12/09/19 | Westerschelde 05/03/15 | Westerschelde 17/12/17 | Westerschelde 04/04/18 | Westerschelde 04/04/18 | ||||
|
Name |
LS CONCORDE |
|
Previous names |
2003 Built as: Haci Habib Bayrak 05/2005 - 05/2006 Concorde |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9250050 |
|
Call sign |
ZDHJ7 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
3.057 t |
|
DWT |
4.692 t |
|
NT |
1.280 t |
|
Length |
99,90 m overall 94,10 m between perpendiculars |
|
Breadth |
15,00 m moulded |
|
Draught |
Summer: 5,97 m Ballast: 4,08 m |
|
Keel to mast end |
31,29 m |
|
Air draft |
Ballast: 27,20 m Loaded: 25,32 m |
|
Depth |
7,40 m |
|
Speed |
13,0 knots |
|
Built |
2003 |
|
Date of completion |
09/05/2003 |
|
Builder |
Ceksan Shipyard (Ceksan Gemi Insa Celik Konst. San Ve Tic. A.S.) Tuzla, Istanbul Turkey |
|
Yard number |
017 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M25 - 4 stroke 8 cylinder 255 x 400 mm combustion engine 2.400 kW / 3.261 hp at 750 rpm Built: 2002 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 130 rpm |
|
Boilers |
1x CHR Gesab 10,0 bar 2x CHO Gesab 10,0 bar |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Shaft generator |
1x 560 kVA - 448 kW |
|
Generators |
2x Diesel generatorsets each 500 kVA - 400 kW - 572 hp |
|
Emergency generator |
1x Diesel generatorset 113 kVA - 90 kW - 139 hp |
|
Bow thruster |
1x 240 kW |
|
Number of cargo tanks |
10 Cargo tanks + 1 slop tank |
|
Number of segregations |
10+1 Grades cargo, separate lines / pumps |
|
Cargo tanks cap. 100% |
4.543,39 m³ |
|
Slop tanks capacity 100% |
139,19 m³ |
|
Number of pumps |
10x Cargo pumps each 200 m³/h |
|
Cargo handling |
10x Svanehoj electrical driven deepwell cargo pumps each 200 m³/h 1x Svanehoj electrical driven deepwell slop pump 125 m³/h 2x Ballast pumps each 200 m³/h |
|
Manifolds |
Distance from bow to centre manifold: 43,61 m Distance from stern to centre manifold: 56,29 m Distance between manifolds: 0,680 m Distance from ship side to manifold: 2,850 m Distance from deck / tray to manifold: 1,524 m / 0,720 m |
|
Tank capacities |
Fuel oil: 308,67 m³ Marine gas oil: 89,85 m³ Ballast tanks: 1.962,84 m³ |
|
Lifting equipment |
1x Hose Crane - SWL 2,0 t located on main deck midship 1x Provision & Rescue Boat crane - SWL 2,0 t |
|
ISM & commercial manager |
Lauranne Shipping BV Wervenweg 1 4551 MC Sas van Gent The Netherlands |
|
Registered owner |
Southern Ship Management BV Care of Lauranne Shipping BV Wervenweg 1 4551 MC Sas van Gent The Netherlands |
|
Renamed |
08/2022 Agartha Gibraltar - Call sign: ZDHJ7 Manager: Marine Logistic Company Ltd. |
|
Latest data adjustment |
28 September 2022 |
