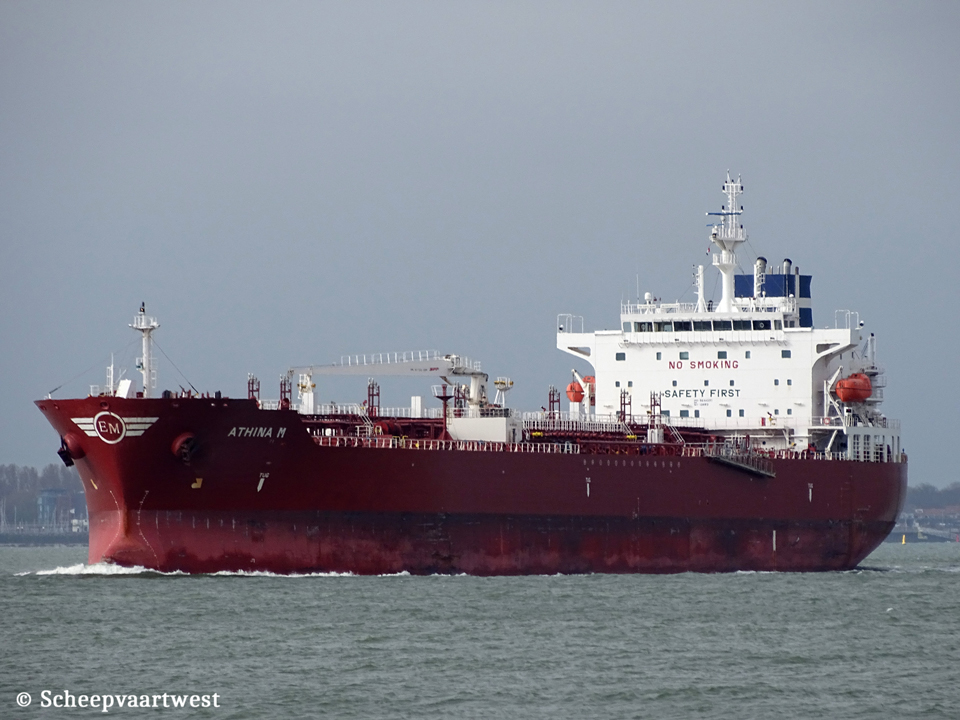

Westerschelde 22 March 2015 |
 |
|

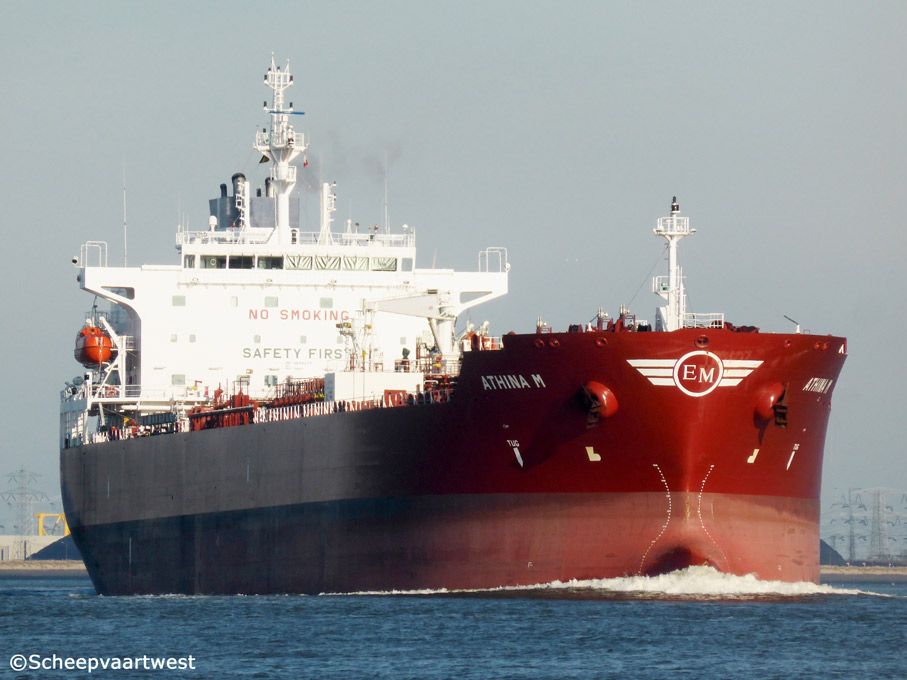

| Westerschelde 10/04/17 | |
|
Name |
ATHINA M |
|
Hellenic name |
ΑΘΗΝΑ M |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9644237 |
|
Call sign |
SVBW9 |
|
Flag |
Hellenic Republic |
|
Port of registry |
Piraeus |
|
GT |
30.201 t registered Suez: 31.668,59 t |
|
DWT |
Summer: 51.408,5 t |
|
NT |
13.883 t registered Panama: 25.064 t Suez: 27.524,06 t |
|
Displacement |
62.275,2 t at summer DWT Light: 10.886 t |
|
Length |
183,00 m overall 174,00 m between perpendiculars |
|
Breadth |
32,23 m moulded |
|
Draught |
13,31 m |
|
Freeboard |
5.811 mm |
|
Depth |
19,40 m moulded |
|
Speed |
12,9 knots |
|
Built |
2013 |
|
Keel laid |
30/12/2011 |
|
Launch date |
04/08/2013 |
|
Delivery date |
29/11/2013 |
|
Builder |
SPP Shipbuilding Tongyoung Shipyard Co. Ltd. 537, Haeansaneop-Ro Sanam-Myeon, Sacheon-Si, Gyeongsangnam-Donam Do, 664-942 South Korea |
|
Yard number |
H4093 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 2 Oil tight: 11 |
|
Main engine |
1x Hyunday/MAN-B&W 6S50ME-C8.2 - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 8.910 kW / 12.114 hp at 117,0 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Sil La Metal Co. |
|
Boilers |
1x Fired boiler - 9,0 bar 1x Unfired exhaust gas boiler - 12,0 bar Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
3x Main diesel generatorsets each 900 kW Manufacturer: HHI Electro Electric System |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
52.148,3 m³ |
|
Slop tank capacity 98% |
1.233,8 m³ + 160,7 m³ residue |
|
Segregations |
7 |
|
Number of pumps |
14x Cargo pumps |
|
Number of tanks |
Ballast: 14 Fuel oil: 8 Waste water: 8 Lubricating oil: 7 Diesel oil: 6 Fresh water: 3 Chain: 2 Sludge: 2 Hydraulic oil: 1 Fixed ballast liquid: 1 |
|
Tank capacities |
Diesel oil: 291,5 m³ Freshwater: 402.1 m³ Hydraulic oil: 19,8 m³ Lube oil: 102,6 m³ Tank ballast: 23.244,7 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 3,5 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 3,5 t Manufacture: SPP Shipbuilding Co., Ltd. - Haman Factory |
|
ISM & commercial manager |
Eastern Mediterranean Maritime Ltd. 69, Grigoriou Lampraki Street Glyfada 166 75 Greece |
|
Registered owner |
Society Maritime Co. Care of Eastern Mediterranean Maritime Ltd. (EASTMED) 69, Grigoriou Lampraki Street, Glyfada 166 75 Athens Greece |
|
Latest data adjustment |
14 April 2024 |
