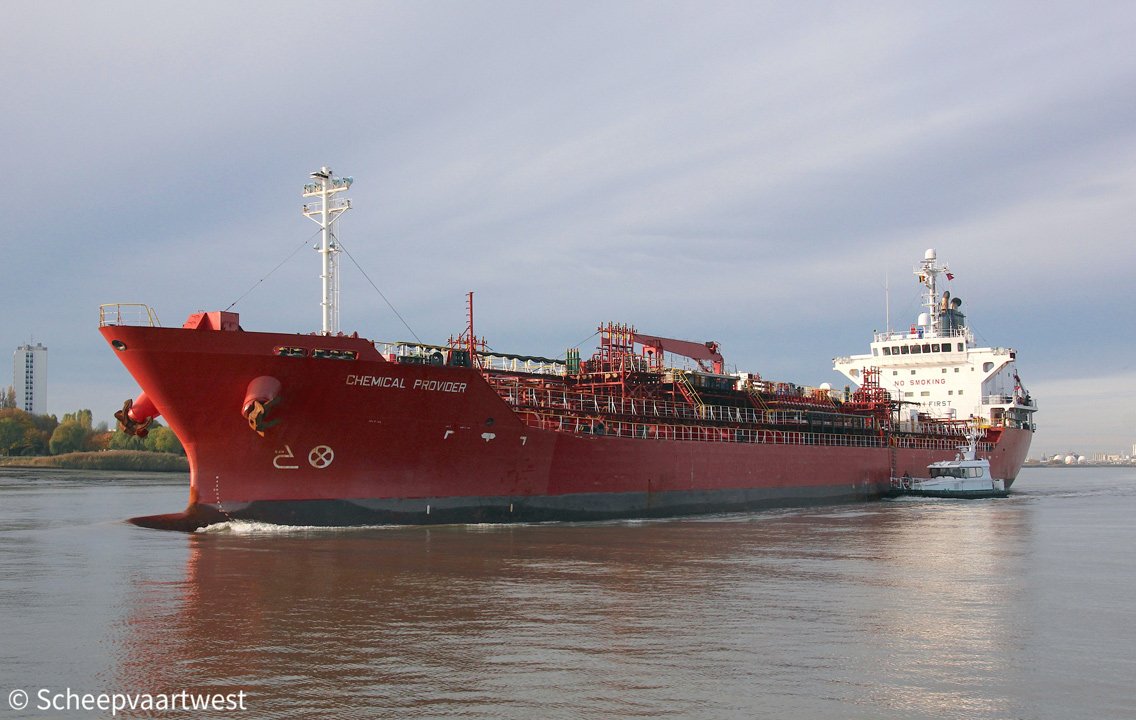

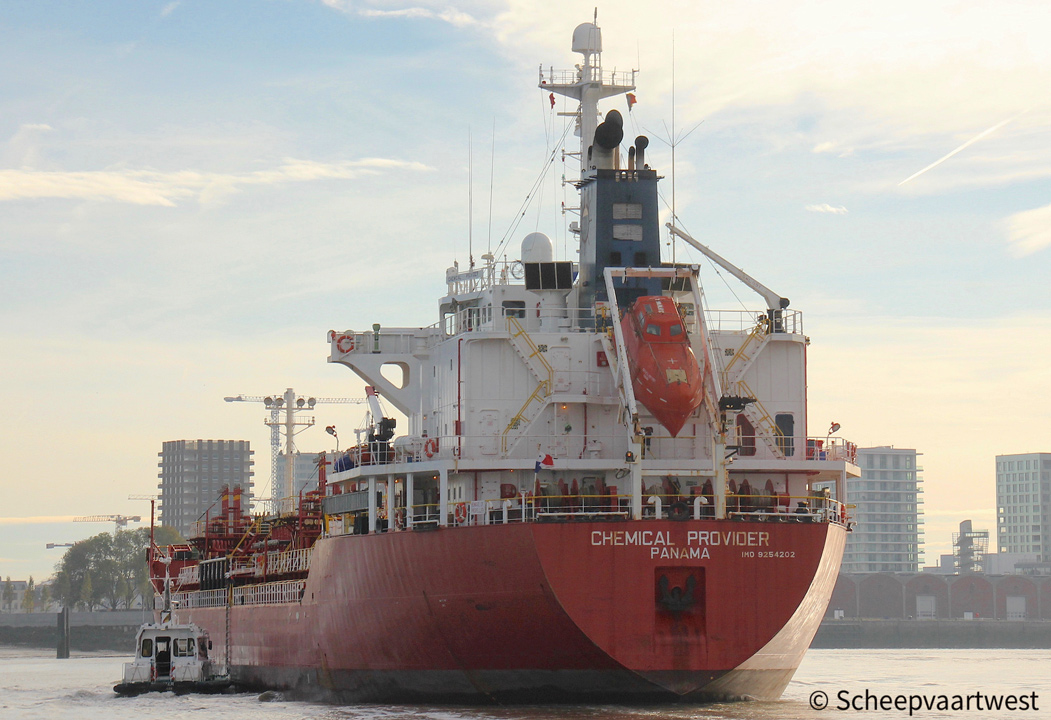

Antwerpen 06 November 2018 |
 |
 |
 |
 |
|||

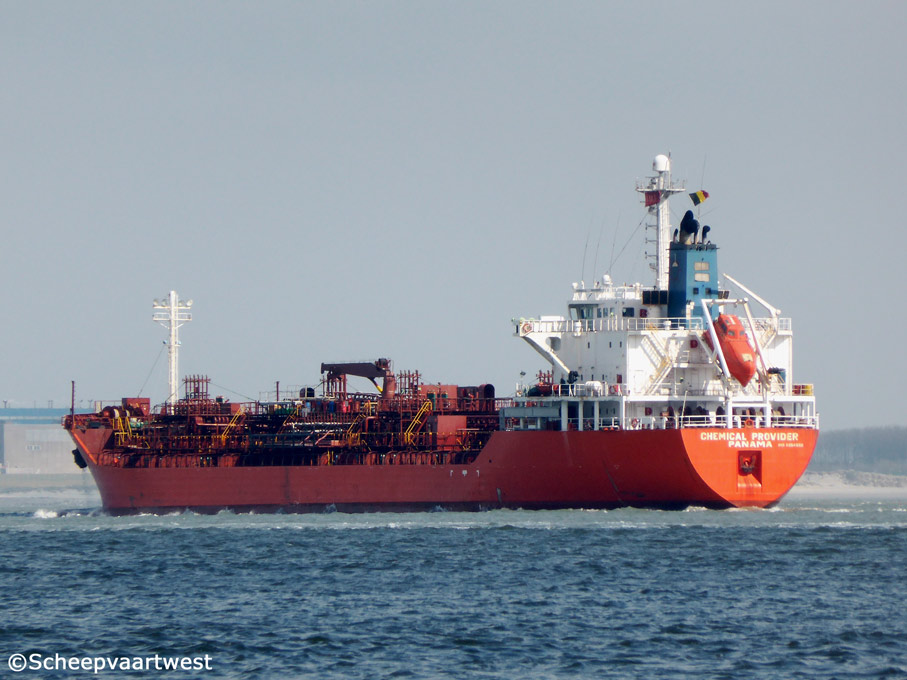

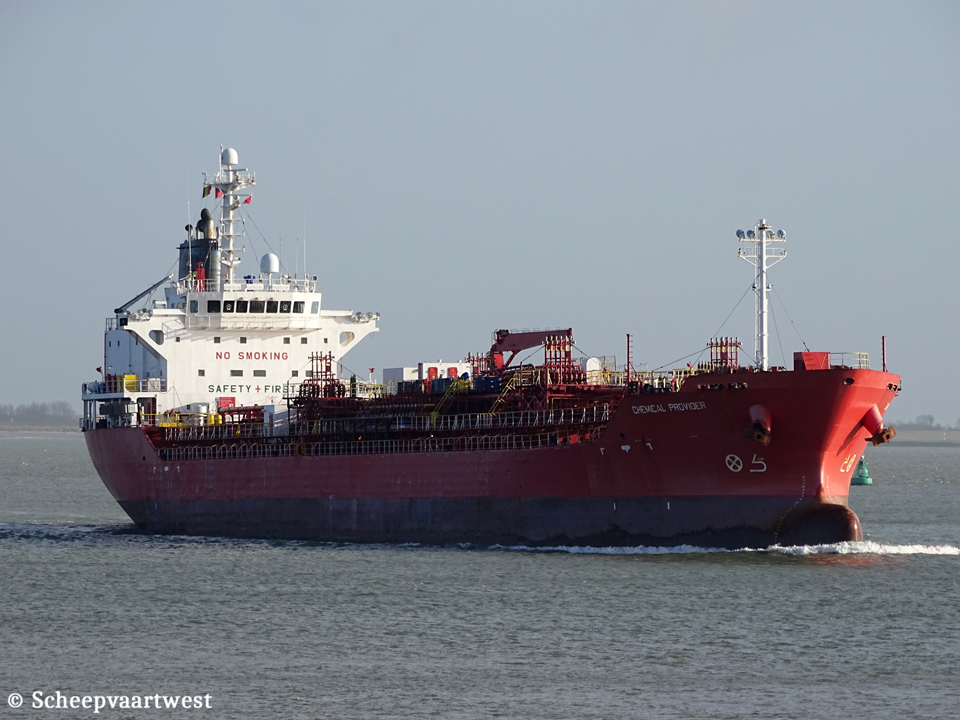

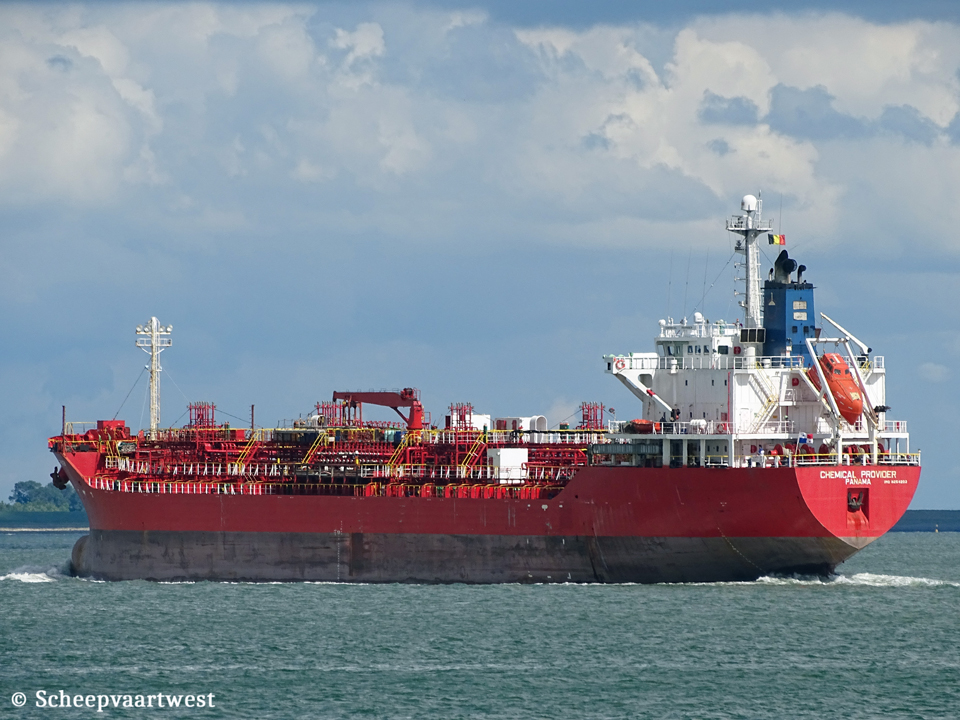

| Antwerpen 06/11/18 | Westerschelde 22/04/15 | Westerschelde 09/01/19 | Westerschelde 24/07/17 | |||
|
Name |
CHEMICAL PROVIDER |
|
Previous names |
2002 - 09/2012 Panam Pacifico 09/2012 - 01/2014 Oriental Zinnia |
|
Type |
Oil / chemical / molasses tanker |
|
IMO-number |
9254202 |
|
Call sign |
3FMW6 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
8.253 t registered |
|
DWT |
Summer: 14.045 t |
|
NT |
4.735 t registered |
|
Length |
134,16 m overall |
|
Breadth |
20,50 m moulded |
|
Draught |
Summer: 8,76 m |
|
Moulded L x B x D |
125,00 x 20,50 x 11,60 m |
|
Registered L x B x D |
125,00 x 20,50 x 11,60 m |
|
Air draft |
30,94 m ballast condition |
|
Freeboard |
2.863 mm |
|
Depth |
11,60 m moulded |
|
Speed |
Max: 14,6 knots Service: 13,9 knots |
|
Built |
2002 |
|
Keel laid |
05/06/2001 |
|
Launch date |
19/10/2001 |
|
Date of completion |
24/01/2002 |
|
Builder |
Asakawa Shipbuilding Co. Ltd. Imabari Japan |
|
Yard number |
423 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Nujmber of decks |
1 |
|
Main engine |
1x Hitachi/MAN-B&W 6S35MC - 2 stroke single acting 6 cylinder 350 x 1.400 mm combustion engine Mcr 4.457 kW - 6.060 hp at 173,0 rpm Manufacturer: I-Mex Co., Ltd. - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 350 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 173,0 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 8,8 bar Evaporation: 12,64 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
2x Main diesel generatorsets each 580 kW / 450 Volt 60 Hz |
|
Bow thruster |
1x Tunnel thruster 589 kW / 801 bhp, forward |
|
Number of cargo tanks |
24 |
|
Slop tanks |
2 |
|
Slop tank capacity |
923 m³ |
|
Liquid cargo capacity 98% |
16.240 m³ |
|
Loading rate |
300 m³/h |
|
Pumps |
28x Framo cargo pumps 6x 300 m³/h each 22x 200 m³/h each |
|
Manifolds |
Distance bow to centre manifold: 63,24 m Distance deck to centre manifold: 70,92 m |
|
Tank capacities |
Fuel oil: 884 m³ Fresh water: 250 m² Water ballast: 4.223 m³ |
|
Crew size |
19 |
|
Manager |
Fleet Management Limited |
|
Operator |
Chemship B.V. Essebaan 65 2908 LJ Capelle a/d Ijssel The Netherlands |
|
Registered owner |
Chemical Knack Inc. |
|
Renamed |
2021 Andino Alpha Republic of Panama, Panama City - Call sign: 3FMW6 Manager: Fleet Management Limited Owner: Chemical Knack Inc. |
|
Latest data adjustment |
14 August 2022 |
