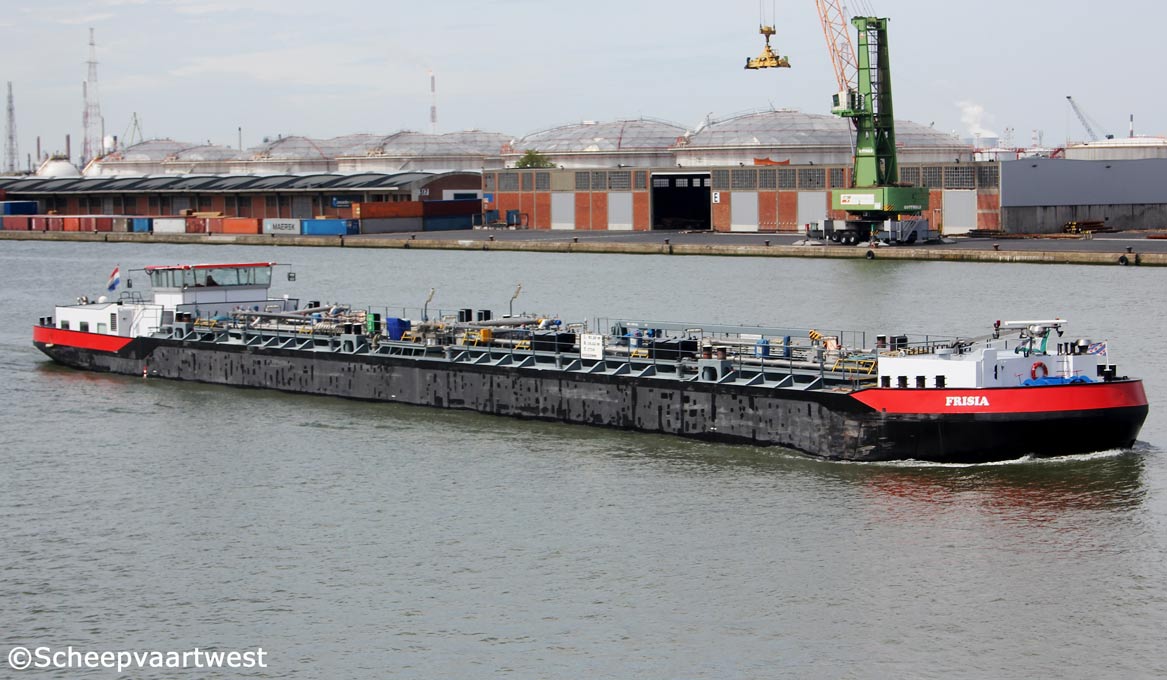

Frisia 01

Antwerpen 14 May 2015



Name

FRISIA

Previous names

2003 - 2009 Vopak. Frisia

2009 Frisia

Type

Inland tanker

ENI-number

02325999

Flag

The Netherlands

GT

1.224 t

DWT

Summer: 1.709 t

Length

81,30 m

Breadth

10,24 m

Draught

3,20 m

Air draft

4,50 m

Depth

4,90 m

Built

2003

Date of completion

01.10.2003

Builder

Maas Shipyard
Waterhuizen
The Netherlands

Yard number

5

Hull material

Steel

Hull type

Double hull

Watertight compartments

11

Continuous decks

1

Main engine

1x Caterpillar 3512 (B) DI-TA electronic - 4 stroke 12 cylinder 170 x 190 diesel engine - 1.014 kW / 1.378 hp at 1.600 rpm

Built: 2003

Builder: Caterpillar Inc., Lafayette, IN - USA

Propellers

1x Screw propeller solid - aft at 325 rpm

Boilers

1x CHO Harms GmbH - 9,0 bar

Electric installations

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Generators

1x Diesel generatorset 360 kVA - 288 kW - 538 hp
2x Diesel generatorsets 125 kVA - 100 kW - 163 hp

Bow thruster

1x Cummins 340 hp - van Tiem

Number of cargo tanks

6

Tank capacity 100%

1.888 m³

Charterer

Interstream Barging B.V.
Centraleweg 9
4931 NA Geertruidenberg
The Netherlands

Owner

Vof. Sytema
Wergea
The Netherlands

Previous names & owners

2003 Vopak. Frisia - Vof. Sytema, Wergea - The Netherlands

2009 Frisia - Vof. Sytema, Wergea - The Netherlands

Latest data adjustment

19 June 2015
