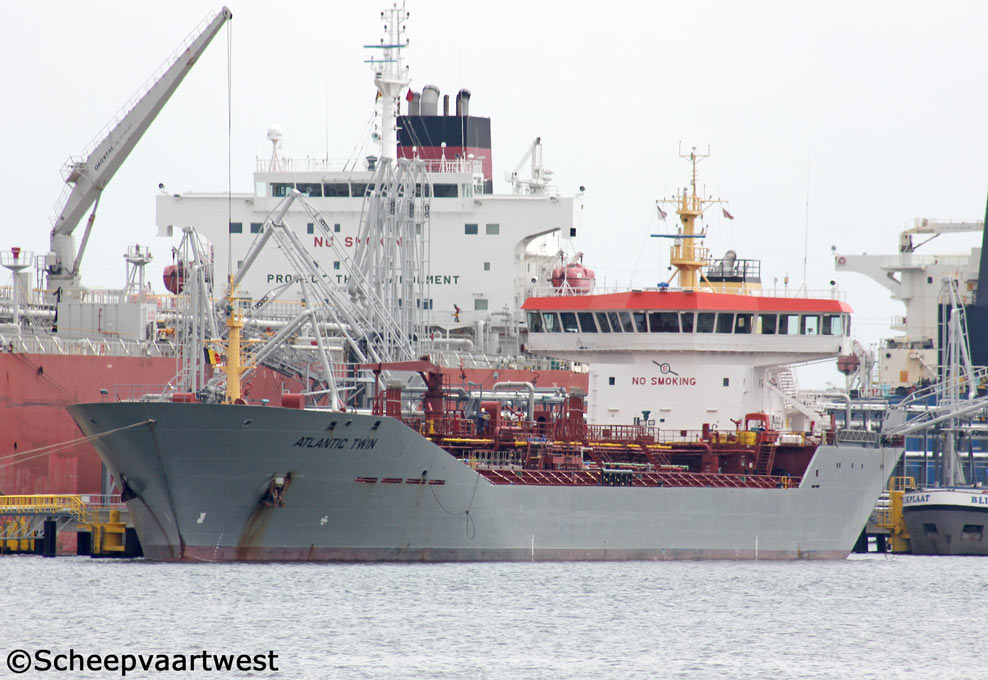

Westerschelde 24 June 2015 |
 |
 |
 |
 |
 |
 |
|||||

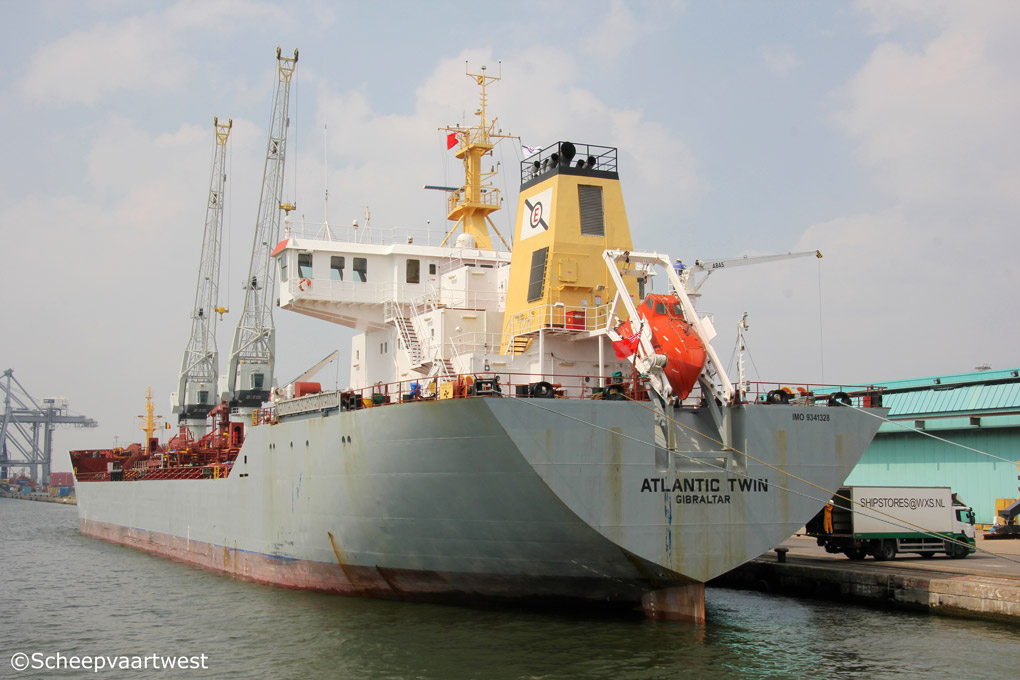

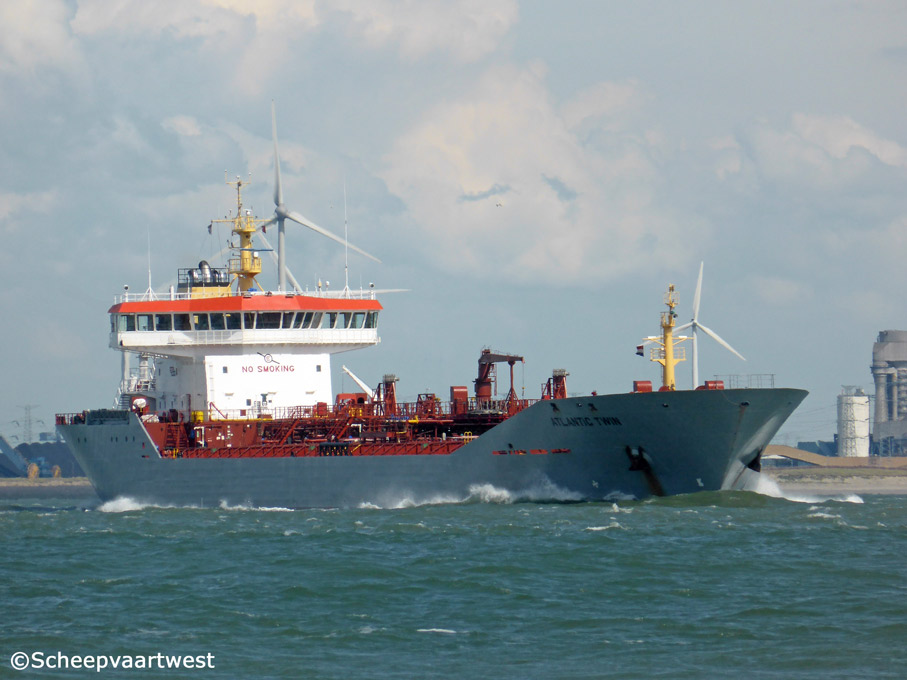

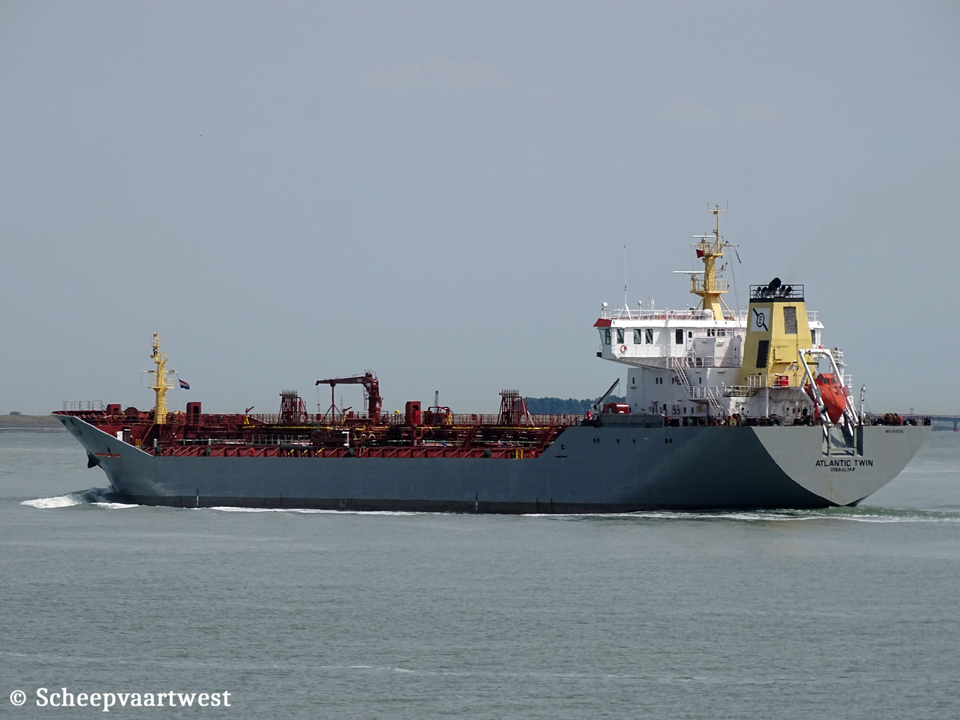

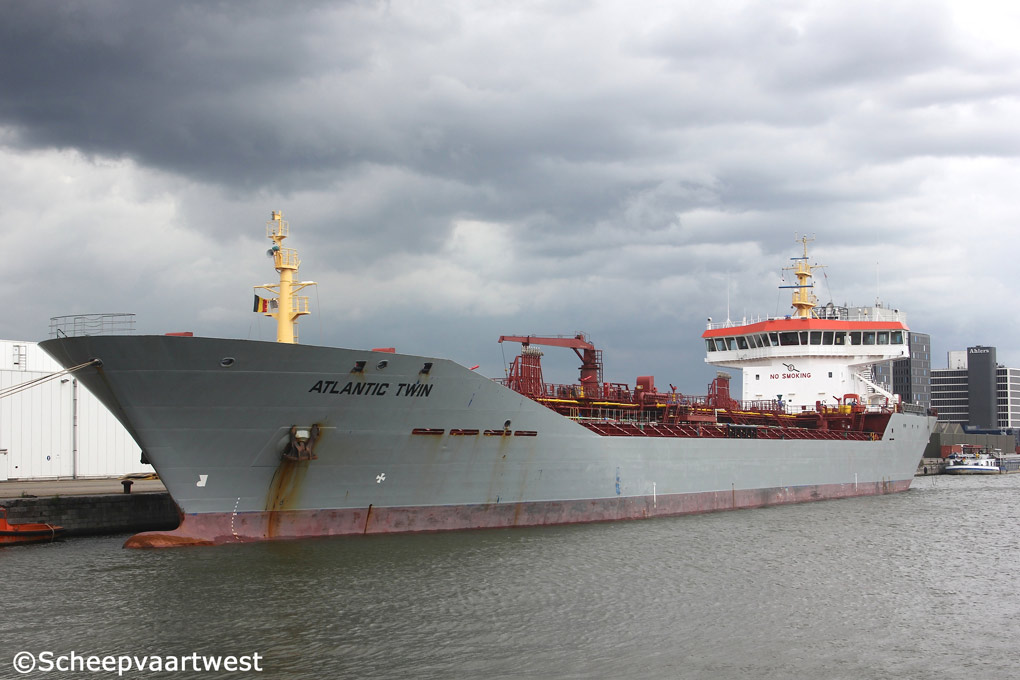

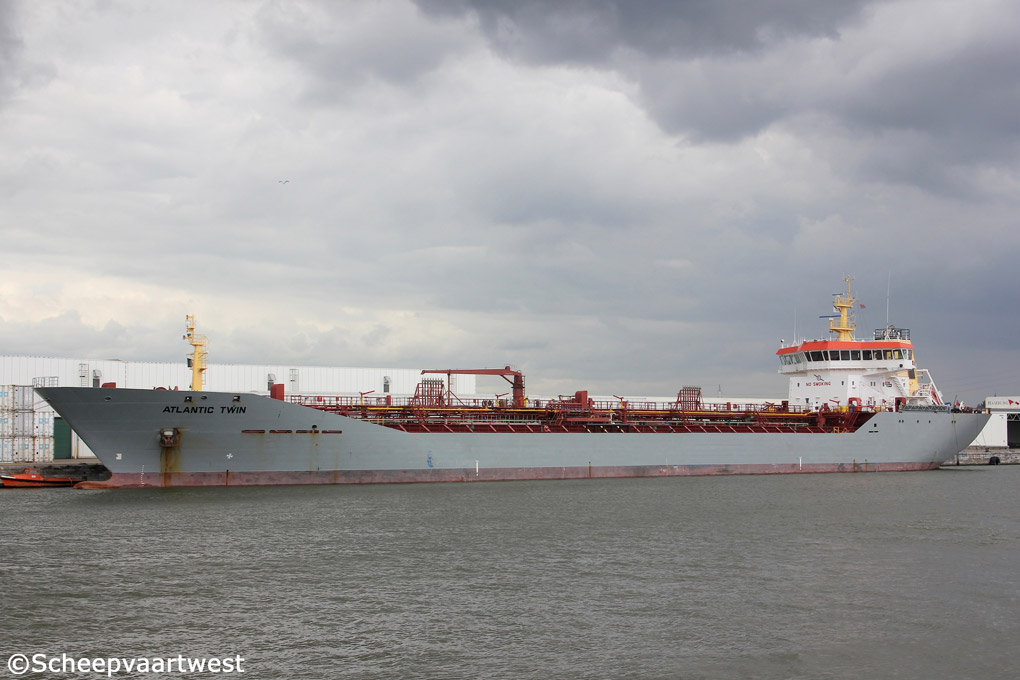

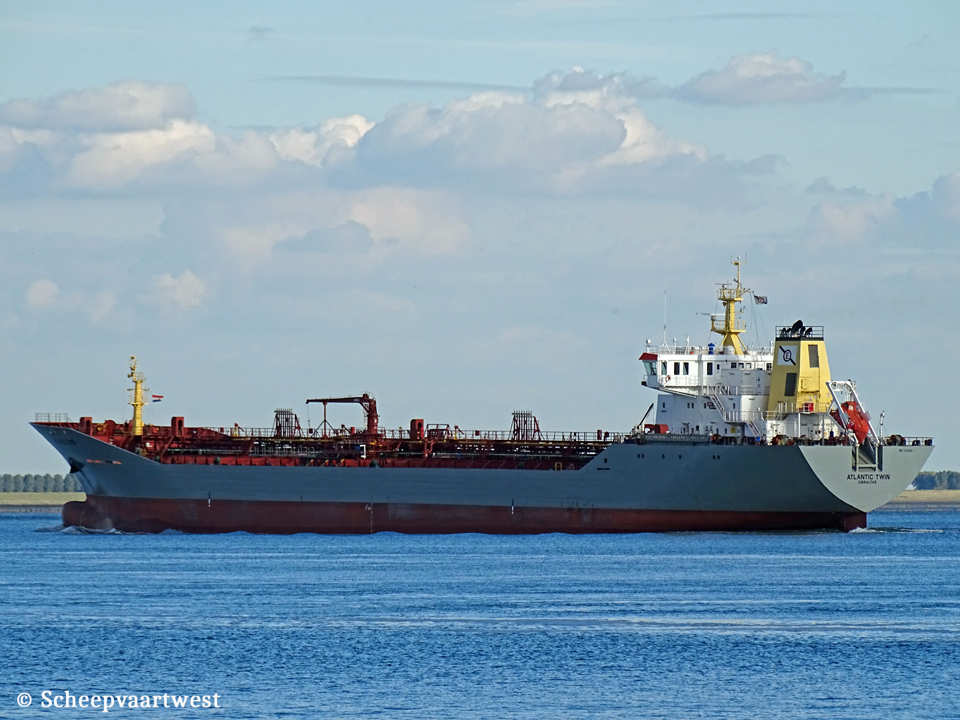

| Antwerpen 25/05/15 | Antwerpen 28/07/15 | Antwerpen 28/07/15 | Antwerpen 26/05/16 | Westerschelde 23/05/19 | Westerschelde 09/10/16 | |||||
|
Name |
ATLANTIC TWIN |
|
Previous names |
2008 Launch as: Maasen 2008 - 2008 Marida Notos 2008 - 2008 Maasen 2008 - 2008 Marida Notos 2008 - 2008 Maasen 2008 - 2008 Marida Notos 11/2008 - 07/2014 Maasen |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9341328 |
|
Call sign |
ZDNZ7 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
Previous flags |
2008 - 2008 Cyprus 2008 - 2014 Norway |
|
GT |
10.549 t |
|
DWT |
Summer: 15.212 t |
|
NT |
4.082 t |
|
Length |
149,60 m overall 141,07 m between perpendicular |
|
Breadth |
22,03 m extreme |
|
Draught |
8,52 m |
|
Keel to mast end |
34,50 m |
|
Depth |
12,95 m |
|
Speed |
15,0 knots |
|
Built |
2008 |
|
Keel laid |
22/02/2006 |
|
Launch date |
17/10/2006 |
|
Date of completion |
21/11/2008 |
|
Builder |
S.C. Aker Braila S.A. Braila Romania |
|
Yard number |
91 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 8L40/54 - 4 stroke 8 cylinder 400 x 450 mm combustion engine 4.896 kW / 6.657 hp at 550 rpm Builder: MAN Diesel & Turbo SE, Augsburg - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated TH EG 450 2x Thermal oil heater, oil fired TH-V-1500 |
|
Generators |
3x Wärtsilä 6L20 main diesel generatorsets each 760 kW |
|
Emergency generator |
1x John Deere 6068TFM50 diesel generatorset |
|
Bow thruster |
1x 750 kW |
|
Number of tanks |
14 + 3 slop tanks |
|
Cargo tank capacity |
18.300 m³ |
|
Number of pumps |
14x Cargo pumps each 350 m³/h |
|
Tank capacities |
Ballast: 9.018,34 m³ |
|
Anchor equipment |
Length: 550,00 m Diameter: 54 mm |
|
ISM & commercial manager |
Carl F. Peters (GmbH & Co.) KG Kurze Mühren 13 20095 Hamburg Germany |
|
Previous managers |
2008 - 2008 Marlow Navigation Co. Ltd 2008 - 2009 EMS Ship Management (Denmark) A/S 2009 - 2014 Selandia Ship Management (India) Pvt. Ltd. |
|
Registered owner |
Reederei TMS Atlantic Twin GmbH & Co. KG Hamburg Germany |
|
Previous owners |
2008 - 2008 Rodolio Shipping Company Limited 2008 - 2008 Scandinor AS 2008 - 2008 Partankers VI AS 2008 - 2008 Scandinor AS 2008 - 2014 Partankers VI AS |
|
Latest data adjustment |
23 February 2022 |
