Antwerpen 22 May 2015 |
 |
| Antwerpen 22/05/15 |
|
Name |

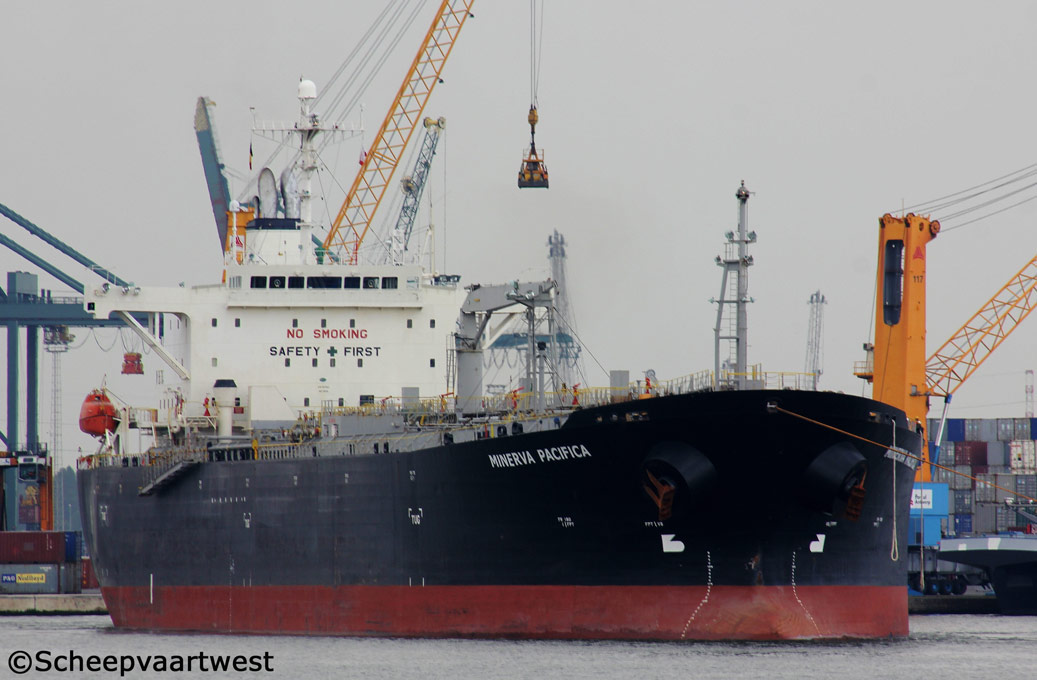

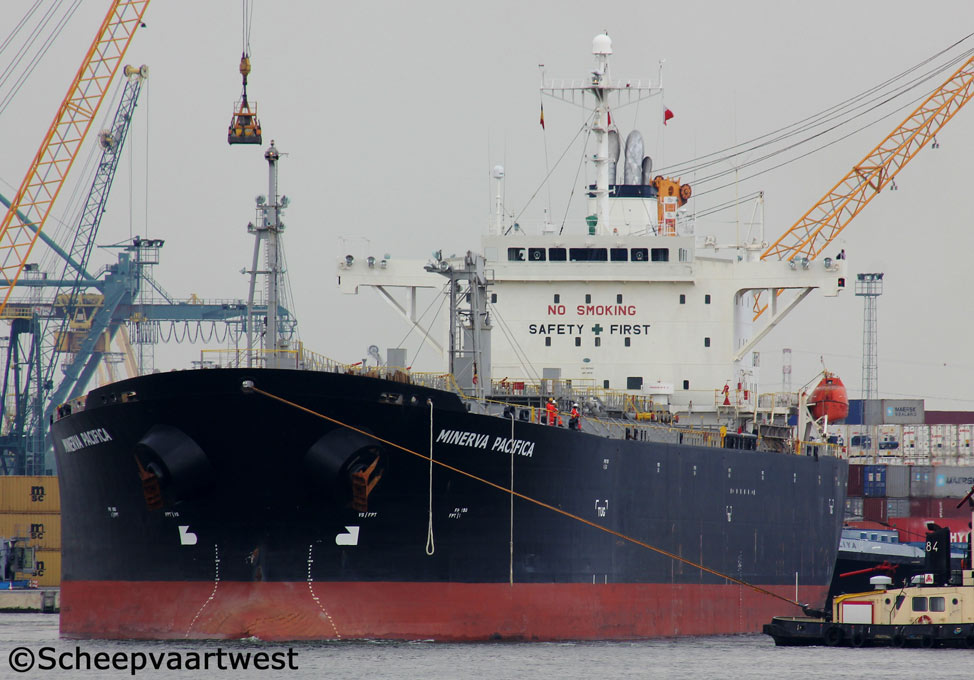

MINERVA PACIFICA |
|
Previous names |
Challenge Plus |
|
Type |
Oil carrier |
|
IMO-number |
9325831 |
|
Call sign |
9HA3888 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
28.059 t registered |
|
DWT |
Summer: 45.822 t |
|
NT |
11.645 t registered |
|
Light ship displacement |
8.964 t |
|
Length |
179,88 m overall |
|
Breadth |
32,00 m moulded |
|
Draught |
Summer: 12,02 m |
|
Moulded L x B x D |
172,00 x 32,20 x 18,70 m |
|
Registered L x B x D |
173,10 x 32,20 x 18,70 m |
|
Freeboard |
6.714 mm |
|
Depth |
18,70 m moulded |
|
Speed |
Max.: 17,0 knots |
|
Keel laid |
01.12.2004 |
|
Launch date |
04.07.2006 |
|
Date of completion |
16.10.2006 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. |
|
Yard number |
5373 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x 2 stroke single acting 6 cylinder 600 x 1.900 mm diesel engine - 9.267 kW / 12.427 bhp at 110,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works - Japan |
|
Shaft propeller |
1x Oil lubrication shaft without monitoring device Diameter: 510 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 9,8 bar Evaporation: 16,49 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Generators - 2.790 kVA |
|
Cargo tank capacity 98% |
50.947,39 m³ excluding slop tanks |
|
Cargo hold total capacity |
52.698 m³ |
|
Slop tank capacity 98% |
1.973,52 m³ |
|
Pumps |
4x Cargo pumps 1.000 m³/h 1x Stripping pump 150 m³/h 1x Fixed eductor pump 150 m³/h |
|
Tank capacities |
Fuel oil: 2.033 m³ Fresh water: 332 m³ Water ballast: 20.184 m³ |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Manager |
Minerva Marine Inc. |
|
Registered owner |
Plus Shipmanagement Corp. |
|
Latest data adjustment |
02 July 2015 |
