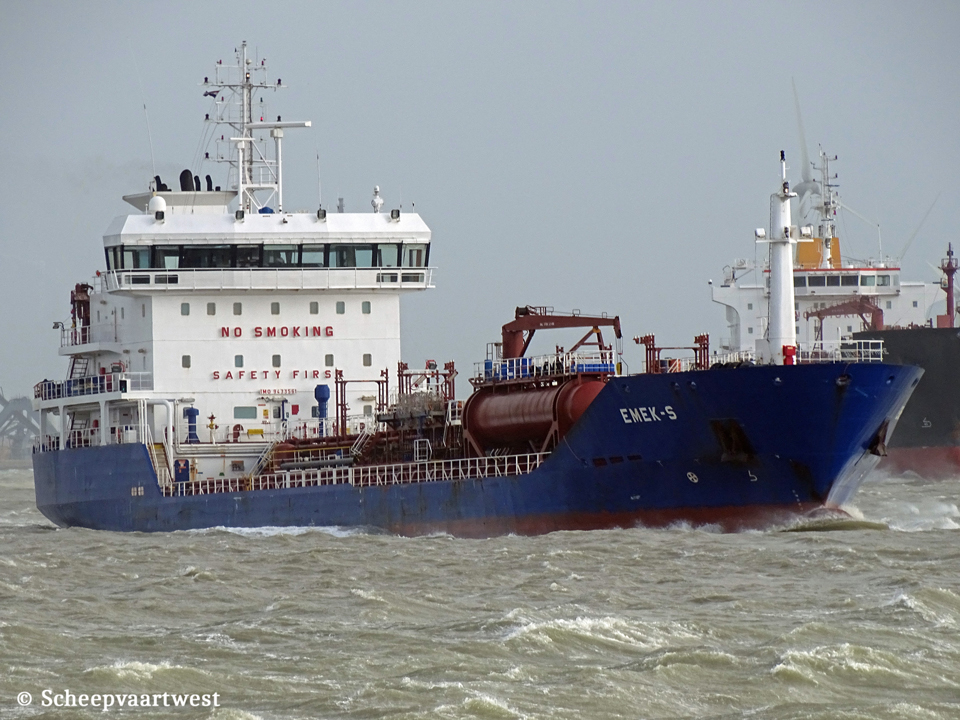

Westerschelde 08 February 2016 |
 |
 |
|

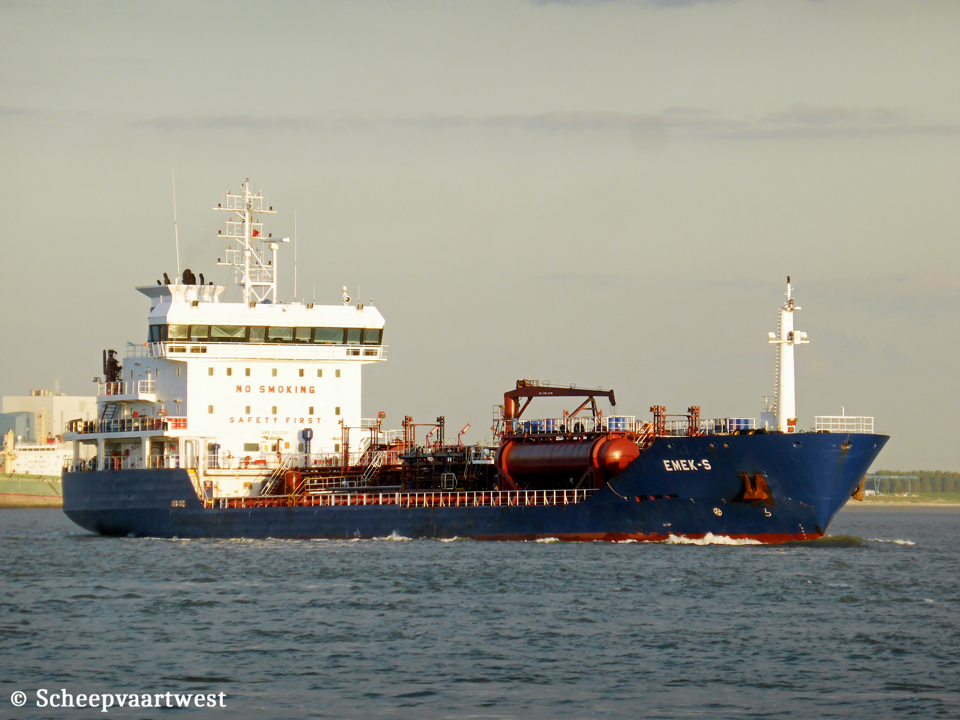

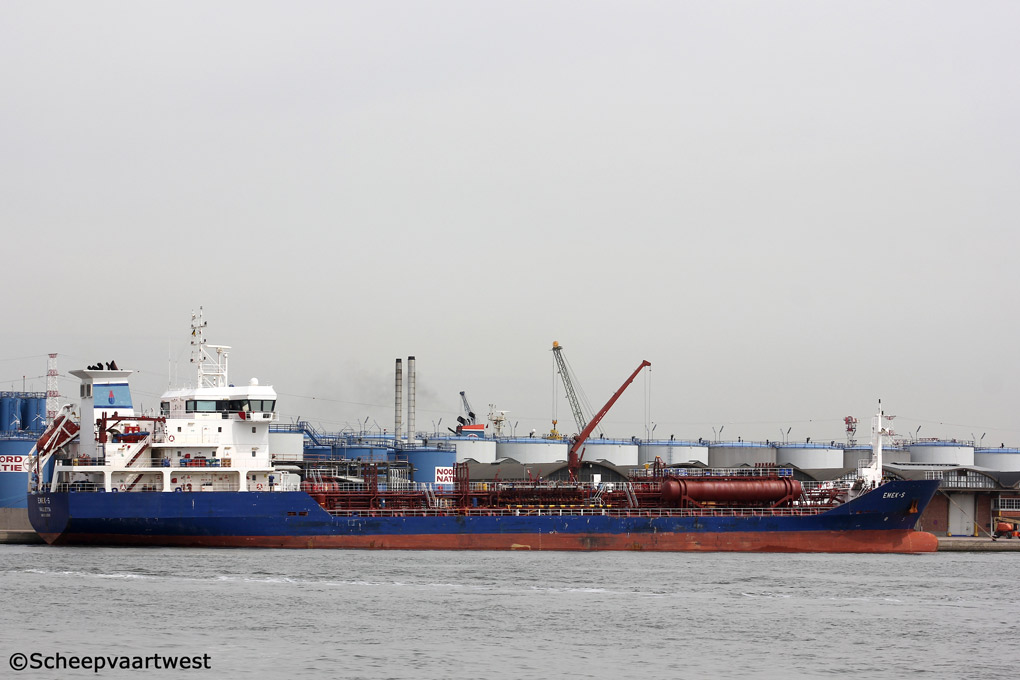

| Antwerpen 25/06/15 | Westerschelde 26/09/15 | |
|
Name |
EMEK-S |
|
Type |
Oil / Chemical tanker |
|
IMO-number |
9433561 |
|
Call sign |
9HTA9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
4.816 t |
|
DWT |
Summer: 7.050,5 t |
|
NT |
2.295 t |
|
Length |
119,60 m overall 111,60 m between perpendiculars |
|
Breadth |
16,90 m moulded |
|
Draught |
Summer: 6,76 m 4,31 m in ballast |
|
Keel to mast end |
32,50 m |
|
Air draft |
28,20 m ballast 25,74 m loaded |
|
Freeboard |
1.665 mm |
|
Depth |
8,40 m moulded |
|
Speed |
Max.: 14,0 knots Service: 13,0 knots Eco: 12,5 knots |
|
Built |
2008 |
|
Date of completion |
28/11/2008 |
|
Builder |
Selah Shipyard (Selah Makina Ve Gemicilik End. Tic. A.S) Istanbul Turkey |
|
Yard number |
50 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
57 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8L32/40 - 4 stroke 8 cylinder 320 x 400 mm combustion engine 3.945 kW / 5.364 hp at 750 rpm Built: 18/07/2007 Builder: STX Engine Co., Ltd., Changwon - South Korea |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
1x CHR S-Man AB Göteborg - 38,00 m² - 10,0 bar 2x CHO S-Man AB Göteborg - 43,00 m² -10,0 bar |
|
Shaft generator |
1x 1.265 kVA - 1.012 kW |
|
Generators |
3x Main diesel generatorsets each 625 kVA - 500 kW - 842 hp |
|
Emergency generator |
1x Diesel generatorset 124 kVA - 99 kW - 149 hp |
|
Bow thruster |
1x 444 kW / 603 bhp |
|
Number of tanks |
12 + 2 slop tanks |
|
Tank capacity 98% |
7.893 m³ |
|
Slop tank capacity 98% |
172,8 m³ |
|
Number of segregations |
14x Double valves |
|
Pumps |
12x Cargo deepwell pumps each 200 m³/h 2x Ballast pumps each 250 m³/h |
|
Manifolds |
Distance from bow to centre manifold: 58,80 m Distance from stern to centre manifold: 60,80 m Distance between manifolds: 432 mm Distance from ship side to manifold: 5.050 mm Distance from deck / tray to manifold: 1.825 mm |
|
Tank capacities |
Fuel oil: 489,29 m³ Ballast tank: 3.077,42 m³ |
|
Lifting equipment |
1x Crane for cargo operations - SWL 5,0 t 1x Crane for service - SWL 2,0 t |
|
ISM & commercial manager |
Borealis Denizcilik AS Sahrayı Cedit Mahallesi, Sıddıklar İş Merkezi, Halk Sokak No:52/8 34734 Kadıköy/Istanbul Turkey |
|
Previous manager |
Atlantik Denizcilik, Istanbul - Turkey |
|
Registered owner |
Dylan Maritime 2 LLC Care of Borealis Denizcilik AS SIddiklar Is Merkezi, Halk Sokak 52/8, Sahrayicedit Mah, Kadikoy 34734 Istanbul Turkey |
|
Previous owner |
Tulip Line Ltd., Istanbul - Turkey |
|
Latest data adjustment |
04 September 2023 |
