Westerschelde 28 August 2015 |
 |
 |
|
| Westerschelde 13/06/15 | Westerschelde 13/06/15 | |
|
Name |

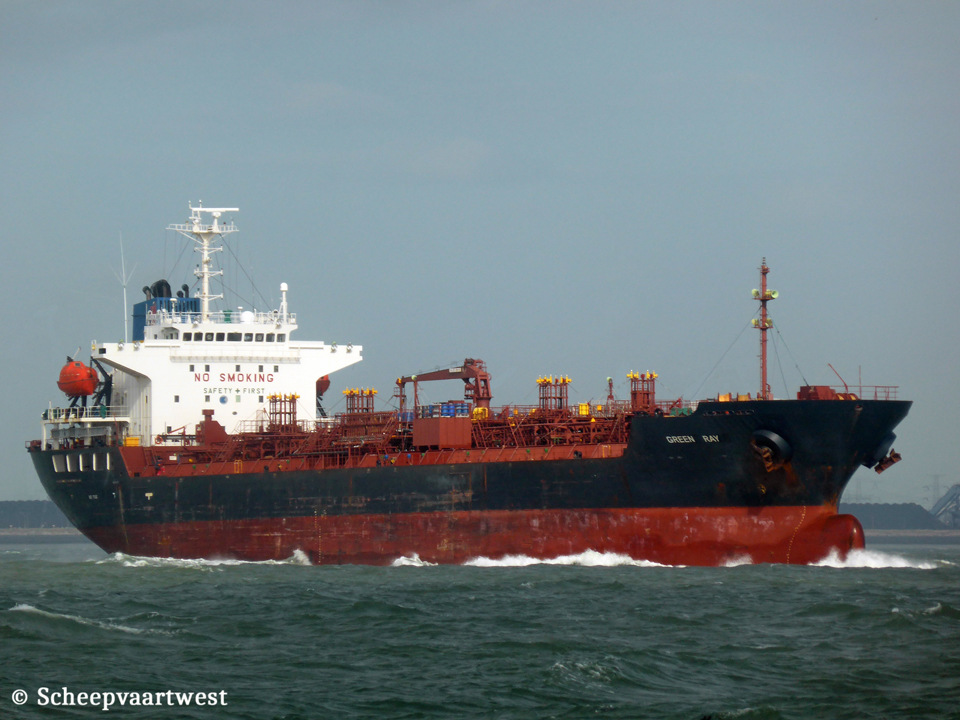

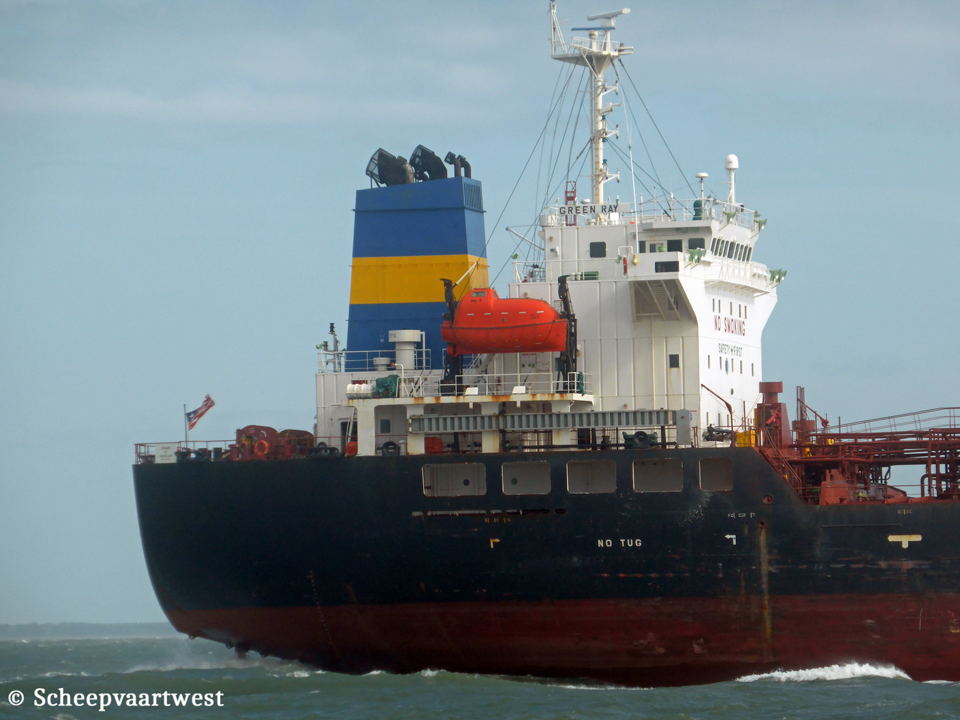

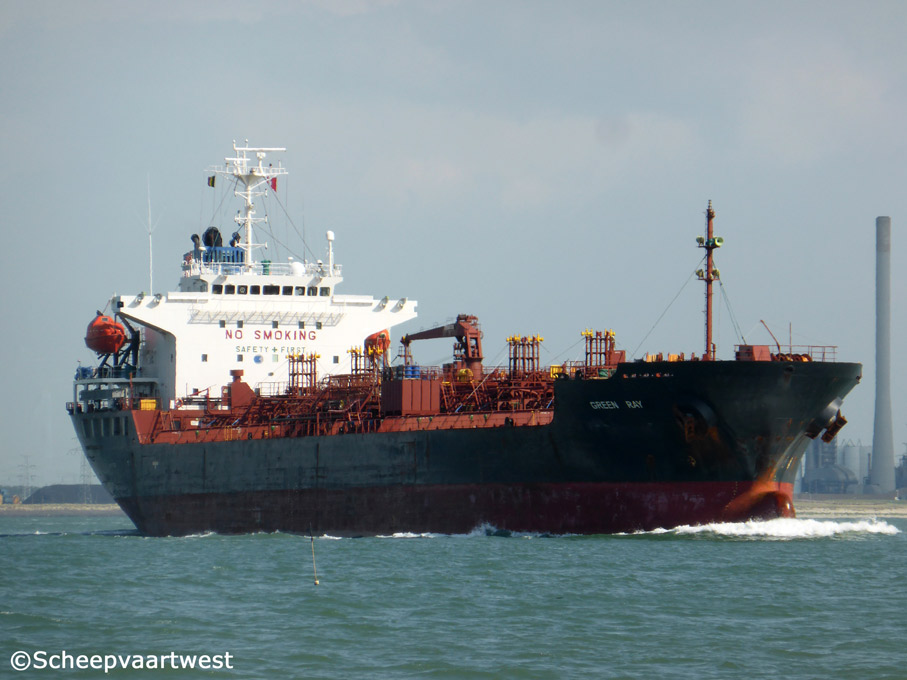

GREEN RAY |
|
Previous names |
2003 - 02/2014 Green Park |
|
Type |
Oil / Molasses / Chemical vessel |
|
IMO-number |
9276262 |
|
Call sign |
D5EY2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2002 - 2013 United Kingdom - Call sign: MBHL4 |
|
GT |
11.590 t registered |
|
DWT |
Summer: 19.940 t |
|
NT |
6.119 t registered |
|
Length |
145,53 m overall |
|
Breadth |
23,70 m moulded |
|
Draught |
Summer: 9,71 m |
|
Moulded L x B x D |
137,00 x 23,70 x 13,35 m |
|
Registered L x B x D |
137,92 x 23,70 x 13,35 m |
|
Freeboard |
3.664 mm |
|
Depth |
13,35 m moulded |
|
Speed |
16,6 knots |
|
Built |
2003 |
|
Keel laid |
26/06/2002 |
|
Launch date |
10/06/2003 |
|
Date of completion |
26/08/2003 |
|
Builder |
Usuki Shipbuilding Co., Ltd. Usuki Japan |
|
Yard number |
1682 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 6.150 kW / 8.361 hp at 136,0 rpm Manufacturer: The Hanshin Diesel Works, Ltd. |
|
Propeller shaft |
1x Sea water lubrication shaft Diameter: 420 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 9,0 bar Evaporation: 16,05 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generatorsets total 1.790 kVA |
|
Bow thruster |
1x 830 hp |
|
Cargo tank capacity 98% |
22.117 m³ |
|
Tank capacities |
Fuel oil: 1.072 m³ Fresh water: 225 m³ Water ballast: 7.801 m³ |
|
Crew size |
24 |
|
Manager |
Eastern Pacific Shipping Pte. Ltd. 1 Temasek Ave, #38 - 01 Millenia Tower Republic of Singapore |
|
Registered owner |
Lombard Corporate Finance (December 3) Limited |
|
Renamed |
2018 Green Park Indonesia, Belawan - Call sign: YCFY2 Owner & manager: PT.Waruna Nusa Sentana - Indonesia |
|
Latest data adjustment |
01 January 2024 |
