Antwerpen 28 July 2015 |
|
Name |

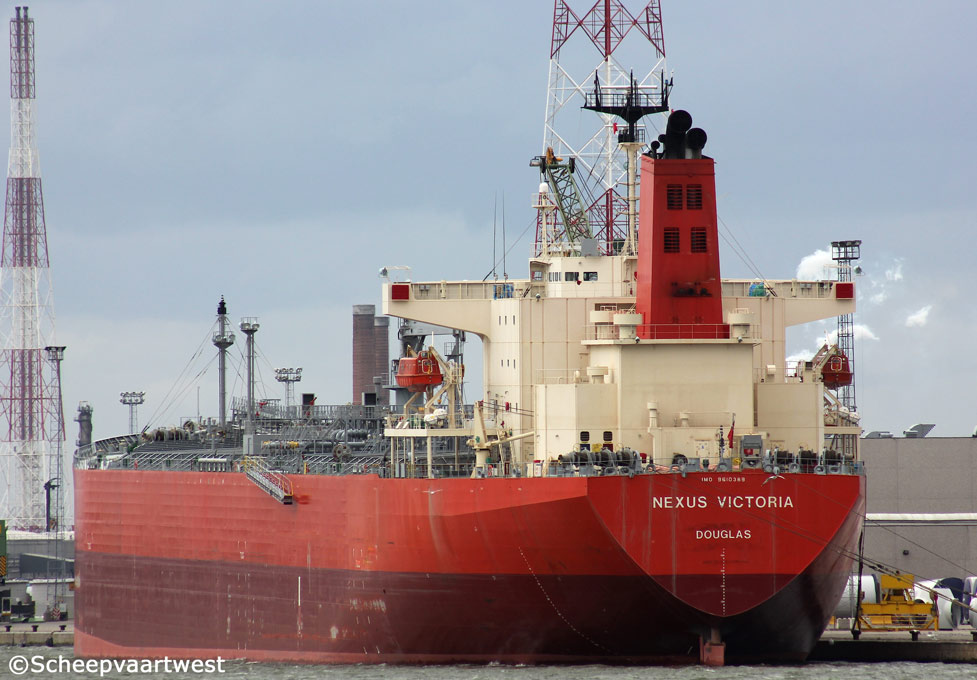

NEXUS VICTORIA |
|
Type |
Oil products tanker |
|
IMO-number |
9610389 |
|
Call sign |
2ICG5 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
40.976 t |
|
DWT |
Summer: 74.910 t |
|
NT |
22.544 t |
|
Length |
228,00 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 14,57 m |
|
Moulded L x B x D |
219,00 x 32,26 x 20,80 m |
|
Registered L x B x D |
220,31 x 32,26 x 20,80 m |
|
Freeboard |
Summer: 6.267 mm |
|
Depth |
20,80 m moulded |
|
Speed |
16,3 knots |
|
Built |
2015 |
|
Keel laid |
23.12.2010 |
|
Launch date |
09.06.2014 |
|
Date of completion |
15.01.2015 |
|
Builder |
Minaminippon Shipbuilding Co., Ltd. Ozai Plant |
|
Yard number |
723 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x 2 stroke single acting 6 cylinder 600 x 2.292 mm diesel engine 12.240 kW at 105,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 560 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 17,6 bar Evaporation: 37,03 t/h Manufacturer: Aalborg Industries (Qingdao) Ltd. |
|
Generators |
4x Generators - 2.370 kVA |
|
Cargo tank capacity |
85.995,05 m³ |
|
Tank capacities |
Fuel oil: 2.590 m³ fresh water: 464 m³ Water ballast: 26.580,9 m³ |
|
Manager |
MOL Tankship Management (Europe) Ltd. |
|
Registered owner |
Catherine Navigation S.A. |
|
Latest data adjustment |
23 November 2015 |
