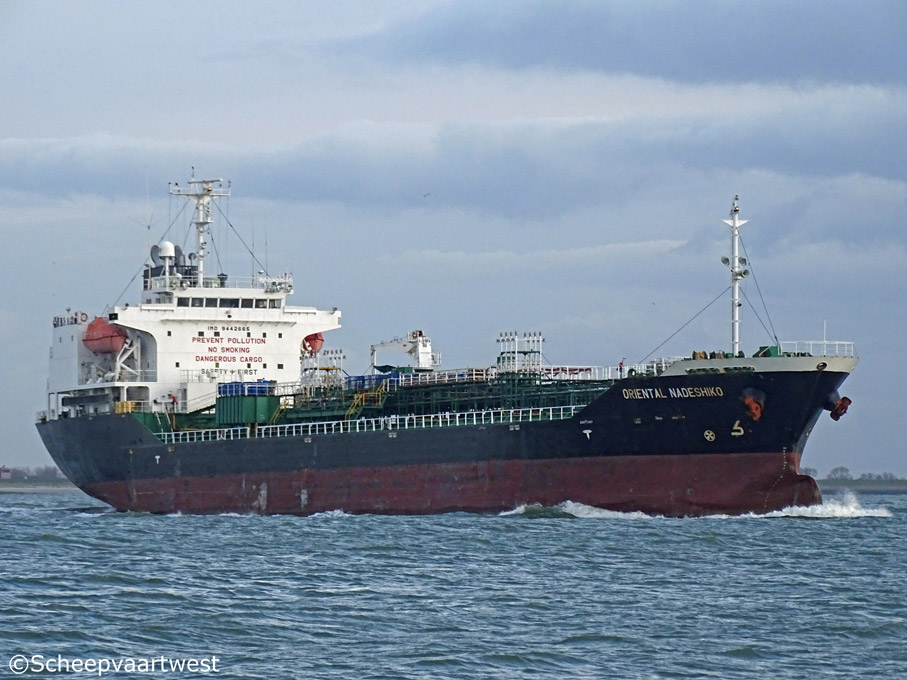

Westerschelde 20 November 2015 |
 |
 |
 |
 |
|||

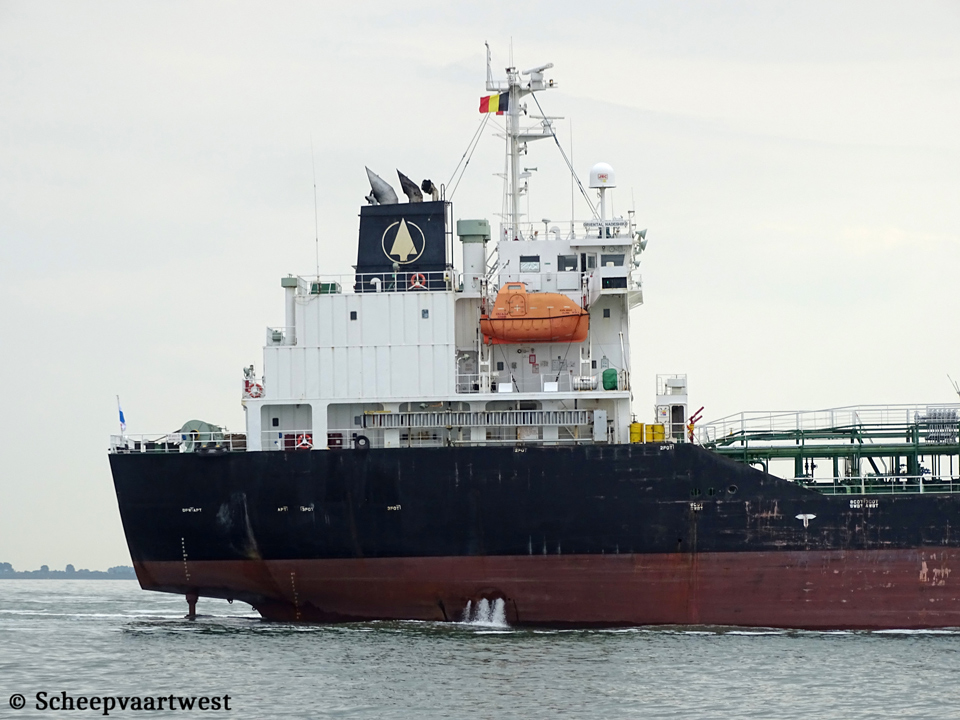

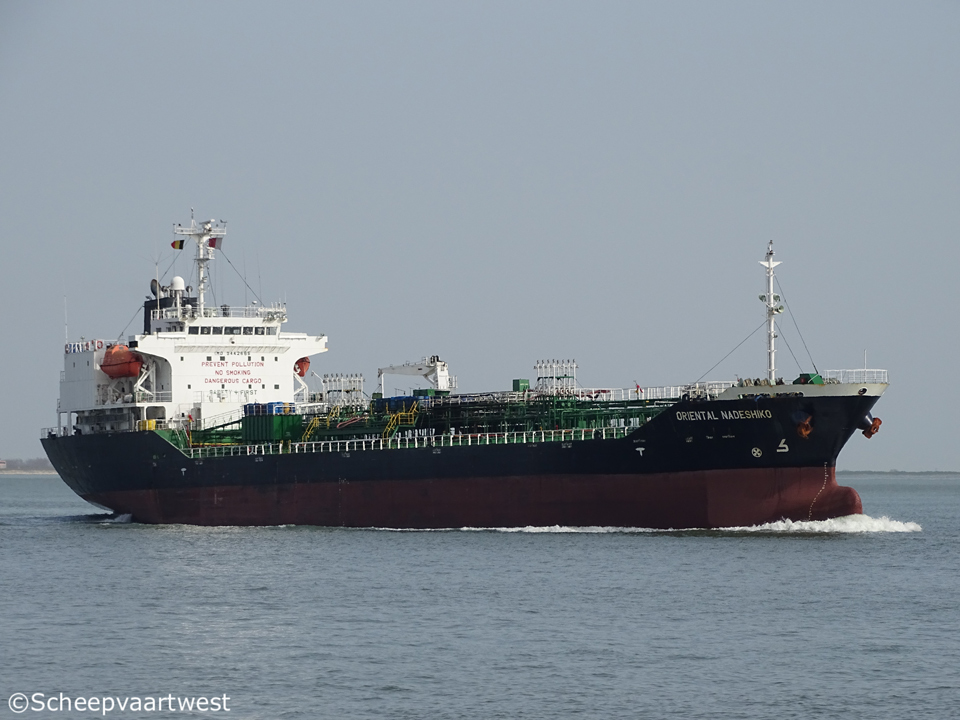

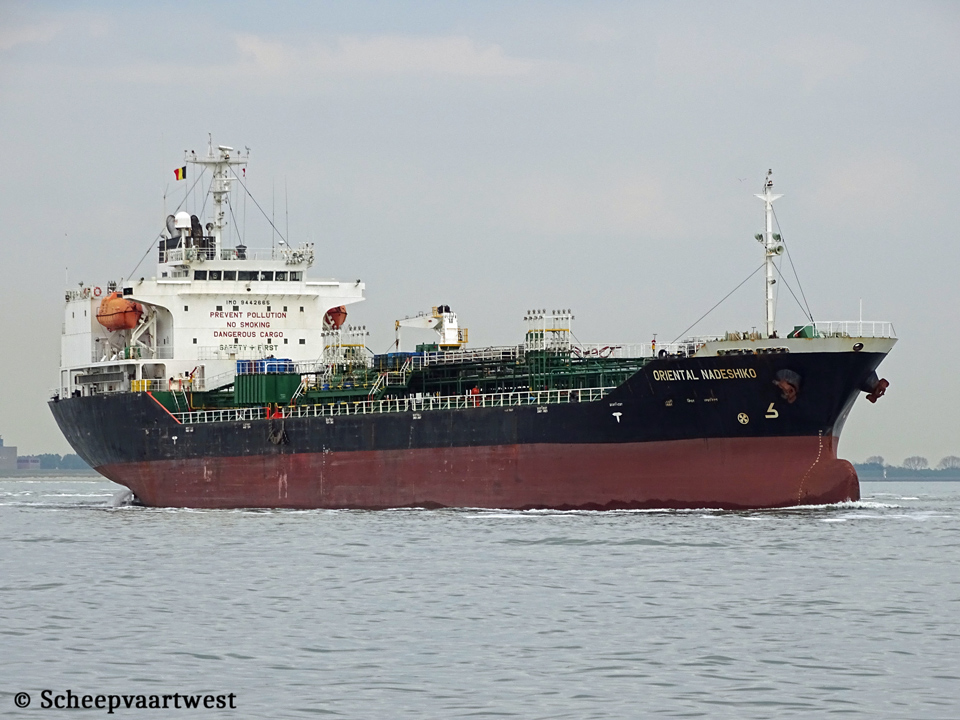

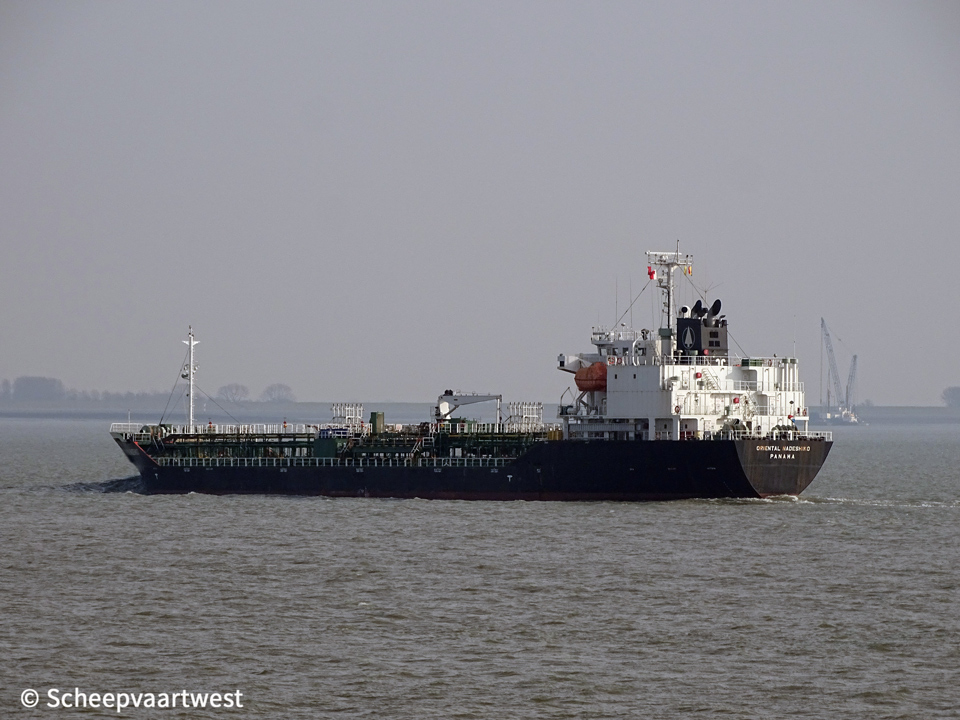

| Westerschelde 07/04/18 | Westerschelde 13/02/19 | Westerschelde 07/05/19 | Westerschelde 07/05/19 | |||
|
Name |
ORIENTAL NADESHIKO |
|
Previous names |
2009 - 12/2011 Golden Spirit |
|
Type |
Oil and chemical tanker |
|
IMO-number |
9442665 |
|
Call sign |
3FWN7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
7.217 t registered |
|
DWT |
Summer: 12.479,66 t |
|
NT |
3.874 t registered |
|
Length |
124,00 m overall |
|
Breadth |
20,00 m moulded |
|
Draught |
Summer: 8,77 m |
|
Moulded L x B x D |
116,00 x 20,00 x 11,20 m |
|
Registered L x B x D |
116,07 x 20,00 x 11,20 m |
|
Freeboard |
2.460 mm |
|
Depth |
11,20 m moulded |
|
Speed |
Max.:14,1 knots Service: 13,5 knots |
|
Built |
2009 |
|
Keel laid |
25/06/2008 |
|
Launch date |
11/02/2008 |
|
Date of completion |
29/04/2009 |
|
Builder |
Miyoshi Shipbuilding Co Ltd. Uwajima EH Yard Japan |
|
Yard number |
400 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Number of decks |
1 |
|
Main engine |
1x Makita/MAN-B&W 6L35MC - 2 stroke single acting 6 cylinder 350 x 1.050 mm combustion engine 3.900 kW / 5.302 hp at 210,0 rpm Build: 07/2008 Manufacturer: Makita Corporation, Takamatsu - japan |
|
Propeller shaft |
1x Sea water lubrication shaft Diameter: 340 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 210 rpm |
|
Boilers |
1x Auxiliary Boiler WTB - 10,0 kg/cm² Heating surface: 131,6 m² 1x Economizer EGE - 14,0 kg/cm² Heating surface: 103,4 m² Build: 07/2008 Manufacturer: Miura Co., Ltd., Matsuyama- Japan |
|
Generators |
3x Main diesel generatorsets each 330 kW / 450 kVA |
|
Bow thruster |
1x Tunnel thruster 371 kW / 505 bhp, forward |
|
Number of tanks |
16 |
|
Cargo tank capacity |
Tank 1 P/S: 305 m³ each Tank 2 P/S: 634 m² each Tank 3 P: 415 m³ - S: 407 m³ Tank 4 P/S: 1.289 m³ each Tank 5 P/S: 1.293 m³ each Tank 6 P/S: 1.293 m³ each Tank 7 P: 916 m³ - S: 917 m³ Tank 8 P: 667 m³ / S: 666 m³ Liquid: 13.623 m³ |
|
Number of pumps |
6x pumps 300 m³/h each 6x Pumps 200 m²/h each 4x Pumps 100 m³/h each |
|
Tank capacities |
Fuel oil: 937,2 m³ Fresh water: 295 m³ Water ballast: 3.380,7 m³ |
|
Crew size |
21 |
|
Manager |
Serromah Shipping BV Prinsenlaan 633 3067 TZ Rotterdam The Netherlands |
|
Owner |
Daitoh Trading Co., Ltd. Japan |
|
Registered owner |
Oceanic Wealth Maritime S.A. |
|
Renamed |
2020 Woojin Elvis South Kora, Jeju - Call sign: D7WE Operator: Compass Shipping & Trading Ltd. Owner: Woo Jin Shipping Co Ltd. |
|
Latest data adjustment |
14 April 2021 |
