Westerschelde 12 November 2015 |
 |
 |
 |
||
| Westerschelde 12/11/15 | Westerschelde 12/11/15 | Westerschelde 12/11/15 | ||
|
Name |

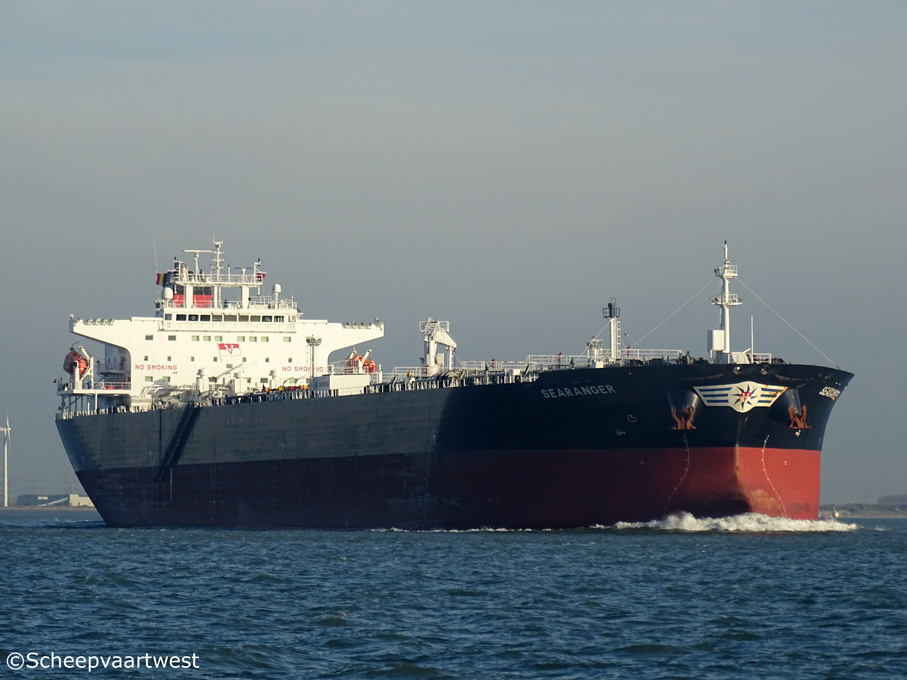

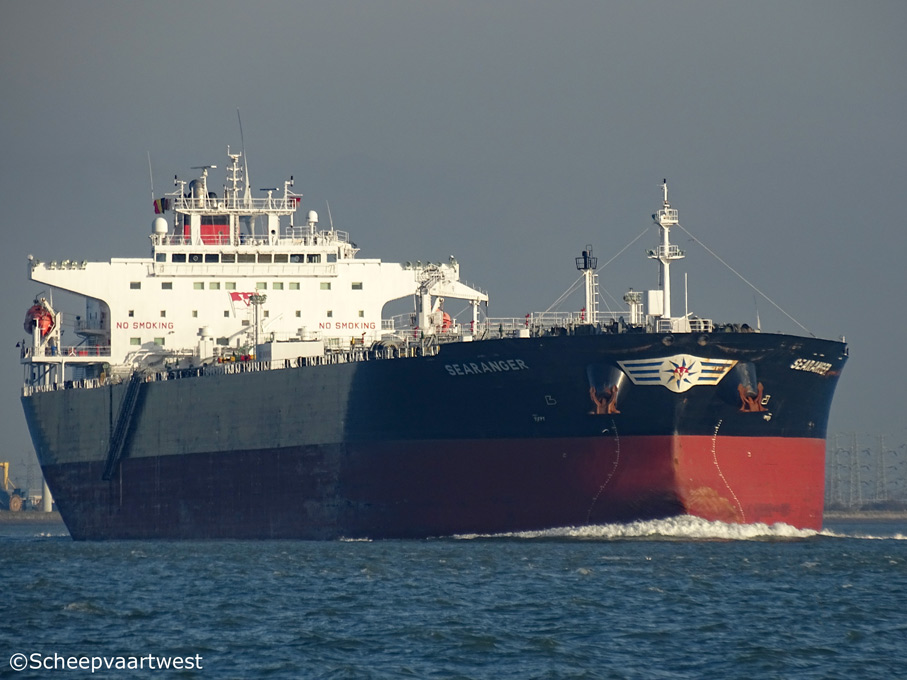

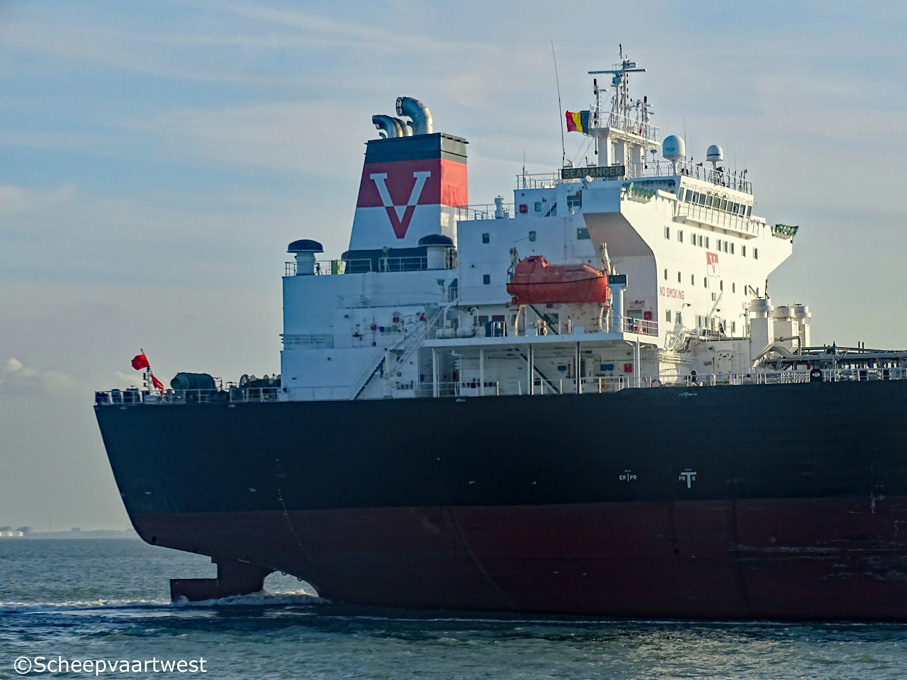

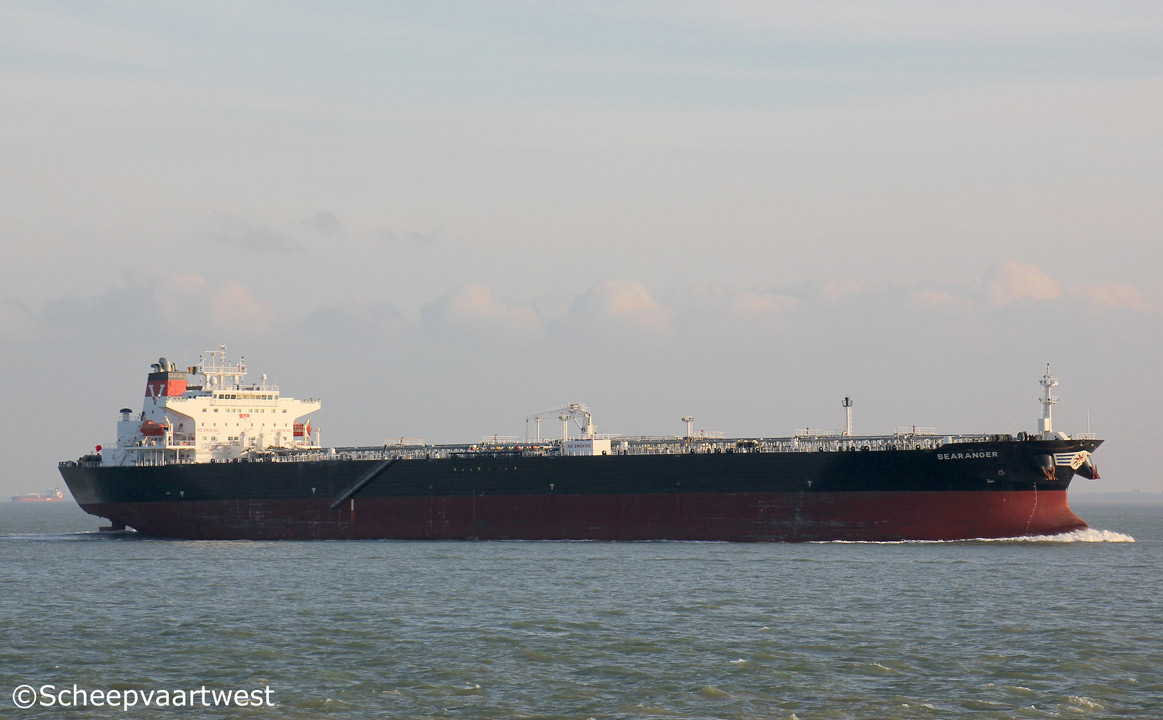

SEARANGER |
|
Type |
Aframax crude oil tanker |
|
IMO-number |
9442158 |
|
Call sign |
VREG3 |
|
Flag |
Hong Kong - Special Administrative Region of the People's Republic of China |
|
Port of registry |
Hong Kong |
|
GT |
60.193 t registered Suez: 62.691,3 t |
|
DWT |
Summer: 109.165,54 t |
|
NT |
33.762 t registered Suez: 57.170.16 t |
|
Length |
243,00 m overall 233,00 m between perpendiculars |
|
Breadth |
42,00 m moulded |
|
Draught |
15,35 m |
|
Freeboard |
6.665 mm |
|
Depth |
22,00 m moulded |
|
Speed |
14,5 knots |
|
Built |
2009 |
|
Keel laid |
04.09.2008 |
|
Launch date |
30.11.2008 |
|
Delivery date |
02.04.2009 |
|
Builder |
Hudong Zhonghua Shipbuilding Group Co., Ltd. |
|
Yard number |
H1509A |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 4 Gas tight: 2 Oil tight: 10 |
|
Main engine |
1x MAN B&W/Hudong 7S60MC - 2 stroke 7 cylinder 600 x 2.292 mm diesel engine 13.570 kW at 105,0 rpm Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propellers |
1x Fixed propeller Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
2x Auxiliary Boiler type Mission OL 30T/H - 18,0 bar 1x Exhaust Gas Boiler type Misssion XS-2V - 18,0 bar Manufacturer: Aalborg Industries |
|
Generators |
3x Main diesel generatorsets each 680 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Number of cargo tanks |
12 |
|
Cargo oil capacity 100% |
125.540,8 m³ / 123.029,98 t |
|
Number of tanks |
Ballast: 16 Fuel oil: 10 Lubricating oil: 8 Fresh water: 4 Diesel oil: 3 Waste water: 2 Chain: 2 Slop: 2 Sludge: 1 |
|
Tank capacities |
Diesel Oil: 161,7 m³ / 145,53 t Freshwater: 531,2 m³ Fuel Oil: 3.015,9 m³ / 2.955,58 t Lube Oil: 202,3 m³ / 182,07 t Tank Ballast: 38.831,6 m³ / 39.802,39 t |
|
Lifting equipment |
1x Engine room crane - SWL 4,5 t Manufacture: Nantong CSEMC Machinery 1x Provision crane - SWL 0,9 t Manufacture: Ningbo Kairong Ship Machinery Co., Ltd. 1x MacGregor provision crane - SWL 3,0 t 1x MacGregor hose handling crane - SWL 15,0 t Manufacture: CSSC Nanjing Luzhou |
|
Manager |
Valles Steamship Canada Ltd. 1055 West Hastings Street Vancouver, B.C., V6E 2E9 |
|
Registered owner |
Ocean Navigation Company Limited |
|
Latest data adjustment |
03 January 2016 |
